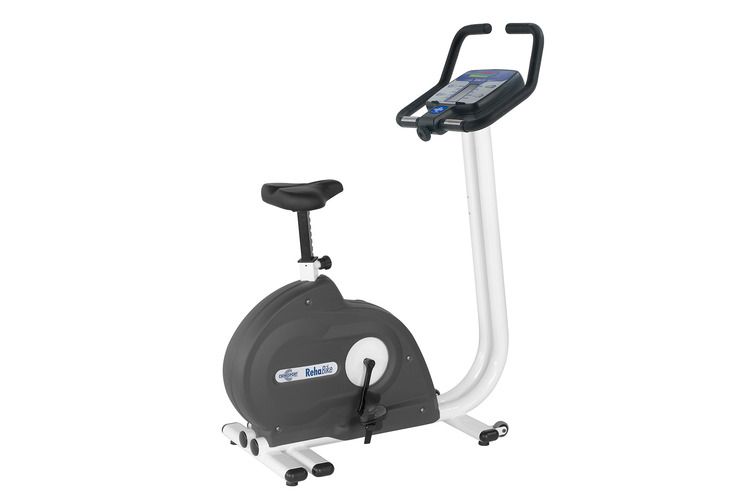

MAGNETIC VERTICAL BIKE 7409

X
R
U
0
5
3
Quantity:

Description

“Magnetica” range easy-to-use rehabilitation cycle ergometer, provided with a console to display and set the basic parameters.
It operates independently from the mains supply.

The display shows real-time information on pulse, rpm, time, distance and calories, and also allows for setting heart rate, workout time, distance in km and calories to burn.

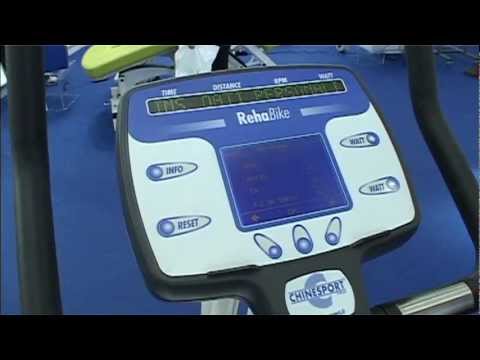

Console description

  • Key Reset, to cancel all values;
  • Key Sel, to set up the heartbeats, time and distance of exercise;
  • Keys +/-, to change the heartbeats, time and distance values of exercise;
  • The LCD graph display shows the heartbeats, RPM, time, distance and calories values.

Display data

  • Time (mm:ss)
  • Speed (RPM)
  • Distance (km)
  • Calories (Kcal)
  • Heart rate (BpM)
  • LCD display
Training
  • Manual
Accessories

Accessories

Adjustable Pedals

XRU006
Continuously adjustable pedal radius.
Ask for quotation

Adjustable Seat

XRU007
Adjustable seat.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
120 x 55 x 148 h cm
Weight:
80 kg
Console:
liquid crystal display
Resistance system:
magnetic
Pulse monitoring:
via palm sensors
Manually adjustable constant resistance:
40 ÷ 446 Watt
Max speed:
3 ÷ 130 rpm
Power supply (console):
3 1.5V batteries
Transmission:
belt driven
Hand grip recording:
yes
Tones:
audible when pressing keys
Seat minimum height from ground:
80 cm (90 cm with XRU007)
Safe working load:
180 kg
Transport wheels:
yes
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 135 x 75 x 185 h kg 76.5 mc 1.873125
Video

Video

RehaBike
Documents

Documents


User and maintenance manual

Manual
Document date: 09/10/2020
Language: Italian, English
DOWNLOAD
PDF 319.57 KB
Register to access the content

Declaration of comformity

Compliance statement
Document date: 01/10/2020
Language: Italian, English
DOWNLOAD
PDF 38.76 KB
Register to access the content
