MOVABLE ROTA

0
1
3
4
8
Discontinued

Description

The use of the ROTA device is intended for cooperative and normally intelligent patients, as is the case of adult patients with fractures or impingement syndrome. Brain-damaged patients with central lesions such as the hemiplegics can benefit from using this new device, though with significant restrictions (strengthening is not recommended, passive mobilisation not easy, while proprioceptive exercises are useful).

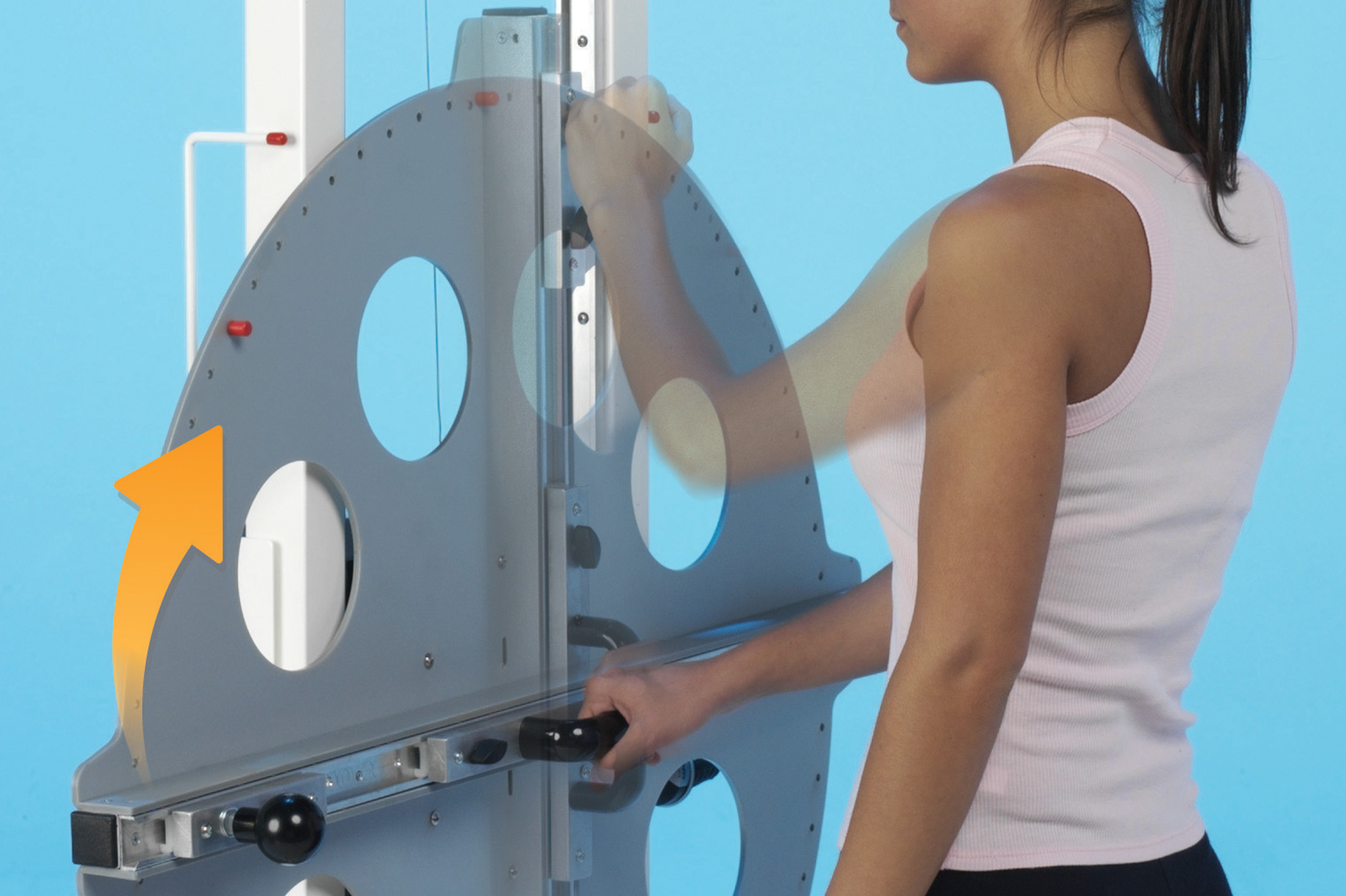

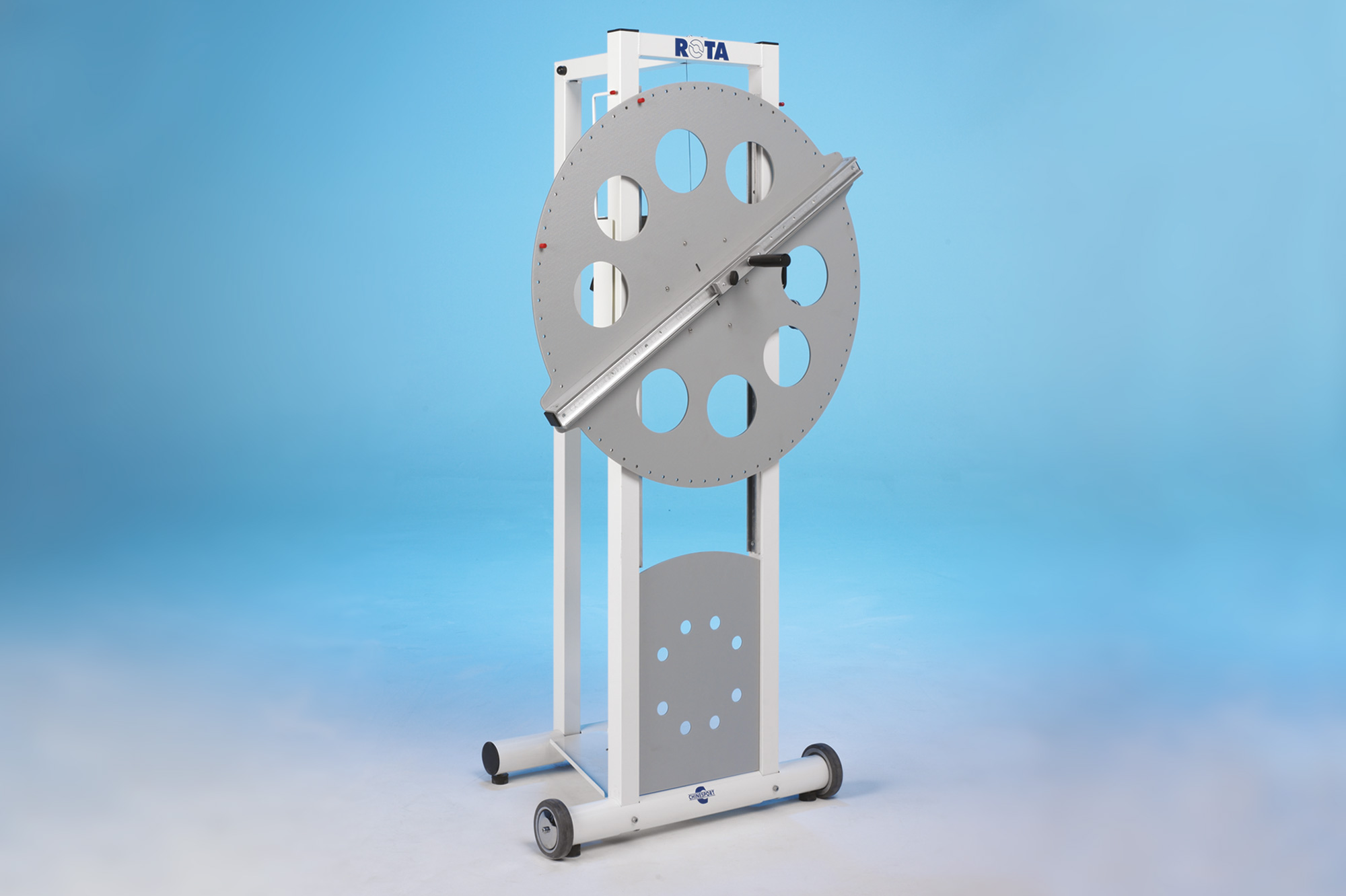

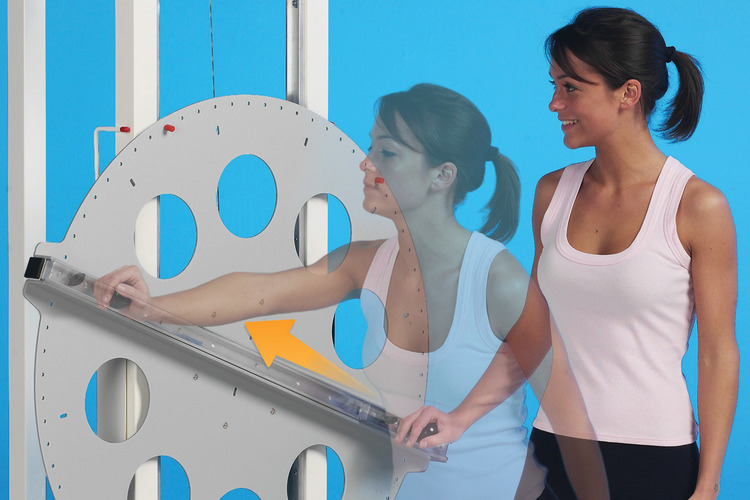

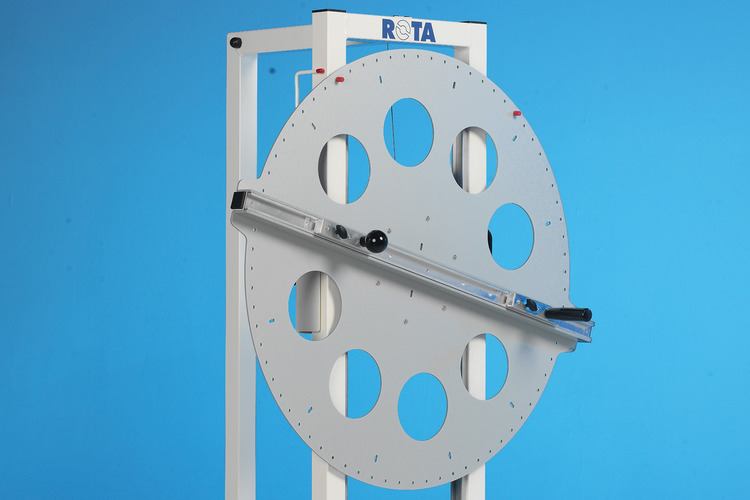

This version is mobile and featured by an height-adjustable wheel depending on patient's size or the exercise to perform. The device is fitted with 1) a handle, 2) a knob, 3) a forearm support, 4) counteweight, 5) elbow rest, 6) front grip handle that allow a wider range of exercises. Patients can work both sitting and standing, they can start their active exercises in free mode and then it can be gradually applied a resistance.

The wheel allows monitoring range of motion (ROM) recovery by providing quick and reliable assessment, based on comparison between previous and following measures. Being able to check the degree of joint motion reached in each repetition, the patient will feel motivated, encouraged and engaged in exercise.

This device enables the therapist to avoid the most repetitive work while the cooperative patient performs the activity in total safety.



IMPORTANT NOTICE

ROTA is provided with an exercises guide. The sequence and intensity of exercises are developed by the physiotherapist, who may use the exercises proposed here or conceive new ones. This device and the relevant accessories are very simple to use. In addition to this therapy manual, a series of demonstrative videos for the various exercises in proposal are available online at the official Chinesport website.

The exercise guide has been developed by Dr. Paolo Rispoli and is available in English or Italian language. It can be also be ordered separately. Please see at our online library section of the GPS Academy®.

Technical Spec.

Technical Spec.

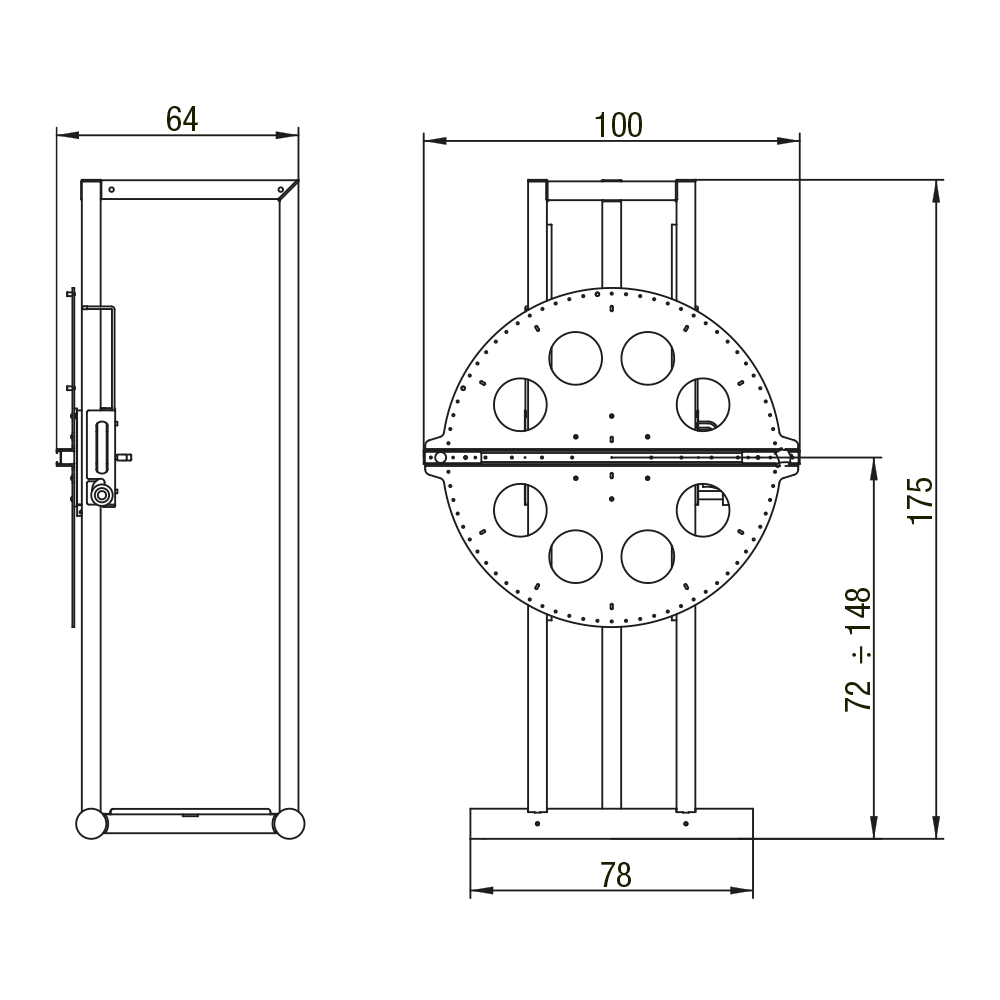

Overall dimensions
Width:
100 cm
Depth:
64 cm
Height:
175 h cm
Height adjustment
Type of adjustment:
manual
Range of adjustment:
72÷148 cm
Resistance
Type of adjustment:
manual;
Setting levels:
8
Resistance range:
0÷1.8 Nm
Monitoring
type of monitoring:
visual, indicators
setting range of motion:
manual
standard tools:
one handle, one knob
additional tools:
a forearm support, counteweight, elbow rest, front grip handle
Weight:
55 kg
Hardware:
included
Exercises manual:
included
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0200078

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 100 x 75 x 192 h kg 72 mc 1.44
Video

Video

Rota - Device introduction
The arm cycling exercise with Rota
The steering wheel exercise

Other videos

The shoulder cycling exercise
The level crossing
The level crossing in oblique position
Rota: the anterior windshield wiper exercise
The lateral windshield wiper exercise
The draining rack exercise - passive
Defense on an inclined plane
Thrust from below
The watching setting exercise
Proprioceptive exercise
