FRAME 4 L

A
R
1
1
0
1
1
Quantity:

Description

It’s a small frame to be fitted to the ceiling. It consists of coated metal elements with four adjustable angle brackets.
The grid is made from high-strength steel with scratch resistant plastic coating and its dimensions are 93.3 x 60.5 x 7.1 h cm. The angle brackets allow for adjusting the grid distance from the ceiling by 4 cm steps. This frame is intended for ceilings with height 250÷270 cm. The stated capacity depend on the wall elements strength. Dimensions: 113 x 84.5 x 30÷50 h cm; Weight: 26 kg.

Accessories

Accessories

"S"-Shaped Hook

07920
"S"-shaped hook used to configure exercises with tools that do not require a closed attachment ring
Ask for quotation

Handle 1

07930
Plastic handle with a chromed metal open ring for quick attachment.
Ask for quotation

Standard Pulley

07950
Basic element to be used in combination with snap hook to configure the exercises.
Ask for quotation

Pulicar Trolley

07955
Trolley( for the pulley therapy set of items, dimensions: 62 x 45 x 95 H cm
Ask for quotation

Handle 3

07970
Plastic handle with chromed metal construction and 5 30mm diameter attachment rings.
Ask for quotation

Nylon Rope 1 M, ø 6 Mm

07980
Blue Nylon rope, Ø 6 mm, sold by meter.
Ask for quotation

Nylon Rope 30 M, ø 6 Mm

07981
Set of 30 m long nylon rope, Ø 6 mm, color blue.
Ask for quotation

Traction Bag 0.5 Kg

08035
Synthetic leather traction bag, 0.5 kg.
Ask for quotation

Traction Bag 1 Kg

08045
Synthetic leather traction bag, 1 kg.
Ask for quotation

Traction Bag 2 Kg

08055
Synthetic leather traction bag, 2 kg.
Ask for quotation

Traction Bag 3 Kg

08065
Synthetic leather traction bag, 3 kg.
Ask for quotation

Traction Bag 4 Kg

08075
Synthetic leather traction bag, 4 kg.
Ask for quotation

Traction Bag 5 Kg

08085
Synthetic leather traction bag, 5 kg.
Ask for quotation

Rep Cord - 7.6 M - Green

31220
Elastic tubing for rehabilitation exercises, latex and odor free. Color: green Level: 3. Length: 7.6 m
Ask for quotation

Rep Cord - 30.5 M - Green

31300
Elastic tubing for rehabilitation exercises, latex and odor free. Color: green Level: 3 Length: 30.5 m.
Ask for quotation

Small Strap

AC0055
Padded strap with black synthetic leather upholstery, it provides support to lower/upper limbs. Dimensions: 44 x 12 x 1.5 cm
Ask for quotation

Medium Strap

AC0056
Padded strap with black synthetic leather upholstery, it provides support to lower/upper limbs or to keep the head suspended. Dimensions: 69 x 12 x 1.5 cm
Ask for quotation

Ankle Support 1

AC0059
Black leather padded ankle strap support for pulley therapy exercises (sold as single piece)
Ask for quotation

Wrist Support

AC0060
Padded strap with black synthetic leather lining and a chromed ring.
Ask for quotation

Set Of Bags Weights

AC0077
Set of n. 6 different weight bags with 35 mm diameter chromed attachment ring for the Archimedes Pulley Therapy System.
Ask for quotation

Snap Hook

AC0094
Basic multi-purpose element, used to safely link the grid / frame and the various pieces of equipment.
Ask for quotation

Plastic Clamps For Rep Cord

AC0292
This device allows for an elastic to be properly secured to the snap hooks or directly to the tool attachment ring.
Ask for quotation

Rope Stopper

AC0293
This item is useful to adjust the rope length depending on the exercise to perform.
Ask for quotation

Plus Pulley

AC0294
Basic element with snap hook included and possibility of rotation.
Ask for quotation

Large Strap

AC0295
Padded strap with black synthetic leather upholstery, as a support and lift for trunk/pelvis. Dimensions: 92 x 12 x 1.5 cm
Ask for quotation

Extra Large Strap

AC0296
Padded strap with black synthetic leather upholstery, as a support and lift for trunk/pelvis. Dimensions: 110 x 24 x 1.5 cm
Ask for quotation

Cervical Strap

AC0297
Strap recommended as a support and lift for the head and for traction exercises. Dimensions: Length 74 x 10 x 1.5 cm
Ask for quotation

Handle 2

AC0298
30 mm diameter handle with non-slip grip, with 35 mm diameter chromed attachment ring.
Ask for quotation

Hand-Wrist-Ankle Strap

AC0299
Strap indicated for use during suspension exercises or as ankle strap.
Ask for quotation

Foot Straps

AC0300
Padded foot straps with semi-rigid sole and three support areas - lower, back and top/front, they comfortably adapt to any foot shape.
Ask for quotation

Spacer

AC0301
This is a metal element that allows for the pulley to be separated from the grid while it is sliding.
Ask for quotation

Exercise Bar

AC0302
Coated tubular metal bar with 3 rings for attachment to a rope and other tools through a snap hook, depending on the exercise set up by the therapist.
Ask for quotation

Small Cylindrical Support

AC0303
Semi-rigid support with anti-bacterial and anti-mite synthetic leather lining, removable and easily disinfected, Recommended to support the knee when suspend...
Ask for quotation

Large Cylindrical Support

AC0304
Semi-rigid support with anti-bacterial and anti-mite synthetic leather lining, removable and easily disinfected, Recommended in dorsal spine mobilization exe...
Ask for quotation

Pelvic Harness - Large

AC0320
Recommended for lumbar self-traction exercises. Dimensions: 136 x 33 x 1.5 cm
Ask for quotation

Pelvic Harness - Small

AC0321
Padded harness, recommended for lumbar self-traction exercises. Dimensions: 112 x 32 x 1.5 cm
Ask for quotation

Spreader Bar

AC0323
Metal construction with three 1.2 cm diameter attachment rings for use with other tools by means of snap hooks.
Ask for quotation

Set Of Straps

AC0325
Set of 11 straps for the Archimedes pulley therapy system
Ask for quotation

Handles Set

AC0326
Set of 6 different type handles for exercises and applications for the Archimedes pulley therapy system.
Ask for quotation

Set Of Tools

AC0327
Set of 9 types of items useful for the Archimedes pulley therapy system.
Ask for quotation

Full Set

AC0328
Full set of tools required to set up the exercises with the Archimedes pulley therapy system.
Ask for quotation

Ankle Support 2

AC0576
Upholstered band with black imitation leather cover and 2 chromed rings.
Ask for quotation

Perforated Strap

AC0577
Upholstered band with imitation leather cover and 4 rings. Particularly suitable for supporting the neck. Can also be used as an ankle support.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions (total):
113 x 84.5 x 30÷50 h cm
Dimensions (grid):
93.3 x 60.5 x 7.1 h cm
Capacity:
100 kg
Weight:
26 kg
Ceiling height:
250÷270 cm
Gallery

Gallery

Logistics

Logistics

CDN Code:
V9099
Code Repertoire:
R1241096
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 13/04/2019
Language: Italian, English
DOWNLOAD
PDF 107.02 KB
Register to access the content

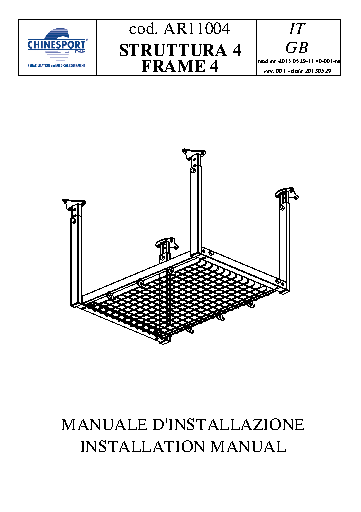

Assembly instructions

Installation
Document date: 29/05/2013
Language: Italian, English
DOWNLOAD
PDF 689.11 KB
Register to access the content

Manuale Istruzioni

Manual
Document date: 05/03/2013
Language: Italian
DOWNLOAD
PDF 1.83 MB
Register to access the content

User and Maintenance Manual

Manual
Document date: 05/03/2013
Language: English
DOWNLOAD
PDF 1.79 MB
Register to access the content
