Examination or treatment two sections table adjustable in height electrically or by means of a hydraulic piston. The power supply is from the mains, but you can also request customization with battery power. Sections width 68 cm.
The height adjustment function offers a great advantage in accessibility, and in particular when transferring to the table for elderly people or people with reduced mobility. In these cases it is no longer necessary to use risers or steps. The height adjustment can vary from a minimum of 47 to a maximum of 97 cm. In the case of electric height adjustment, it is possible to choose between different types of pedal or push button control. Alternatively, if the preference is for hydraulic adjustment, the piston is activated by a double pedal arranged on both long sides of the table.
The painted metal structure is sturdy, stable, silent in movement, with all the rotating points sliding on self-lubricating bushings. The system of "half-moon levers" during height adjustment shows a structure with essential curves and an original design. It is therefore subject to protection as an ornamental model at European level. The base frame allows lateral accessibility with a mobile lift or electro-medical trolley.
It is made up of two padded sections with anti-microbial, anti-bacterial, and fire-resistant leatherette cover. The sections are fixed to the frame by means of bushings that guarantee extreme stability, even in the event of stress during manipulations, and an easy replacement in case of renewal over the years. The standard thickness of the padding is 40 mm, but it can be higher on request. The width of the segments is 68 cm for a total length of 195 cm. The leatherette processing can be done with seamless rounded edges, or with a side band that makes the padded segments softer and more comfortable for the person. It is possible to choose from 24 upholstery colors from the standard series called Giotto.
Head section adjustment

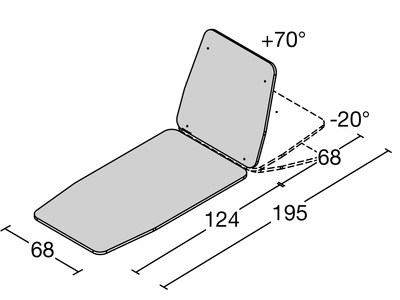

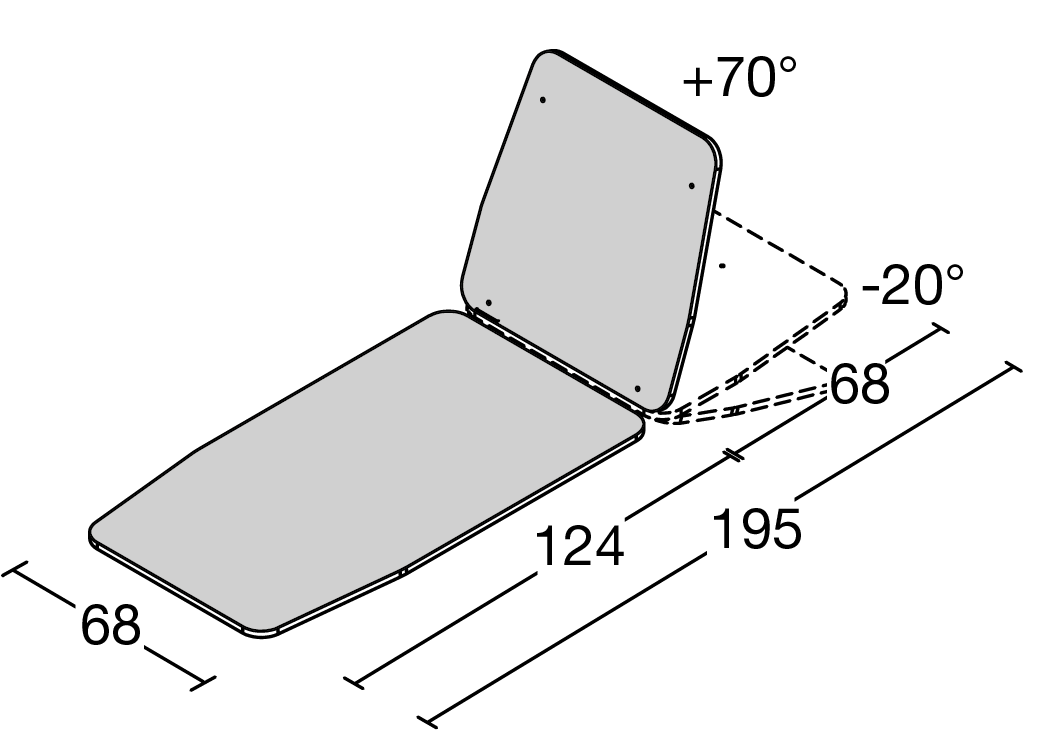

The head section is adjustable in positive (+70°) and negative (-20°) by means of a gas spring assisted system and ergonomic handle. Its length is 68 cm, and it can be used as a backrest to allow the patient to stay even in a sitting position.
Although this model is not equipped with a mouth/nose hole, an alternative version of this model with a standard breathing hole is available for the head section if it is of interest to use the table with the patient also in the prone position. The belonging padded plug is therefore supplied as standard. In case of interest, we invite you to view the alternative model.
In addition, a heating function of the padded segments can be applied for this model. Heating can contribute to greater comfort and muscle relaxation of the person during the examination or treatment on the table. This function can be recommended for colder periods and for older people. Regulation at two different temperatures is provided. The warm-up associated with massage and stretching on the table can also promote better results in the recovery of joint mobility and muscle strength of the lower limbs.
Wheels with central braking system
This professional table can also be equipped with 65 mm retractable non-marking wheels for easy movement without patient in charge. The table can then be locked by means of a pedal system that activates / deactivates the wheels in centralized mode.
Safe working load
This height-adjustable table can be configured with an electric actuator for a safe working load of up to 200 kg or up to 250 kg. In the hypothesis of the hydraulic version, however, the safe workload is only up to 200 kg.
