EVO UNIX 2

Configurable Product
L
C
1
2
2
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

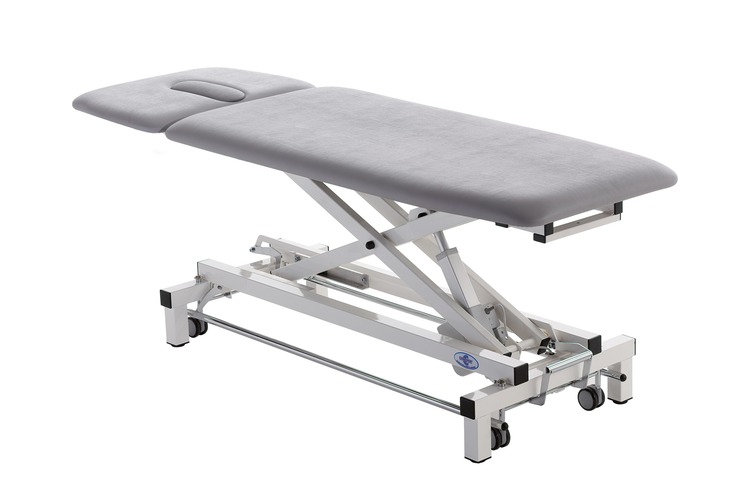

Professional couch for examination and therapy, suitable for restricted or small spaces due to the absence of lateral movement; stable and strong with the highest capacity in its category. Head section  52 cm cm long and adjustable from -35° to +85° by gas spring, fitted with breathing hole, with standard plug. Electrical couch height adjustment from 50 to 97 cm by means of pneumatic foot switch or foot rail, or hydraulically.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Rpg Bar For Couch

AC0021
Height adjustable overhead bar, with rope and ankle straps. This bar can also be used for exercises from the Global Postural Re-education method
Ask for quotation

Wall-Mounted Bar

AC0022
Wall-mounted bar, height adjustable, with rope and ankle straps. Ideal for the apllication of the Global Posture Rehablitation method.
Ask for quotation

Paper Roll Holder F

AC0031
Paper roll holder adjustable to a variety of roll widths. Recommended for use with paper rolls from set AC0034.
Ask for quotation

Standard Paper Roll Set

AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Maxi Paper Roll Set

AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Ask for quotation

Protective Sheet Set

AC0036
This set contains 10 synthetic fabric sheets with elasticated border. This sheet can be used on any examination and treatment table with standard size/width.
Ask for quotation

Paper Roll Holder H

AC0699
Head end metal support with adjustable width, similar to AC0031. Available for 2015 therapy tables only.
Ask for quotation

Protection Mattress 150

AC1202
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for covering the legs and trunk sect...
Ask for quotation

Protection Mattress 205

AC1203
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for fully covering the sections of t...
Ask for quotation

Thermo-Regulating Cover 150

AC1204
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation

Thermo-Regulating Cover 205

AC1205
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
2
Max safety load (kg):
250 - (200 for the hydraulic version)
Height adjustment:
Electric/hydraulic
Min / max table height (cm):
50-97
Mains supply:
230 V 50/60 Hz 2A
Actuator thrust (N):
8000
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Head section tilt:
+85° -35°
Wheels diameter (mm):
65
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness (mm):
40
Density (kg/m³):
30
Weight (kg):
85
Gallery

Gallery

Logistics

Logistics

CDN Code:
V0801
Code Repertoire:
R0661172
Video

Video

Unix Line
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 06/09/2019
Language: Italian, English
DOWNLOAD
PDF 120.47 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 06/09/2019
Language: English
DOWNLOAD
PDF 431.42 KB
Register to access the content

Manuale Istruzioni

Manual
Document date: 06/09/2019
Language: Italian
DOWNLOAD
PDF 441.39 KB
Register to access the content
