You are here: Home > Professional Tables > Sinthesi Line > Sinthesi Plus Split Lux
See similar products
Request information

SINTHESI PLUS SPLIT LUX

Configurable Product
L
S
3
5
3
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

Two-motor examination, manipulation and treatment table,electric height adjustment by means of a foot rail or a low voltage (24 V) foot switch for 1 motor or for 2 motors.



The couch has six movable sections, with split leg section. The trunk section can be adjusted electrically; the other section can be adjusted by means of a servo-system with one or more gas springs. The motor-driven adjustment requires no effort by the operator to adjust the trunk section while the patient undergoes a treatment.



The head section is equipped with an elongated breathing hole for a higher comfort of the operator and the patient, the plug is standard. It is also equipped with two arm supports which can be adjusted separately and be pulled out easily if necessary. A wide range of possible positions in flexion/extension, symmetrical or asymmetrical.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Auxiliary Battery
AC0017
Auxiliary battery enables the table to be used without power supply. The battery comes with a support so it can be secured to the frame base.
Ask for quotation

Wall-Mounted Bar
AC0022
Wall-mounted bar, height adjustable, with rope and ankle straps. Ideal for the apllication of the Global Posture Rehablitation method.
Ask for quotation

Paper Roll Holder G
AC0032
A metal support that is attached to the foot end of the couch base. It allows for the paper roll to be placed vertically if required.
Ask for quotation

Standard Paper Roll Set
AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Additional Foot Pedal 1
AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Foot Pedal 2
AC0038
The additional foot pedal provides another way to control the table height adjustment, as well as the motorized sections.
Ask for quotation

Additional Hand Control 1
AC0039
This additional hand control fits for therapy tables with a single eletric actuator.
Ask for quotation

Additional Hand Control For 2 Motor
AC0040
Additional hand control for models fitted with 2 motors. Provides the table height adjustment as well as the motorized sections adjustment. It has a magnet s...
Ask for quotation

Additional Control 1
AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Safety Device
AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Protective Sheet Set
AC0784
This set contains 10 synthetic fabric sheets with elasticated border. For Sinthesi therapy tables.
Ask for quotation

Foot Switch Holder
AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation

Protection Mattress 150
AC1202
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for covering the legs and trunk sect...
Ask for quotation

Protection Mattress 205
AC1203
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for fully covering the sections of t...
Ask for quotation

Thermo-Regulating Cover 150
AC1204
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation

Thermo-Regulating Cover 205
AC1205
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation

Breathing Hole Plug
AC1229
Luxury hole plug to be used in place of the cushion pad. Dimensions: Ø 27 x 4 h cm.
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
6
Max safety load (kg):
180
Height adjustment:
Electric
Minimum/maximum table height (cm):
48-100
Mains supply:
220V 50/60Hz - 24V 70VA
Actuator thrust (N):
6000
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Backrest adjustment:
Electric

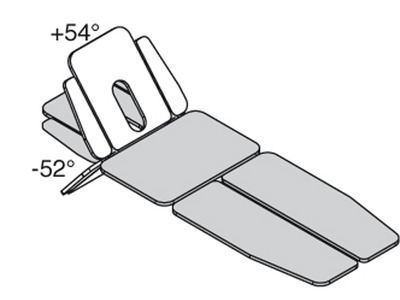

Head section tilt:
+54° -52°
Wheels diameter (mm):
65
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness (mm):
40
Density (kg/m³):
30
Weight (kg):
97
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Sinthesi

DICO - EU declaration of conformity
Document date: 27/07/2023
Language: Italian
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Sinthesi

DICO - EU declaration of conformity
Document date: 27/07/2023
Language: English
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Stol za preglede i terapijski

IFU - Instruction of use
Document date: 09/12/2022
Language: Croatian
Version: 1.1.3
DOWNLOAD
PDF 1.76 MB

Visit and treatment tables

IFU - Instruction of use
Document date: 09/12/2022
Language: English
Version: 6.0.1.0
DOWNLOAD
PDF 4.34 MB
Register to access the content

Lettini da visita e trattamento

IFU - Instruction of use
Document date: 09/12/2022
Language: Italian
Version: 6.0.1.0
DOWNLOAD
PDF 4.37 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 138.19 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 06/04/2020
Language: Italian, English
Version: V 2.0

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 1.52 MB
Register to access the content
