You are here: Home > Professional Tables > Bobath Line > Bobath S Ric Trend 120
See similar products
Request information

BOBATH S RIC TREND 120

Configurable Product
L
B
4
7
2
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

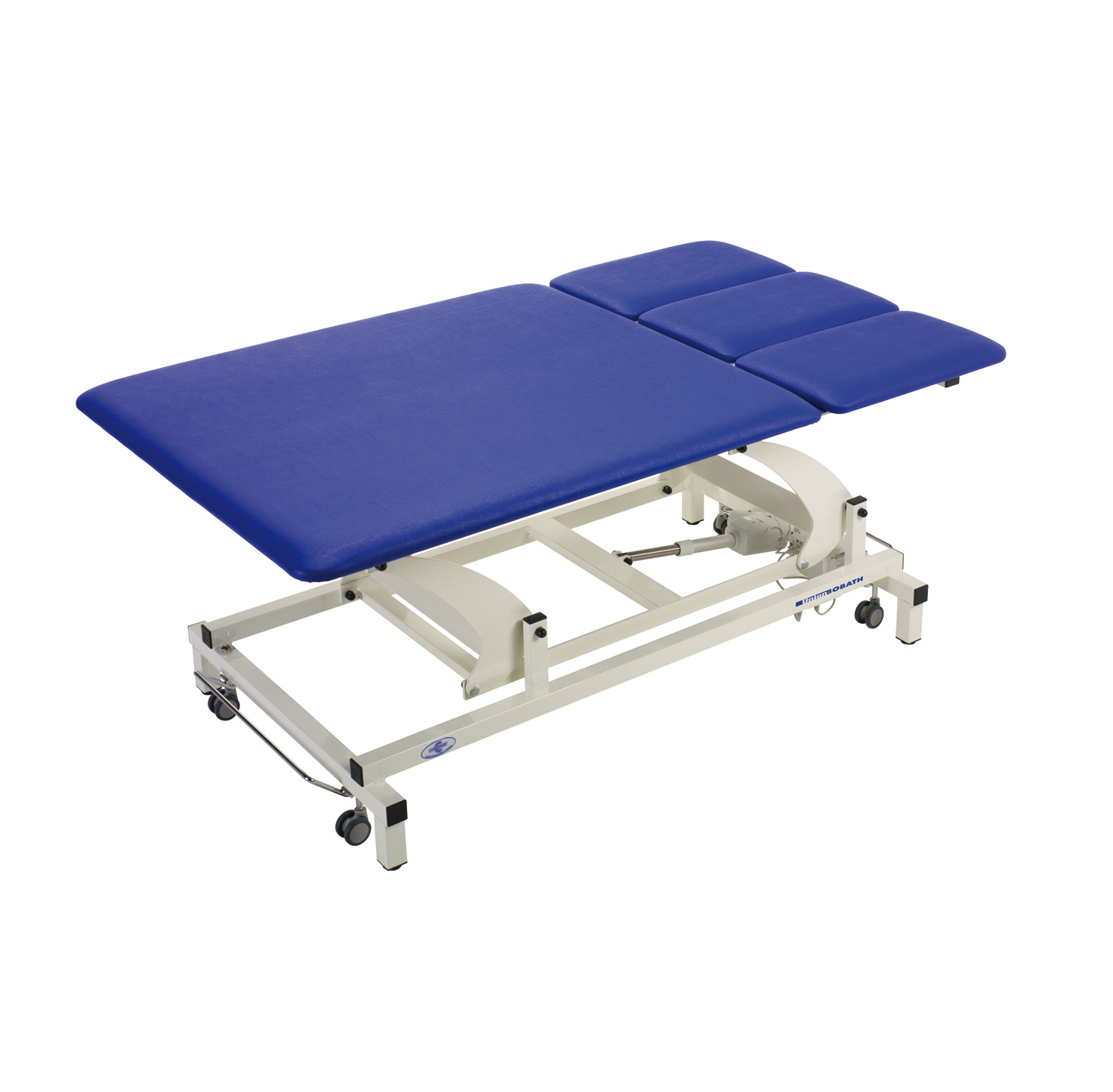

Large size professional table, designed for the Continued Intensive Rehabilitation method. The couch has two 120 cm wide sections. The head section consists of three sectors: a gas spring assisted adjustment allows tilting the mid sector up to 90° in a positive direction. Possible positions: Trendelenburg by means of motor unit. Electrically height adjustable by means of a low voltage (24V) foot switch.



The Continued Intensive Rehabilitation (R.I.C.) is a motor rehabilitation method that targets those individuals who are affected by neurological pathologies, and in particular those who are neurologically or motor impaired, amd those who suffer from the outcomes of infantile cerebral palsy (I.C.P.) and cerebra hemorrhage.



Want to know more? Visit our dedicated R.I.C programme section

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Bobath Side Padding
AC1321
Padded cover in synthetic leather that prevents the patient from any direct contact with the painted metal side rail. Easily applied or removed by Velcro sys...
Ask for quotation

Maxi Paper Roll Set
AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Ask for quotation

Additional Foot Pedal 1
AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Foot Pedal 2
AC0038
The additional foot pedal provides another way to control the table height adjustment, as well as the motorized sections.
Ask for quotation

Additional Hand Control 1
AC0039
This additional hand control fits for therapy tables with a single eletric actuator.
Ask for quotation

Additional Hand Control For 2 Motor
AC0040
Additional hand control for models fitted with 2 motors. Provides the table height adjustment as well as the motorized sections adjustment. It has a magnet s...
Ask for quotation

Additional Control 1
AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Safety Device
AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Foot Switch Holder
AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
4
Max safety load:
250 kg
Height adjustment:
Electric
Min / max table height:
47-97 cm
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust:
10000 N
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Head section tilt:
90°
Wheels diameter:
65 mm
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness:
4 cm
Density:
30 kg/m³
Weight:
108 kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0389773
Video

Video

Bobath tables
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Lettini per trattamenti

DICO - EU declaration of conformity
Document date: 16/07/2023
Language: Italian
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Treatment tables

DICO - EU declaration of conformity
Document date: 16/07/2023
Language: English
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Treatment tables

IFU - Instruction of use
Document date: 09/12/2022
Language: English
Version: 1.2.7
DOWNLOAD
PDF 4.19 MB
Register to access the content

Marquesas de tratamento

IFU - Instruction of use
Document date: 09/12/2022
Language: Portuguese
Version: 1.2.7
DOWNLOAD
PDF 4.22 MB
Register to access the content

BehandlingsbÄnkar

IFU - Instruction of use
Document date: 09/12/2022
Language: Swedish
Version: 1.2.7
DOWNLOAD
PDF 4.19 MB
Register to access the content

Lettini per trattamenti

IFU - Instruction of use
Document date: 09/12/2022
Language: Italian
Version: 1.2.7
DOWNLOAD
PDF 4.2 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 132.96 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 01/05/2016
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.24 MB
Register to access the content

Mode d'emploi

Manual - past Edition
Document date: 19/08/2013
Language: French
Version: V 1.0
DOWNLOAD
PDF 795.8 KB
Register to access the content

Manual de instrucciones

Manual - past Edition
Document date: 14/09/2010
Language: Spanish
Version: V 1.0
DOWNLOAD
PDF 551.45 KB
Register to access the content
