BOBATH S T120

Configurable Product
L
B
4
2
2
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

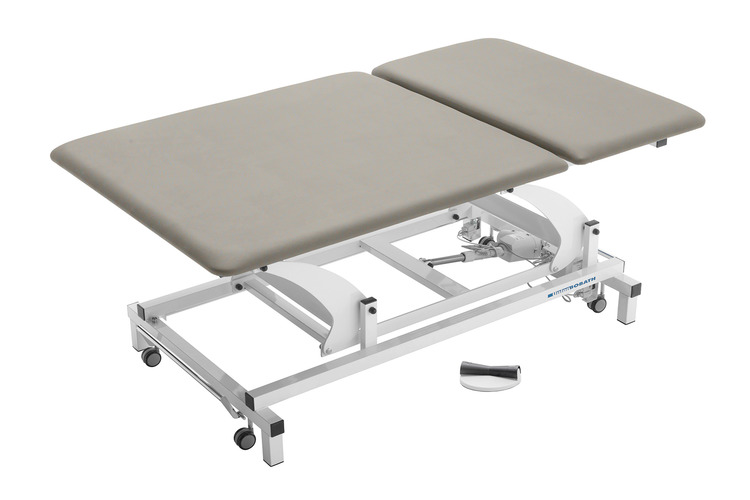

Large size professional table, ideal for Bobath therapy procedures (Reflex Inhibiting Postures). The couch has two 120 cm wide sections. The head section with a gas spring assisted adjustment allows tilting up to 90° in a positive direction. Electrically height adjustable by means of a low voltage (24V) foot switch.

Safe working load: 250 kg Electric / 150 Hydraulic

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Maxi Paper Roll Set

AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Ask for quotation

Additional Foot Pedal 1

AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Hand Control 1

AC0039
Additional hand control for models fitted with single motor. Provides the table height adjustment. It has a magnet so it can be easily attached to the table ...
Ask for quotation

Additional Control 1

AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Foot Switch Holder

AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
2
Max safety load (kg):
(kg) 250 Electric / 150 Hydraulic
Height adjustment:
Electric / Hydraulic
Min / max table height (cm):
47-97
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust (N):
10000
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Head section tilt:
75°
Wheels diameter (mm):
65
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness (mm):
30
Density (kg/m³):
30
Weight (kg):
103
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0389765
Video

Video

Bobath tables
Therapy tables - How to order
Documents

Documents


User and Maintenance Manual

Manual
Document date: 01/05/2016
Language: Italian, English
DOWNLOAD
PDF 1.24 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 16/09/2014
Language: Italian, English
DOWNLOAD
PDF 178.87 KB
Register to access the content

Mode d'emploi

Manual
Document date: 19/08/2013
Language: French
DOWNLOAD
PDF 795.8 KB
Register to access the content
