BOBATH SD 120

Configurable Product
L
B
4
1
2
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

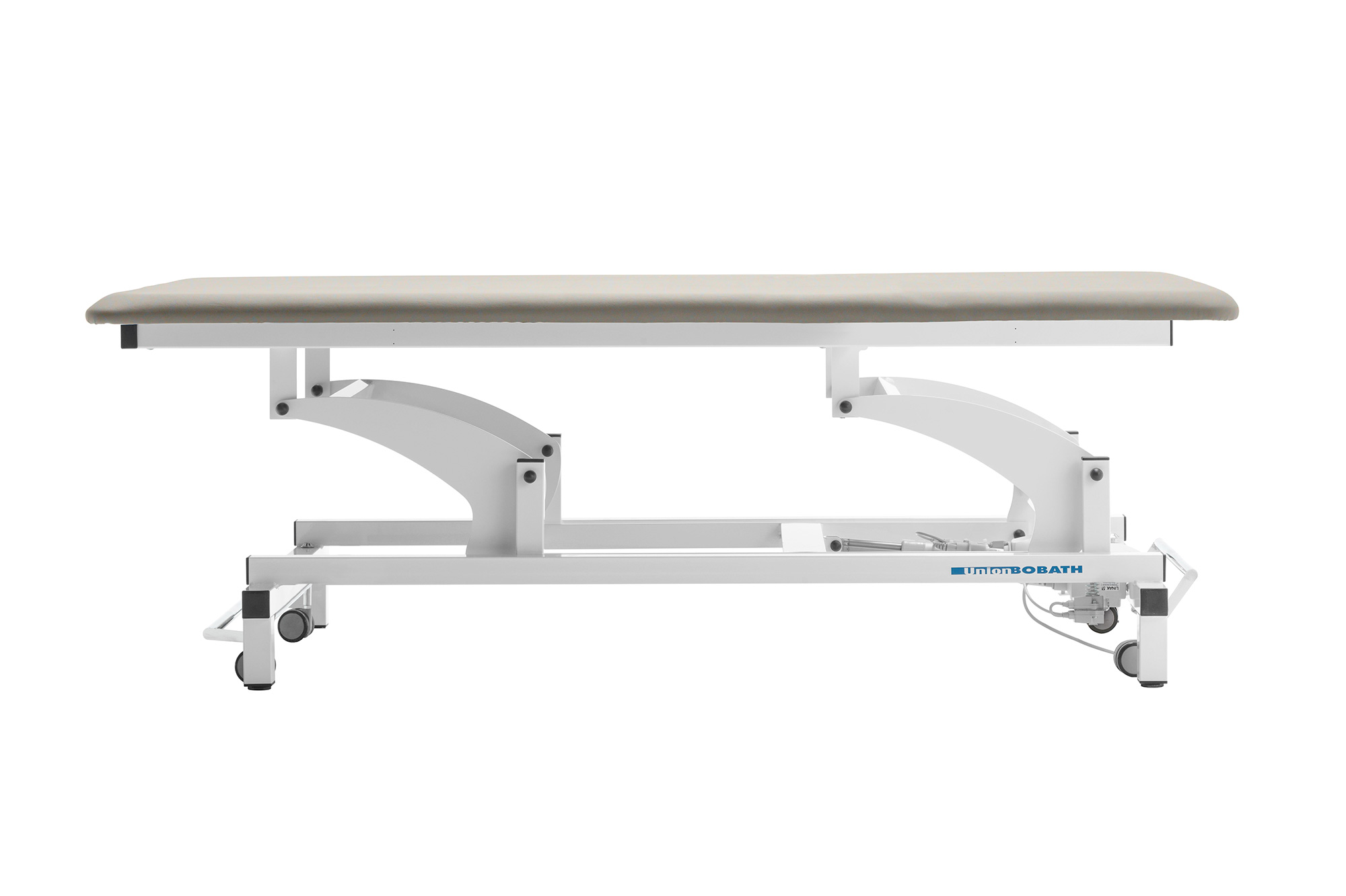

Large size professional table, ideal for Bobath therapy procedures (Reflex Inhibiting Postures). One single section couch, 120 cm wide. Electrically height adjustable by means of a low voltage (24V) foot switch or by hydraulic way.

Safe working load 250 kg electric or 150 kg hydraulic.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Bobath Side Padding

AC1321
Padded cover in synthetic leather that prevents the patient from any direct contact with the painted metal side rail. Easily applied or removed by Velcro sys...
Ask for quotation

Bobath Paper Roll Holder

AC1302
It is a painted metal support applicable to the end of the leg / trunk section.
Ask for quotation

Maxi Paper Roll Set

AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Ask for quotation

Additional Foot Pedal 1

AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Hand Control 1

AC0039
This additional hand control fits for therapy tables with a single eletric actuator.
Ask for quotation

Additional Control 1

AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Foot Switch Holder

AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
1
Max safety load:
250 kg electric - 150 kg hydraulic
Height adjustment:
Electric / Hydraulic
Min / max table height:
47-97 cm
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust:
10000 N
IP Protection:
54
Wheels diameter:
65 mm
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness:
4 cm
Density:
30 kg/m³
Weight:
98 kg
