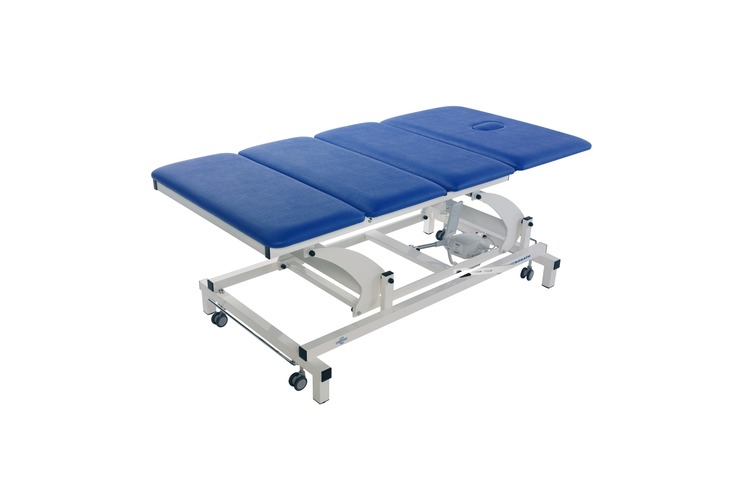

BOBATH FLEX 100

Configurable Product
L
B
3
5
1
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

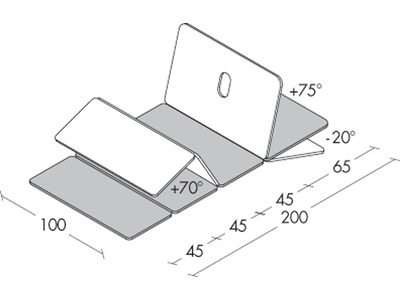

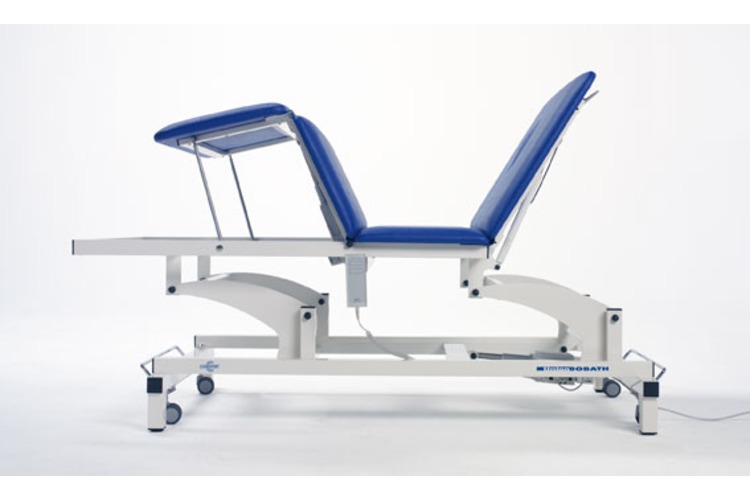

Large size professional table, ideal for Bobath therapy procedures (Reflex Inhibiting Postures). The couch has three movable sections. Positive and negative head section tilt angles -20° to +75°, adjustment by two gs springs. The head section comes with a breathing hole and plug. The leg section consists of two segments that can be adjusted by using a second motor to reach the "legs flexes" position. Electrically height adjustable by means of a low voltage (24V) hand control for 2 motors.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Bobath Paper Roll Holder

AC1302
It is a painted metal support applicable to the end of the leg / trunk section.
Ask for quotation

Maxi Paper Roll Set

AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Ask for quotation

Additional Foot Pedal 1

AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Foot Pedal 2

AC0038
The additional foot pedal provides another way to control the table height adjustment, as well as the motorized sections.
Ask for quotation

Additional Hand Control 1

AC0039
This additional hand control fits for therapy tables with a single eletric actuator.
Ask for quotation

Additional Hand Control For 2 Motor

AC0040
Additional hand control for models fitted with 2 motors. Provides the table height adjustment as well as the motorized sections adjustment. It has a magnet s...
Ask for quotation

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Foot Switch Holder

AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
4
Max safety load:
150 kg
Height adjustment:
Electric
Min / max table height:
47-97 cm
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust:
6000 N
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Head section tilt:
-20° +75°
Wheels diameter:
65 mm
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness:
4 cm
Density:
30 kg/m³
Weight:
93 kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0389733
Video

Video

Bobath tables
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Lettini per trattamenti

DICO - EU declaration of conformity
Document date: 16/07/2023
Language: Italian
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Treatment tables

DICO - EU declaration of conformity
Document date: 16/07/2023
Language: English
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Treatment tables

IFU - Instruction of use
Document date: 09/12/2022
Language: English
Version: 1.2.7
DOWNLOAD
PDF 4.19 MB
Register to access the content

Marquesas de tratamento

IFU - Instruction of use
Document date: 09/12/2022
Language: Portuguese
Version: 1.2.7
DOWNLOAD
PDF 4.22 MB
Register to access the content

BehandlingsbÄnkar

IFU - Instruction of use
Document date: 09/12/2022
Language: Swedish
Version: 1.2.7
DOWNLOAD
PDF 4.19 MB
Register to access the content

Lettini per trattamenti

IFU - Instruction of use
Document date: 09/12/2022
Language: Italian
Version: 1.2.7
DOWNLOAD
PDF 4.2 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 132.96 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 01/05/2016
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.24 MB
Register to access the content

Bedienungsanleitung

Manual - past Edition
Document date: 01/04/2016
Language: German
Version: V 1.0
DOWNLOAD
PDF 826.71 KB
Register to access the content

Mode d'emploi

Manual - past Edition
Document date: 19/08/2013
Language: French
Version: V 1.0
DOWNLOAD
PDF 795.8 KB
Register to access the content
