You are here: Home > Professional Tables > Basic Wooden Couches > Vojta 3r
See similar products
Request information

VOJTA 3R

Configurable Product
0
2
9
8
9
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

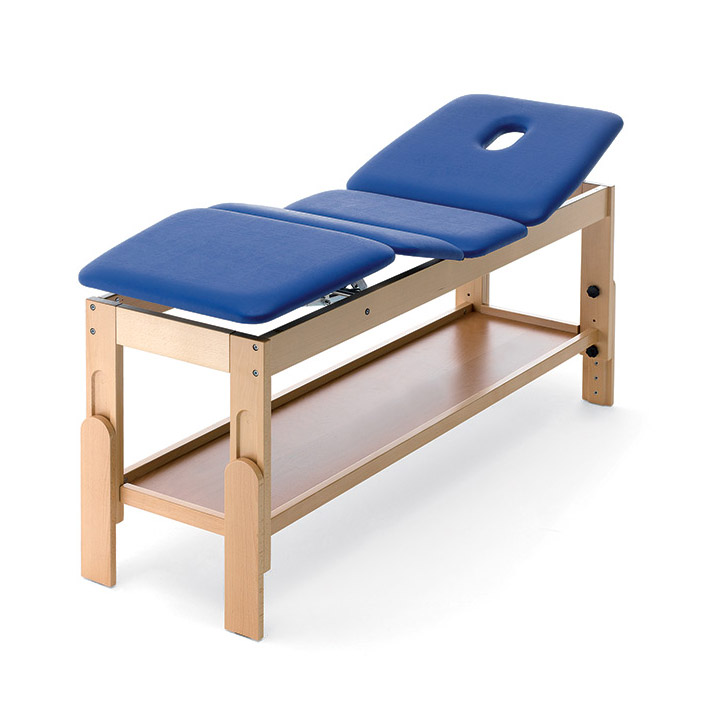

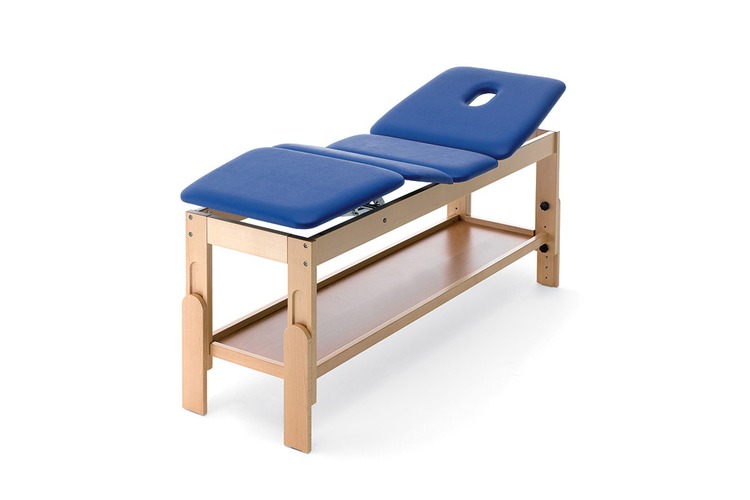

An examination and treatment table with four sections and variable height 63 ÷ 87 cm. The standard section width is 68 cm, while the mobile sections can be adjusted manually. The couch comes with a large and useful storage shelf. The head section in this model has a nose/mouth breathing hole. The belonging padded plug is therefore supplied as standard in the same upholstery color as the table.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Headrest
12269
Adjustable cervical head-rest.
Ask for quotation

Arm Shelf
12270
Arm shelf. Conceived for unloading the arms. Must be paired with head-rest cushion, code 12269.
Ask for quotation

Paper Roll Holder F
AC0031
Paper roll holder adjustable to a variety of roll widths. Recommended for use with paper rolls from set AC0034.
Ask for quotation

Standard Paper Roll Set
AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Protective Sheet Set
AC0036
This set contains 10 synthetic fabric sheets with elasticated border. This sheet can be used on any examination and treatment table with standard size/width.
Ask for quotation

Step Plate 1
XP851
Chrome-plated steel tube construction. Single tier step, plastic surface.
Ask for quotation

Step Plate 2
XP852
Chrome-plated steel tube construction. Double tier step, plastic surface.
Ask for quotation

Paper Roll Holder
Y740
Mobile paper roll holder.
Ask for quotation
Technical Spec.

Technical Spec.

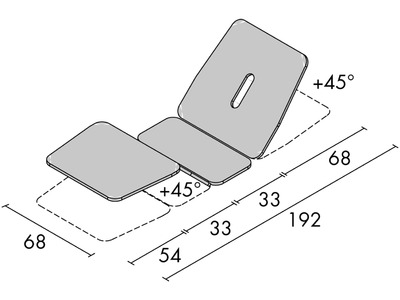

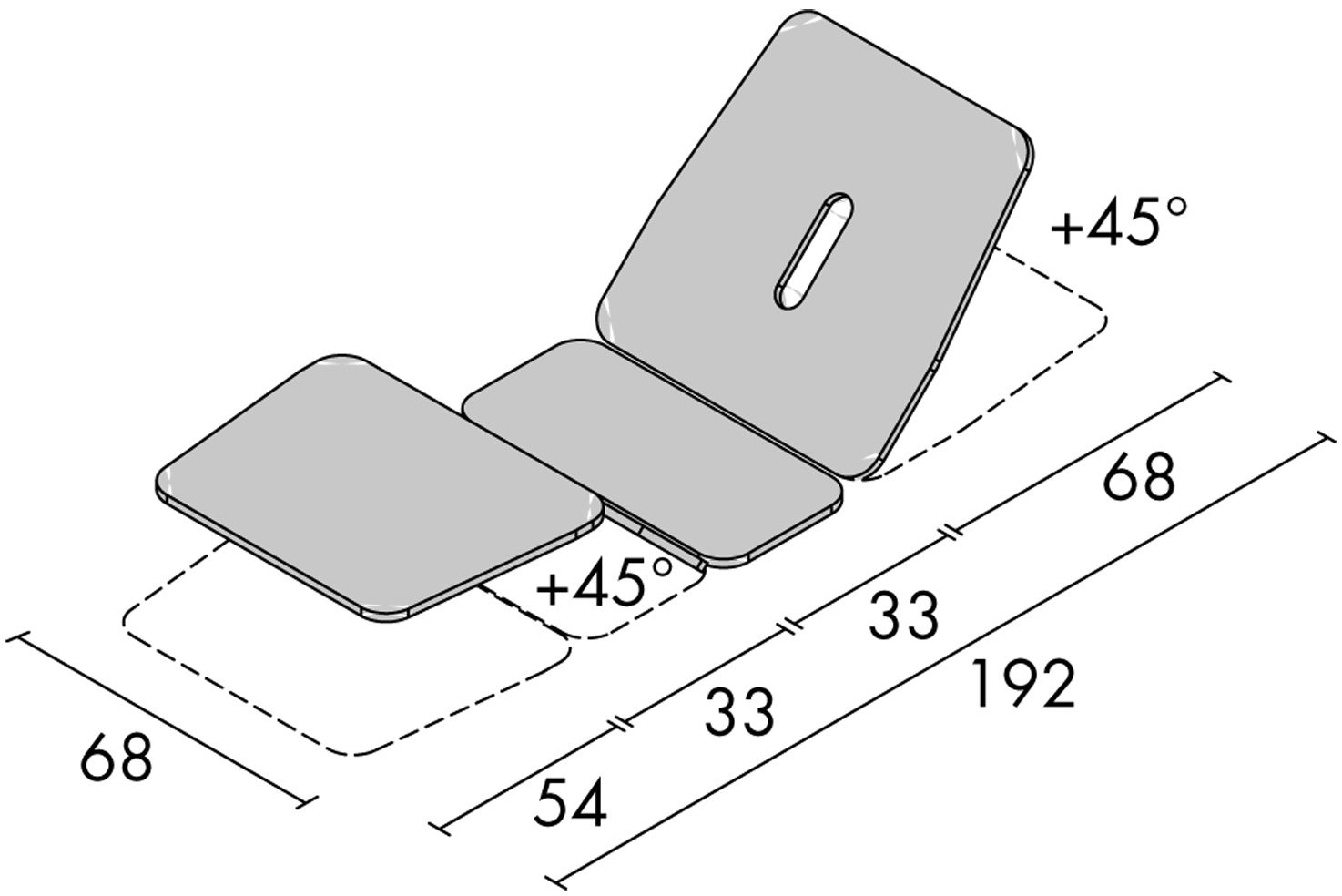

Dimensions:
192 x 68 cm
Variable height:
63 ÷ 87 cm
Section width:
68 cm
Weight:
52 kg
Safe working load:
200 kg
No. of adjustable tops:
3
Gallery

Gallery

Logistics

Logistics

CDN Code:
V0801
Code Repertoire:
R1239940
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Basic wooden tables - vojta

DICO - EU declaration of conformity
Document date: 06/12/2023
Language: English
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB

Lettini di base in legno - vojta

DICO - EU declaration of conformity
Document date: 06/12/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB

Basic wooden tables

IFU - Instruction of use
Document date: 18/10/2023
Language: English
Version: 1.0.1
DOWNLOAD
PDF 6.47 MB

Lettini di base in legno

IFU - Instruction of use
Document date: 18/10/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 6.47 MB

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 1.1
DOWNLOAD
PDF 119.79 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 01/08/2016
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 883.61 KB
Register to access the content
