You are here: Home > Professional Tables > Basic Metal Couches > Serena - Head Sect. / Gas Spring
See similar products
Request information

SERENA - HEAD SECT. / GAS SPRING

Configurable Product
L
Z
2
1
3
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

This two-section examination table with a scissor frame is height-adjustable by hydraulic piston or an electric actuator with push-button control. The padded segments have no translation movement during height adjustment.

The head section is positively adjustable up to +45° by means of a gas spring and lever control. Another similar model provides the possibility of adjusting the head section with a manual pulling up system.

The padded segments can have rounded edges or a band. This option can be chosen during the purchase phase. Finally, it is possible to configure this table with a set of wheels for short transfers with a centralized brake system.

_________

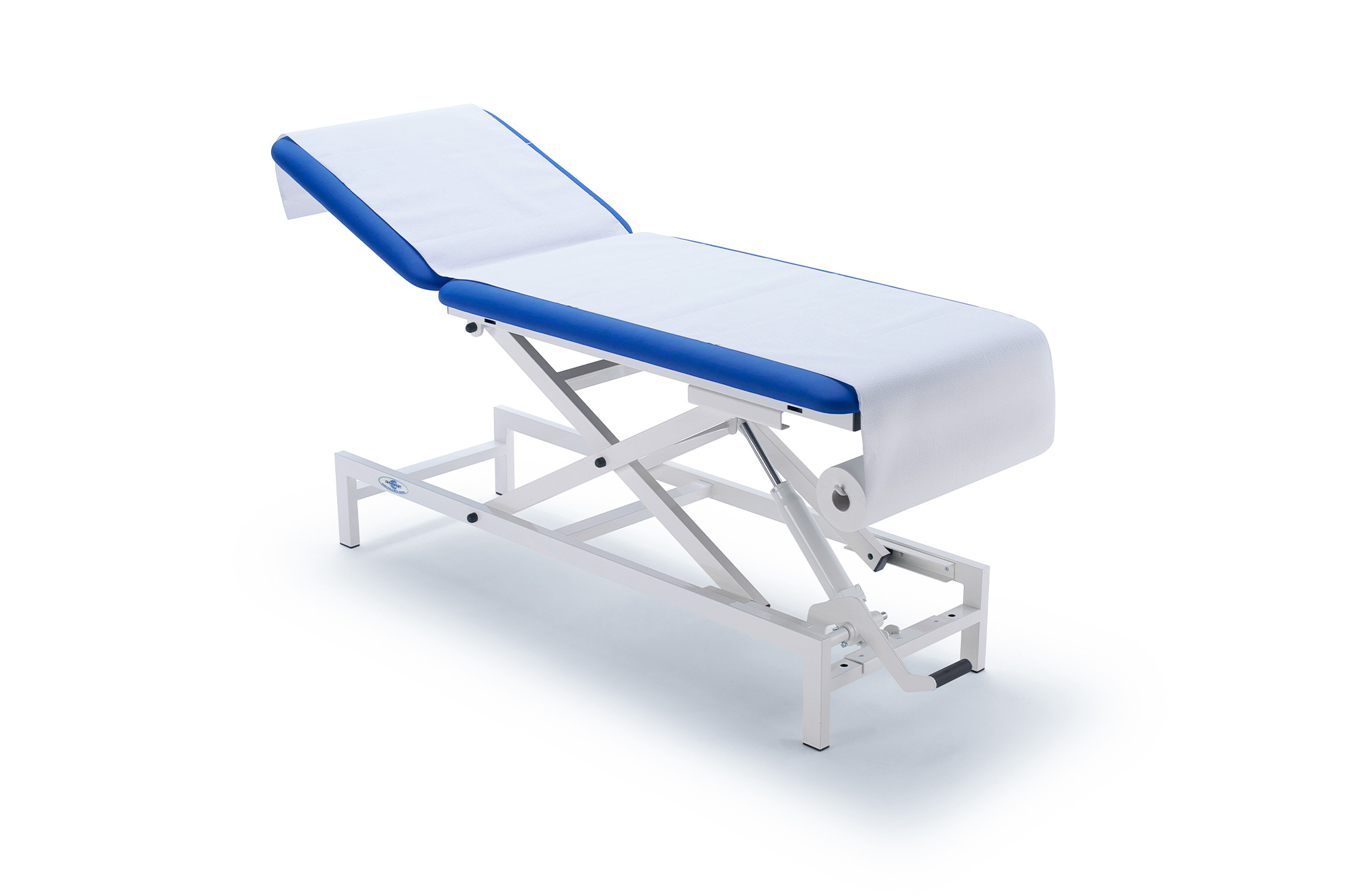

Note:  configuration model shown in the picture corresponds to code LV213C1W3.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Technical Spec.

Technical Spec.

Overall dimensions:
193 x 70 x 4 h cm
Number of sections:
2
Safe working load (SWL):
200 kg
Capacity:
180 kg
Height adjustment:
Electric
Min/Max table height:
56 ÷ 92 cm
Mains supply:
100-240V, 50-60Hz, Max 145VA
IP Protection:
66
Head section adjustment:
Manual
Head section tilt:
+45° with hydraulic piston
Wheels diameter:
6.5 cm
Upholstery safety rating:
1 IM
Padding thickness:
4 cm
Density:
30 kg/m³
Weight:
50 kg
Total weight including SWL working load:
250 kg
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Nevio - serena

DICO - EU declaration of conformity
Document date: 26/07/2023
Language: English
Version: 1.1.1
DOWNLOAD
PDF 1.51 MB
Register to access the content

Nevio - serena

DICO - EU declaration of conformity
Document date: 26/07/2023
Language: Italian
Version: 1.1.1
DOWNLOAD
PDF 1.5 MB
Register to access the content

Visit tables

IFU - Instruction of use
Document date: 09/12/2022
Language: English
Version: 1.2.1
DOWNLOAD
PDF 3.85 MB
Register to access the content

Lettini da visita

IFU - Instruction of use
Document date: 09/12/2022
Language: Italian
Version: 1.2.1
DOWNLOAD
PDF 3.85 MB
Register to access the content
