MINITOP 1

Configurable Product
L
V
E
1
1
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

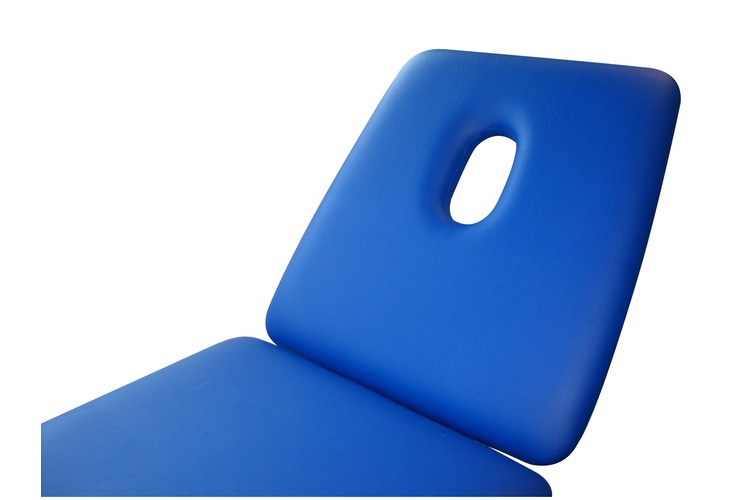

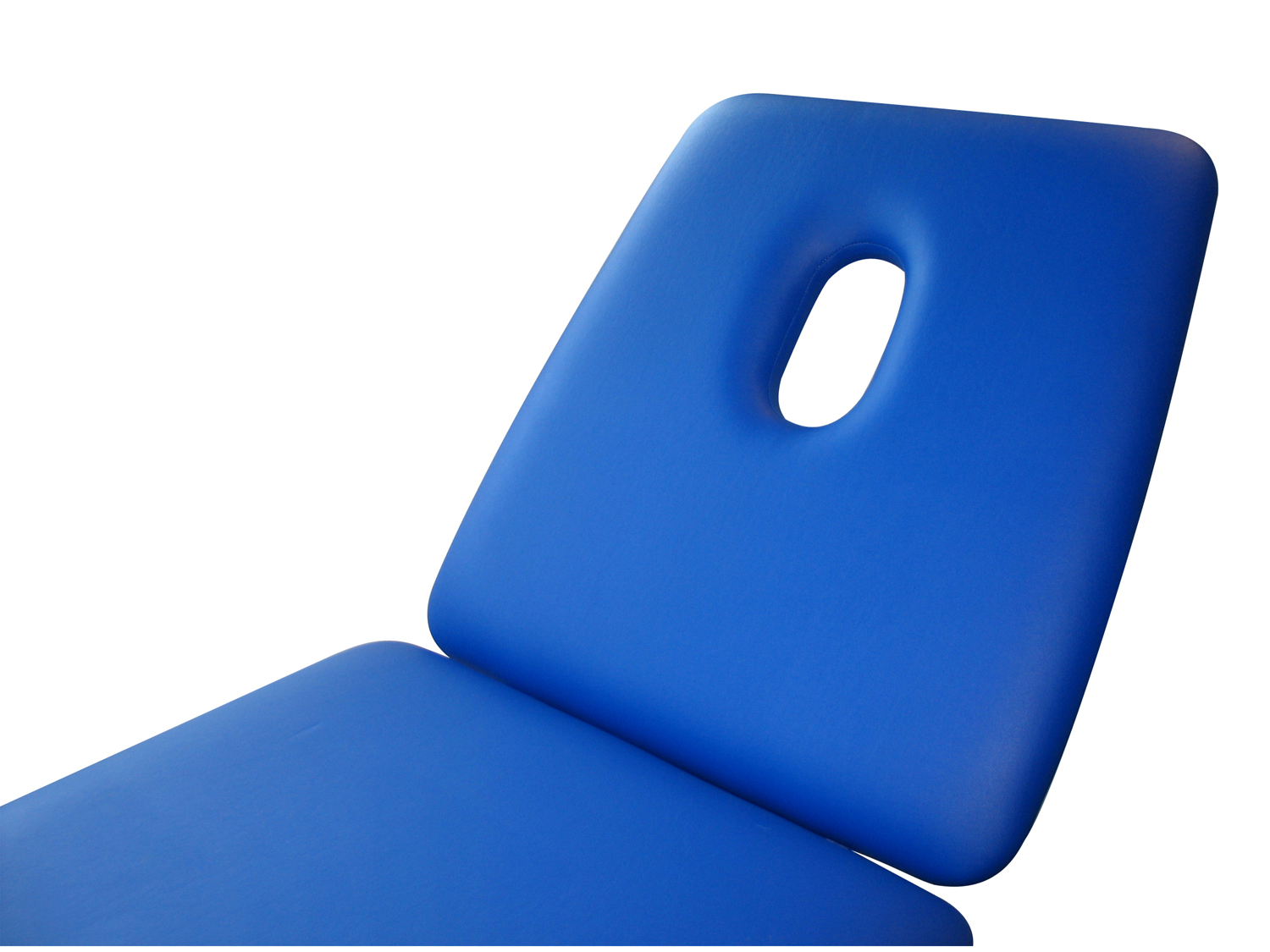

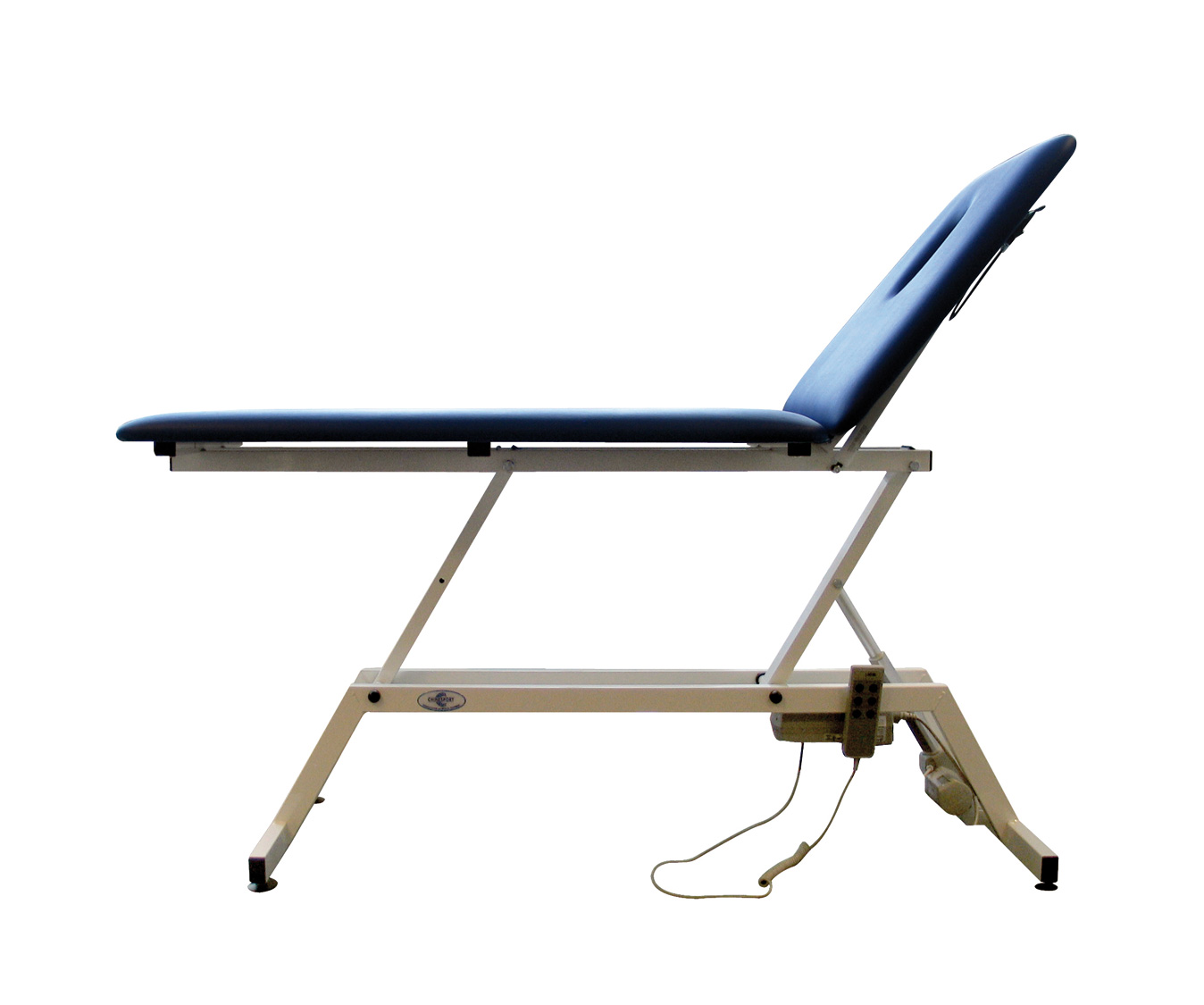

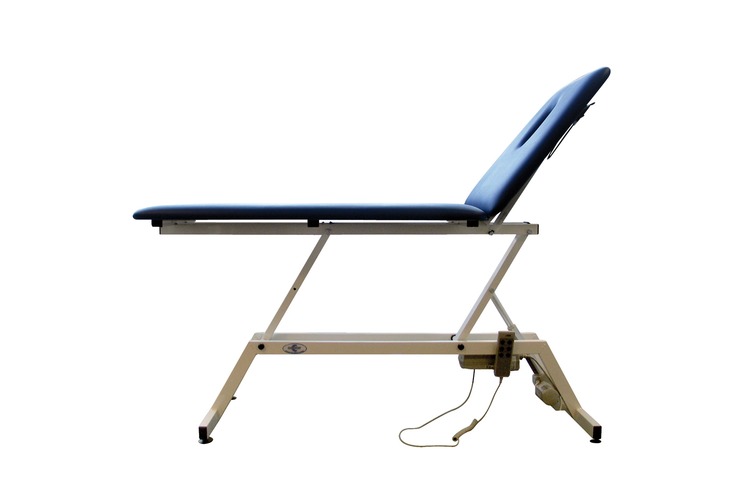

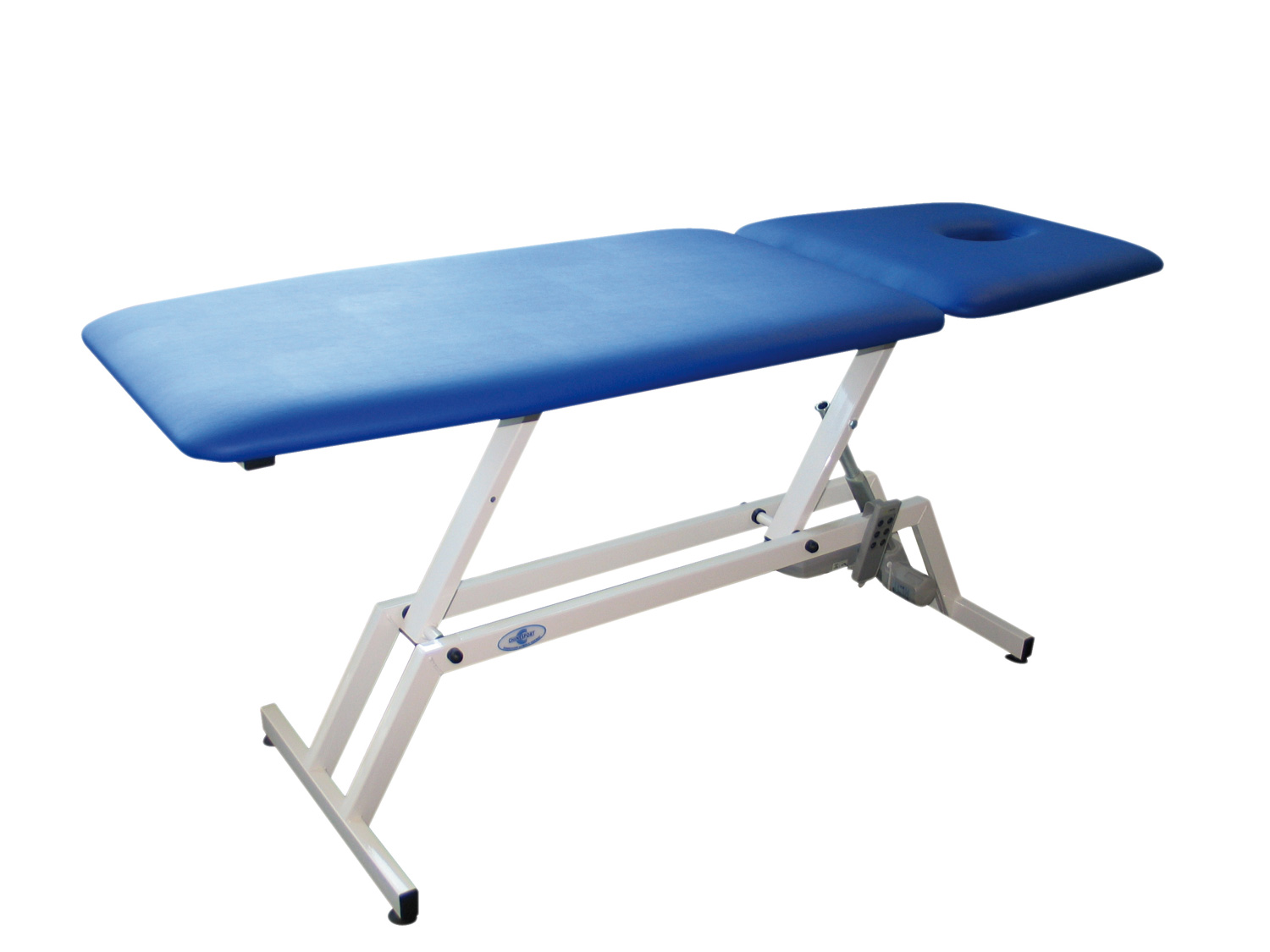

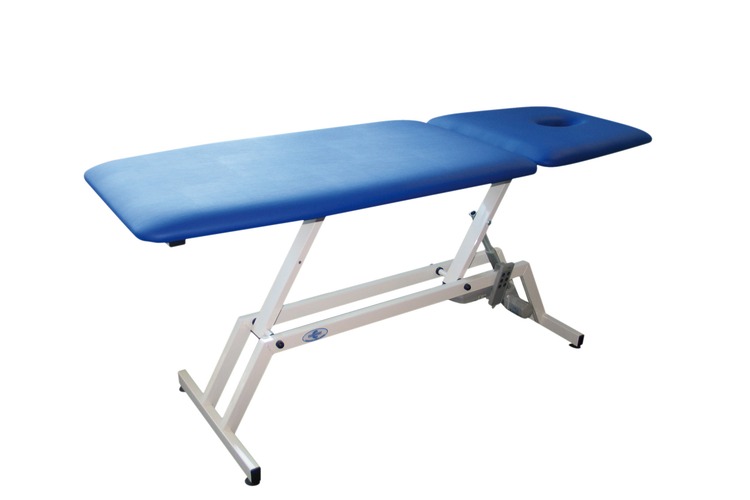

2-section, basic examination and therapy table, based on a steel frame. Adjustable height by means of electric foot switch or hand control. Breathing hole supplied as standard.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Breathing Hole Plug

AC0020
Breathing hole plug for any examination, massage and treatment tables that provide for the option of a standard nose/mouth breathing hole.
Ask for quotation

Paper Roll Holder F

AC0031
Paper roll holder adjustable to a variety of roll widths. Recommended for use with paper rolls from set AC0034.
Ask for quotation

Standard Paper Roll Set

AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

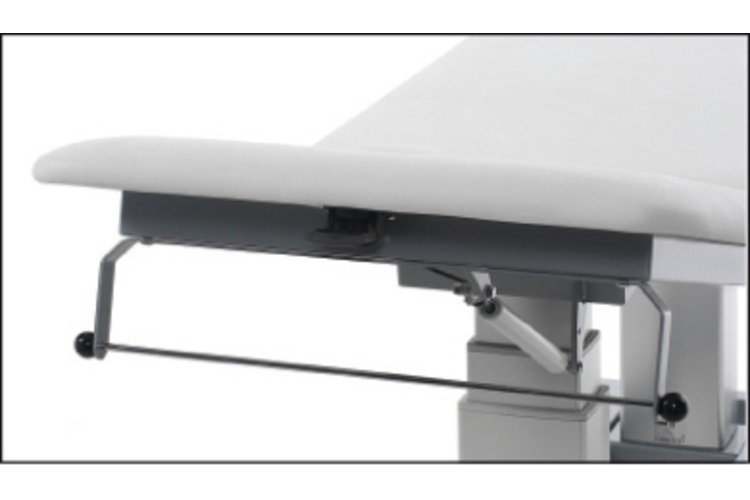

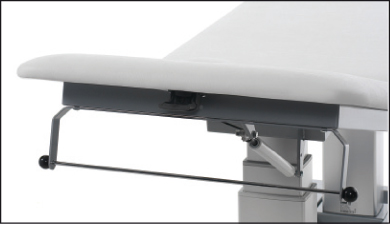

Classic Paper Roll Holder

AC0287
Paper holder for MINITOP and ALUX therapy tables. Can hold paper rolls up to 61 cm wide
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
2
Max safety load:
150 kg
Height adjustment:
Electric
Minimum/maximum table height:
60-90 cm
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust:
6000 N
IP Protection:
66

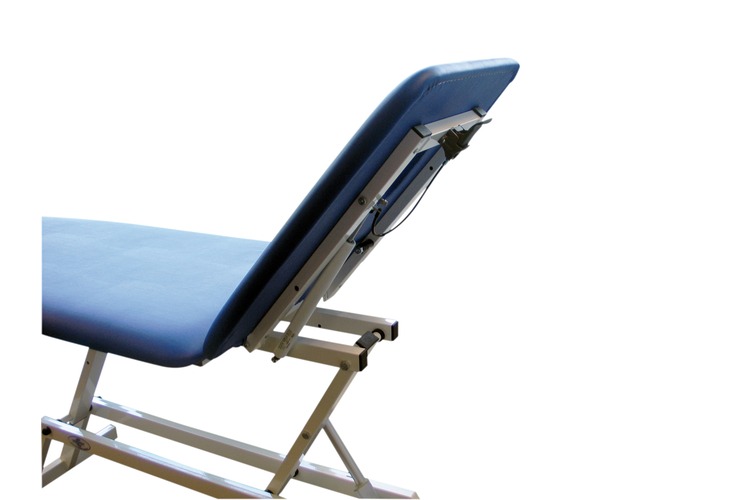

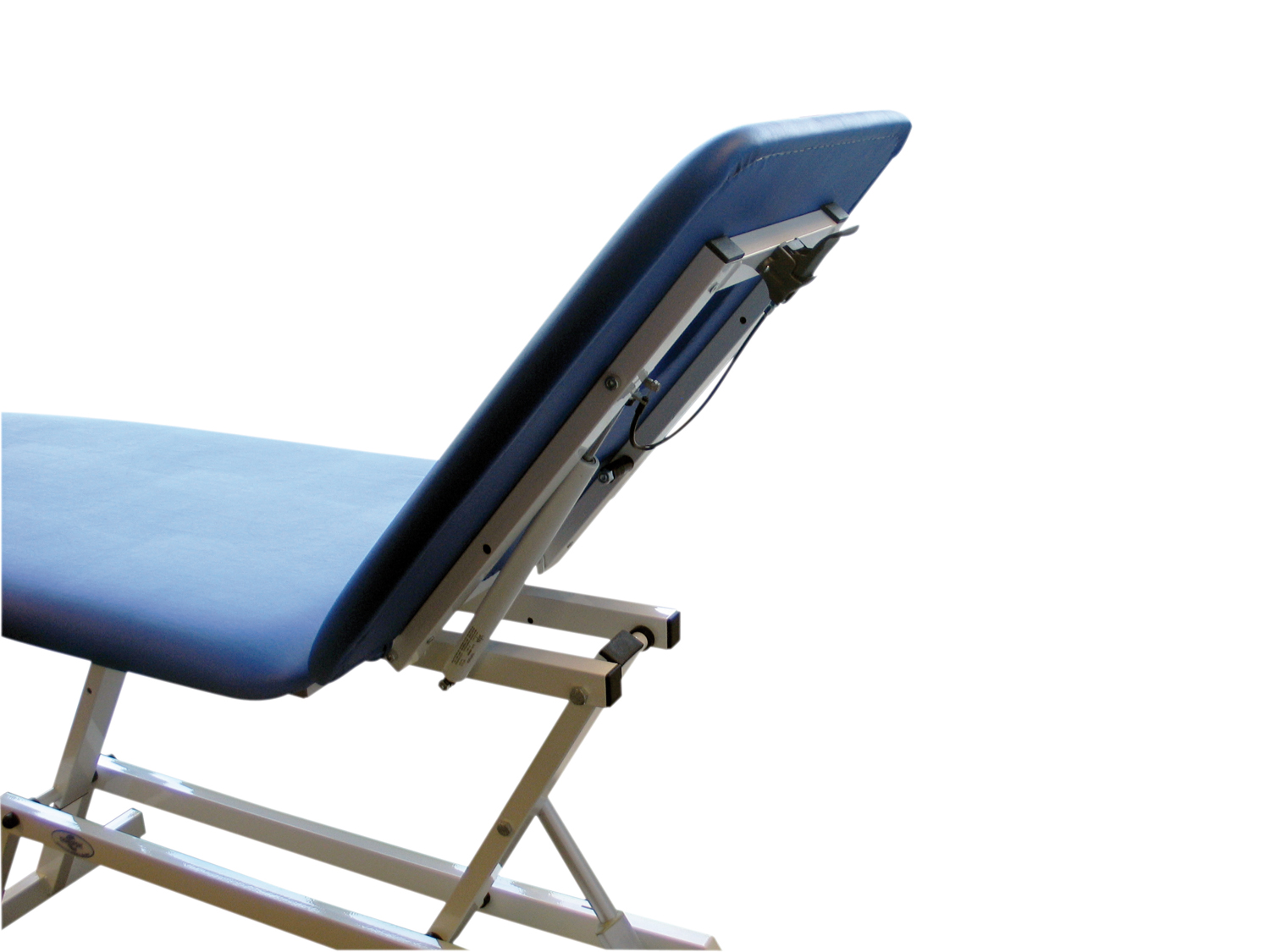

Head section adjustment:
Gas spring-assisted

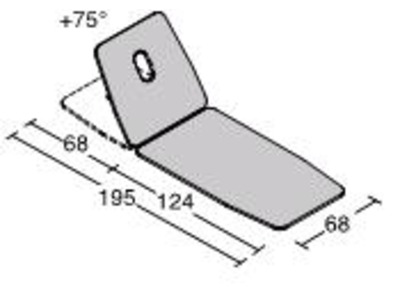

Head section tilt:
0°; +75°
Wheels diameter:
5 mm
Braking system:
not applicable
Upholstery safety rating:
1 IM
Padding thickness:
30 mm
Density:
30 kg/m³
Weight:
50 kg
Gallery

Gallery

Logistics

Logistics

CDN Code:
V0801
Code Repertoire:
R1240350

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 210 x 90 x 60 h - mc 1.134
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 05/10/2015
Language: Italian, English
DOWNLOAD
PDF 272.37 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 05/10/2015
Language: Italian, English
DOWNLOAD
PDF 771.22 KB
Register to access the content
