MINITOP B

Configurable Product
L
V
E
1
0
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Discontinued

Description

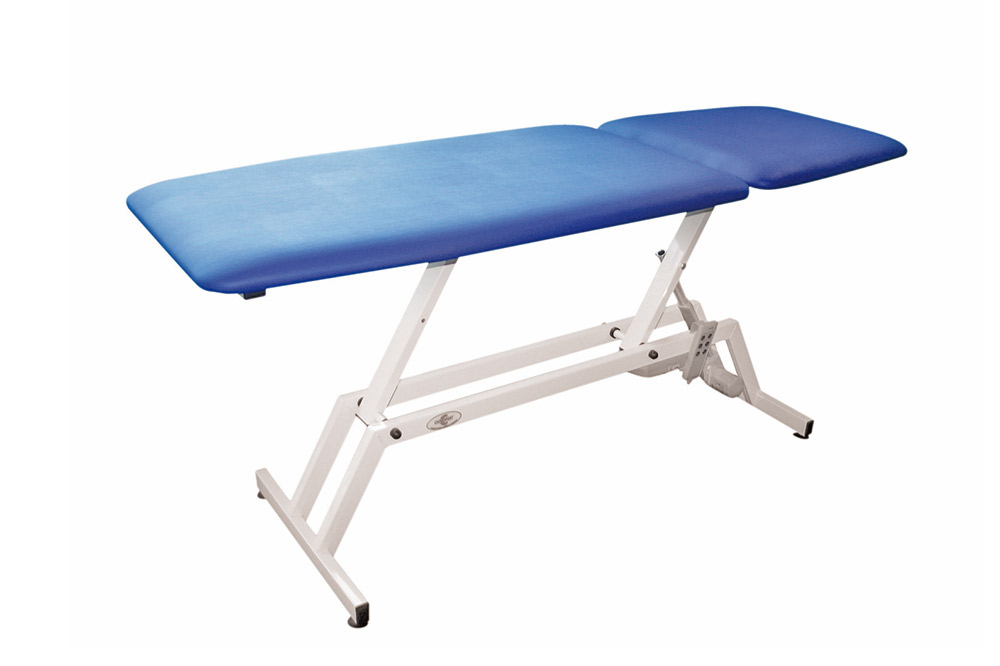

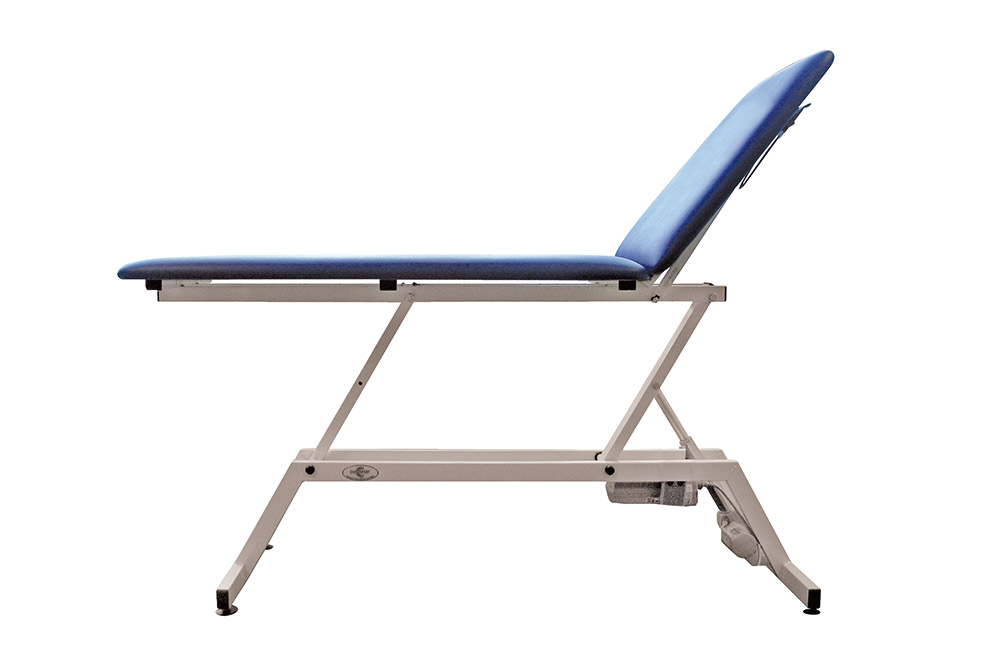

2-section, basic examination table, based on a steel frame. Adjustable height by means of electric foot switch or hand control. Transfer wheels provided as standard. Head section withouth breathing hole.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Paper Roll Holder F

AC0031
Paper roll holder adjustable to a variety of roll widths. Recommended for use with paper rolls from set AC0034.
Ask for quotation

Standard Paper Roll Set

AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Classic Paper Roll Holder

AC0287
Paper holder for MINITOP and ALUX therapy tables. Can hold paper rolls up to 61 cm wide
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
2
Max safety load (kg):
150
Height adjustment:
Electric
Minimum/maximum table height (cm):
60-90
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust (N):
6000
IP Protection:
66
Head section adjustment:
Gas spring-assisted
Head section tilt:
0°; +75°
Wheels diameter (mm):
5
Braking system:
not applicable
Upholstery safety rating:
1 IM
Padding thickness (mm):
30
Density (kg/m³):
30
Weight (kg):
50
Gallery

Gallery

Logistics

Logistics

CDN Code:
V0801
Video

Video

Therapy tables - How to order
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 05/10/2015
Language: Italian, English
DOWNLOAD
PDF 272.37 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 05/10/2015
Language: Italian, English
DOWNLOAD
PDF 771.22 KB
Register to access the content
