{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}

Description

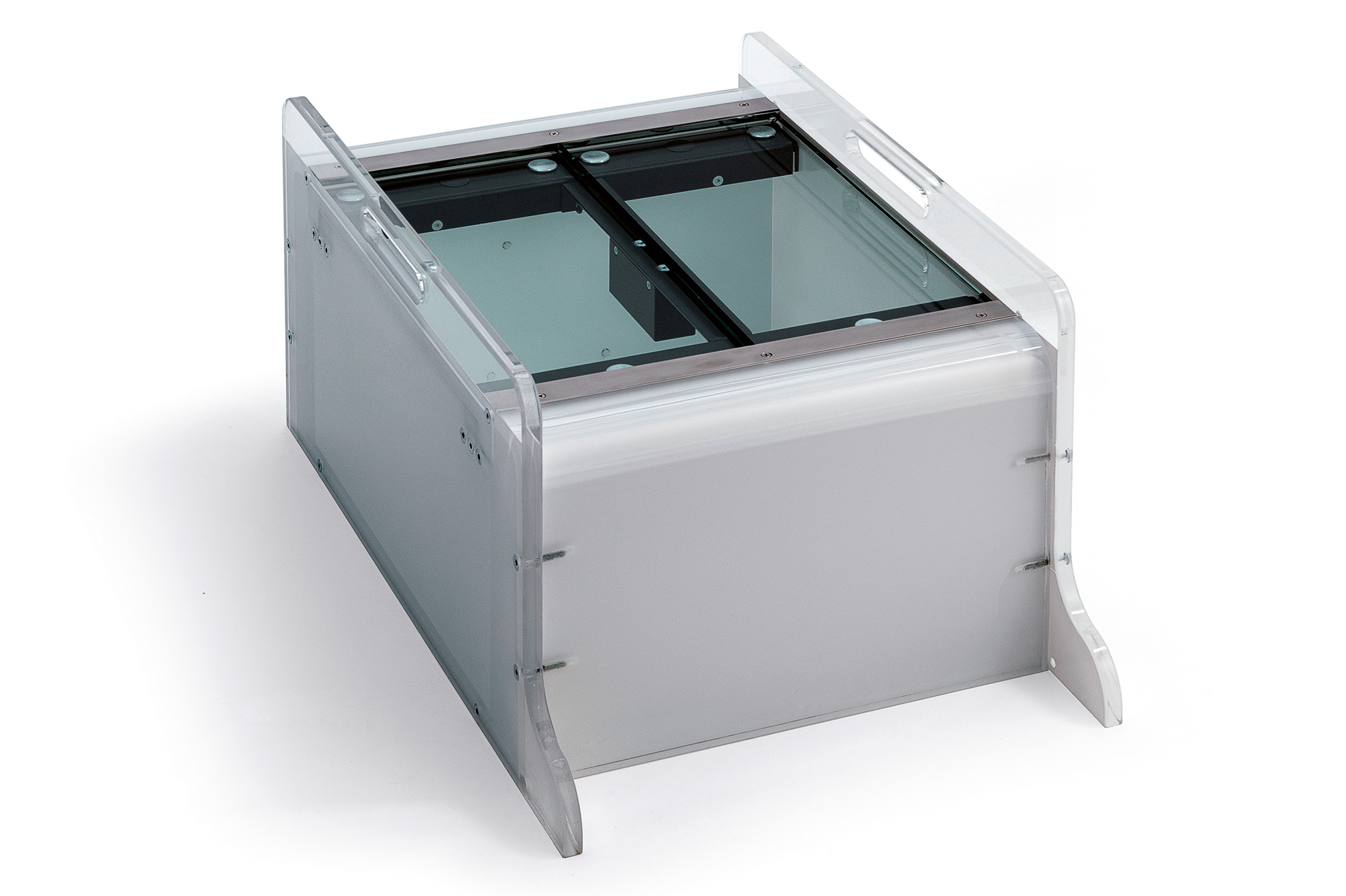

Stabilometry footboard, bipodalic with incorporated podoscope that can be directly connected to a computer with USB ports. The device is featured by six load cells that can be positioned to detect the distribution of the body weight in the points corresponding ot the 1st metatarsal, the 5th metatarsal and heel of each foot.



The GPS software makes possible to position the six load cells at the pre-set points under each foot and this operation not only simplifies the preliminary steps before the test, but eliminates completely any predefined positioning of the patient as necessary for similar equipment. This movement of the load cells guarantees repeatability of the measurements, even at a later stage. It is also used for measuring the mid position of the body’s centre of gravity and its small movements around that position.



The device has been certified as a class I medical device, with a measuring function. The stabilometric test can be done under various “examination conditions”, in looking for afferents that affect the person’s postural behavior.



The computer is not included, but it can be ordered as an accessory code 01799 with webcams configuration in advance and GPS software pre-installed.

Accessories

Accessories

Computer

01799
Computer provided with GPS software pre-installed.
Ask for quotation

Hindfoot Goniometer

02049
Tool designed to measure the alignment of the child’s hindfoot. The value of the valgus or the varus is shown in degrees.
Ask for quotation

Postural Data Evidence

02104
Full-color printer that can be purchased by the customer. To print the patient's report.
Ask for quotation

Postural Data Display

02105
It can be used to better showing and explaining patient data collected during a postural analysis session.
Ask for quotation

Body Safe

02998
This item provides greater safety to the individual when he stands on the PODATA device.
Ask for quotation

Desk Top 2

02999
High desk for the computer in transparent plastic material.
Ask for quotation

Postural Analyzer

03002
Device typically used for analysing posture in the frontal, posterior and lateral planes. Can be ordered separately or be part of a postural work station.
Ask for quotation

Back Foot 2.0

03004
It's a platform with one webcam and GPS software for acquisition and handling of images for foot pressure and heels.
Ask for quotation

Body Foot 2.0

03005
Allows a photographic analysis of the hindfoot and the different body segments. GPS software included.
Ask for quotation

Set Of Shims G

06730
Set of shims G: n. 6 shims 1 cm, n. 1 shims 0,5 cm.
Ask for quotation

Step

AC0868
It makes easier to get on the platform of the PODATA device.
Ask for quotation

Normal Foot

M30
"Normal" anatomical foot model displaying skin, bone, and muscle structures of the foot.
Ask for quotation

Flat Foot

M31
"Flat" anatomical foot model displaying skin, bone, and muscle structures of the foot.
Ask for quotation

Cavus Foot

M32
"Cavus" anatomical foot model displaying skin, bone, and muscle structures of the foot.
Ask for quotation
Technical Spec.

Technical Spec.

Foot control:
digital

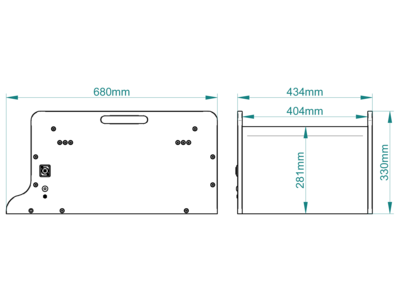

Dimensions:
68 x 43.5 x 33 h cm
Platform dimensions:
33 x 40 cm
Weight:
31 kg
Working safety load:
200 kg
Minimum working load:
30 kg
Sampling Frequency:
100 Hz
Primary power supply:
100÷240 Vac - 50/60 Hz 0.25 A
Secondary power supply:
12 Vdc 1.25 A
Plug:
schuko (others available on request)
Cable:
removable, included
Illumination:
LED
Fuses:
inside the power supply unit, not ispectionable
Pc connection:
USB 2.0
GMDN-CND:
N.D. / V9099
Class:
I M (measuring device)
Handles for transferring:
part of the main frame
Adjustable bun feet:
to keep the device horizontal (bubble level included)
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 scatola su bancale cm 80 x 60 x 55 h kg 40 mc 0.264
Video

Video

GPS 5.0 software: Showing the position of the real load cells in PODATA device
GPS 5.0 software: Placing virtual sensors to guarantees repeatability
GPS 5.0 software: Examining the person's stability with the 6 load cells PODATA device
Documents

Documents


Declaration of conformity

Certificate
Document date: 03/11/2017
Language: Italian, English
DOWNLOAD
PDF 1.95 MB

User and Maintenance Manual

Manual
Document date: 01/02/2017
Language: Italian, English
DOWNLOAD
PDF 1.52 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 17/05/2016
Language: Italian, English
DOWNLOAD
PDF 243.97 KB
Register to access the content

Insights

Various
Document date: 27/03/2013
Language: English
DOWNLOAD
PDF 653.62 KB
