LEONARDO

P
L
0
8
0
0
Quantity:

Description

The Leonardo Postural Lab represents the top-of-the-range in our GPS Postural Labs and the highest state-of-the-art in global posture assessment and analysis. It incorporates our unique stabilometric testing platform and global posture assessment frame and platform, and desktop structure with three photographic units for image acquisition in one single unit.

Leonardo enables to provide the most complete global posture assessment and analysis by combining assessment and analysis of the patient’s global posture in the frontal, sagittal and transverse planes, including detailed forefoot and ankle alignment with detailed analysis of postural control and balance. Moreover, its stabilometric testing platform can be set to enable postural control and stability training with biofeedback.

As with all GPS Postural Labs measurements can be easily stored and managed, enabling comparison of results, sharing within multi-disciplinary teams, and exporting for further data analysis.

Patient reports are easy and quick to configure and develop so that all data relating to the patient’s global posture is presented in an overviewable and yet comprehensive way., so that no important information is lost within the clinical reasoning process. Measurements and their results can be interpreted in function of pre set tolerance ranges, so that it becomes easy to see and understand where global posture deviations occur. This helps determining possible cause and effect relationships, and estimating injury or disorder risk in a effective and efficient way.

The Leonardo Postural Lab is ideally suited for those clinicians and therapists that want to fully understand all aspects of a patient’s global posture and how these various systems interact. This is paramount in understanding how faulty creates a potential injury or disorder mechanism and determining which therapeutic interventions can benefit the patient.

No global posture expert, postural reeducation professional or multi-disciplinary practice that recognises the importance of Healthy Posture for Healthy Movement, can do without the in-depth and wide-ranging information the Leonardo Postural Lab can provide about a patient’s global posture.



Supplied with: Podata 3.0, main frame; safety handrail, Postural analyzer 3.0, desk with two shelves, PC support bracket, 3 cameras.

Software modules: static posture analysis, stabilometric and dynamic analysis.





PC System requirements

Our postural labs work with the GPS 6 software. We strongly advise our Postural data storage - accessory code 01799. As alternative we provide you with below minimum or recommended PC system requirements.

DESCRIPTIONMINIMUMRECOMMENDED
Processor Intel i5 CPU or AMD equivalent Intel i5 CPU or higher or AMD equivalent
RAM 8 GB 1 16 GB
GPS software reserved free space 50 GB 2 100 GB 2
Hard disk SSD or NVME SSD or NVME
Dispaly resolution 1366 x 768 (HD) 1920 x 1080 (Full HD)
USB port At least 3 reserved At least 3 reserved
Operating system Windows 10 OS Windows 10 OS
Mounting option VESA 50/75/100 3
(for display or All-in-One system)
VESA 50/75/100 3
(for display or All-in-One system)


1 16GB RAM are preferable if other applications are installed on the PC.
2 The free space on PC should be more than the suggested part for GPS SW.
3 Bracket and plate provided as standard in the supply.
___

Notice: We recommend that you do not install other software on your computer to avoid possible conflicts.

Accessories

Accessories

Computer

01799
All-in-one computer provided with GPS software pre-installed with webcams configuration included.
Ask for quotation

Postural Data Evidence

02104
Full-color printer that can be purchased by the customer. To print the patient's report and give him a feedback of any improvements noticed.
Ask for quotation

Foot Positioning Guide

AC1046
Adhesive to guide the patient in positioning during frontal and sagittal planes posture observation.
Ask for quotation

Blue Walkway 1

AC1245
Additional structure consisting of four elements that facilitate the patient's positioning. Allows a walk without shoes above the structure throughout the an...
Ask for quotation

Photography Backdrop

AC1247
Neutral background to isolate the subject and acquire pictures without interferences or noises. Allows free positioning of the laboratory without constraints.
Ask for quotation

Wireless Tv Connector

AC1249
This connection device allows the person under examination to see the software running on a big screen, for a greater involvement and awareness of one’s ow...
Ask for quotation

Elastic Grid Kit 3.0

AC1306
Set of elastics to be used as reference lines in the observation of the patient's upright posture
Ask for quotation

Posture Analysis Markers

AC1307
These are high-quality reflective markers applied to the patient in order to allow the therapist to take various measurements in the sagittal and frontal pla...
Ask for quotation

Gps Software - Measures Toolset

SW0001
Set of measurements pre-loaded into the GPS software for immediate start of postural assessment and subject analysis.
Ask for quotation
Technical Spec.

Technical Spec.

Main power supply:
110-240V
Power supply characteristics:
50 / 60 Hz
Platform connection to the PC:
USB
Person weight information tolerance:
± 0,1 kg
GPS 6 software:
standard
Usable platform surface (L x P):
40 x 33 cm
Postural analyzer dimensions:
60 x 66 x 220 h cm
Maximum patient height:
207 cm
Safe working load:
200 kg
Overall dimensions:
110 x 267,5 x 225 h cm
Medical class device:
I
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 211 x 108 x 86 h kg 200 mc 1.959768
Video

Video

GPS Leonardo Postural Lab

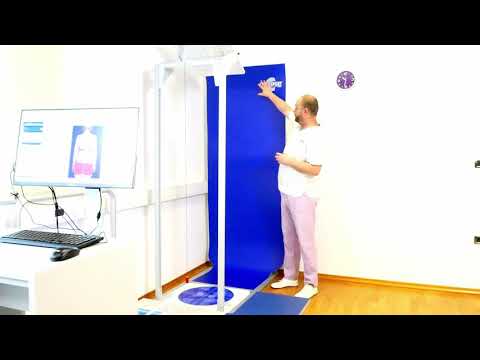

Leonardo posture analysis lab - the background
Leonardo posture analysis lab - the blue path

Other videos

Leonardo posture analysis lab - body patient pictures comparison
Leonardo posture analysis lab - derived measurements
Leonardo posture analysis lab - foot positioning adhesive
Leonardo posture analysis lab - stabilometrics data
Leonardo posture analysis lab - Podata stabilometric footboard
Leonardo posture analysis lab - preset measurements
Leonardo posture analysis lab - making reports
Leonardo posture analysis lab - measurements tools
Leonardo posture analysis lab - total posture scanner
GPS Leonardo Postural Lab - Unpacking and installation
Documents

Documents


Postural labs

DICO
Document date: 22/11/2023
Language: English
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB

Laboratori posturali

DICO
Document date: 22/11/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB

Postural analysis software

IFU
Document date: 29/05/2023
Language: English
Version: 1.0.1
DOWNLOAD
PDF 18.07 MB
Register to access the content

Software analisi posturale

IFU
Document date: 29/05/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 17.43 MB
Register to access the content

Leonardo postural lab

IFU
Document date: 11/10/2022
Language: English
Version: 1.4.2
DOWNLOAD
PDF 5.45 MB

Leonardo postural lab

IFU
Document date: 11/10/2022
Language: Italian
Version: 1.4.1
DOWNLOAD
PDF 5.46 MB

User and maintenance manual

Manual
Document date: 27/10/2021
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.58 MB
Register to access the content

User and maintenance manual

Manual
Document date: 22/10/2021
Language: Italian, English
Version: V 2.0
DOWNLOAD
PDF 1.97 MB
Register to access the content

User and maintenance manual

Manual
Document date: 21/05/2021
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.12 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 28/04/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 103.11 KB
Register to access the content
