GIOTTO

P
L
0
1
2
0
Quantity:

Description

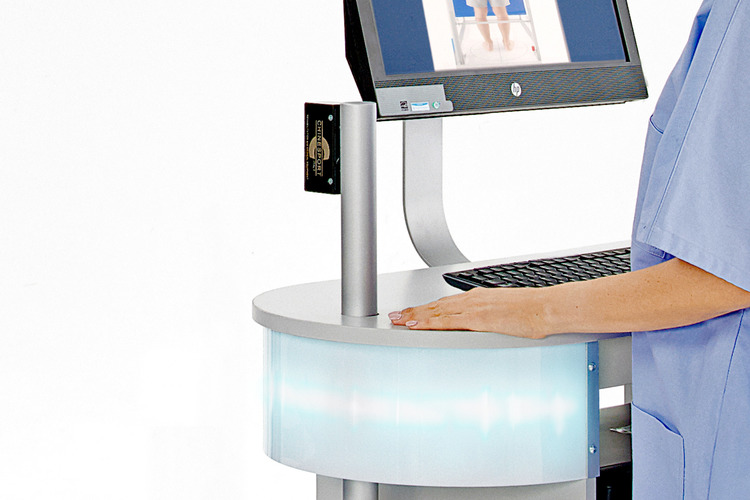

The system consists of a structure with a device for picture acquisition, and a postural analyzer for static analysis on the frontal plane, sagittal plane and for body areas. It is possible to acquire pictures of the subject under examination in different moments, save and compare them.
Measurements can be carried out on each acquired picture, and an identification label could be associated on each type of measurement. Measurements can be saved on the picture itself, recalled in a second moment, shown on a patient report, or even exported for processing.
The goal is to recognize and keep monitored if there is a certain incorrect postural attitude or a risk. Following specific interventions, exercises and other corrective actions, may lead to further postural analysis for improvement observance.
At the end of the postural examination it is suggestable to provide a report to the patient with results, even in a comparison of data and pictures acquired in different moments. In particular for all types of measurements the relative tolerance can be reported, with evidence of whether one or more data collected are out of spectrum. This type of exam is non-invasive, and can therefore be repeated whenever deemed appropriate.

This laboratory for the static analysis of a person posture can be later implemented with the addition of a platform and another structure for the static analysis also of the podalic support, and possibly for dynamic and balance analysis. For further information, check the PL0700 and PL0800 laboratories.



Hardware and software supplied

HARDWARESOFTWARE
Postural analyzer 3.0 Static analysis in free mode
Conjunction set
Desk with two shelves
PC support bracket
Posture imaging device





MINIMUM SYSTEM REQUIREMENTS

This postural lab requires a computer having the following minimum requirements:

  • Intel i5 CPU or higher
  • 8 GB RAM
  • 20 GB of free space, SSD or NVMe disk
  • Display with resolution of 1280 x 1024
  • 3 free USB ports
  • Windows 10 OS
  • VESA 75 mounting option for display or for the All-in-One system

___

Notice: We recommend that you do not install other software on your computer to avoid possible conflicts.

Accessories

Accessories

Computer

01799
All-in-one computer provided with GPS software pre-installed with webcams configuration included.
Ask for quotation

Postural Data Evidence

02104
Full-color printer that can be purchased by the customer. To print the patient's report and give him a feedback of any improvements noticed.
Ask for quotation

Foot Positioning Guide

AC1046
Adhesive to guide the patient in positioning during frontal and sagittal planes posture observation.
Ask for quotation

Photography Backdrop

AC1247
Neutral background to isolate the subject and acquire pictures without interferences or noises. Allows free positioning of the laboratory without constraints.
Ask for quotation

Wireless Tv Connector

AC1249
This connection device allows the person under examination to see the software running on a big screen, for a greater involvement and awareness of one’s ow...
Ask for quotation

Elastic Grid Kit 3.0

AC1306
Set of elastics to be used as reference lines in the observation of the patient's upright posture
Ask for quotation

Posture Analysis Markers

AC1307
These are high-quality reflective markers applied to the patient in order to allow the therapist to take various measurements in the sagittal and frontal pla...
Ask for quotation
Technical Spec.

Technical Spec.

Main power supply:
110-240V
Power supply characteristics:
50 / 60 Hz
Person weight information tolerance:
± 0,1 kg
GPS 6 software:
standard
Postural analyzer dimensions:
60 x 66 x 220 h cm
Maximum patient height:
207 cm
Safe working load:
200 kg
Overall dimensions:
110 x 267,5 x 225 h cm
Medical class device:
I
Gallery

Gallery

Video

Video

GPS Leonardo Postural Lab
Leonardo posture analysis lab - body patient pictures comparison
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
DOWNLOAD
PDF 94.87 KB
