BASCULA 600

X
P
B
9
0
6
.
5
0
Quantity:

Description

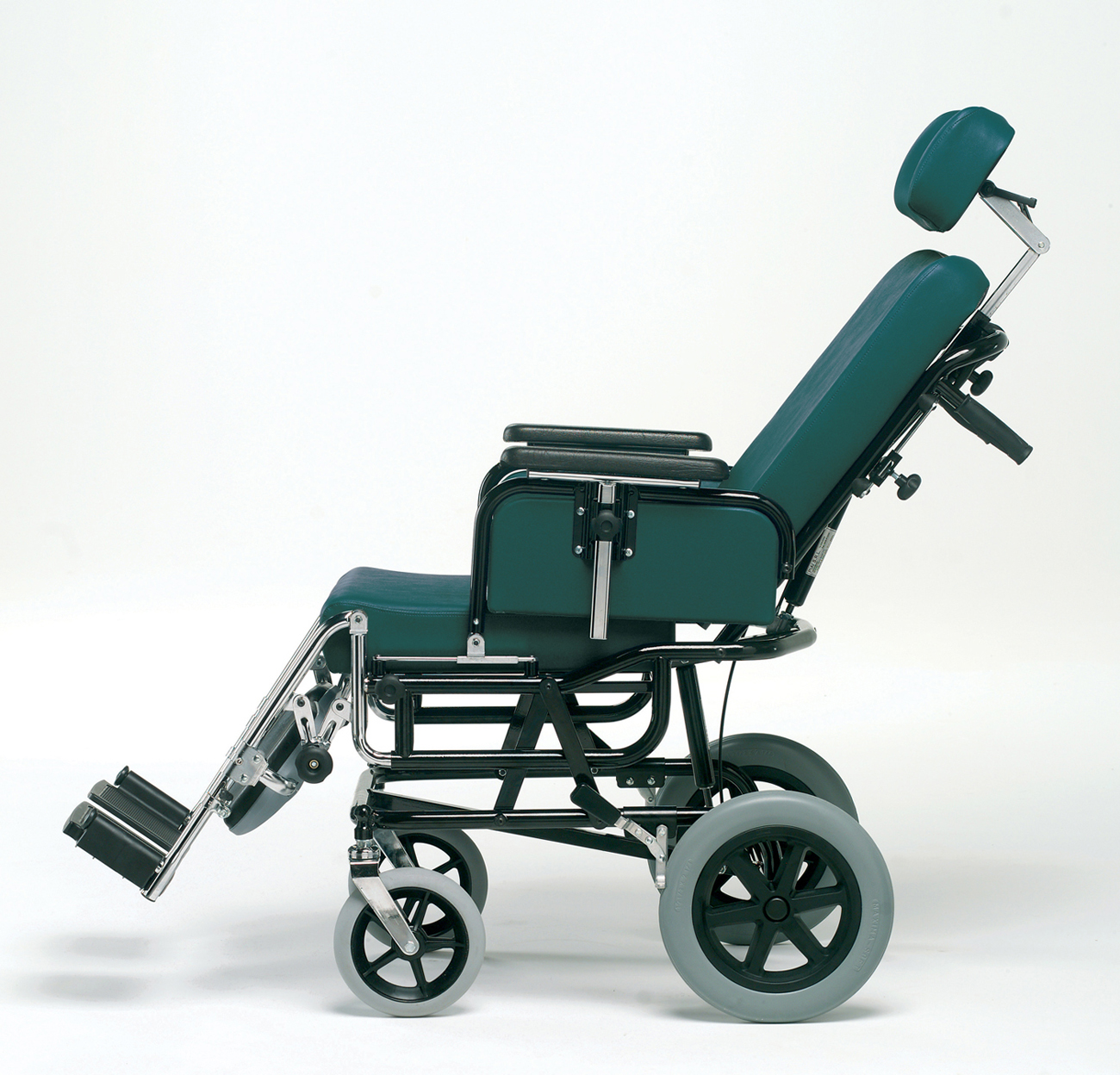

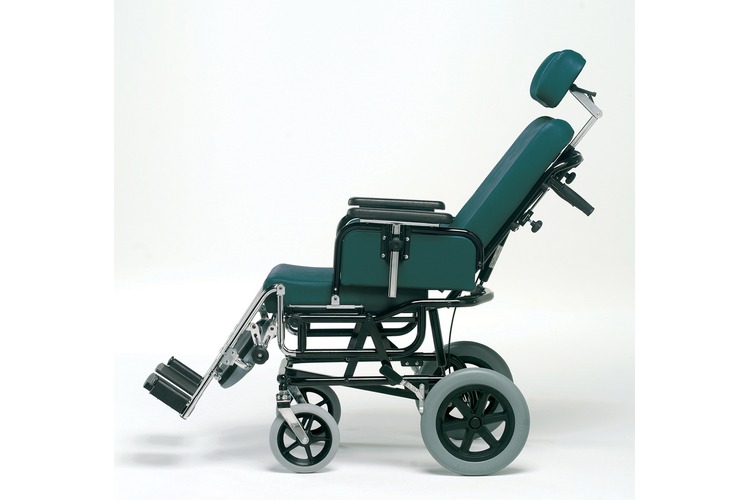

Self-propelled indoor/outdoor wheelchair. Provided with two small front swivel wheels, and two large, 60 cm ø, rear wheels with brakes.

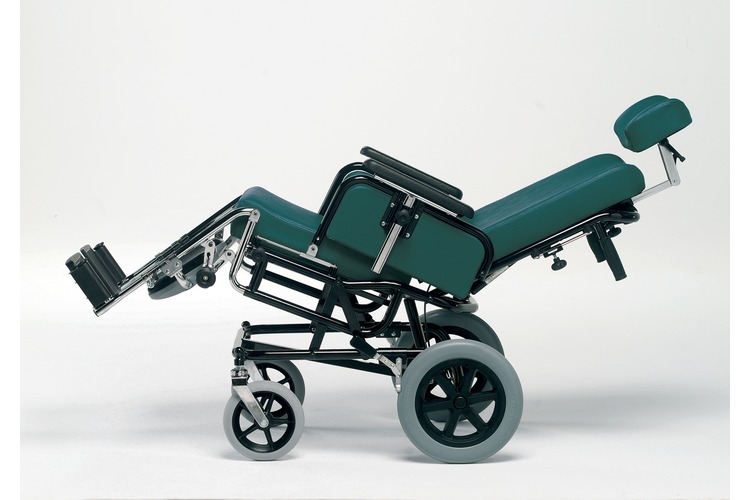

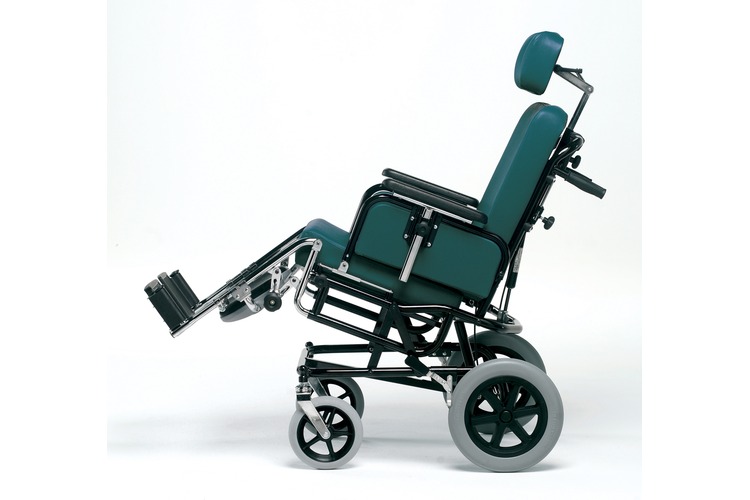

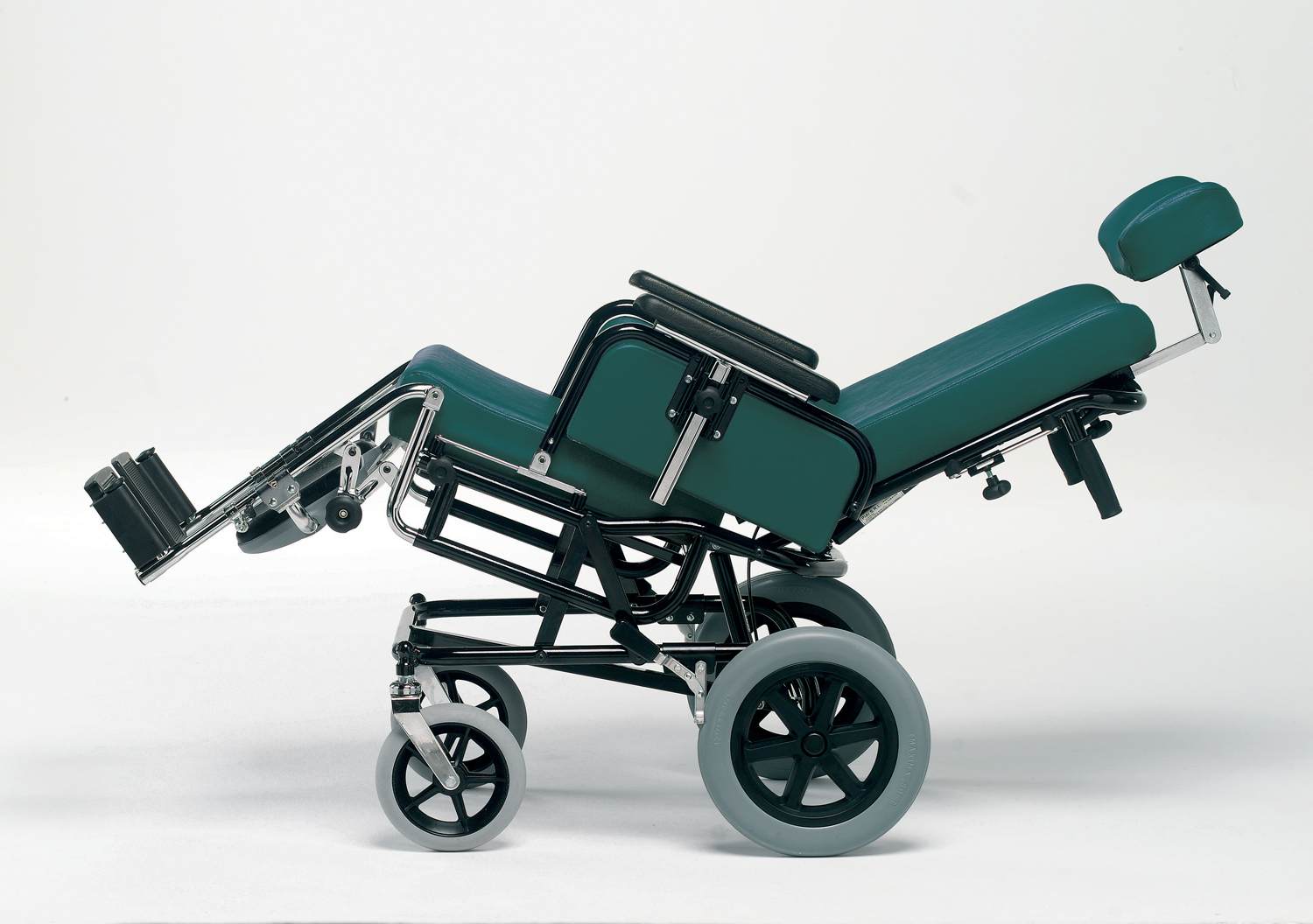

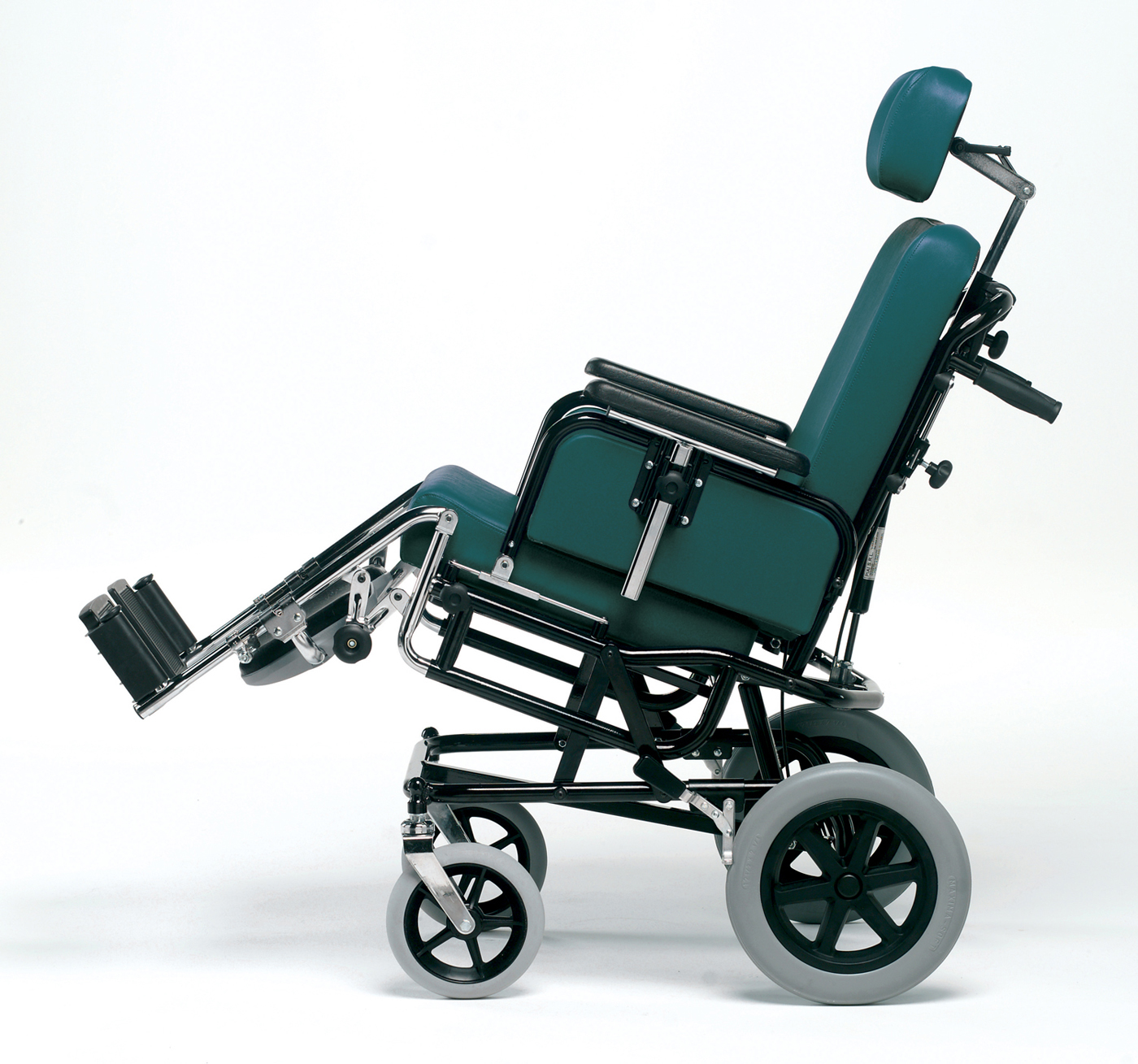

This tilt and recline wheelchair allows for the seating position to be modified for patients with serious pathologies such as: circulatory, joint, post-surgery respiratory problems and trunk instability (this aid is useful to ensure proper back posture).

Safe working load 150 kg



TECHNICAL FEATURES:

  • seat and backrest recline independently by 20º and 30º respectively, by means of gas springs and lever controls located on the backrest;
  • flip-back padded sides, with height adjustable armrests synchronized to the backrest movement;
  • height adjustable, flip-up and removable footrests and leg supports;
  • contoured seat and backrest;
  • steel frame;
  • blue micro-perforated polyester upholstery.
Accessories

Accessories

Headrest

AC0314
Height- and depth-adjustable headrest
Ask for quotation

Wedge

AC0315
Ask for quotation

Trunk Pad

AC0316
Specify left or right on ordering the wheelchair.
Ask for quotation

Tray

AC0317
Ask for quotation
Technical Spec.

Technical Spec.

Seat width:
50 cm
Seat height:
53/64 cm
Seat length:
45 cm
Backrest:
55 cm
Overall width:
72 cm
Overall height:
92 cm
Overall length:
118 cm
Front swivel wheel:
ø 20 cm
Rear unidirectional wheel:
ø 60 cm
Folded width:
23 cm
Weight:
32 kg
Safe working load:
150 kg
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 93 x 78 x 112 h kg 41.5 mc 0.812448
Documents

Documents


User and maintenance manual

Manual
Document date: 18/05/2021
Language: English
Version: V 2.0
DOWNLOAD
PDF 643.3 KB
Register to access the content

Manuale istruzioni

Manual
Document date: 07/03/2018
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1.17 MB
Register to access the content
