BONN

0
1
8
1
3
Quantity:

Description

Commode chair with 12.7 cm swivelling castors, the rear ones with directional lock and brake.

Ergonomically shaped backrest with integrated grip. Swinging armrests for easy access.

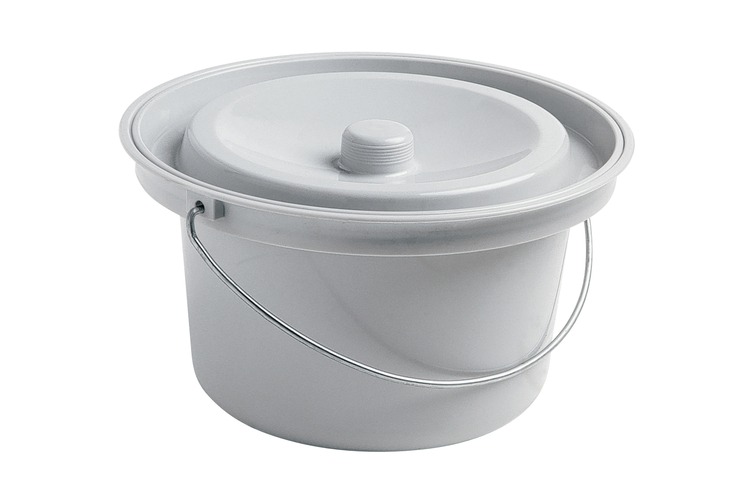

Toilet seat with seat cushion. Removable bucket device included. Can be fitted over the toilet.

Height adjustable, swinging and detachable foot support.



Special synthetic material:

  • extremely durable
  • no rust
  • easy to clean and disinfect
Accessories

Accessories

Iv Pole

01967
It can be applied to both sides of the structure of the chair, with an appropriate coupling system supplied in standard. Adjustable in height, in a continuou...
Ask for quotation

Armrest Pads

01968
A pair of padded armrests for greater comfort of the user. Quick to fit and remove.
Ask for quotation

Pelvis Belt

XRE011
Pelvis belt for an improved trunk support.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions (tot):
56 x 87 x 100 h cm
Dimensions (seat):
45 x 46 cm
Seat height:
53 cm
Backrest:
52 cm
Armrest:
28 cm
Swivelling castors:
Ø 12.7 cm (rear with directional lock/brake)
Weight:
14.5 kg
Max capacity:
130 kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
172736

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 57 x 56 x 63 h kg 17 mc 0.201096
Documents

Documents


User and maintenance manual

Manual
Document date: 29/10/2021
Language: English
Version: V 2.0
DOWNLOAD
PDF 778.72 KB
Register to access the content

Manuale istruzioni

Manual
Document date: 29/10/2021
Language: Italian
Version: V 2.0
DOWNLOAD
PDF 820.92 KB
Register to access the content

Dichiarazione ue

Compliance statement
Document date: 21/06/2021
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 206.77 KB
Register to access the content

Eu declaration

Compliance statement
Document date: 10/03/2021
Language: English
Version: V 1.0
DOWNLOAD
PDF 206.44 KB
Register to access the content
F.A.Q.

F.A.Q.

What kind of material could be usable for cleaning? could it be disinfected by heating? what kind of pH disinfection liquid could be used? How strong disinfection solution by percentage coul be used?” (Lithuania – March 2012)

In general the chair can be cleaned using a mild conventional cleaning and disinfection agent. Simply wipe the chair with clean water and cloth, and then wipe dry with a clean cloth. Do not use an abrasive scouring agent or cleaner that contains aggressive solvents (acids, thinners). Do not use stiff cleaning brushes, as these will damage the plastic surfaces or cause deposits to build up on the plastic parts and other materials. When using the product in a clinical area, the shower/commode chair must be cleaned on a regular basis at 85°C for 3 minutes in a cleaning machine, in addition to general cleaning. First remove any loose accessories.
