BELLAVITA

X
D
R
0
0
1
Quantity:

Description

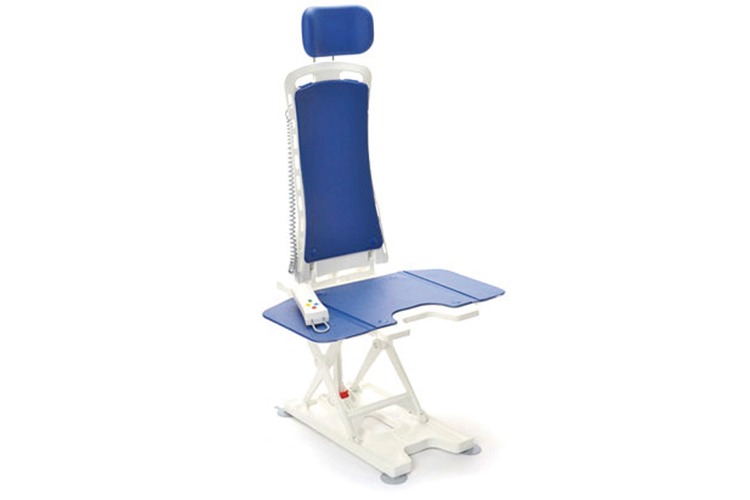

This ultra modern bathlift takes the Bellavita away from an austere and clinical look and is more in keeping with todays requirements. It includes several excellent new features:

• The lightest bathlift on the market at only 9.3kg
• At 6cm the Bellavita is the lowest bathlift available
• Backrest reclines to a market leading 50º
• Reaches a record seat height of 48cm
• Lifetime guarantee on frame & motor
• Ergonomically designed for greater comfort and safety for the user
• Easy to install and operate
• User friendly charger
• Quick charge lithium battery technology
• Built in safety controls
• Lightweight, fully waterproof floating hand control
• Washable hygienic covers available in white, blue or grey
• Hygienic cutaway and slimline profile for easy handling
• Easy to dismantle for storage and transportation
• 4 quick release suckers with an option for an additional two for an anti-slip bath base
• High weight capacity - 140kg

Accessories

Accessories

Transfer Disc

XDR003
Transfer disc to facilitate the translate to the Bellavita bathlift. Max capacity 140 kg.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
83 x 70 x 70 ÷ 112 h cm
Seat width:
38 cm
Seat depth:
42 cm
Seat plate overall lenght:
57 cm
Seat height:
6.5 ÷ 48 cm
Backrest height:
64 cm
Backrest adjustment:
10° ÷ 50°
Baseplate width:
31 cm
Baseplate lenght:
56 cm
Battery duration:
max. 4 hours, rechargeable
Capacity:
140 kg
Weight:
10 kg
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 74 x 40 x 21 h kg 13 mc 0.06216
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Dichiarazione conformità

Compliance of statement - past edition
Document date: 07/04/2021
Language: Italian
Version: V 2.0
DOWNLOAD
PDF 989.29 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 06/10/2020
Language: Italian, English
Version: V 2.0
DOWNLOAD
PDF 8.06 MB
Register to access the content

Brochure

Brochure
Document date: 28/07/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 969.04 KB
