Description

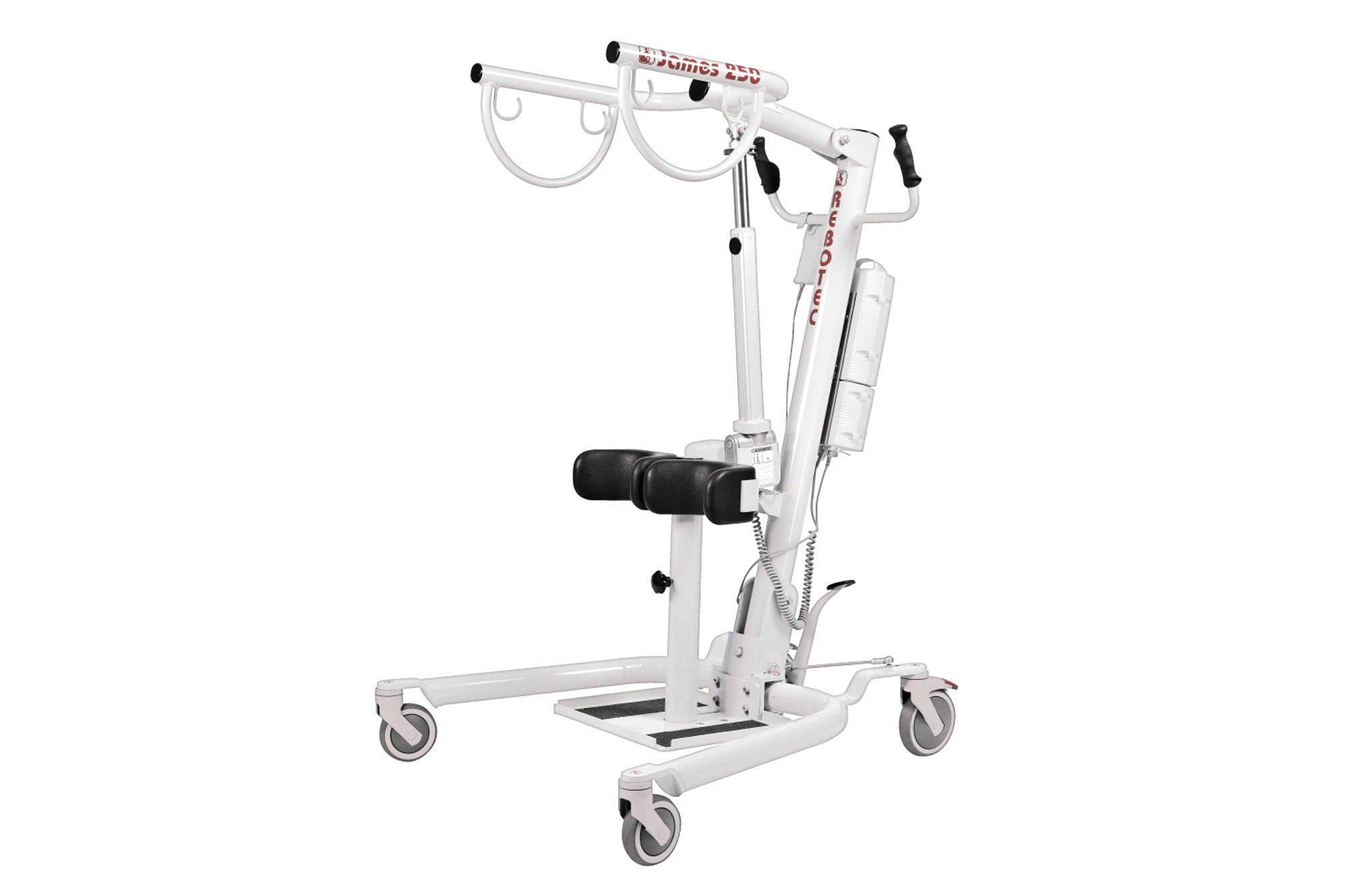

Electric hoist with rechargeable 24V battery to bring the patient into vertical position.



Epoxy coated steel frame. Four swivel casters, two of which are braking.

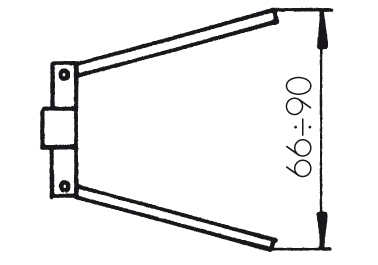

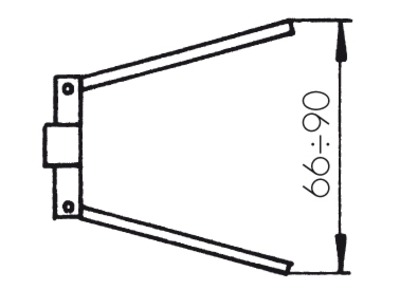

Manual pedal-operated leg opening. Emergency stop with electric and manual lowering.



Capacity 250 kg

Accessories

Accessories

James Sling M / L

14516
Padded material, comfortable, water resistant, washable, with velcro fasteners. Size M / L adjustable through the harness eyelets. Capacity 250 kg.
Ask for quotation

James Sling Xl

14518
Padded material, comfortable, water resistant, washable, with velcro fasteners. Size XL. Capacity 250 kg.
Ask for quotation
Technical Spec.

Technical Spec.

Max load:
250 kg (body weight)
Product weight:
58 kg (without accessories)
Space req. max. L x W x H (standing):
105 x 70 x 200 cm (lifter arm all the way up)
Front wheels:
Ø 13 cm
Rear wheels:
Ø 15 cm with lock
Turning:
ca. Ø 120 cm
Knee pro. height:
45 cm to 60 cm (knee midpoint)

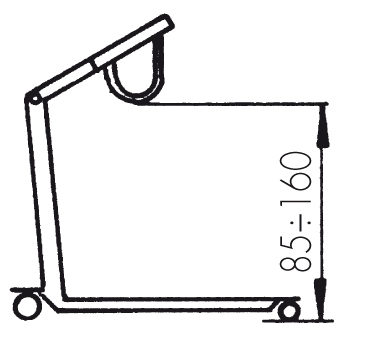

Lift height:
from 85 cm to 160 cm
Lift cycles:
approx. 50 double lifts (depending on weight. and charge)
Lifting unit:
stepless and without jerking
Protection:
class II
Switch duration:
1 min operation / 9 min. pause
Charger voltage:
230-240V AC/50Hz (control unit)
Control unit:
IPX4 24V DC / 9A
Drive, compl.:
IPX4S 24V DC / 7A
Hand switch:
IPX4 24V DC
Charging unit:
IPX4 230V/24V, 500 mA
Power-pack:
IPX4 24V DC / 4,5 Ah
Safety:
emergency lowering; jamming protect, emerg. OFF; power-pack low charge; power surge switch off
Process tolerance:
+/- 1.5 cm
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 122 x 67 x 38 h kg 65 mc 0.310612

More information required ?
