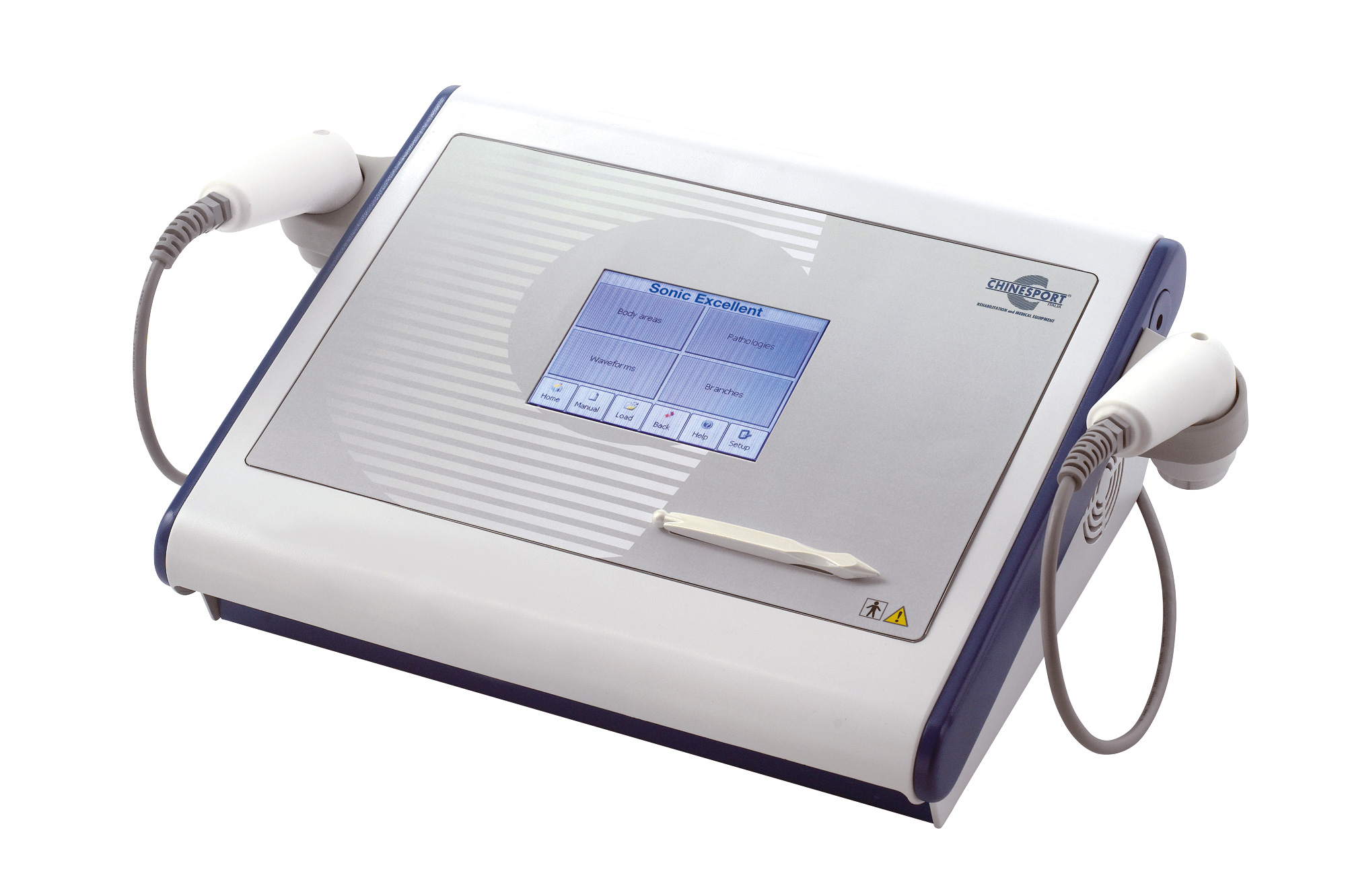

SONIC EXCELLENT - Excellent Line

E
L
1
2
0
8
5
Quantity:

Description

Ultrasound equipment with two independent channels and three frequencies:  1, 2 and 3 MHz, in both continuous and pulsating mode.

Important note: a specific handpiece is needed in order to use the 2 MHz frequencies.



Our ultrasound equipment has luminous non contact indicator heads that mean you can check the correctness of the transmitting head-tissue contact. They are also self calibrating so they don't have to be adjusted. The SONIC  EXCELLENT device  can  provide  ultrasound  in  continuous  or  pulsed mode and the duty cycle can be adjusted in different ways.This significantly reduces the diathermic effect as the heat is dispersed in the interval between one pulse and another. In  addition  pulsed  transmission  gives  the  technical  advantage  of  less  potential transducer overheating so higher intensities can be used.



Scientific experience has confirmed that the absorption of ultrasound significantly increases the extendibility of connective tissue. This is very important in the treatment of scarred tissue, surfaces, joint capsule surfaces and tendinitis



THERAPEUTIC EFFECTS

The therapeutic effects of ultrasounds are partly due to the increase in temperature. These take the form of analgesia, relaxation of the muscles, and a fibrolytic and trophic effect.

  • Analgesia - The analgesic effect is due to the heat, and probably also the direct action of the ultrasounds on the sensitive nerve endings.
  • Relaxation of contracted muscles - Relaxation of contracted muscles is associated with the thermal effect and micro massaging of the tissue, induced by the passage of the ultrasounds.
  • Fibrolytic effect - Oscillation of the tissue particles, caused by the ultrasounds, results in disruption of the collagen fibers in fibrous and sclerotized tissue.
  • Trophic effect - Vasodilation, which results from a rise in temperature, facilitates the removal of catabolites and puts nutritive substances and oxygen into the tissue. In this way ultrasounds improve trophism of the tissue, facilitate repair of tissue damage and speed up resolution of inflammatory processes.



ACCESSORIES SUPPLIED

  • 1 Power cable
  • 1 Manual / certification
  • 2 Fuses
  • 2 Handpieces 5cm2 1/3 MHz
  • 1 Touchscreen Pen
  • 2 Contact sensor with wire
  • 1 Smart Card
Accessories

Accessories

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.
Ask for quotation

Carry Case

EL0016
Carry case for the unit transport
Ask for quotation

Handpiece 1 cm2

EL0017
1-3 MHz cm, dual frequency, IP67 protection.
Ask for quotation

Handpiece 3 cm2

EL0018
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 5 cm2

EL0019
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 8 cm2

EL0020
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Sonic Arm P

EL0022
Swivel arm. Free mount.
Ask for quotation

Contact Gel

EL0023
Non-electroconductive gel, 250 g
Ask for quotation

Gel Canister

EL0024
Non-electroconductive gel, 5 kg
Ask for quotation

Dispenser-Pump

EL0025
Pump for canister code EL0024.
Ask for quotation

Link Cable

EL0082
Cable to connect electrotherapy and ultrasound machines.
Ask for quotation

Wok Trolley

EL0191
The "WOK" mono-upright trolley differs significantly from the design criteria previously purchased, due to its innovative design.
Ask for quotation
Technical Spec.

Technical Spec.

Power supply:
230 Vac, 50-60 Hz
Power supply (on request):
115 Vac, 50-60 Hz
Maximum mains power absorption:
70 VA
LCD display:
Graphics 320 x 340 pixel Touchscreen
Programmable treatment time:
up to 30 minutes
Emission frequency:
1 MHz - 2 MHz - 3 MHz
Duty Cycle adjustable:
10% - 100%
Continuous peak power:
2 W / cm2
Pulsed peak power:
3 W / cm2
Electrical insulation class UNI EN 60601-1 standard:
II B
Device class in compliance with the 93/42/CEE directive:
I / BF
Degree of protection against the input of liquids UNI EN 60601-1 standard:
IPX0
Output channels:
2 independents
Stored protocols:
91
Storable protocols on the user memory:
250
Storable protocols on the smart-card:
250
Table container in plastic , external size (width x height x depth):
39 x 13 x 32 cm
Unit body weight:
6.55 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0799802

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 60 x 40 x 30 h kg 7 mc 0.072
Video

Video

Electromedical devices - Excellent Line
Documents

Documents


Therapies manual for ultrasound units

This manual illustrates both the physical bases of ultrasound therapy and the electro-physiological bases connected with its use on the human body and related therapeutic effects.
Therapy manual
Language: English
DOWNLOAD
PDF 250.75 KB
Register to access the content

EL12085 - User and maintenance manual

User and Maintenance Manual
Document date: 16/05/2012
Language: English
DOWNLOAD
PDF 1.48 MB
Register to access the content

EL12085 - User and maintenance manual

User and Maintenance Manual
Document date: 16/05/2012
Language: Italian
DOWNLOAD
PDF 1.72 MB
Register to access the content

EL12085 - Declaration of Conformity

Declaration of conformity
Document date: 17/05/2017
Language: English/Italian
DOWNLOAD
PDF 331.53 KB
Register to access the content

EL12085 - Certificate

Declaration of conformity
Document date: 03/11/2017
Language: English/Italian
DOWNLOAD
PDF 1.95 MB
