You are here: Home > Electromedical Devices > Cret Therapy > Tecar Hr Tek
See similar products
Request information

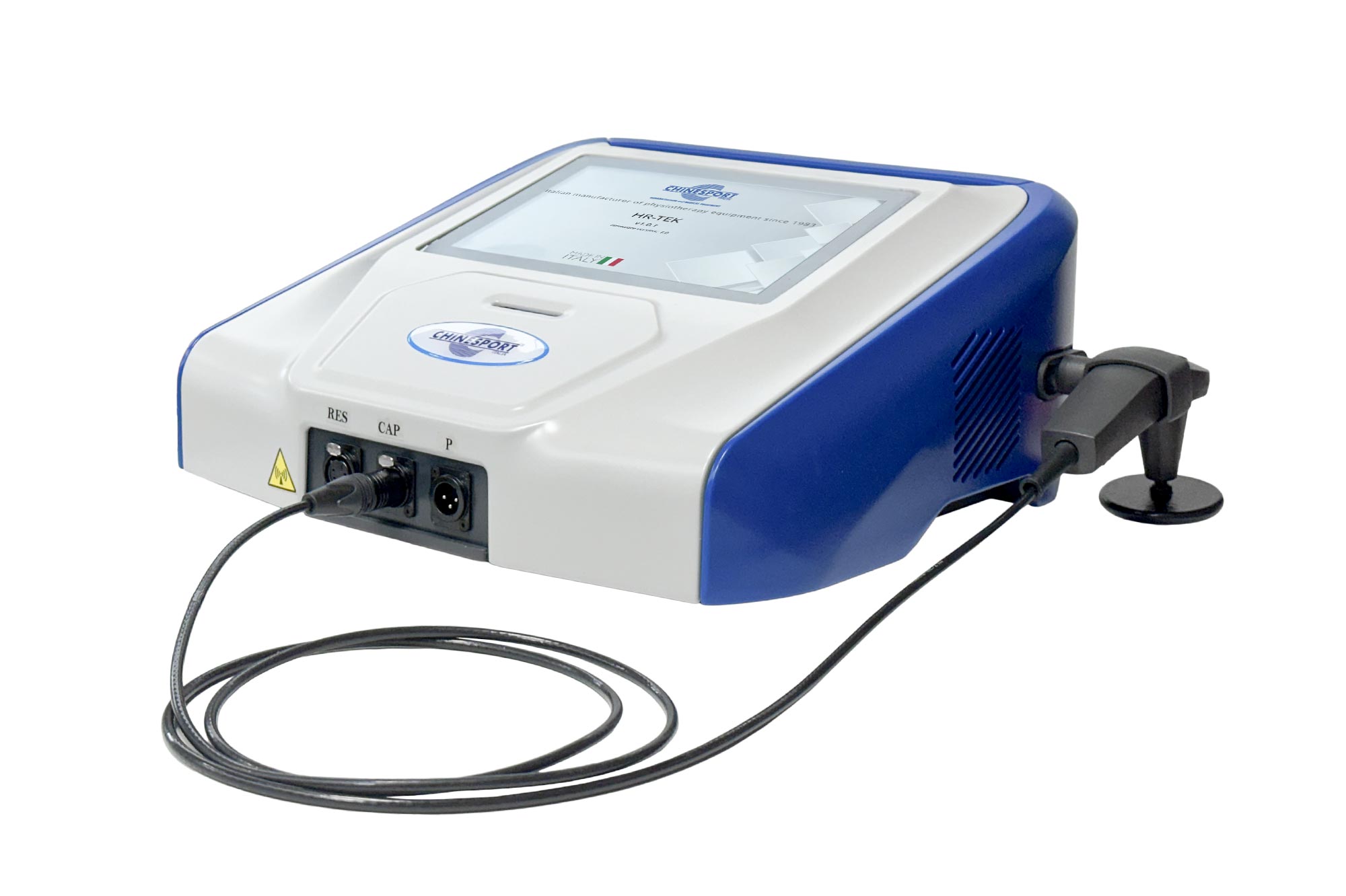

TECAR HR TEK

E
L
1
7
1
9
8
Quantity:

Description

Innovative therapeutic equipment for capacitive resistive energy transfer: allows to stimulate the biological structures (tendons, muscles, joints) from the inside. Diathermy, through tissue-electromagnetic energy interaction, produces an increase in temperature that occurs within the tissues in a uniform and controlled way.

Standard accessories:

  • 1 Basic resistive handpiece
  • 1 Basic capacitive handpiece
  • 1 Resistive electrodes ø 30 - 50 - 70
  • 1 Capacitive electrodes ø 30 - 50 - 70
  • 1 Return electrode
  • 1 Conductive cream 1000 ml
Accessories

Accessories

Wok Trolley
EL0191
Trolley with a support surface designed for use with Chinesport table top electro-medical devices. Compact and easy to handle on 4 casters.
Ask for quotation

Tcare Conductive Cream
EL17230
It is a certified and clinically tested conductive cream for medical use with our TCare equipment in Tecar therapy treatments. It has a good consistency, gli...
Ask for quotation
Technical Spec.

Technical Spec.

Mains power supply:
230 Vac, 50-60Hz, ±10% / 115 Vac, 50-60Hz, ±10% (on request)
Maximum mains power absorption:
255 VA
Max power supplied:
250 W
LCD display:
8” colour touch screen
Programmable treatment time:
Up to 60 minutes
Peak voltage:
Capacitive 300 V - Resistive 105 V
Peak electrical current:
Capacitive 600 mA - Resistive 1.4 A
Handpiece emission frequency:
455 kHz
Type of electrodes used:
Resistive, in stainless steel - Capacitive, in stainless steel, nylon coated
Electrode diameter:
30, 50, 70 mm
Adjustable power:
0 ÷ 100%
Classification 93/42/CEE:
II B
Insulation class:
EN 60601-1 I / BF
Protection level from liquids EN 60601-1:
IPX0
Output channels:
2 independents (1 capacitive, 1 resistive)
Stored protocols:
52
Protocols storable in the user memory:
200
Patients storable in the user memory:
200
Storable protocols on the USB:
4Gb
Patient storable on the USB:
4Gb
Dimensions:
39 x 28 x 18 h cm
Weight:
9.5 kg
