TCARE

E
L
1
2
0
0
2
Quantity:

Description

This new device, unlike the Tecar and Endotherapy electro-medical devices, allows the physiotherapist to use simultaneously two treatment methods, combining the resistive/capacitive energy transfer and the diffusion of the active agent (where prescribed by the physician), with a hand piece called ROLL-ON (patented).



CAPACITIVE MODE

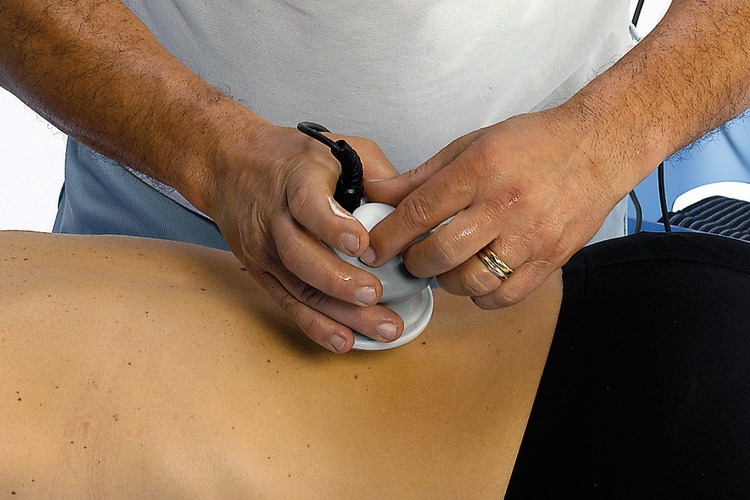

The warming sensation generated inside the body depends on various factors, and can be perceived by the patient at intensities that range from warmth to intense internal heat. When using capacitive electrodes, the diameter of the electrode and speed of movement must be considered in particular. For the same amount of power applied, larger diameter electrodes increase the temperature more gradually and, in addition, the faster the electrode is moved, the less the heat sensation felt by the patient.

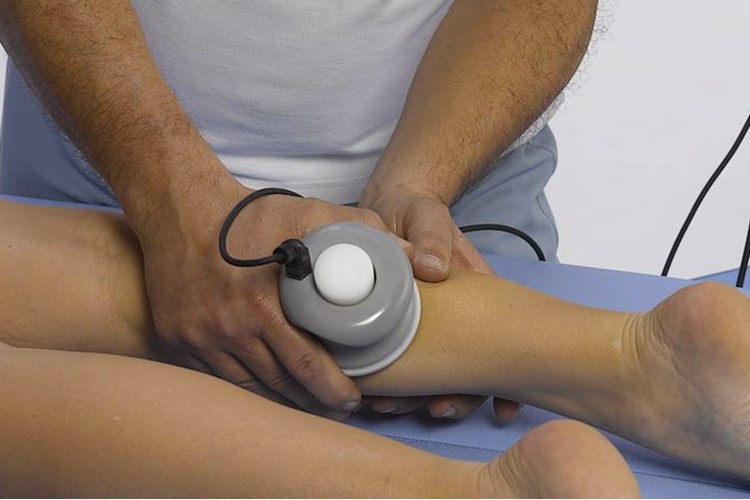

Gastrocnemius treatment example -  CAPACITIVE MODE
The operator transfers energy and medicines into the patient’s gastrocnemius muscle .The effect will be hypervascularization of tissue, and consequently its filling with oxygen, nourishing factors, enzymes on the  arterial side, and drainage of catabolites on the venous side.

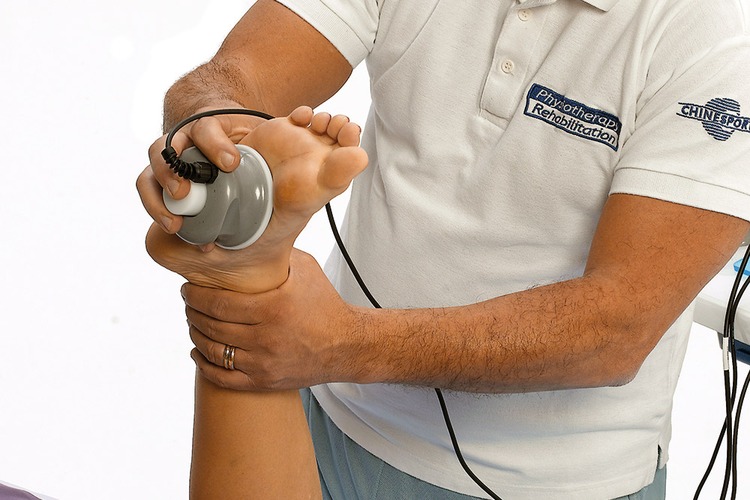

It is good practice to choose the electrode with the largest area possible in relation to the area to be treated. The electrode can be applied, both staying still in the area treated and using circular or linear movements, depending on the area treated and power you wish to apply. It is very important that most of, if not all of, the electrode’s area be in contact with the patient’s skin, following any curves and irregularities in the area treated, and continuously adapting to it. The electrode holder handgrip is specifically designed to minimise effort on the part of the operator and to make the treatment more pleasant for the patient (deep massage action, as if the electrode were an “extension of the operator’s hands”).

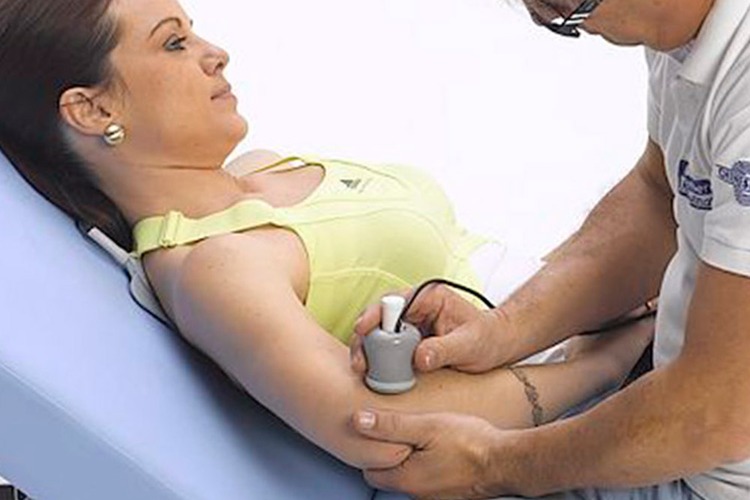

MANUAL MODE WITH DIRECT - RESISTIVE COUPLING

Direct coupling means using the TCARE Cellular Regenerator with uninsulated metal electrodes (no dielectric device interposed). The action mechanism, caused by polarity reversal of the current, produces a quicker and more intense increase in heat in tissue deprived of water and electrolytes (bone tissue and adipose tissue especially). This application method is therefore more indicated, perhaps along with the capacitive mode, for pathologies involving these parts of the body. Since the active electrode is not insulated, the current that moves the charges and the temperature generated in the body are less concentrated in the area immediately below the active electrode, producing a directional aspect guided by the passive electrode (return plate).

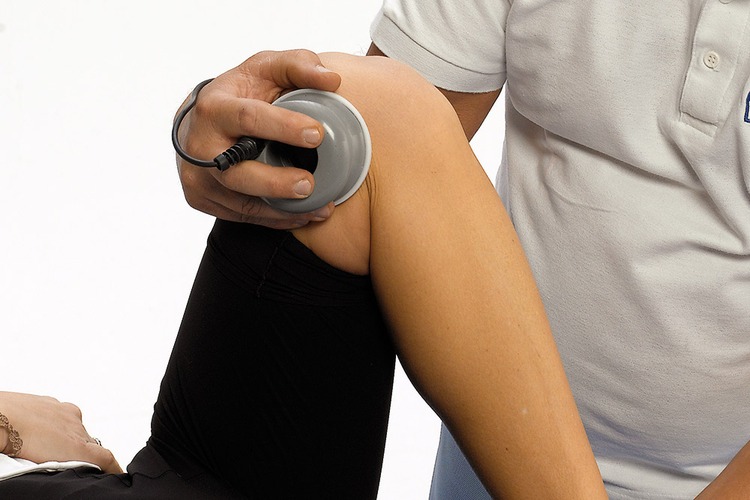

Knee treatment example - RESISTIVE MODE
The operator gets the patient to move their knee into flexion/extension to concentrate Tcare action in the inflamed zone and gain a wider range of motion (.e.g. knee collateral ligament)



In other words, one substantial difference from the capacitive mode lies in taking great care when positioning the return electrode, which directs impulses generated by the active electrode. Another difference is that the active electrode remains in a set position or slight rotational movements are made with a diameter slightly larger than that of the electrode used, and continually adjusting the power applied so that the temperature perceived by the patient is pleasant.

THERAPEUTIC INDICATIONS:

  • Muscular injuries
  • Joint capsulitis
  • Distortions
  • Cervicalia
  • Bone and ligament trauma
  • Tendon injuries and bursitis
  • Lumbalgia and ischialgia
  • Myositis
  • Arthrosis processes
  • Rehabilitation programmes


BIOLOGICAL EFFECTS OF THE TREATMENT:

  • Improvement of arterial flows, with an increase in the quantity of nutritive substances and oxygen
  • Increase in metabolism due to these factors and due to an internal rise in temperature (van’t Hoff’s law)
  • Increase in endocellular energy transformation (ADP into ATP)
  • Improved membrane balance for all cells in the treated area (adipocytes, fibroblasts, etc.)
  • Repolarisation of the cell (from pathologies -40Mv to physiologies -70Mv)
  • Passage of the extra-cellular matrix from a (pathological) gel state gel state to a (physiological) sol state
  • Improvement of venous and lymphatic flow with more efficient expulsion of toxins and catabolites
  • Potentiation and synergy with active ingredients to be diffused in the dermis and hypodermis, with evident application advantages compared to taking intramuscularly


ACCESSORIES SUPPLIED:

EL0147 - Mini Capacitive ROLL-ON 40 mm
EL0163 - Mini Resistive ROLL-ON 40 mm
EL0164 - Medium Capacitive ROLL-ON 56 mm
EL0165 - Medium Resistive ROLL-ON 56 mm
EL0113 - Capacitive ROLL-ON 80 mm
EL0129 - Resistive ROLL-ON 80 mm
EL0122 - Passive plate
AC0665 - Elastic band, 60 cm
AC0667 - Elastic band, 100 cm
EL0148 - Dispenser with cap
EL0128 - Ball cap
EL0149 - Mini dispenser
EL0125 - Passive plate lubrication cream 1000 ml
EL0124 - ROLL-ON lubrication cream 500 ml

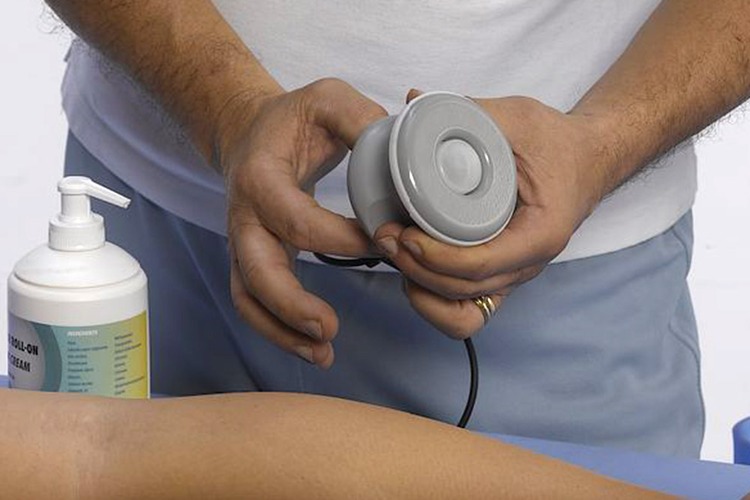

HOW DOES THE ROLL-ON HANDPIECE WORK

The special patented handpiece, known as the ROLL-ON, means that the TCARE Cellular Regenerator device guarantees the best geometric application for achieving capacitive-resistive energy transfers. The particular shape of the handpiece provides an extensive contact area between the electrode and the patient’s skin, while the ROLL-ON’s functionality ensures that, unlike traditional handpieces, the correct quantity of cream is released at the contact interface on a real-time basis. This is sufficient to guarantee the development of the electro-chemical gradient, without allowing any dielectric arc to be formed. It also makes it possible to avoid wasteful dispersion of conductive cream, which provides significant savings in the operating costs sustained by professionals that use the device.



Accessories

Accessories

Tcare Conductive Cream

EL17230
It is a certified and clinically tested conductive cream for medical use with our TCare equipment in Tecar therapy treatments. It has a good consistency, gli...
Ask for quotation

Roll-On Ball

EL0128
Disposable ball caps for dispenser cod. EL0148. Package of 100 pieces.
Ask for quotation

Dispenser With Cap

EL0148
Dispenser with cap - 12 pieces, for 80mm handpieces. To be ordered with ball caps cod. EL0128.
Ask for quotation

Mini Dispenser

EL0149
Disposable dispenser for 40mm and 56mm Roll-on hand pieces. Pack of 100 pieces.
Ask for quotation

Large Capacitive Roll-On

EL0113
Capacitive handpiece ROLL-ON. must be combined with dispenser cod. EL0148 and its ball caps cod. EL0128. Accessory product for Tcare device.
Ask for quotation

Medium Capacitive Roll-On

EL0164
Medio capacitive Roll-On, 56 mm .To be combined with mini dispenser cod. EL0149. Accessory product for Tcare device.
Ask for quotation

Mini Capacitive Roll-On

EL0147
Capacitive Mini hand piece Roll-On to treat small anatomic surfaces, 40 mm. To be combined with mini dispenser cod. EL0149. Accessory product for Tcare device.
Ask for quotation

Large Resistive Roll-On

EL0129
Resistive handpiece ROLL-ON, 80 mm. must be combined with dispenser cod. EL0148 and its ball caps cod. EL0128. Accessory product for Tcare device.
Ask for quotation

Medium Resistive Roll-On

EL0165
Medio resistive Roll-On, 56 mm. To be combined with mini dispenser cod. EL0149. Accessory product for Tcare device.
Ask for quotation

Mini Resistive Roll-On

EL0163
Resistive Mini hand piece Roll-On to treat small anatomic surfaces, 40 mm. To be combined with mini dispenser cod. EL0149. Accessory product for Tcare device.
Ask for quotation

Passive Plate

EL0122
Passive plate to be connected to the TCare device for Capacitive Resistive Energy Transfer therapy (C.R.E.T. therapy).
Ask for quotation

Capacitive Handpiece

EL0155
Ask for quotation

Large Capacitive Electrode

EL0116
Capacitive electrode 6,5 cm.
Ask for quotation

Medium Capacitive Electrode

EL0117
Capacitive electrode 5,3 cm.
Ask for quotation

Mini Capacitive Electrode

EL0118
Capacitive electrode 3,3 cm.
Ask for quotation

Resistive Handpiece

EL0156
Ask for quotation

Large Resistive Electrode

EL0119
Resistive electrode 6,5 cm.
Ask for quotation

Medium Resistive Electrode

EL0120
Resistive electrode 5,3 cm.
Ask for quotation

Mini Resistive Electrode

EL0121
Resistive electrode 3,3 cm.
Ask for quotation

Elastic Bands 100x3 H Cm

AC0667
Elastic band, cm 100x3
Ask for quotation

Elastic Band 60x3 H Cm

AC0665
Elastic band, cm 60x3
Ask for quotation
Technical Spec.

Technical Spec.

Working frequency:
0,8MHz, 1 MHz, 1,2MHz
Output passive plate:
1
Manual output capacitive electrode:
1
Manual output direct coupling electrode:
1
Manual mode:
400Ω
V rms (aprox.):
320
Watt rms (aprox.):
150
Input voltage:
115÷230VAC ± 10% 50/60Hz
Maximum input power:
200 W
Ambient working temperature:
+10 ÷ +30 °C
Maximum temperature storage and transport:
+10 ÷ +70 °C
Maximum humidity storage and transport:
25 ÷ 85%
Passive plate area:
aprox. 220 cm²
Roll-On capacitive electrodes:
Ø 56 mm
Direct coupling electrodes:
Ø 56 mm
Active medical devices:
CLASS II B
Weight:
40 kg
Dimensions:
60 x 80 x 115 h cm
Gallery

Gallery

Logistics

Logistics

CDN Code:
Z12069099
Code Repertoire:
R1213795

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 scatola su bancale cm 80 x 72 x 140 h kg 67 mc 0.8064
Video

Video

1.0 TCare introduction
1.1 Muscle injury on quadriceps
1.2 Contracture in low back pain

Other videos

1.3 Cervical spine pain and stiffness
1.4 Ischialgia from hamstrings lesion
1.5 Arthrosis process on knee joint
1.6 Long head biceps tendonitis
CRET Therapy - GPS Pathways for Rehabilitation concept
CRET Therapy - Plantar fasciitis treatment
CRET Therapy - Achillodynia treatment
CRET therapy - Acute knee injury treatment
CRET therapy - Patellofemoral disorders treatment
CRET therapy - Treating knee extension deficits
CRET therapy - Low back pain treatment
CRET therapy - Cervical spine pain and TMD treatments
CRET therapy - Lower spine mobilisations and lateral myofascial chain treatments
CRET therapy - Shoulder joint and scapular dyskinesia treatment
CRET therapy - Diaphragm release treatment
CRET therapy - Intercostal release and lateral myofascial chain treatment
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Tcare clinical trial

The use of Tecar Therapy with TCare in rheumatology

Asl3 - Liguria Region Health Care System - [Tecartherapy can be used for many types of rheumatic disorders as useful support method…]

Various
Document date: 10/05/2024
Language: English
Version: V 1.0
DOWNLOAD
PDF 153.39 KB
Register to access the content

Transfer capacitive resistive energy

IFU - Instruction of use
Document date: 20/10/2022
Language: Italian
Version: 1.2.5
DOWNLOAD
PDF 3.51 MB

Transfer capacitive resistive energy

IFU - Instruction of use
Document date: 20/10/2022
Language: English
Version: 1.2.4
DOWNLOAD
PDF 3.5 MB

Studio clinico tcare

L’impiego della Tecar terapia con Tcare in reumatologia

Asl3 - Sistema Sanitario Regione Liguria - [La tecarterapia può essere impiegata per molteplici tipologie di disturbi reumatici in quanto metodica di supporto…]

Various
Document date: 08/04/2022
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 153.83 KB

Ce certificate

Certificate
Document date: 24/05/2021
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.64 MB

Manuale istruzioni

Manual - past Edition
Document date: 25/05/2019
Language: Italian
Version: V 2.0

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 847.25 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 25/05/2019
Language: English
Version: V 2.0

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 854.82 KB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 16/10/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 217.62 KB
Register to access the content
Training

Video courses

The GPS Academy has now become an international network through which we endeavour to educate by means of workshops, seminars, conferences, in-company customized training and consultancy, and online media.

TCare - Capacitive Resistive Energy Transfer Therapy
C.R.E.T. therapy is an essential tool in global posture correction and reeducation. In this FREE series you will discover different treatment protocols. Don’t miss out on this unique opportunity!
