FISIOLASER SCAN 500 - Plus Line

E
L
1
2
0
8
1
Quantity:

Description

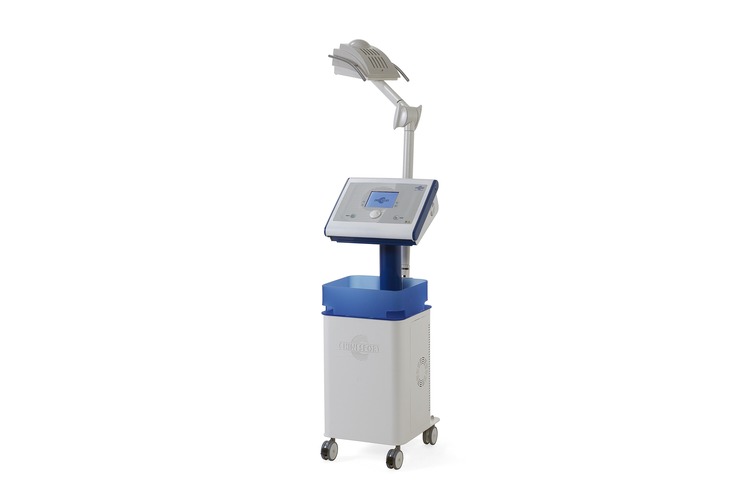

Trolley-mounted equipment for scanning laser therapy, power 500 mW



Applying scanning laser therapy, using single or multi diode lasers, makes it possible to treat larger areas that when contact therapy is applied, and to apply the therapy automatically, without the presence of an operator. The rule that applies to all forms of medical treatment applies to Laser treatment as well: the best results are obtained by therapists that have sound medical training, know how to listen to the patient, and have good intuitive skills.



ADVANTAGES TO USING SCANNING LASER THERAPY

  • Scanning laser units run in automatic mode, as they do not require an operator to be present.
  • Using a scanning laser unit makes it possible to treat larger areas that when a contact laser is used.
  • Automatic setting of the treatment area.
  • Scanning area adjustable up to 400 cm²
  • Possibility of connecting an external single / multidiode laser handpiece.



ACCESSORIES SUPPLIED

  • 1 Mains power supply cable
  • 1 User’s manual
  • 2 Spare fuses
  • 2 Laser protection goggles
  • 1 INTERLOCK Connector
  • 1 Smart Card



TARGET POINTING DEVICE CHARACTERISTICS

  • Target pointing device UNI EN 60601-2-22 standard: 2 light-drive
  • Light-drive device: Led-diode
  • Light-drive color: red
  • Light-drive representation on the impact point: Spot with red as colour
Accessories

Accessories

Laser Radiation Protective Goggles

02098
Lens color green, VLT 45%.

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.

Carry Case

EL0016
Carry case for the unit transport

1-Diode Handpiece - 25mw

EL0028
Handpiece 1 diode, 25mW

1-Diode Handpiece - 100mw

EL0030
Handpiece 1 diode, 100mW.

3-Diode Handpiece - 75mw

EL0031
Handpiece 3 diode, 75mW.

3-Diode Handpiece - 300mw

EL0033
Handpiece 3 diode, 300 mW.

5-Diode Handpiece - 125mw

EL0034
Handpiece 5 diode, 125mW.

5-Diode Handpiece - 500mw

EL0036
Handpiece 5 diode, 500 mW.

8-Diode Handpiece - 200mw

EL0037
Handpiece 8 diode, 200 mW.

8-Diode Handpiece - 800mw

EL0039
Handpiece 8 diode, 800 mW.

l1 Arm - For 1 Diode Handpiece

EL0042
Pantograph arm for 1 diode handpiece. Free fixing.

l3-5-8 Arm - For 3/5/8 Diode Handpiece

EL0043
Pantograph arm for 3-5-8 diode handpieces. Free fixing.
Technical Spec.

Technical Spec.

Mains voltage:
230 Vac, 50-60Hz
Mains voltage (on request):
115 Vac, 50-60Hz
Max. Power absorption:
25VA
Interlock socket/Safety key (contacts normally closed):
3 contact DIN socket
Backlit LCD Display:
320 x 240 pixel,W/B
Programmable treatment time:
up to 99 minutes
Diode Laser wave length emission:
808 nm
Laser classification according to EN 60825-1:
III B
Device class 93/42/CEE directive:
II B
Electrical insulation UNI EN 60601-1 standard:
I / BF
Degree of protection by liquid access:
IPX0
Programmable pulse frequency:
( 200 ÷ 10000 ) Hz
Power @ 200 Hz:
12.5mW
Power @ 10000 Hz:
500mW
Output channels:
2 independents
Stored therapeutic suggestions:
85
Storable therapeutic suggestions:
200
External size:
39 x 43 x 168 h cm
Unit body weight:
35 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0800891

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 125 x 61 x 64 h - mc 0.488
Documents

Documents


EL12081 - User and maintenance manual

User and Maintenance Manual
Document date: 01/07/2018
Language: Italian
DOWNLOAD
PDF 3.83 MB
Register to access the content

EL12081 - User and maintenance manual

User and Maintenance Manual
Document date: 01/07/2018
Language: English
DOWNLOAD
PDF 1.33 MB
Register to access the content

EL12081 - Declaration of Conformity

Declaration of conformity
Document date: 17/05/2016
Language: English/Italian
DOWNLOAD
PDF 114.98 KB
Register to access the content

EL12081 - Certificate

Declaration of conformity
Document date: 03/11/2017
Language: English/Italian
DOWNLOAD
PDF 1.95 MB
