MICRORADAR PULS

E
L
1
7
0
6
0
Quantity:

Description

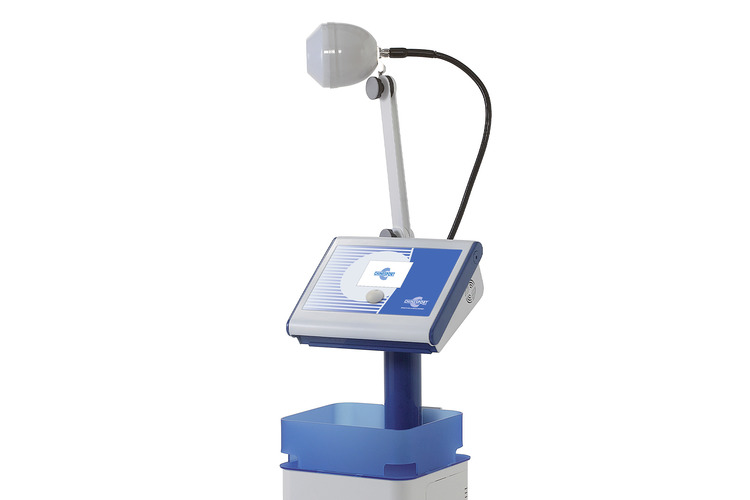

MICRORADAR PULS is a medical device that emits microwave-therapy treatments, with the auxilium of antennas for the emission of the treatment in continuous and pulsed operating modes.



Medical use of microwaves is mainly based on the fact that the microwaves are selectively absorbed by tissues with high water content. They can therefore heat certain selective areas such as muscles for example, while the penetration and absorption at bone level is minimal. Once electromagnetic waves come in contact with organic tissue, they transform most of their radiating energy into heat (caloric energy) with different degrees of penetration mainly limited to muscular and peri-articular tissues (skin and subcutaneous, tendons, sheaths, muscle bands, synovia).



Normal applications of heat treatment (including short-wave therapy) are generally used to treat the following conditions:

  • Reduction of pain
  • Improvement in collagen extendibility
  • Reduction in articular rigidity
  • Reduction of oedema and inflammatory exudates
  • Increase in blood flow



ACCESSORIES SUPPLIED

  • 1 Pantograph arm
  • 1 High frequency output cable
  • 1 Circular antenna
  • 1 Smart Card
Accessories

Accessories

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.
Ask for quotation

Rectangular Antenna

EL0026
Long-field antenna, 47 x 12 x 7h cm
Ask for quotation

Three-Dimensional Antenna

EL0027
Wrap-around field antenna, 50 x 20 x 18h cm
Ask for quotation
Technical Spec.

Technical Spec.

Mains power supply:
230 Vac, 50-60Hz, ±10%
Mains power supply (on request):
115 Vac, 50-60Hz, ±10%
Maximum mains power absorption:
600 VA
LCD display:
6” colour touch screen and encoder
Programmable treatment time:
Up to 30 minutes
Emission frequency:
2450 MHz
Medical device class according to EU regulations:
II B
Electrical insulation class UNI EN 60601-1:
I / BF
Operation continuous:
100%
Operation pulsed:
10% ÷ 90%
Continuous power peak:
250 W (on 50 Ω test load)
Pulsed power peak:
1600 W (on 50 Ω test load)
Pre-installed protocols:
Available
Storable patient procedures on internal memory:
200
Storable patient treatment procedures on smart-card:
200
Dimensions:
39 x 30 x 89 h cm
Dimensions (with arm and antenna):
65 x 31 x 172 h cm
Weight:
34.2 kg
Weight (with arm and antenna):
38.7 kg
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 125 x 60 x 65 h kg 49 mc 0.4875
Documents

Documents


Manuale utente

Manual
Document date: 01/10/2021
Language: Italian
DOWNLOAD
PDF 909.15 KB
Register to access the content

User manual

Manual
Document date: 09/02/2021
Language: English
DOWNLOAD
PDF 900.21 KB
Register to access the content

CE declaration of conformity

Compliance statement
Document date: 01/08/2019
Language: Italian, English
DOWNLOAD
PDF 27.56 KB
Register to access the content
