KOMBY

E
L
1
7
0
5
9
Quantity:

Description

Equipment for combined therapy - one channel for 1/3 MHz ultrasound therapy and electro therapy with 2 independent channels and 25 wave forms. In ultrasound therapy, a sensor allows the energy to be supplied only when there is contact with the patient, sending the operator a visual and auditory feedback. In electrotherapy, instead, the microcontrollers to the power boards verify in real time that the selected current is deliver correctly and report any possible anomalies.

Display 6” colour touch screen and encoder. Smart card included.



ACCESSORIES SUPPLIED

  • 4 Electrodes 6x8,5 cm
  • 4 Electrode sponges 8x10 cm
  • 4 Electrodes 5x5 cm
  • 4 Electrode sponges 6x7 cm
  • 2 Elastic band 100x3 cm
  • 2 Elastic band 60x3 cm
  • 1 Handpiece 1/3 MHz 5 cm²
  • 1 2 channels output cable
  • 1 Smart card






TECHNICAL SPECIFICATIONS - ELECTROTHERAPY

Programmable treatment time: Up to 99 minutes
Operation: Low frequency, Medium frequency
Waveforms: 25 families of waveforms, 32 total waveforms
Operation: Constant voltage, Constant current
Peak current (Load resistance 1KOhm)
- Pulsed currents: 100 mA
- Diadynamic currents: 70 mA
- Continue currents - IONOPHORESIS: 50 mA
Peak voltage (Load resistance 1KOhm)
- Pulsed currents: 100 V
- Diadynamic currents: 70 V
- Continue currents - IONOPHORESIS: 50V
Stored protocols: 40
Storable protocols in the user memory: 100
Storable curve I/t in the user memory: 100
Storable protocols in the smart-card: 200
Storable curve I/t in the smart-card: 100
Storable curve I/t in the smart-card: 2 independent





Treatment with electrotherapy

Current

1)

ARTHRITIS

Bifasic

2)

BURSITIS

Galvanic

3)

CARPAL TUNNEL SYNDROME

Tens burst

4)

CERVICAL ARTHROSIS

Interferential

5)

CHELOIDS

Iontoforesi

6)

DORSAL PAIN

Tens

7)

EPICONDYLITIS

Tens

8)

EPITROCLEITIS

Tens

9)

FIBROMYALGIA

Interferential

10)

HIP PERIARTHRITIS

Tens

11)

METATARSALGIA

Short perios

12)

MUSC RHEUMATISM

Interferential

13)

MUSC SPASMS/CONTRACTIONS

Galvanic

14)

NEURALGIAS

Classic Interferential

15)

PERI-ARTICULAR CALCIFICATIONS

Galvanic

16)

POST-SURGICAL PAIN

Tens burst

17)

PUBALGIA

Interferential

18)

RHEUMATOID ARTROSIS

Classic Interferential

19)

SEQUENTIAL DRAINAGE ARMS

Kotz

20)

SEQUENTIAL DRAINAGE-LEGS

Kotz

21)

SCIATIC PAIN

Tens

22)

SHOULDER PERIARTRITIS

Interferential

23)

SKULL DISEASE

TENS

24)

TENDINOSIS

Tens

25)

TENDINOSIS

Long perios




TECHNICAL SPECIFICATIONS - ULTRASOUND THERAPY

Programmable treatment time: Up to 30 minutes
Emission Frequency: 1 MHz e 3 MHz
Adjustable Duty-Cycle: ( 10 – 100 ) %
Duty Cycle adjustable frequency: ( 10 – 100 ) Hz
Continue peak power: 2 W / cm² ± 20%
Pulsed peak power: 3 W / cm² ± 20%
Stored protocols: 40
Storable protocols in the user memory: 100
Storable curve I/t in the smart-card: 200
Output channels: 1



TREATMENT WITH ULTRASOUND THERAPY

  1. CALCANEAL SPUR SYNDROME
  2. CARPAL TUNNEL SYNDROME
  3. CERVICAL BRACHIALGIA
  4. CHELOIDAL SCARS
  5. CHELOIDS
  6. DORSAL PAIN
  7. DUPLAY'S SYNDROME
  8. DUPUYTREN'S SYNDROME
  9. EPICONDYLITIS
  10. FIBROMYALGIA
  11. HIP PERIARTHRITIS
  12. INTRAMUSCULAR CALCIFICATION
  13. LARGE MUSCLE MYALGIA
  14. LONG MUSCLE MYALGIA
  15. LUMBAGO
  16. MYOFASCIAL PAIN
  17. PERIARTRITIC CALCIFICATION
  18. PLANTER FIBROSIS
  19. POST- OPERATIVE EMILAMINECTOMIA
  20. POST-TRAUMATIC MUSCULAR PAIN
  21. SCIATICA/NEURITIS
  22. SHOULDER PERIARTRITIS
  23. SKIN TISSUE TONIING UP
  24. SMALL JOINTS ARTHROSIS
  25. TENDINOSIS






TECHNICAL SPECIFICATIONS - COMBINED THERAPY

Programmable treatment time: Up to 99 minutes
Current type: Low frequency, Medium frequency
Emission frequency: See the electro-therapy and ultrasound section
Adjustable Duty-Cycle: See the ultrasound section
Continue peak power: See the ultrasound section
Pulsed peak power: See the ultrasound section
Stored protocols: 20
Outputs channels: 2 independents



TREATMENT WITH COMBINED THERAPY

  1. ACHILLE'S TENDINITIS
  2. CALCANEAL SPUR
  3. CALCIFICATION BURSITIS
  4. CHELOIDS
  5. DORSAL PAIN
  6. EPICONDYLITIS
  7. EPITROCLEITIS
  8. GOOSE'S F.TENDONS
  9. HIP PERIARTHRITIS
  10. INTRAMUSCULAR CALCIFICATION
  11. LONG MUSCLE MYALGIA
  12. LUMBAGO
  13. MUSCLE PAIN
  14. MUSCULAR HEMATHOMA
  15. PERIARTIC CALCIFICATION
  16. PLANTER FIBROSIS
  17. PREPATELLAR BURSITIS
  18. SHOULDER PERIARTRITIS
  19. SMALL JOINTS ARTHROS
  20. TENDINOSIS



This electro-medical device can be used in combination with our VACUUM therapy equipment. The use of vacuum electrodes generate a flow of blood in the application area, improving the effect of the therapy. VACUUM therapy is therefore intended to be used  with the stimulation currents of this device.

Accessories

Accessories

Electrodes, 5 X 5 Cm, 2 Pcs

EL17013
Electrodes 5 x 5 cm, set of 2 pieces. 2 mm.
Ask for quotation

Electrodes, 6x8,5 Cm, 4 Pcs

EL17014
Electrodes, 6 x 8.5 cm, set of 4 pieces. 2 mm.
Ask for quotation

Sponges 7 X 6, 2 Pcs

EL0009
Sponges 7 X 6 cm, 2 pieces.
Ask for quotation

Sponges 8 X 10 Cm, 4 Pcs

EL0010
Sponges 8 x 10 cm, 4 pieces
Ask for quotation

Elastic Band 60x3 H Cm

AC0665
Elastic band, cm 60x3
Ask for quotation

Elastic Bands 100x3 H Cm

AC0667
Elastic band, cm 100x3
Ask for quotation

Handpiece 1 Cm²

EL0017
1-3 MHz cm, dual frequency, IP67 protection.
Ask for quotation

Handpiece 3 Cm²

EL0018
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 5 Cm²

EL0019
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 8 Cm²

EL0020
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.
Ask for quotation

Sonic Arm P

EL0022
Swivel arm. Free mount.
Ask for quotation

Wok Trolley

EL0191

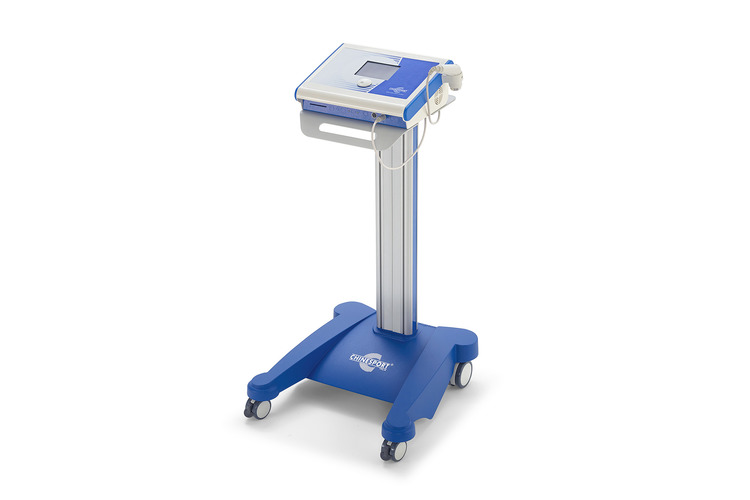

Trolley with a support surface designed for use with Chinesport table top electro-medical devices. Compact and easy to handle on 4 casters.
Ask for quotation

Electrodes, 5 X 5 Cm, 25 Pcs

EL17011
Electrodes 5 x 5 cm, set of 25 pieces. 2 mm.
Ask for quotation

Electrodes, 6 X 8,5 Cm, 25 Pcs

EL17012
Electrodes, 6 x 8.5 cm, set of 25 pieces. 2 mm.
Ask for quotation

Sponges 7x6 Cm, 25 Pcs

EL13009
Sponges, set of 25 pieces, 7 x 6 cm.
Ask for quotation

Sponges 8 X 10 Cm, 25 Pcs

EL13010
Sponges 8 x 10 cm, set of 25 pieces
Ask for quotation

Elastic Straps 60x3 H Cm, 20 Pcs

EL13013
Elastic straps 60 x 3 cm, set of 20 pieces
Ask for quotation

Elastic Straps 100x3 H Cm, 20 Pcs

EL13014
Elastic straps, cm 100, set of 20 pieces
Ask for quotation

Carry Case

EL0016
Carry case for the unit transport
Ask for quotation

Contact Gel

EL0023
Non-electroconductive gel, 250 g
Ask for quotation

Gel Canister

EL0024
Non-electroconductive gel, 5 l
Ask for quotation

Dispenser-Pump

EL0025
Pump for canister code EL0024.
Ask for quotation

Output Cable

EL0194
Additional 2-channel output cable. 2 mm.
Ask for quotation
Technical Spec.

Technical Spec.

Mains power supply:
230 Vac, 50-60Hz, ±10%
Mains power supply (on request):
115 Vac, 50-60Hz, ±10%
Maximum mains power absorption:
70 VA
LCD display:
6” colour touch screen and encoder
Medical device class according to EU regulations:
II B
Dimensions:
45 x 30 x 14 h cm
Weight:
4.6 kg
ELECTROTHERAPY
Programmable treatment time:
up to 99 minutes
Operation:
low frequency, medium frequency
Pre-installed protocols:
Available
Storable patient treatment procedures:
Available (on both internal memory and external smart-card)
Storable sequences of I/T curves:
Available (on both internal memory and external smart-card)
Output channels:
2 independents
ULTRASUOND THERAPY
Programmable treatment time:
Up to 30 minutes
Emission frequency:
1 MHz and 3 MHz ± 15%
Duty-Cycle adjustable:
10% ÷ 100%
Duty-Cycle frequency:
(10 ÷ 100) Hz
Continuous peak power:
2 W / cm² ± 20%
Pulsed peak power:
3 W / cm² ± 20%
Pre-installed protocols:
Available
Storable patient procedures on internal memory:
100
Storable patient treatment procedures on smart-card:
200
Output channels:
1 independent
COMBINED THERAPY
Programmable treatment time:
Up to 99 minutes
Pre-installed protocols:
Available
Output channels:
2 independents
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 60 x 40 x 30 h kg 10 mc 0.072
