You are here: Home > Active Exercises > Continuous Passive Motion Lower Limbs > Fisiotek 2000 E
Request information

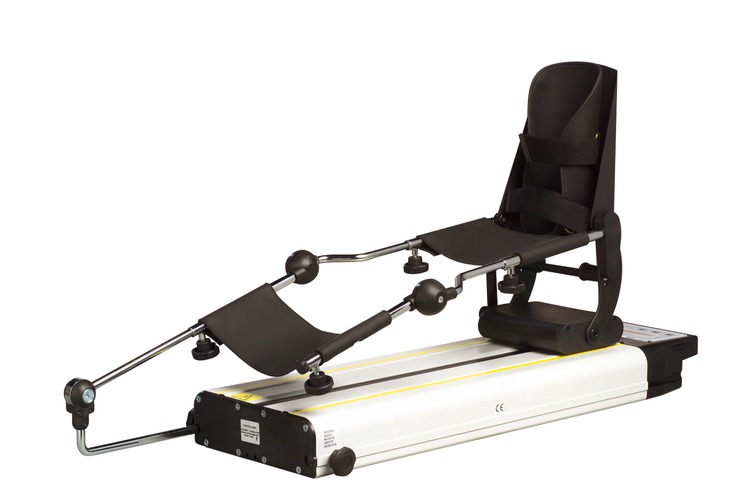

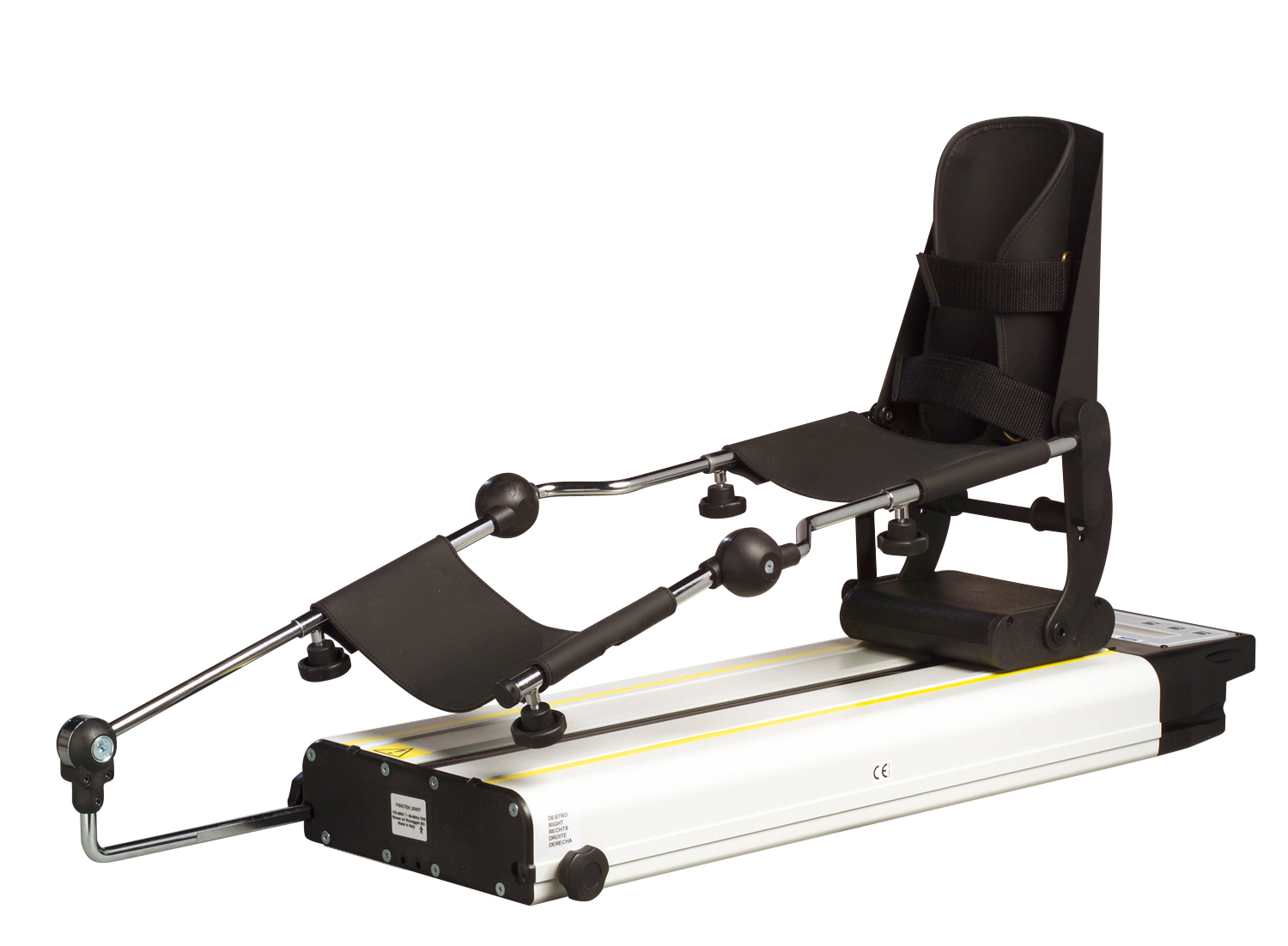

FISIOTEK 2000 E

0
1
8
3
8
Quantity:

Description

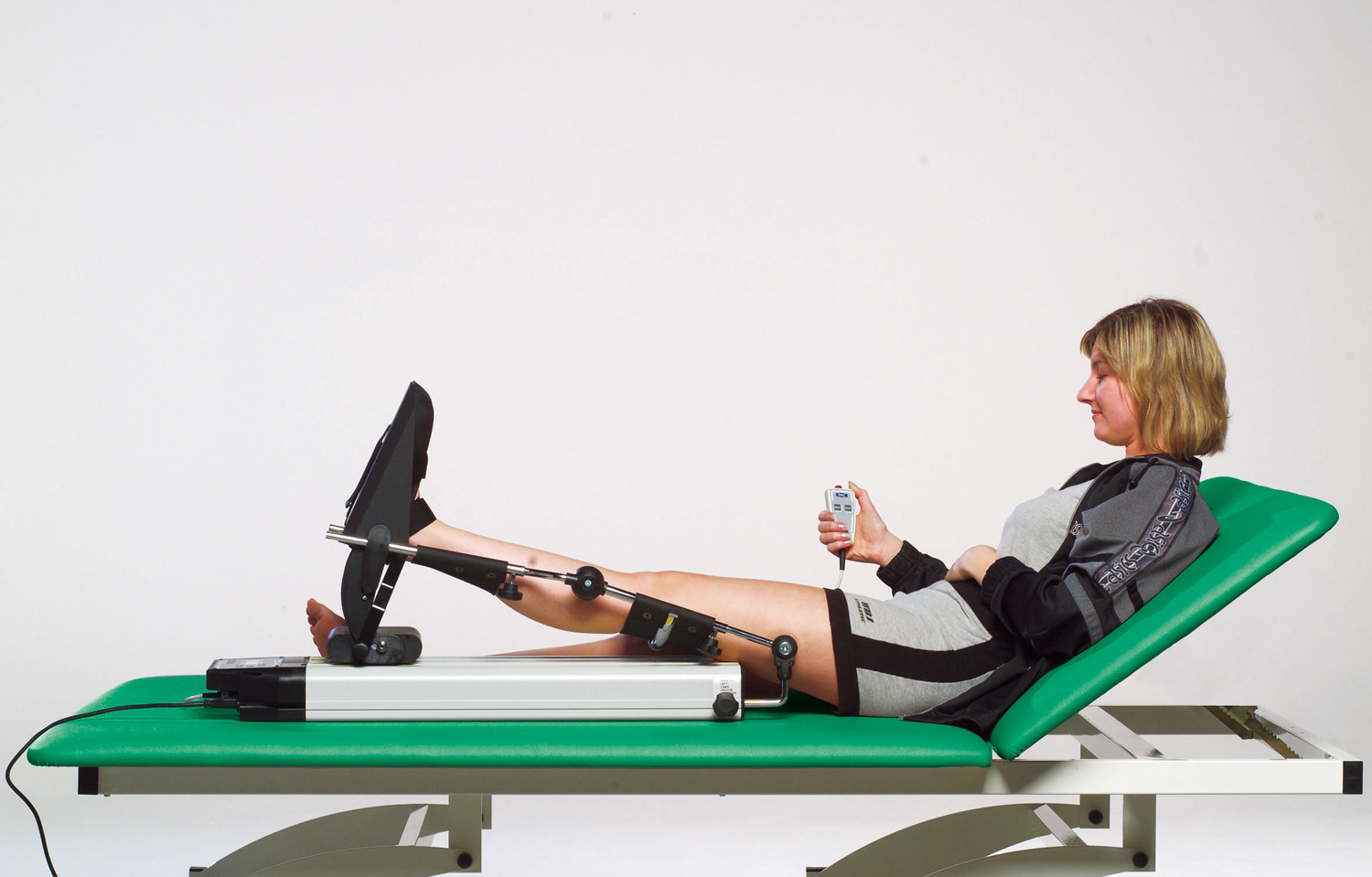

A direct-current motor, controlled by a microprocessor electronic board, operates the other Fisiotek 2000 units. All functions can be programmed by using the on-board control panel. START and STOP keys are also available on a hard-held control, so that patients can start and stop movement if needed.

The unit can be adjusted to fit the patient according to the limb length, as measured from the greater trochanter to the malleolus.

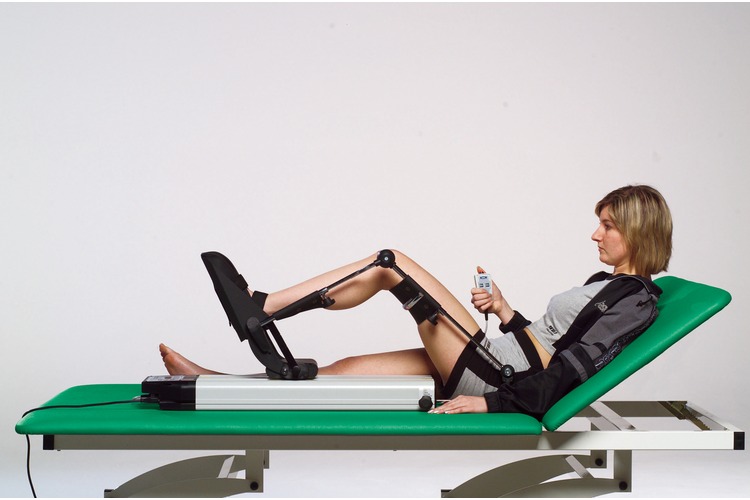

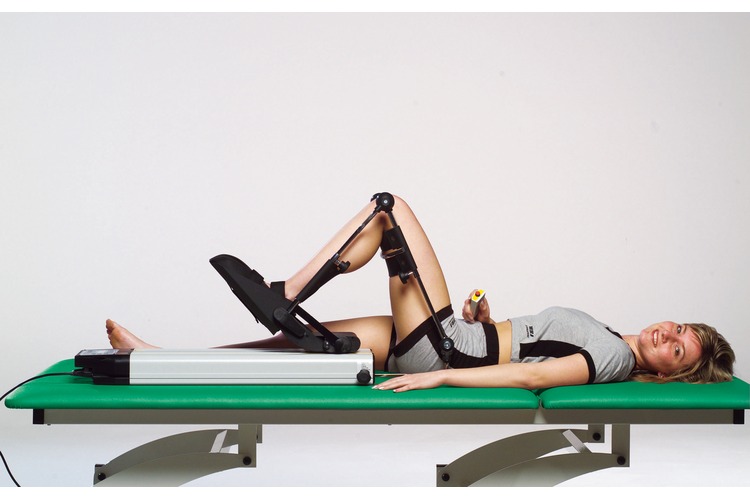

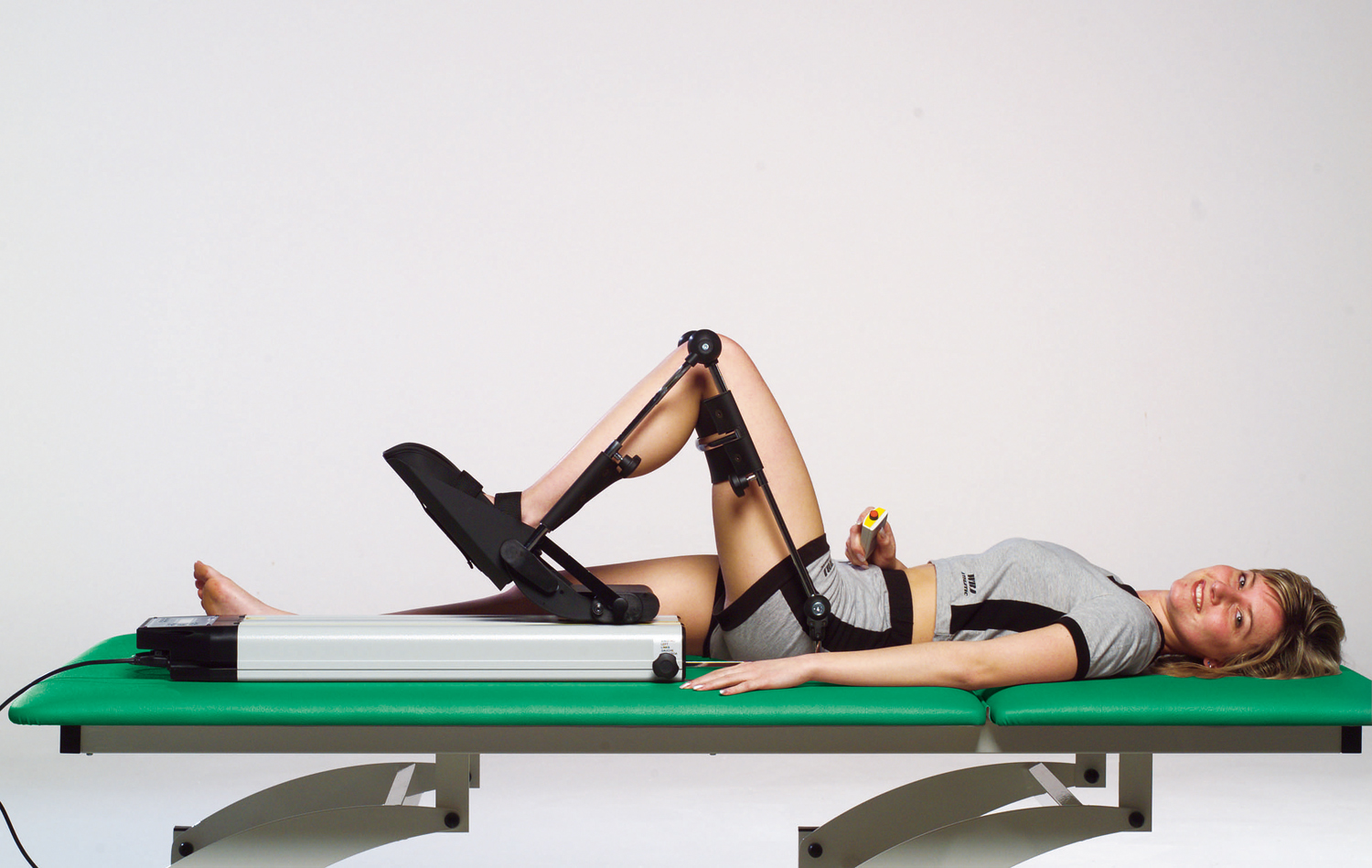

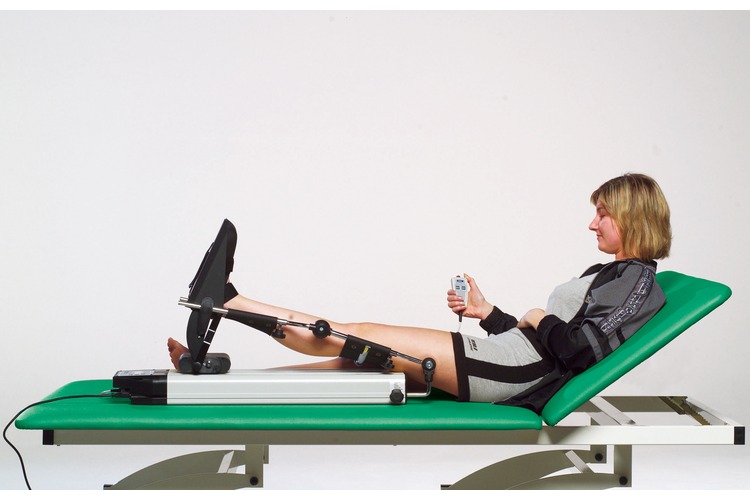

This device allows the knee and hip to be mobilized through flexion-extension movements.
Can accommodate limps 32- 46 cm long, equivalent to a patient's height of about 140 - 190 cm, respectively.

Programmable functions:
- knee flexion-extension range from 5° to 110°;
- speed from 1.5 to 3.5°/ sec;
- force 0-40 kg;
- session time;
- pause during flexion.

Accessories

Accessories

Fisiotek Trolley
01841
Simple and functional, fi tted with non-slip supports for Fisiotek anda service shelf.
Ask for quotation
Technical Spec.

Technical Spec.

Mobilization:
Hip - Knee
Use of memory card:
-
Speed during flexo/extension control:
-
Speed control:
X
Force control:
X
Work time control:
X
Automatic extension increase:
-
Automatic flexion increase:
-
Pausa during extension:
-
Pausa during flexion:
X
Warm up cycles:
-
Knee movement breadth:
-5° - 110°
Hip movement breadth (mid limb):
10° - 70°
Speed:
0,8°/sec - 4,6°/sec.
Force:
0 - 40 kg
Power supply:
85 - 260 V; 50 -60 Hz
Electrical safety:
Class 1 B Standard EN 60601-1
Electromagnetic compatibility:
Group 1 Class B Standard EN 60601-1-2
Classification according to EEC Directive 93/42:
Class II a
Wheight:
14 kg
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Declaration of conformity

Compliance of statement - past edition
Document date: 09/07/2013
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 213.89 KB
Register to access the content

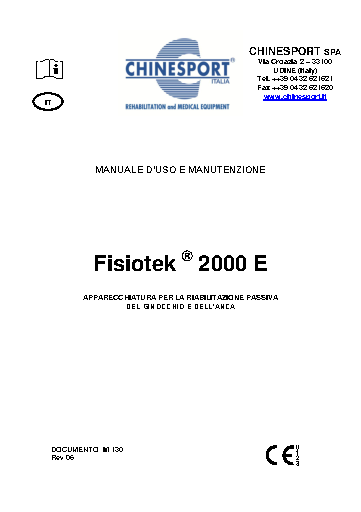

Manuale istruzioni

Manual - past Edition
Document date: 15/02/2013
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1.6 MB
Register to access the content

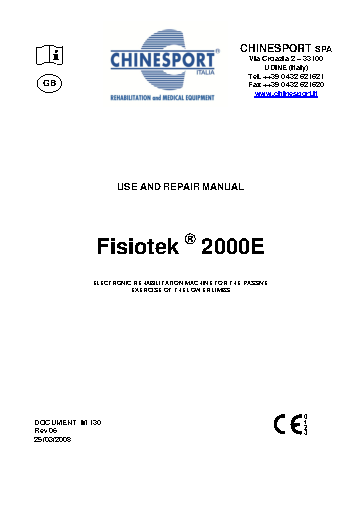

User and maintenance manual

Manual - past Edition
Document date: 15/02/2013
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.53 MB
Register to access the content

Brochure

Brochure
Document date: 18/05/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 336.48 KB

Insights

Various
Document date: 18/05/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 8.24 KB

Insights

Various
Document date: 18/05/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.25 MB
Register to access the content
