FISIOLASER HP8

E
L
0
0
8
0
Quantity:

Description

Trolley-mounted scan laser therapy device with 8000m W power (single diode)., for the treatment of areas exceeding 400 cm2 (at 50 cm from output), with adjustable scan from vertical to horizontal to mixed, for a high degree of penetration into human tissues. Automatic setting of treatment time according tothe energy to be delivered and the scanning surface selected. Two independent channels - one internal for scanning and one external to enable the application of an external laser handpiece at low or high power. Laser head provided with blue safety indicator light, to indicate when the device is on. Interlock safety device to stop the machine in remote, check the temperature in real time on the laser diode, perform self-diagnostics and report anomalies.

Accessories

Accessories

1-Diode Handpiece - 25mw

EL0028
Handpiece 1 diode, 25mW
Ask for quotation

1-Diode Handpiece - 100mw

EL0030
Handpiece 1 diode, 100mW.
Ask for quotation

5-Diode Handpiece - 500mw

EL0036
Handpiece 5 diode, 500 mW.
Ask for quotation
Technical Spec.

Technical Spec.

  • Light Guide
  • Power : 3 mW
  • Wave length: 635 nm
  • IR Diodes Power: 1 x 8000
  • Wave length: 940 nm
  • General
  • Frequency : 1 - 10.000 Hz
  • Treatment time: 1 - 99 mins
  • Power supply: 220V 50/60 Hz
  • Group 60601-1: I BF
  • Group 93/427ECC: II B
  • Laser group: 4
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Approfondimenti

Various
Document date: 22/12/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 42.62 KB

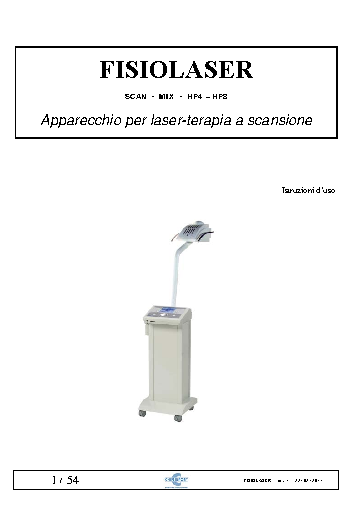

User and maintenance manual

Manual - past Edition
Document date: 12/07/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 881.87 KB
Register to access the content

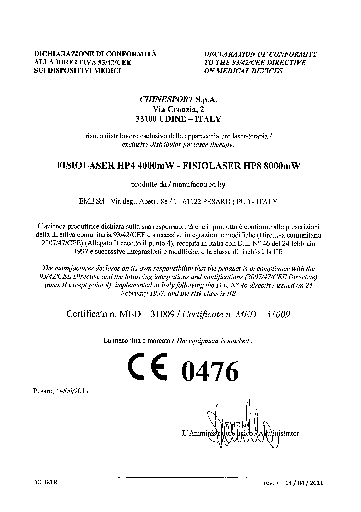

Declaration of conformity

Compliance of statement - past edition
Document date: 05/07/2011
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 47.65 KB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 24/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 951.48 KB
Register to access the content

Brochure

Brochure
Document date: 24/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 255.3 KB
