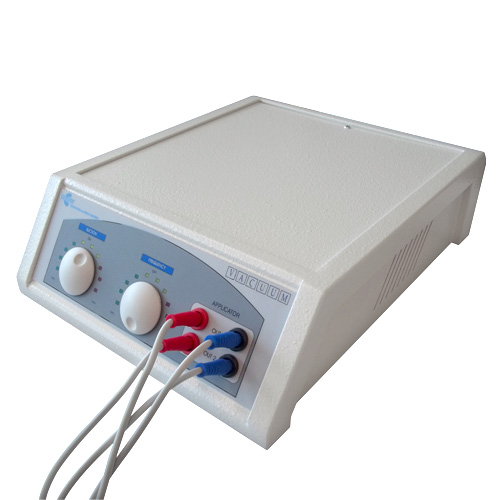

VACUUM THERAPY

E
L
1
2
0
0
4
Quantity:

Description

The Vacuum therapy is a therapeutical method which uses the effect of the vacuum in the body by combining the improvement of the tissue microcirculation with an anti-inflammatory and detoxing action.

The vacuum application combined with the stimulation currents are carried out using vacuum electrodes. Such electrodes are connected through pipes to a suction pump which causes a negative pressure inside the electrodes: during this action, the high depression requires a great quantity of blood (hyperemia), thereby improving the therapy effect through the different stimulation currents.


HOW DOES THE VACUUM THERAPY WORK?
The vacuum therapy consists in applying an inner tube to a body part, in which a depression is created and afterwards a compression to stimulate the venous and lymphatic circulation: this causes a suction effect which increases the blood afflux in the involved area, stimulating the circulation and the oxygenation, and accelerating the turnover of substances and the elimination of toxins.

In the peripheral tissues the oxygen levels increase substantially and the carbon dioxide decreases: by improving the blood flow the exchange activity in the capillaries is favored and by accelerating the blood flow the venous stasis which is the main cause of various veins and venous insufficiency.


THERAPEUTIC INDICATIONS
Such therapy is useful for treating all forms of vascular diseases affecting the legs:

  • Arteriosclerosis of lower limbs
  • Burger
  • Raynaud


And all forms of venous and/or lymphatic insufficiency, such as:

  • Swollen legs
  • Lymphedema
  • Phlebolymphedema
  • Cellulitis



Compatible with the following models:

EL12050 Medicstim Basic
EL12054 Medicstim 4 Complet
El12053 Medicstim 2 Complet
EL12084 Medicstim Excellent
EL12058 Komby Basic
EL12059 Komby



ACCESSORIES SUPPLIED

  • Power cable: 1
  • User’s manual: 1
  • Fuses: 2
  • 6 cm Ø vacuum cups: 4
  • 6 cm Ø cup sponges: 8
  • Output cables: 4
  • Connection cable electro therapy: 1
Technical Spec.

Technical Spec.

Mains power supply:
230 Vac, 50-60 Hz ±10%
Mains power supply (on request):
115 Vac, 50-60 Hz ±10%
Maximum power absorbed:
25 VA
Achievable depressure:
( 0 - 0,6 ) bar
Insulation class EN 60601-1:
I / BF
Classification according to 93/42/CEE directive:
II A
Degree of protection against liquids EN 60601-1 standard:
IPX0
Table container in plastic, external size:
36.5 x 12 x 40.5 cm
Weight:
7.86 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0799628

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 40 x 60 x 30 h kg 7 mc 0.072
Documents

Documents


EL12004 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 869.46 KB
Register to access the content

EL12004 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 958.5 KB
Register to access the content

EL12004 - Certificate

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 1.95 MB

EL12004 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 114.87 KB
Register to access the content
