You are here: Home > Standing & Mobility > Stand Up Series > Stand Up 4410

Description



WARNING!
  The AV114410 model was replaced by the new product configuration AV3121B3213G, for a new equivalence you must add this accessory adjustable heelrests (AC0686), no longer standard. For accessories, we invite you to take vision of applicable accessories and options available in chapter 6 of the international edition catalogue.

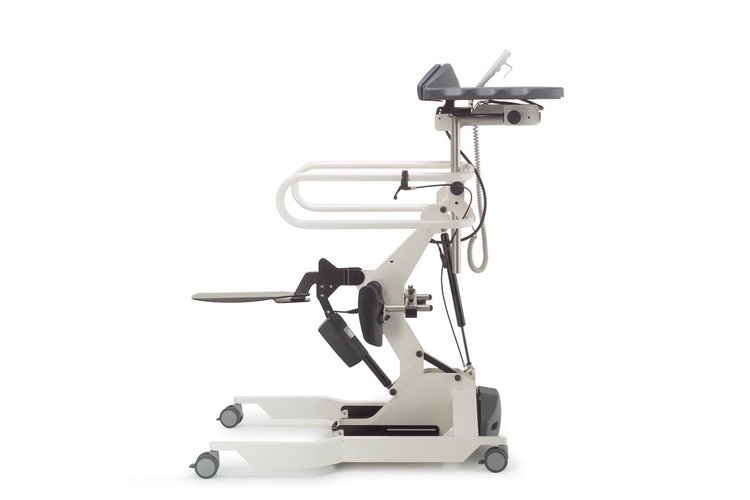

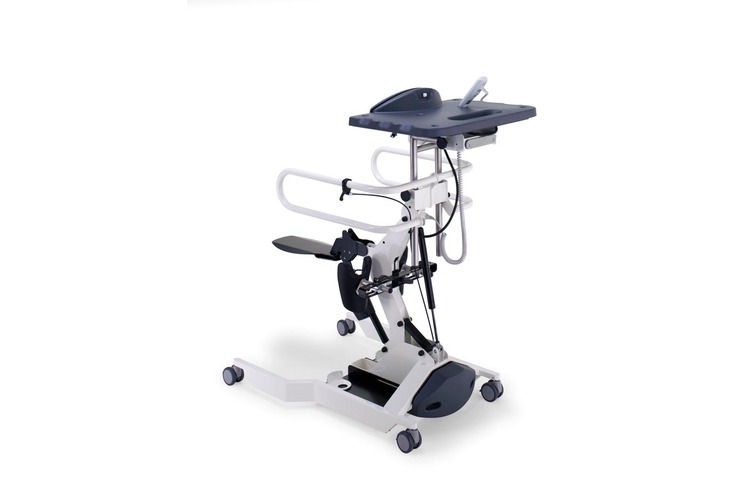

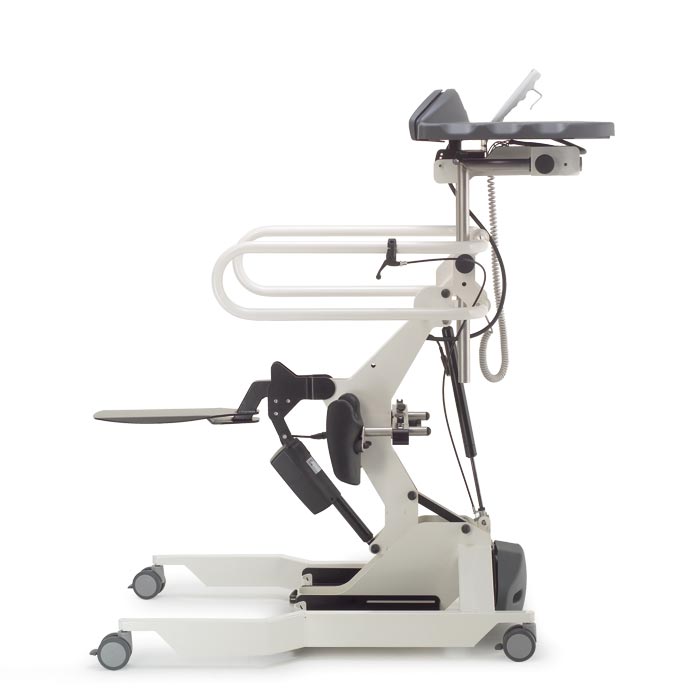

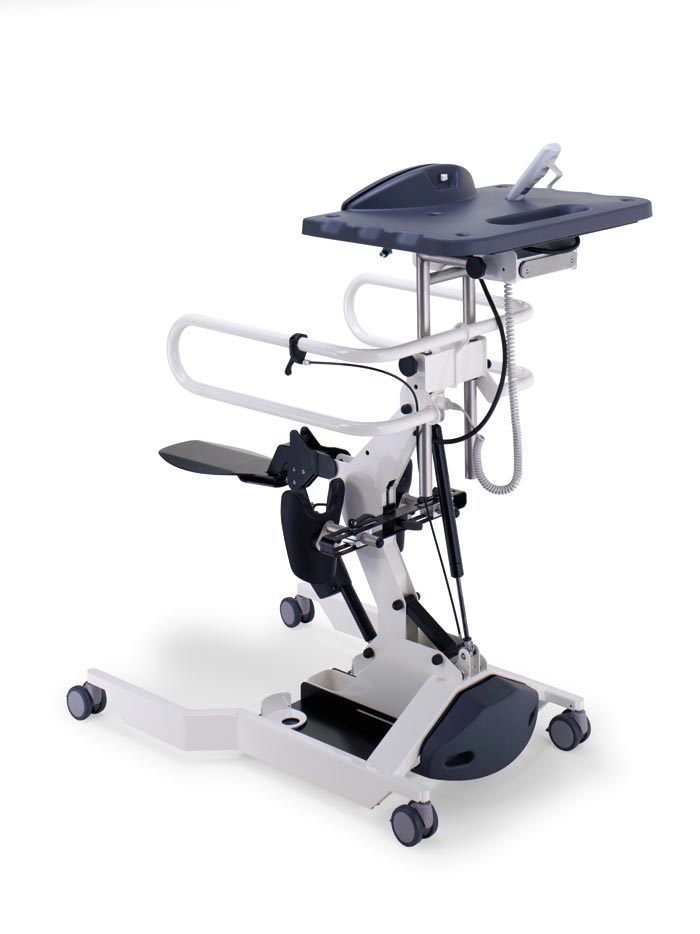

Electric height adjustment, electric lift with elongated seat.

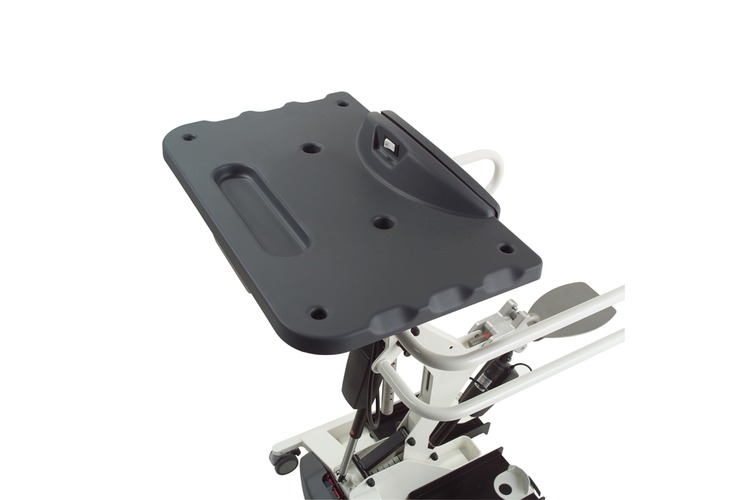

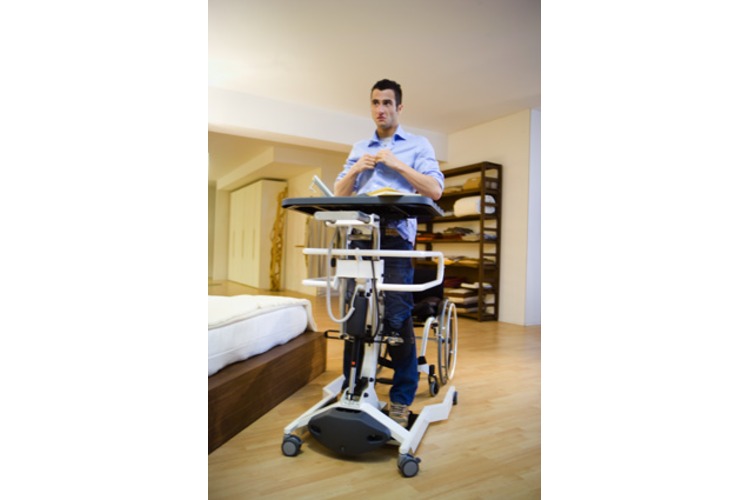

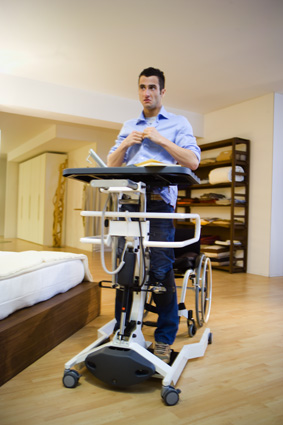

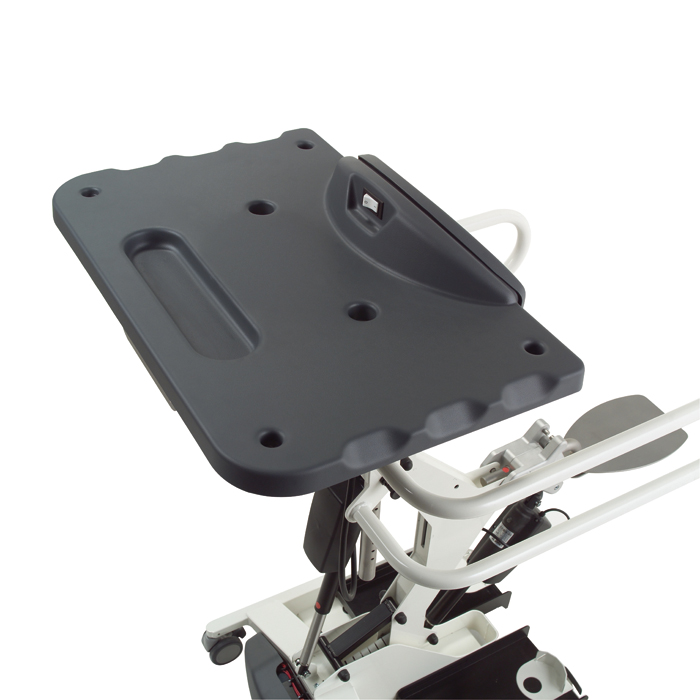

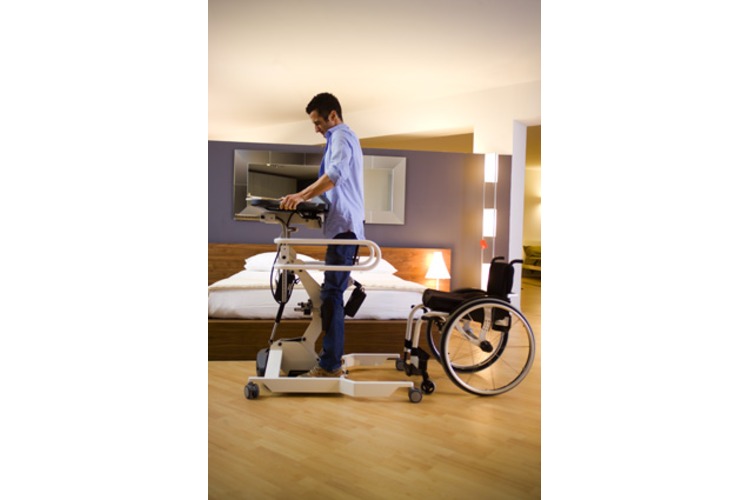

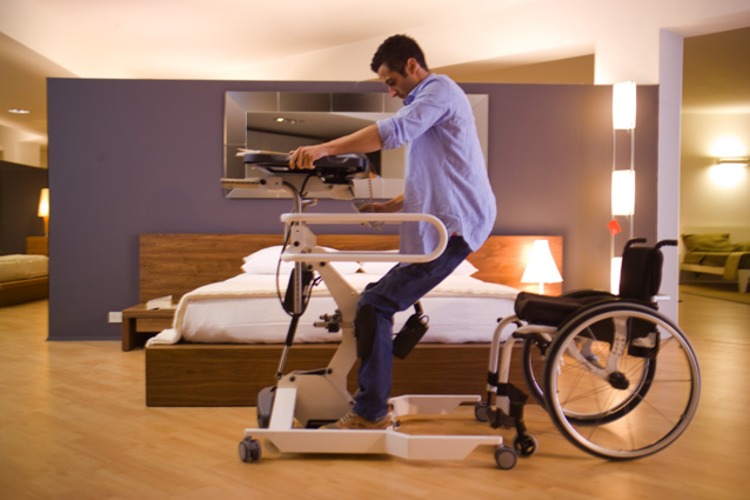

This device enables the user to assume and maintain an upright position, and to move indoors assisted by a carer. The user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor and hand control. It features large handles to give support when standing up, as well as a wide tray to hold objects. A series of adjustments facilitate accessibility and allow the aid to be adapted to the user's morphological characteristics.

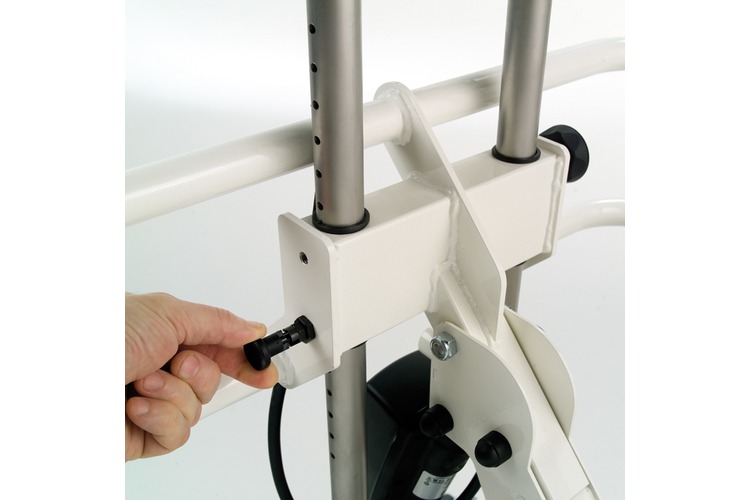

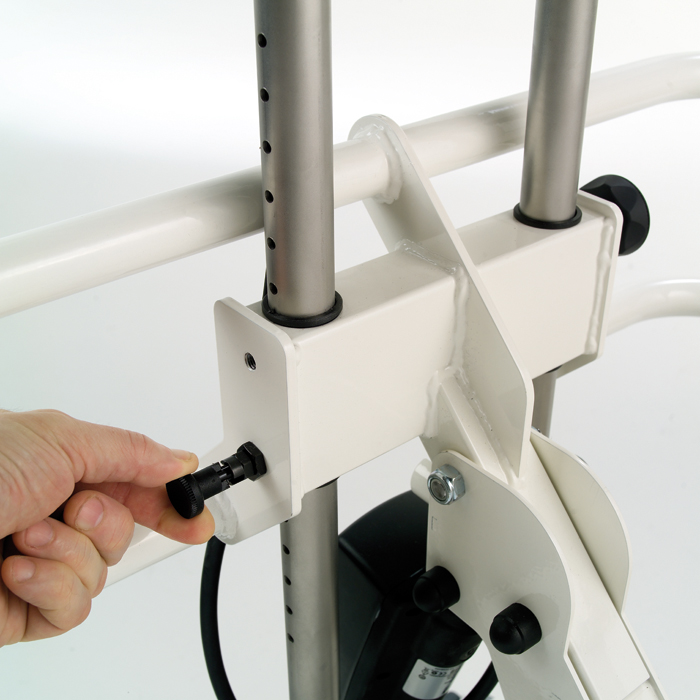

In particular, the main body can adjust to the user's height electrically via a motor unit.

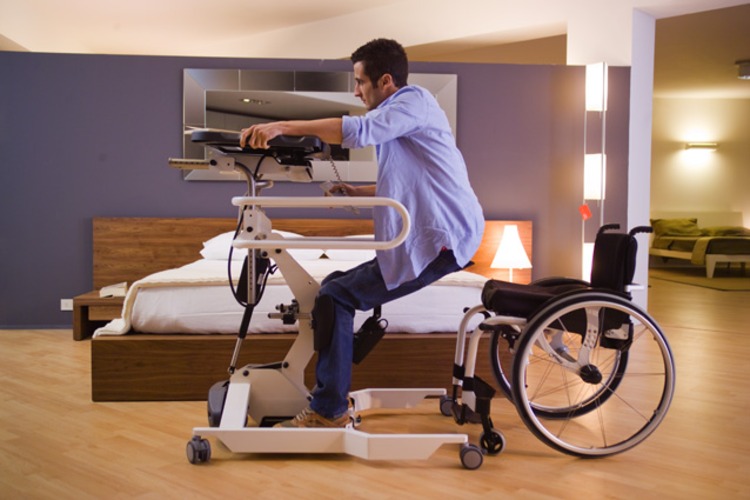

The seat is elongated and fixed. This type of seat is designed to help the user transfer from the wheelchair to the standing aid.

Accessories

Accessories

Leg Strap
AC0014
Leg strap to stablize the leg. Available in pairs.
Ask for quotation

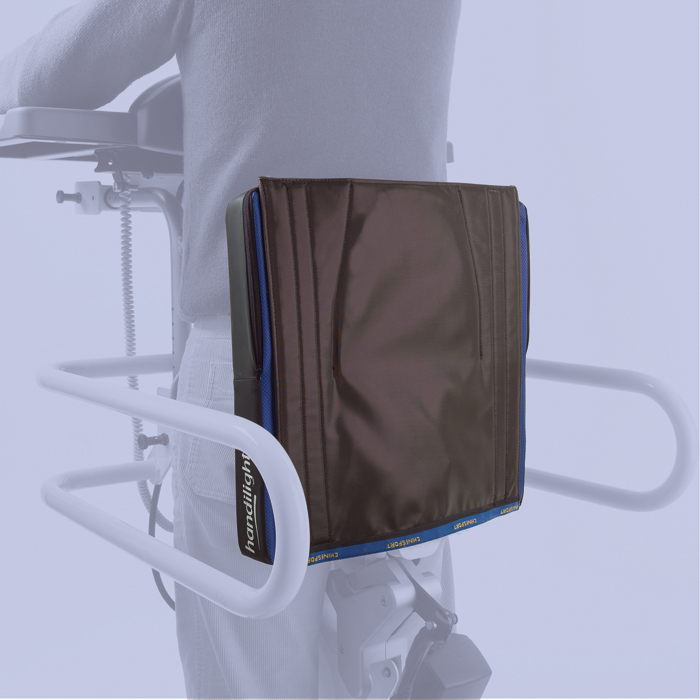

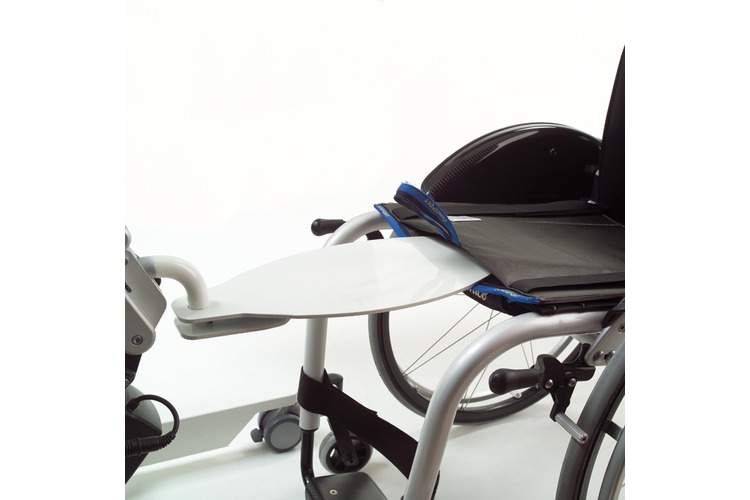

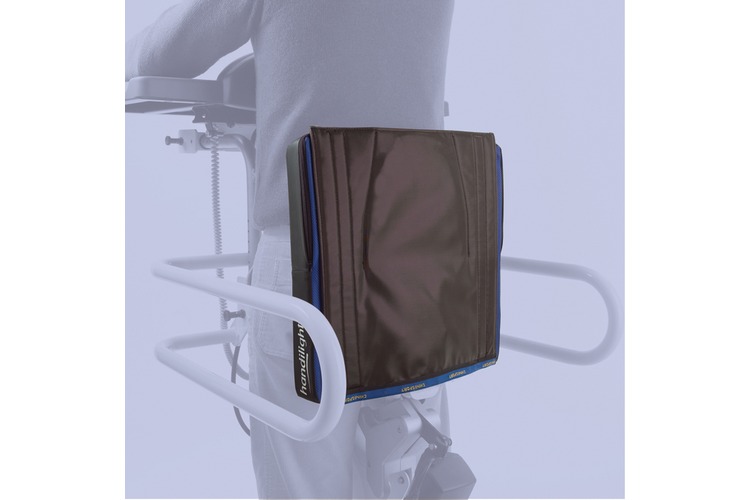

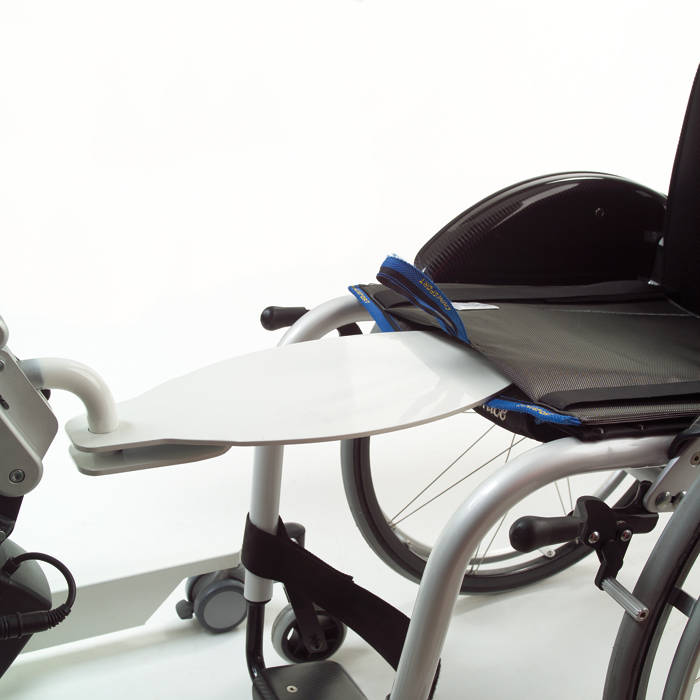

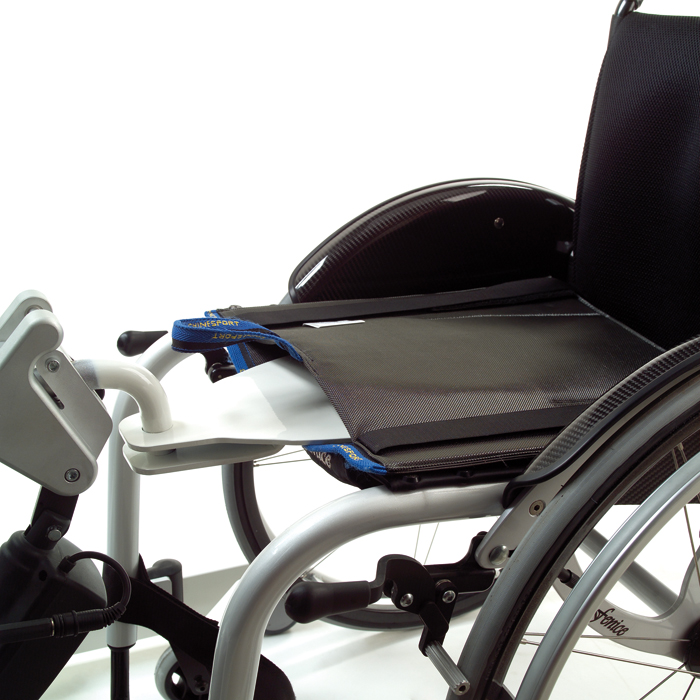

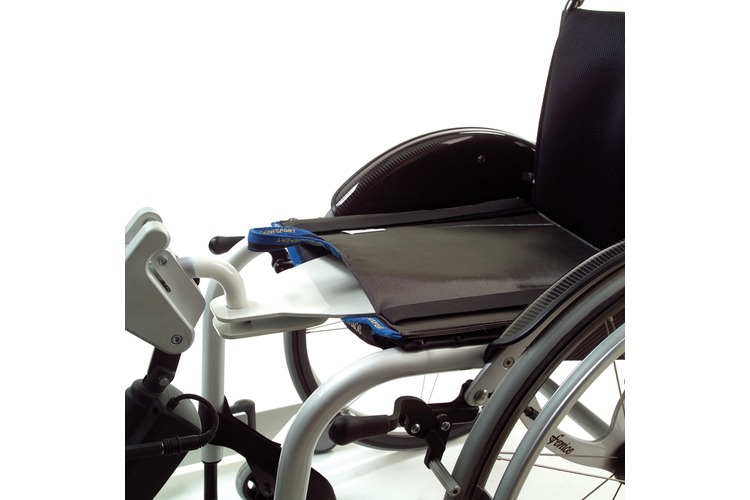

Pocket For Long Seat
AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.
Ask for quotation

Stability Grip
AC0440
Stability grip for more stability in case of specific needs.
Ask for quotation

Long Seat Padding
AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

Back Restraint Sling
AC0783
Back restraint strap. Applied by an assistant. One size only.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
60 kg
Maximum load:
140 kg
User height:
min 140 cm - max 200 cm
Power-assisted lift:
electric
Structure height adjustment:
electric
Overload protection:
electronic
Overload indicator:
acoustic and visual
Parking brake:
on all 4 casters
Frame height from ground:
31 mm
Operation time (lift):
about 30 lift cycles with user weighing 140 kg and charged batteries
Average battery charging time:
6 - 8 hours
Battery charging level:
multi-color display on equipment
Auto off:
as standard
Fault diagnostic and maintenance:
on display

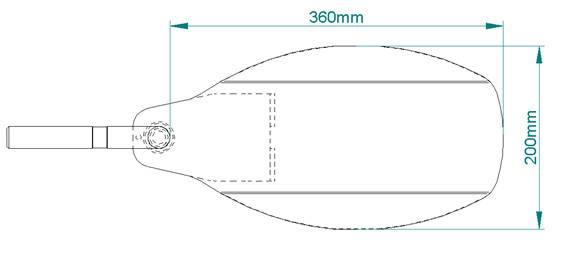

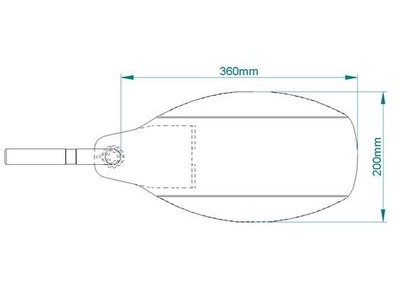

ELONGATED SEAT
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0399651
Video

Video

STAND UP series - To improve posture and social life
STAND UP 4410 and 4310
Stand Up and accessories
Documents

Documents


User and maintenance manual

Manual
Document date: 17/07/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 2.16 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 07/03/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 176.79 KB
Register to access the content

Brochure

Brochure
Document date: 07/07/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 490.85 KB

Brochure

Brochure
Document date: 18/05/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 488.21 KB

Manuale istruzioni

Manual
Document date: 27/08/2010
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 719.26 KB
Register to access the content

Manual de instrucciones

Manual
Document date: 27/08/2010
Language: Spanish
Version: V 1.0
DOWNLOAD
PDF 708.95 KB
Register to access the content

Mode d'emploi

Manual
Document date: 27/08/2010
Language: French
Version: V 1.0
DOWNLOAD
PDF 743.54 KB
Register to access the content

Bedienungsanleitung

Manual
Document date: 27/08/2010
Language: German
Version: V 1.0
DOWNLOAD
PDF 734.61 KB
Register to access the content
