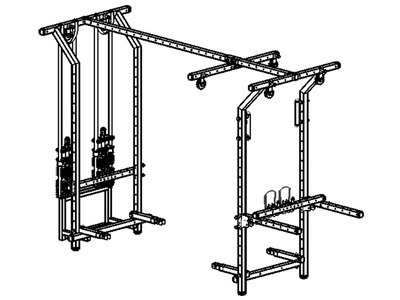

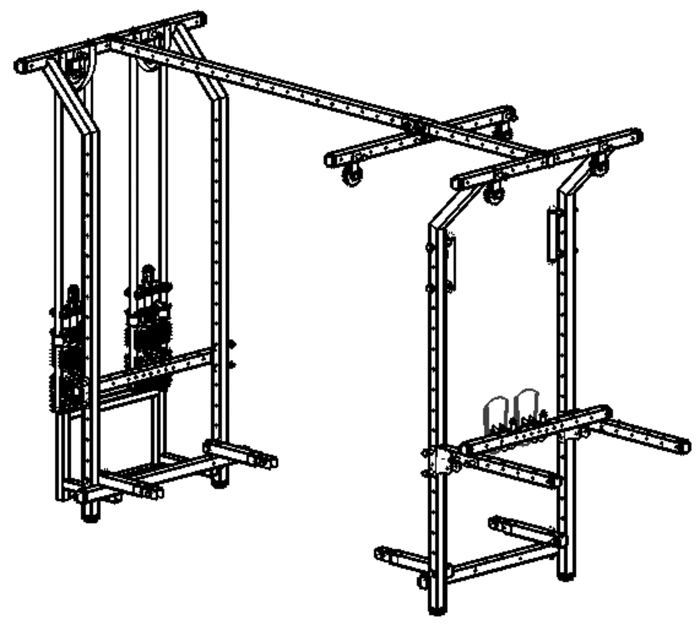

R.I.C. BASIC FRAME

R
I
C
0
1
0
0
.
0
1
Discontinued

Description

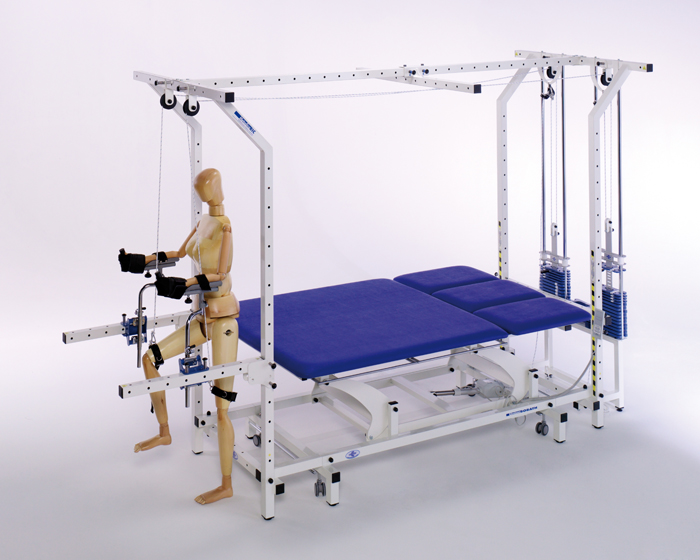

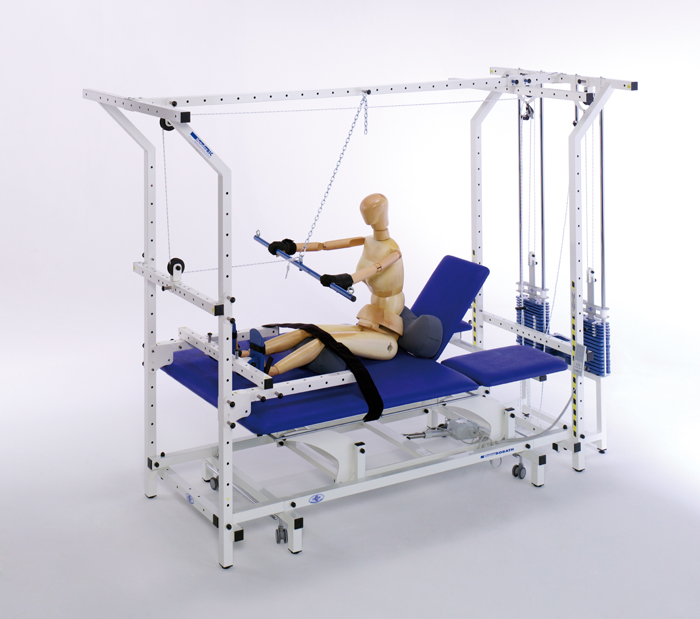

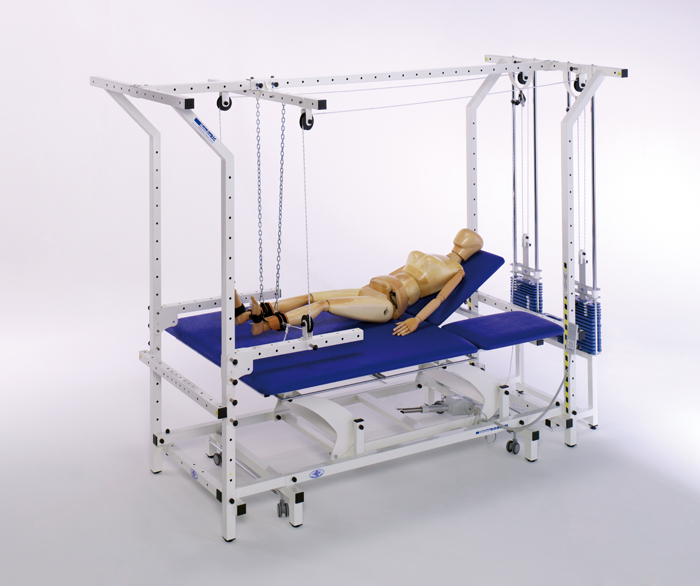

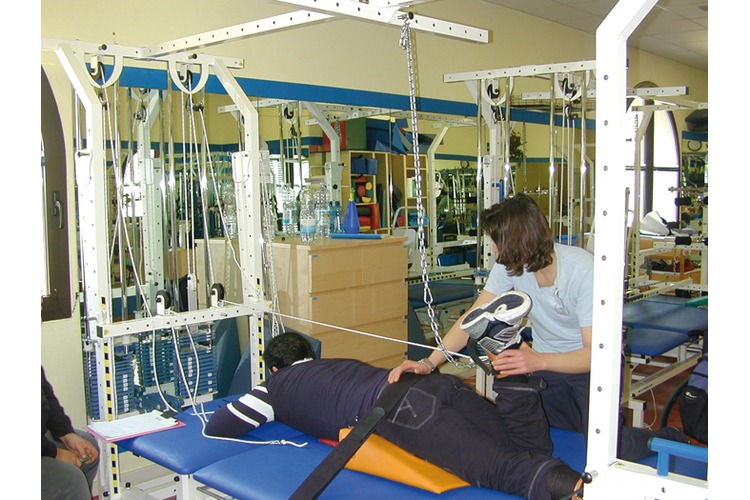

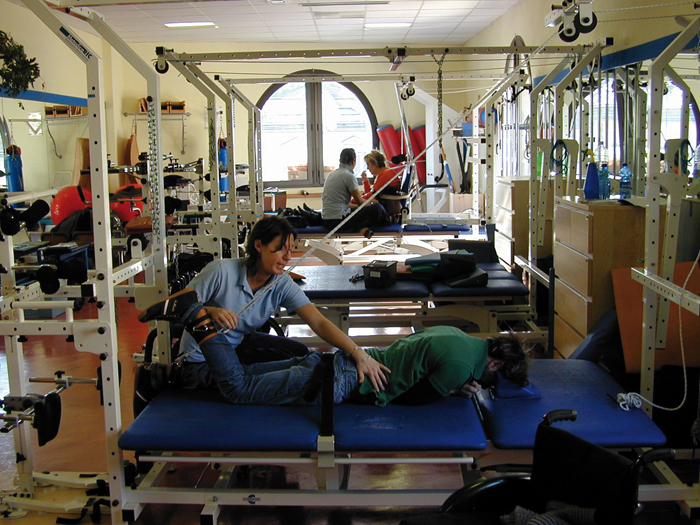

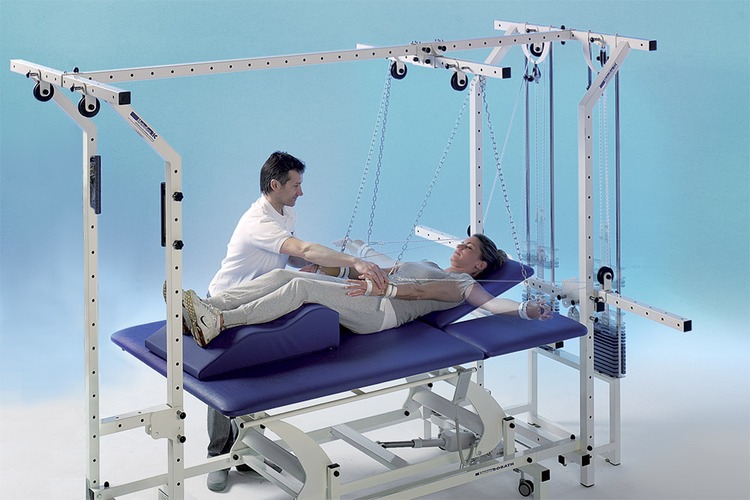

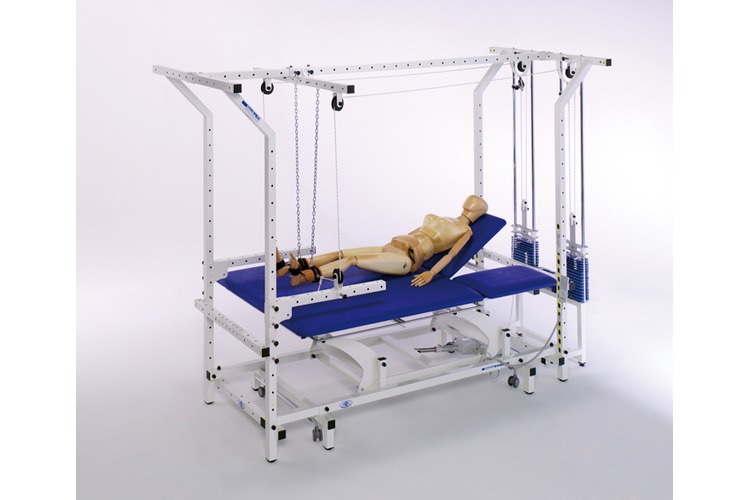

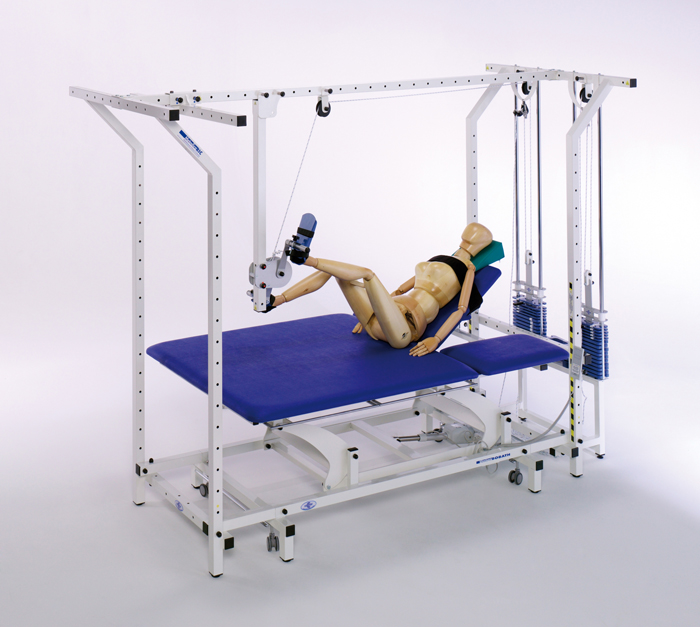

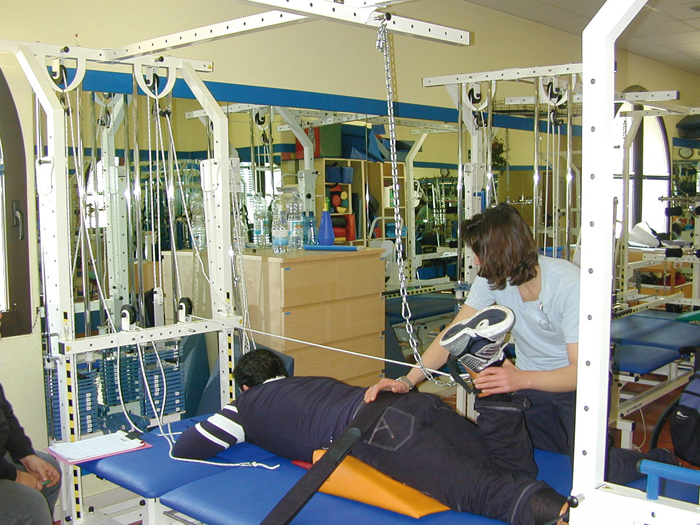

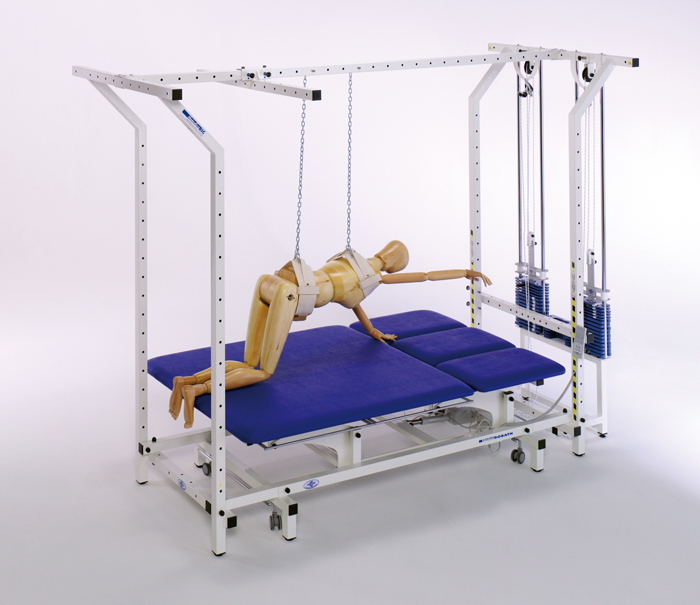

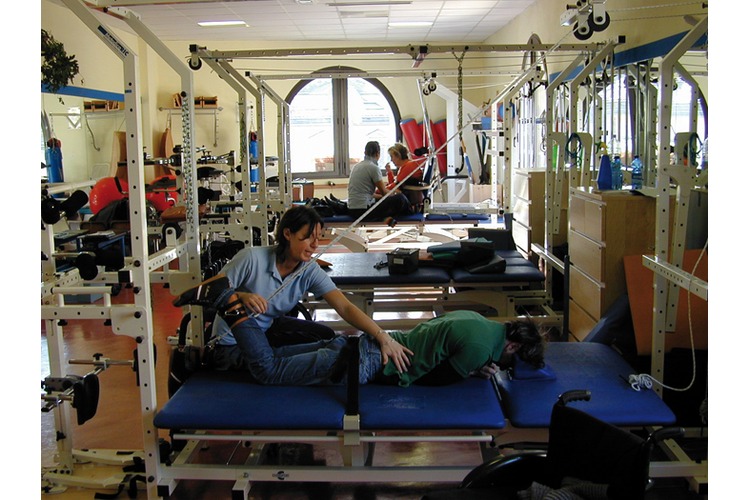

This is a motor rehabilitation station for a wide range of active exercises in various postures, also with the addition of weights and counterweights, to stimulate muscle recruitment and strengthening, balance, coordination and proprioception. In particular, the exercises can also be performed while lying supine, prone, on the side, or in a sitting position, on all fours, or standing upright.

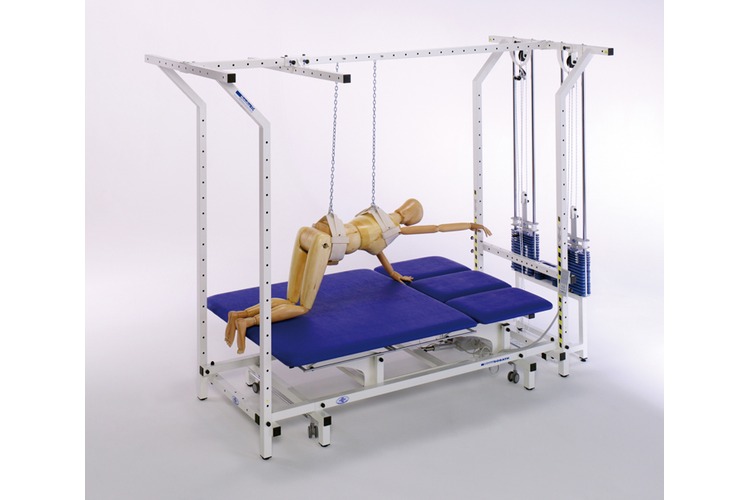

The areas to be treated can also be positioned in axial suspension to help move them and achieve the widest possible joint ROM. Finally, each exercise can be performed with different, personalized ranges of motion.

The frame is versatile, as the range of possible exercises would normally require to use variuos equipment and consequently to move the patient. The therapist's job is generally made easier.



NOTE:

The basic frame must be ordered along with a special treatment table type Bobath and can be used in combination with a standing frame (code AC 0100.01).

Accessories

Accessories

Postural Set

01426
Cushions of different size for supporting the various parts of the body in particular situations. This set includes 5 cushions and a carry bag covered with a...
Ask for quotation

"S"-Shaped Hook

07920
"S"-shaped hook used to configure exercises with tools that do not require a closed attachment ring
Ask for quotation

Handle 1

07930
Plastic handle with a chromed metal open ring for quick attachment.
Ask for quotation

Wedge 1- W 25 X D 25 X H 10

09600
Foam rubber cushion, wedge shaped, covered with synthetic leather.
Ask for quotation

Wedge 3- W 60 X D 45 X H 15

09620
Foam rubber cushion, wedge shaped, covered with synthetic leather.
Ask for quotation

Leg Pillow - W 77 X D 50 X H 20/15

11250
Anatomically shaped cushion in non-deforming foam, ideal for the correct posture of the legs in a relax position.
Ask for quotation

Snap Hook

AC0094
Basic multi-purpose element, used to safely link the grid / frame and the various pieces of equipment.
Ask for quotation

Adjustable Bar

AC0101
This is a basic element that can be fitted with other accessories to perform various exercises.
Ask for quotation

Movable Crossbar For Sides

AC0102
This is a basic element that can be fitted with other accessories to perform various exercises.
Ask for quotation

Swivel Pulley

AC0103
This is a pulley that connects the body region to be treated and the corresponding weight or counterweight by means of a cord.
Ask for quotation

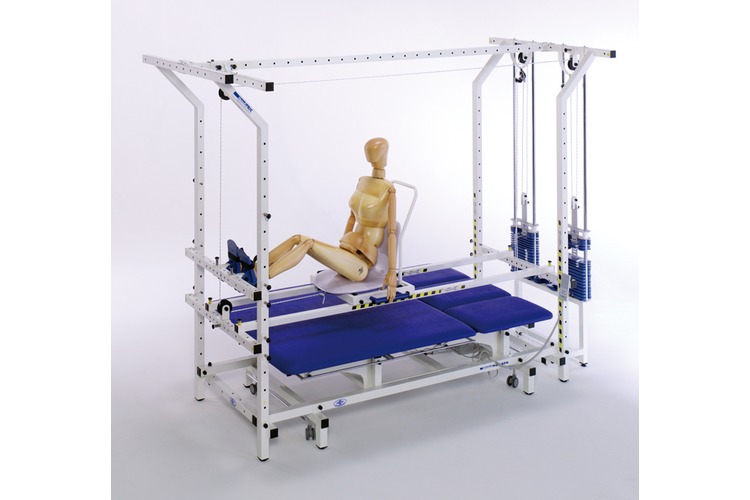

Slide System

AC0106
The slide system consists of a frame with seat, two slide rails and a movable crossbar for the sides (ref. code AC0102).
Ask for quotation

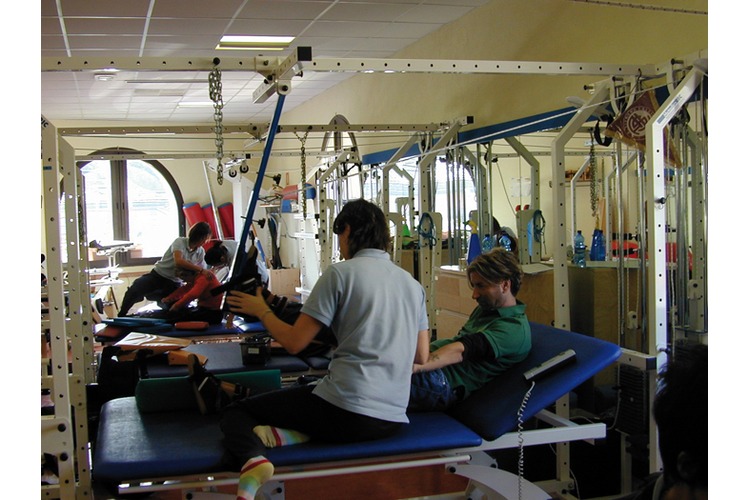

Vertical Foot System

AC0107

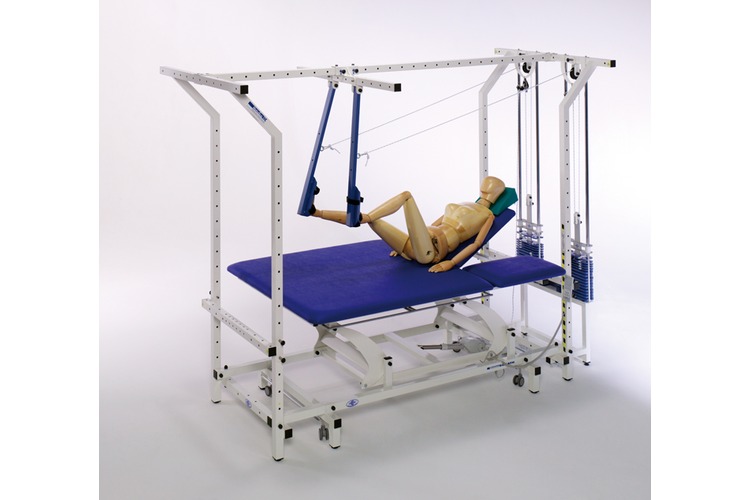

This is to exercise with the lower limbs in suspension, with the patient in a clinostatic or seated or semi-seated position.
Ask for quotation

Articulated Footplate

AC0110
This articulated footplate provides support/restraint/posture to the feet while exercising with the R.I.C. rehabilitation station.
Ask for quotation

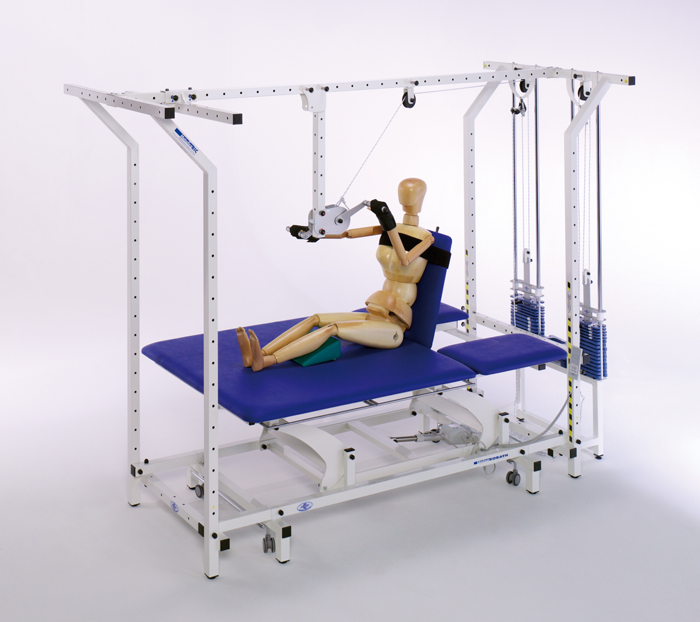

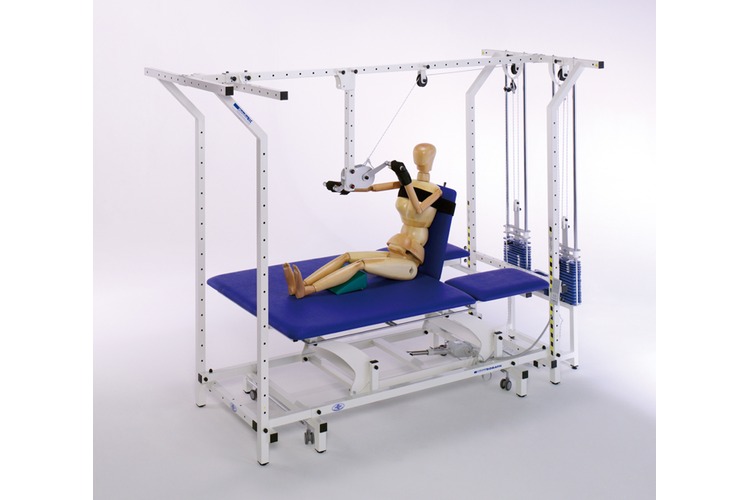

Pedal Exerciser – For Upper Body

AC0112
It enables users to exercise the upper limbs from a clinostatic or sitting position.
Ask for quotation

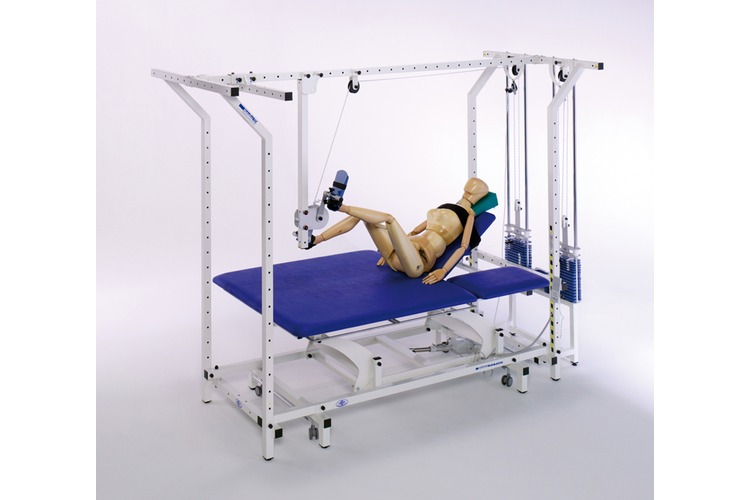

Pedal Exerciser – For Lower Body

AC0113
For lower body. It enables users to exercise the lower limbs from a clinostatic or sitting position.
Ask for quotation

Forearm Support

AC0114
It consists of a fastening system to the frame and the respective forearm support that helps select the activity.
Ask for quotation

Set Of Harnesses

AC0117
Set of harnesses useful to expand the exercise possibility. The standard series consists of the following elements: Knee supports, Cross-over support strap, ...
Ask for quotation

Restraining Strap

AC0120
This restrains the patient’s trunk when using the standing frame, either sitting or standing.
Ask for quotation

Quick Release Pin

AC0121
It can be used for securing basic elements and/or accessories to the basic frame - code RIC 0100.01, or to the standing frame - code AC 0100.01.
Ask for quotation

Release Pin, For Chains

AC0122
Similar characteristics as the accessory code AC0121, but designed for clipping the chains.
Ask for quotation

Bobath S Ric 120

LB432
Treatment table designed for Continued Intensive Rehabilitation (R.I.C.) method. The head section can be adjusted to a positive angle, in the middle up to 90...
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
298 x 121 x 225 h cm
Standard configuration included
Adjustable bar:
2 pcs
Movable crossbar:
2 pcs (for sides)
Swivel pulley:
6 pcs
Bobath feet-side fitting:
2 pcs
Bobath head-side fitting:
2 pcs
Upper longitudinal member:
1 pc
Frame:
2 pcs
Movable upper crossbar:
1 pc
Loading cells unit:
1 pc
Articulated footplate:
12 pcs (for the pair)
R.I.C. quick coupling handle:
2 pcs
30 cm Chain kit:
2 pcs
110 cm Chain kit:
4 pcs
Bar with R.I.C. hook:
1 pc
Set of leather items:
1 pc
Pulley therapy handle:
2 pcs
Pillow code 09600:
2 pcs
Pillow code 09620:
1 pc
Pillow code 11250:
1 pc
Quick release pins (additional):
2 pcs
Quick release pins for chains (add.):
2 pcs
S-shaped hook:
8 pcs
Snap hooks:
10 pcs
“Alboland” transfer straps:
2 pcs
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 233 x 130 x 65 h kg 145 mc 1.96885
2 SCATOLA cm 300 x 130 x 10 h kg 15 mc 0.39
Documents

Documents


Manual de instrucciones

Manual
Document date: 19/03/2012
Language: Spanish
Version: V 1.0
DOWNLOAD
PDF 1.3 MB
Register to access the content

User and maintenance manual

Manual
Document date: 06/10/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.05 MB
Register to access the content

Manuale istruzioni

Manual
Document date: 06/10/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1.04 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 06/10/2011
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 208.78 KB
Register to access the content
