Description

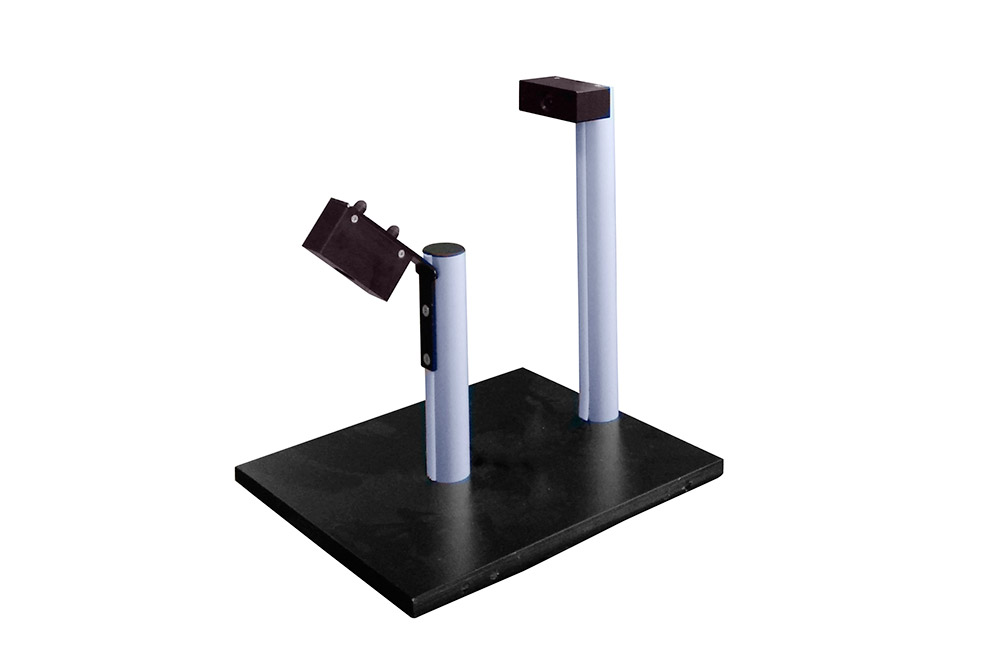

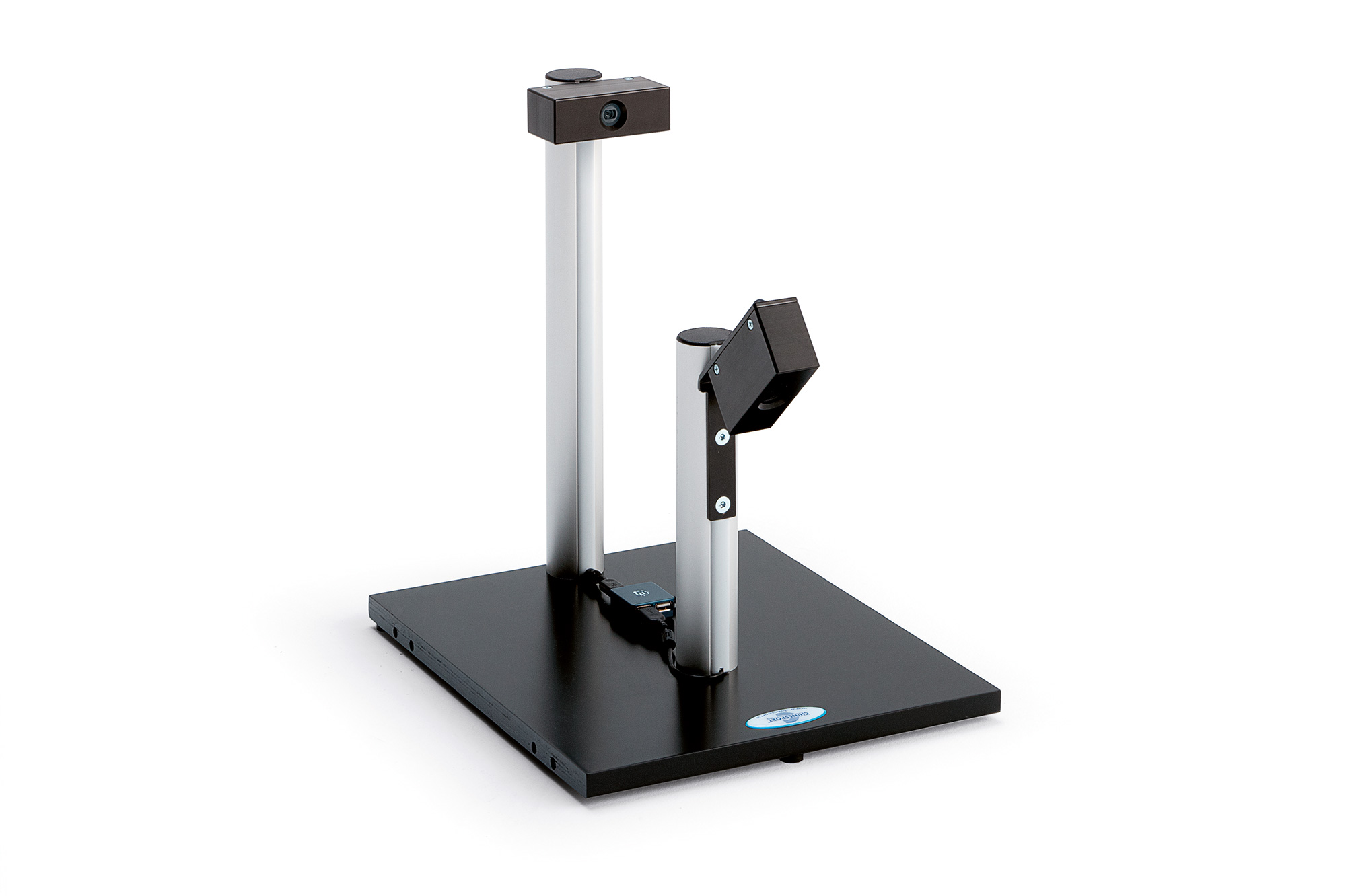

The Foot Analyzer 2.0 consists of a bilaminate platform with two webcams and GPS 5.0 software for acquisition and handling of images for foot pressure and heels. It can be combined with Lux Podoscope code 02990 or Lux Podoscope with colored light code 02997.



The computer is not included, but it can be ordered as an accessory with webcams configuration in advance and GPS 5.0 software pre-installed.



For more information about the software you can visit our dedicated website under "software" section.



USAGE

"This device allows you to do a diagnostic evaluation of the first foot and then the comparison by one of the previous visits and the last. With this equipment we can measure the growth of the foot anatomy and biomechanics from birth to adolescence and diagnostic aspects of the foot that grows,  identifying  if the foot is prone, flat or cave. The importance of this tool is that we can photograph the plantar support or the heel, store the acquired data, make a diagnosis and a specialized prescription and send e.g. by e-mail to different professionals involved. Mostly important is that the examinations made at different times of the patient’s life can be compared and subsequently note whether there will be improvements the initial examination.



For safety of the patient under examination , during ascent / descent and permanence onto the podoscope, we can add the item Postural safe 03006. We ask the patient to move on the crystal surface of the podoscope keeping their feet in a natural position and make the first photograph of the foot plantar. With the second webcam we make the photograph of the hindfoot. We store the photograph, write the diagnosis and the prescription. All these documents can be printed and given to the patient.


The most important aspect of this device is that anytime it will be possible to compare the photographs and therefore evaluate eventual improvements. This important tool is useful to keep track of a disease and then figure out whether therapeutic interventions or orthosis applied brought positive results. All doctors or specialists should adopt an instrument so simple but very important and useful for the physician, physiatrist, orthopedist, physical therapist, pediatrician, podiatrist, posturologist and even the family doctor to keep constantly monitored the growth of the child or the evolution of a disease in an adult subject. "



Mr. Angelo Snidero (Orthopaedic Technologist)

Accessories

Accessories

Computer

01799
All-in-one computer provided with GPS software pre-installed with webcams configuration included.
Ask for quotation

Postural Data Evidence

02104
Full-color printer that can be purchased by the customer. To print the patient's report and give him a feedback of any improvements noticed.
Ask for quotation

Postural Data Display

02105
It can be used to better showing and explaining patient data collected during a postural analysis session.
Ask for quotation

Desk Top 2

02999
High desk for the computer in transparent plastic material.
Ask for quotation
Technical Spec.

Technical Spec.

Pictures related to:
foot and hindfoot
Dimensions:
40 x 33 x h 39.5 h cm
Weight:
5 kg
Power supply:
USB 2.0
GMDN-CND:
N.D. / V9099
Gallery

Gallery

Logistics

Logistics

CDN Code:
V9099
Code Repertoire:
R1287779

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 63 x 43 x 43 h kg 7 mc 0.116487
Video

Video

Foot Analysis
Documents

Documents


User and maintenance manual

Manual
Document date: 01/11/2016
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.35 MB
Register to access the content

Insights

Various
Document date: 24/11/2015
Language: English
Version: V 1.0
DOWNLOAD
PDF 446.17 KB

Declaration of conformity

Compliance statement
Document date: 20/04/2015
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 288.74 KB
Register to access the content
