Description

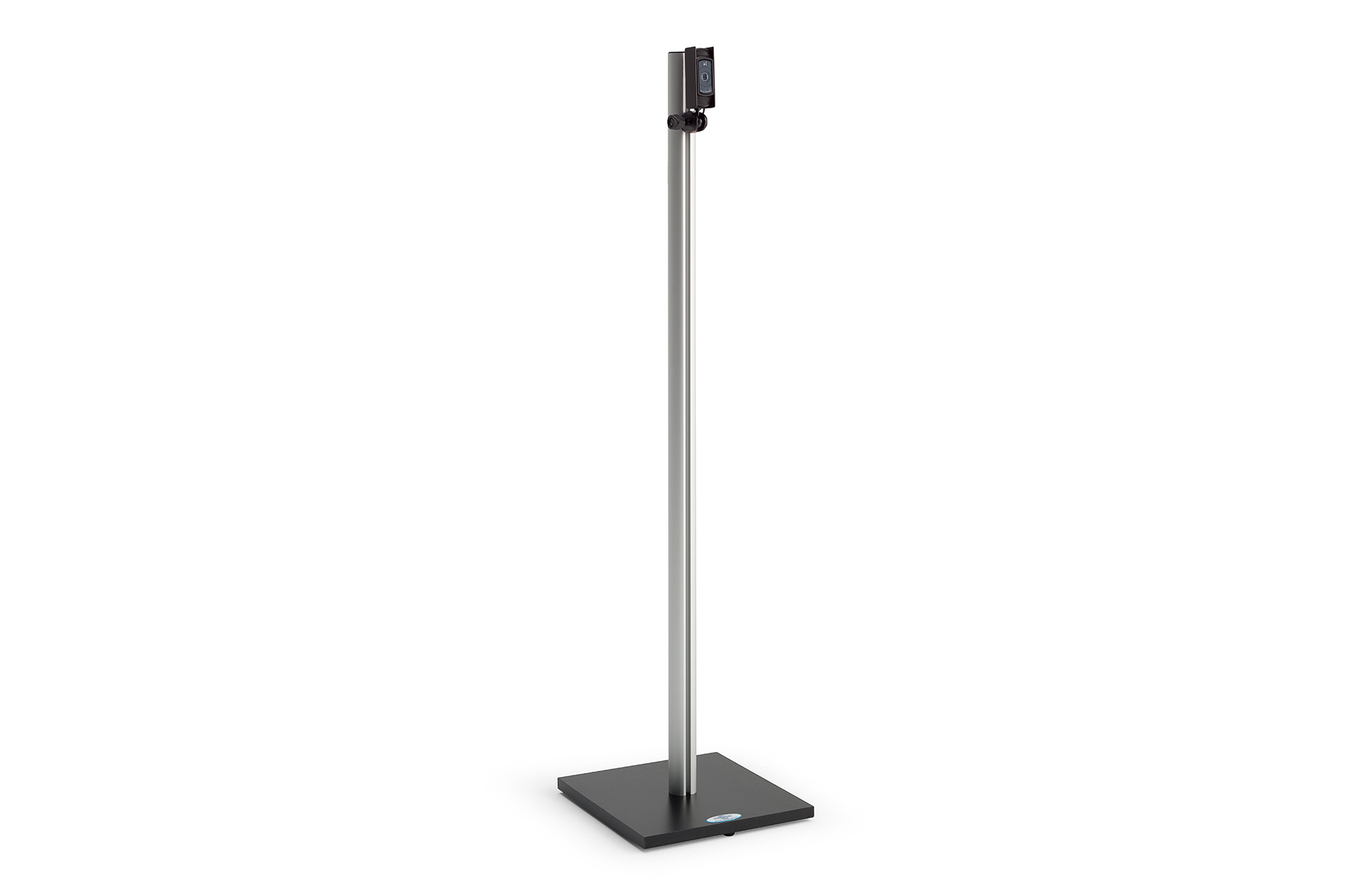

It consists of a platform with an aluminum rod along which one webcam slides vertically. It is supplied with the GPS software that allows acquiring and handling the images of the different body segments and of the foot pressure. It can be used in combination with the Total posture - code 03002. The photo covers the entire body of the person examined, and must also include the mirror at the top.



Usually the first position is frontal, with the person looking in the operator’s direction. The person is asked to take up a natural position and look straight ahead. Typically four photos are acquired: front, left side, back, and right side. The person follows the outline on the platform to position the feet correctly. Another reference point is the centre of the malleolus bone, which must be at right angles and centred in relation to the straight line on the platform for each of the positions indicated. Correct positioning of the feet on the front / rear and sagittal plane allows photography to be repeated at later stages.



Once initial calibration operations have been completed, angular or linear measurements can be taken for various areas of the body, and directly on individual photograph. The measurements taken can be saved along with the photograph itself, in the patient’s electronic folder for the date of the examination. The photo may also show virtual vertical and horizontal lines as a reference for the measurements to be taken. Printer and computer are not included. A postural data display can be ordered as an accessory code 01799 with webcams configuration in advance and GPS software pre-installed.





MINIMUM SYSTEM REQUIREMENTS

This device requires a computer having the following minimum requirements:

  • Intel i5 CPU or higher
  • 8 GB RAM
  • 20 GB of free space, SSD or NVMe disk
  • Display with resolution of 1280 x 1024
  • 3 free USB ports
  • Windows 10 OS

___

Notice: We recommend that you do not install other software on your computer to avoid possible conflicts.

Accessories

Accessories

Computer

01799
All-in-one computer provided with GPS software pre-installed with webcams configuration included.
Ask for quotation

Postural Data Evidence

02104
Full-color printer that can be purchased by the customer. To print the patient's report and give him a feedback of any improvements noticed.
Ask for quotation

Postural Data Display

02105
It can be used to better showing and explaining patient data collected during a postural analysis session.
Ask for quotation

Desk Top 2

02999
High desk for the computer in transparent plastic material.
Ask for quotation
Technical Spec.

Technical Spec.

Picture related to:
body
Dimensions:
40 x 33 x 123 h cm
Weight:
5 kg
Power supply:
USB 2.0
GMDN-CND:
N.D. / V9099
Gallery

Gallery

Logistics

Logistics

CDN Code:
V9099
Code Repertoire:
R1287780

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 129 x 40 x 47 h kg 9 mc 0.24252
Video

Video

Body Posture Analysis
Documents

Documents


User and maintenance manual

Manual
Document date: 01/11/2016
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.35 MB
Register to access the content

Insights

Various
Document date: 24/11/2015
Language: English
Version: V 1.0
DOWNLOAD
PDF 446.17 KB

Declaration of conformity

Compliance statement
Document date: 20/04/2015
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 288.74 KB
