You are here: Home > Patient Transport > Healthcare Beds > Double Crank Bed
Request information

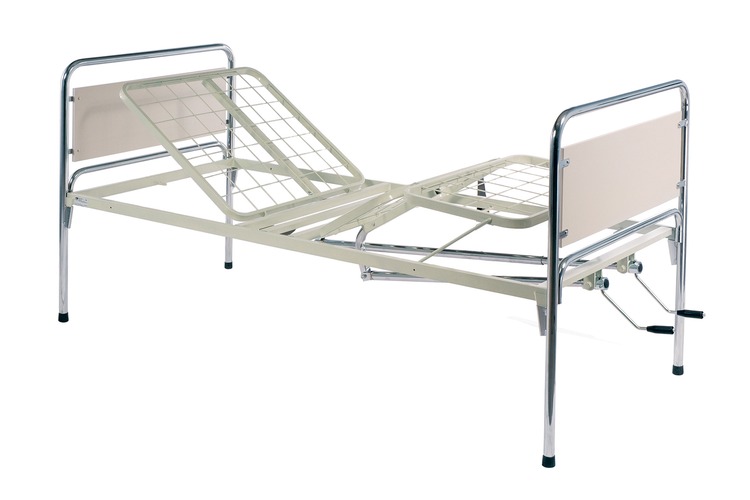

DOUBLE CRANK BED

0
1
6
0
3
Discontinued

Description

Hospital bed with a double manual crank to adjust the head and foot end.
Made of steel tube, coated with epoxy powders. Square electro-welded mesh bed base. Head and foot end made of chromed steel tube.
The frame is joined to the head end with 4 bayonet hooks.

Technical Spec.

Technical Spec.

Mattress platform:
2000x900 mm.
Mattress platform height:
480 mm.
Head and bed-end height:
470 mm.
Total dimensions:
2060x910 mm.
Backrest section:
750x763 mm.
Pelvis section:
325x900 mm.
Leg section:
415x763 mm.
Foot section:
400x763 mm.
Max. weight capacity:
135 Kg.
Bed weight:
39 Kg.
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 207 x 95 x 15 h kg 43 mc 0.294975
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Manuale istruzioni

Manual - past Edition
Document date: 22/09/2015
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 2.57 MB
Register to access the content

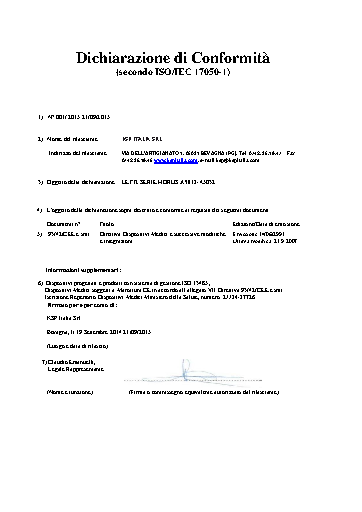

Dichiarazione conformità

Compliance of statement - past edition
Document date: 22/09/2015
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 58.5 KB
Register to access the content
