TREADMILLS



MEDICAL LINE

Medical treadmills line has been designed to be used at health- care facilities and physiotherapy wards. This LINE includes 2 configurables treadmilles range for rahabilitation: RehaRunner 01 and RehaRunner 02.


FITNESS LINE

Treadmills for fitness, ideal for gym and sports training.They are provided with backlit exercise computer with 3D Matrix Display and reclining function.Space-saver - Stores vertically.

Products: 7

Products: 2


PRESENTATION

Treadmills



screen1

Our treadmill line has been designed to be used at health-care facilities and physiotherapy wards. They are powered by a main supply, and they have a console to set speed, tilt as well for displaying some features such as heartbeat, duration of the exercise and the distance covered. It is worth highlighting the manual function, which allows the carer to have freedom of setting the parameters mentioned before in order to customize the type of exercise.

screen2

CARDIO / FAT BURNING
It is necessary to set beforehand all the patient’s data and the go on to set a kind of exercise in consideration of any of the following parameters, that is to say, time, distance, or calories. Once the patient’s data have been set and the main work parameter has been chosen it is possible to set the warm up and cool down periods. (Screenshot 2 and 3)

screen3

INCLINATION
It is possible to increase or decrease the inclination in a ±1% or ±0,5% range. Maximum tilt in positive is +22% for the RehaRunner01 line, while it can be +30% for the RehaRunner02 line. It is possible, for the RehaRunner01 line to have a negative tilt, but this feature must be specified when ordering the device. In this case, the negative tilt can be up to a –3% and positive up to +19%.

screen4

POSSIBLE TESTS

There are 10 types of tests for the patient already pre-set, and they are especially practicle for measuring different stress tests in accordance with the objective to be reached. For example, the CHR test (Constant Heart Rate) and the CWL test (Constant Work Level), which allow to carry out a type of exercise at a constant heart rate. Another test called RUNNER allows to carry out an exercise with an increasing load increasing the speed at 1 km/h per minute rate. The COOPER test allows to carry out an exercise to assess the maximum distance covered in 12 minutes. Furthermore, it is possible to set the test conditions manually by the carer. The additional test conditions are 8, and the procedure is the same as for registering a free profile. (Screenshot 4)

screen5

PROFILES
There are 10 basic profiles available directly from the main menu. Furthermore, it is possible to set and memorize some exercises in a customized manual mode for a group or for single patients, since there are 100 free profiles. The saved profiled can be called out by using the arrows forward and backward and by choosing it on the touch-screen display. (Screenshot 5)

screen6

REVERSE WALKING
The most moder generation of treadmills include the two-way direction of the movement. Which means that is possible to go forward or backwards by pressing, when standing still, the button “forward” or “reverse”. The maximum backward speed has been limited at 5 Km/h, and it can be set to be lower.
Reverse walking can be disabled. (Screenshot 6)

screen7

GRAPHICS WHILE WORKING OUT
All parameters are displayed while carrying out an exercise with the aid of a graphic representation which shows specifically speed and tilt with green and orange columns while the heartbeat is displayed with a red zig-zag line. Two other dotted lines show minimum and maximum rate of heart pulse set for the patient treated corresponding to his or her personal data. (Screenshot 7)

screen8

SOME SPECIAL FUNCTIONS
A group of icons can be always found while carrying out an exercise. They can be found in the upper-right part of the screen and they offer some specific functions, as for example, locking the work setting of the treadmill in manual version or with a given profile or test condition. Also for the call-out function of the patient’s personal data, which must be registered before the beginning of any exercise, the TV function to watch multimedia channels via internet or to play videos from a USB support, and last the RADIO function to listen to channels or play music from a USB support. (Screenshot 8)






The software is multilingual and the measure unit for the distance covered can be set either in miles or in kilometers. Remote control from a pc or ECG is done via an RS 232 cable included. Upon request, a pc software for a control of the walk could be provided.

MORE INFO
CONFIGURATION WITH FIXED, PROLONGED HANDRAILS

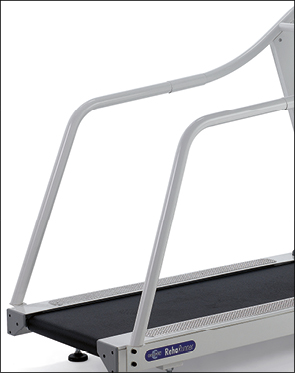

xru017 / xru029

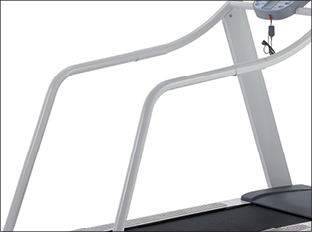

XRU017
FIXED, PROLONGED HANDRAILS

for treadmill codes XRU037, XRU038



XRU029
FIXED, PROLONGED HANDRAILS

for treadmill code XRU033



IMPORTANT MESSAGE:
In case there might be an interest in configuring the treadmill with armpit rests code AC0283 or XRU018, it is necessary to specify it when placing the order to provide for the necessary adjustments of the long handrails when producing it.

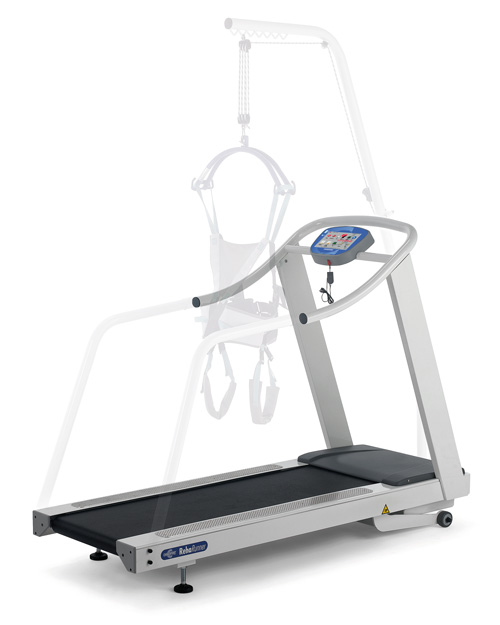

configuration1
 arrow

AC0283

  arrow

XRU018



AC0285

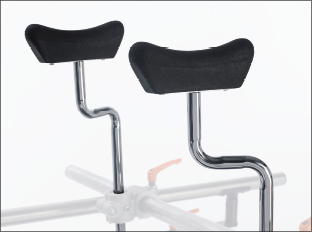

AC0283
UNDERARM SUPPORTS

Height adjustable, accessories code XRU017 or XRU023 required (2 pcs)

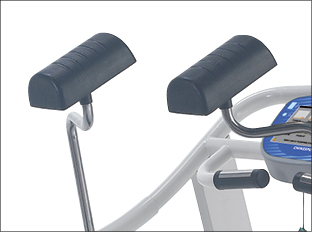

XRU018
LARGE UNDERARM SUPPORTS

Height adjustable, accessories code XRU017 or XRU023 required (2 pcs)

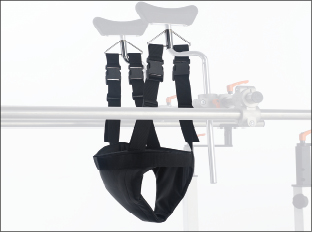

AC0285
PELVIC SLING

Can only be fitted on accessory AC0283 or XRU018

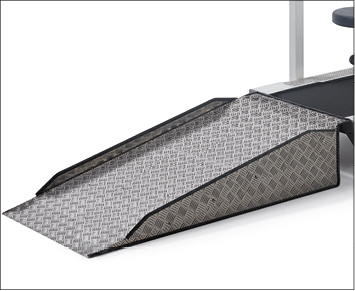

ramps

XRU011
RAMP 1

For treadmills codes XRU033
and XRU034 only



XRU030
RAMP 2

For treadmill code XRU037



XRU025
RAMP 3

For treadmill code XRU038

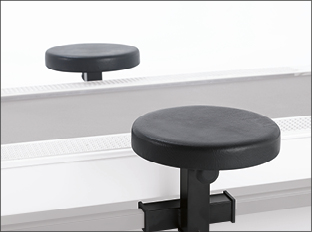

lateral seats


XRU021
LATERAL SLIDING SEATS

For item codes XRU037, XRU038

CONFIGURATION WITH ADJUSTABLE HANDRAILS

XRU013



AC0283



XRU018

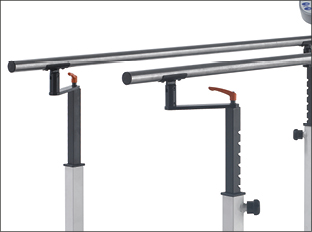

XRU013
ADJUSTABLE HANDRAILS

Height and width adjustable for treadmills code XRU033, XRU037, XRU038



AC0283
UNDERARM SUPPORTS

Height adjustable, accessories code XRU017 or XRU023 required (2 pcs)



XRU018
LARGE UNDERARM SUPPORTS

Height adjustable, accessories code XRU017 or XRU023 required (2 pcs)

 arrow

XRU014

  arrow

AC0235



AC0234

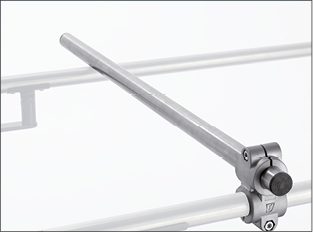

XRU014
TRANSVERSE HANDRAIL

Accessory code XRU013 required



AC0235
PADDED TABLE WITH RECESS

Height adjustable, accessory XRU023 required

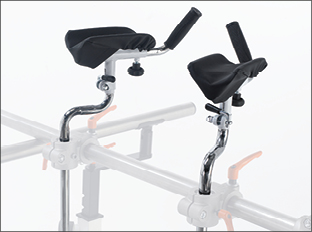

AC0234
ANTEBRACHIAL SUPPORTS

Height adjustable, accessory XRU023 required (2 pcs)

 arrow

XRU023



AC0284



AC0286

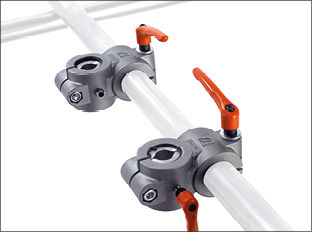

XRU023
LOCKING DEVICES

Can only be fitted on accessory XRU014
(2 pcs)

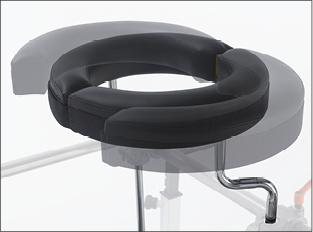

AC0284
RING-SHAPED CHEST SUPPORT

Height adjustable, accessory XRU023 required

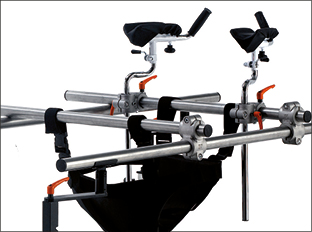

AC0286
PELVIC SUPPORT

A couple of accessory XRU014 required

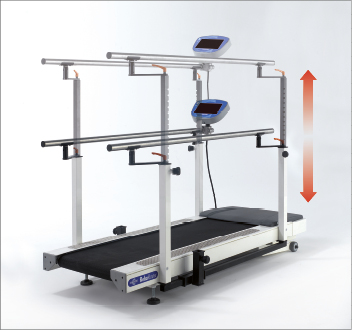

config 2a

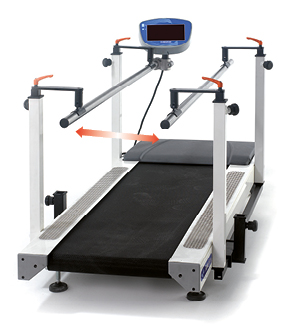

config 2b

This configuration is also suitable for paediatric use turning down the handrails supports.



The adult configuration of the handrails in height can vary from 78 to 123 cm. In case of pediatric configuration, the adjustment in height varies from 57 to 105 cm. Last, adjustment in width is always possible in a range of minimum of 37.5 up to a maximum of 121 cm.

ANTI-FALL SYSTEM

xru017 / xru029

XRU017
FIXED, PROLONGED HANDRAILS

for treadmill codes XRU037, XRU038



XRU029
FIXED, PROLONGED HANDRAILS

for treadmill code XRU033

xru012 / xru020

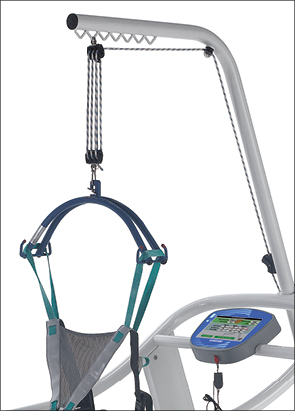

XRU012
ANTI-FALL SUPPORT REHA 01

Long handrails needed XRU029. For item code XRU033 or XRU034 only. Spreader bar included. Max. user’s weight kg 150



XRU020
ANTI-FALL SUPPORT REHA 02

Long handrails needed XRU017. It can be fitted on treadmills XRU037 or XRU038 only. Spreader bar included. Max. user’s weight kg 150

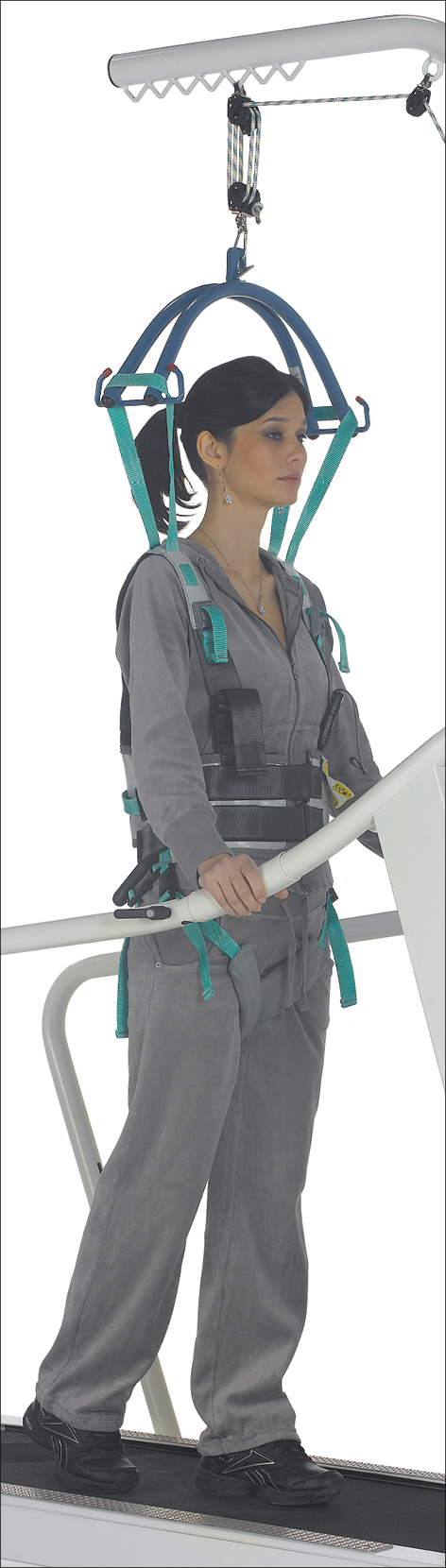

The walking harness provides support while exercising to improve gait. This walking harness can be adjusted with straps and clips, which makes it an ideal tool to support shoulders, stomach, chest and legs correctly while exercising to improve gait. The Velcro fastening offers further support to the patient should exercise be too strenuous. Capacity 225 kg

01621 / 01622 / 01623

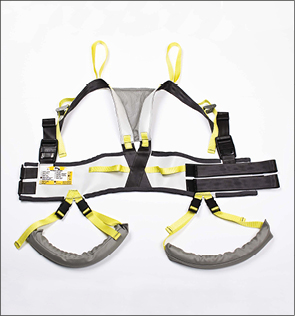

01621
SMALL WALKING HARNESS

Thoracic circumference from 67 to 72 cm



01622
MEDIUM WALKING HARNESS

Thoracic circumference from 73 to 105 cm



01623
LARGE WALKING HARNESS

Thoracic circumference from 106 to 124 cm


DOCUMENTS
English Apri
Chapter - 10 - TREADMILLS - International Edition 2016/2017
Introduction to RehaRunner Medical lines - RehaRunner Medical line and Accessories - RehaRunner Medical line 02 range - RehaRunner Medical line 01 range - RehaRunner Medical line Basic version - Fitness Line
.pdf 1.12 MB
