TRACTIONS



TRACTION TABLES

Tables, with fixed or adjustable height, designed for lumbar and / or cervical tractions, or other physical therapy treatments, for stretching muscles, and other therapies.


TRACTION UNIT

This equipment can be used to perform lumbar and cervical tractions. Tractions can be applied in a “static”, “dynamic” or “intermittent dynamic” mode.


TRACTION ACCESSORIES

Bags with differents weights, cushions for patient positioning during traction, various straps in different sizes to provide additional aid with lumbar and cervical traction.


CERVICAL TRACTION

Cervical traction in sitting position.

Products: 4

Products: 1

Products: 13

Products: 1


BACK SCHOOL

Different tools for muscle relaxation and relief, effective aids for mobilization and in antalgic, preventive and rehabilitative exercise.


AUTO-TRACTION

Articles that can be used by the user/patient independently (no external help/carer needed). Ideal for home treatment programs.

Products: 4

Products: 4


PRESENTATION

Tractions


The Active Lumbar Traction (ALT) is originates from the swedish method of auto-tration, a mechanical type of treatment for lumbosciatic pain due to benign mechanical compression causes.

Among the mechanical causes we can include radicular syndromes due to protruded or herniated discs, as well as the insidious spinal stenosis syndromes.

Another facilitation for the traction therapy is the "EUROTRAK", an electronic equipment programmed to perform lumbar or cervical therapeutic tractions, in static, continuous or intermittent modes.

BACK SCHOOL suggests the use of supports to maintain the physiological curves not only during the daily activities but also during the exercises on the mat and the relaxation session.



eurotrak

The EUROTRAK TOUCH electronic traction unit is designed to be used with a specific therapy table made by Chinesport or another manufacturer. In any case the traction unit needs and additional, purpose-built support frame, and we can provide technical drawing for the supporting metal plate.



We propose two optional therapy tables to be combined with our electronic traction unit: the model called ALFATRAC is at fixed height, the alternative BETATRAC is with a frame height adjustment.



betatrac

alfatrac

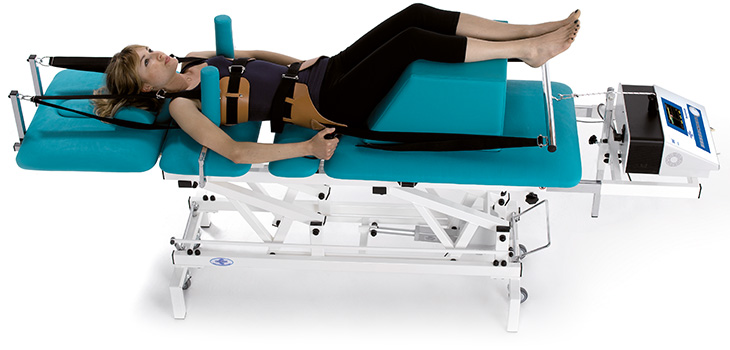

Option 1

Eurotrak touch fitted to Betatrac table, with height adjustment.

Option 2

Eurotrak touch fitted to Alfatrac table, with fixed height.


MORE INFO
WORKING MODES

tractions

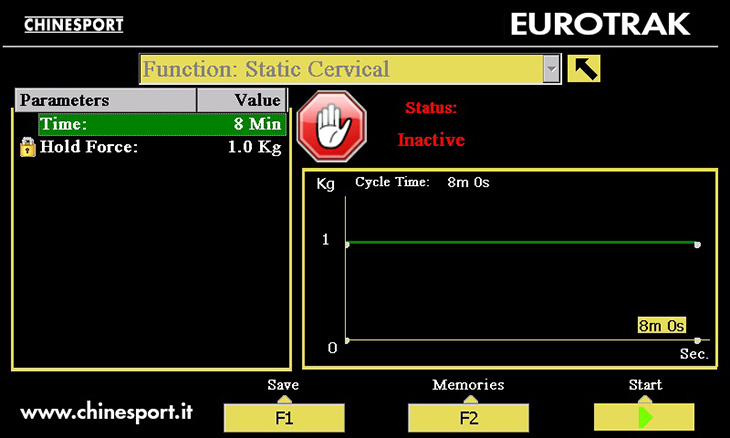

STATIC

working mode static

In static mode the unit exerts a steady force, equal to the set value, throughout the treatment.

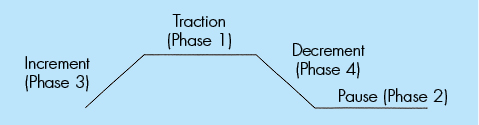

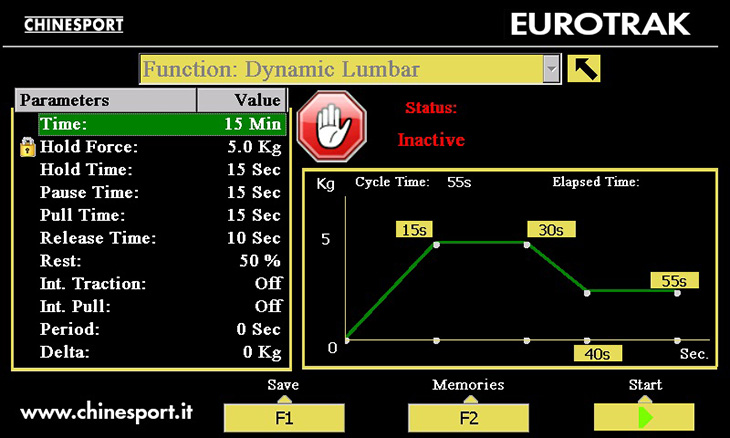

DYNAMIC

working mode dynamic



working mode dynamic2

In dynamic mode there are four phases as shown in the diagram while the table gives the parameters for each phase.



Phase 1:
traction

Traction time
Traction force

Phase 2:
pause

Pause time
Recovery: percentage of the traction force one wants to be maintained during the pause time

Phase 3:
increment

Increment speed: force increment speed, in kg/s, to change from the selected pause value (recovery) to the selected traction value

Phase 4:
decrement

Decrement speed: force decrement speed, in kg/s, to change from the selected traction value to the selected pause value (recovery)

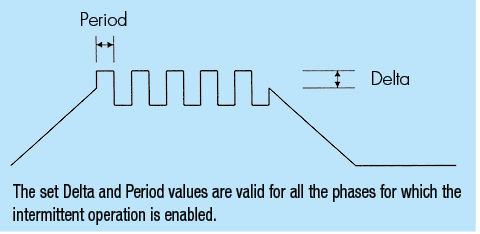

DYNAMIC INTERMITTENT

working mode dynamic intermittent

In dynamic mode, you can set the parameters related to the intermittent operation in the screen that appears when pressing the NEXT key.
You can enable or disable the intermittent operating mode for each phase (the reference phases are those described in the previous paragraph). An instance of the intermittent operation is described in the diagram, with reference to the traction phase.

STRETCHING AND MOBILIZATION EXERCISES

“In the work and sport life, some postures or movements which imply an excessive pressure of the spine discs are often adopted and done. In such cases, it is important to perform some exercises to lessen the pressure on the discs. Relief can be obtain in some ways:

  • Actively with some stretching exercises;
  • Manually, when traction is performed by the carer (very efficacious because the carer can feel and check on the patient’s reactions directly);
  • In a natural way with suspension exercises and with some devices which allow gravity inversion;
  • With some traction devices for the spine which focus the lessening effect at a given point and enable to adjust the power of traction as desired.”

Prof. Benedetto Toso



back school 1



back school 2



back school 3

back school 4


DOCUMENTS
English Apri
Chapter - 11 - TRACTIONS - International Edition 2016/2017
Eurotrak (Electronic Traction Unit) - Betatrac (Therapy and Traction couch) - Alfatrac (Traction couch) - Galileo (Spinal Decompression couch) - TLA (Active Lumbar Traction couch) - Traction accessories - Cervical Traction - Back school exercises
.pdf 1.25 MB
