You are here: Home > Hoisting Systems > Hoists > James 150
Request information

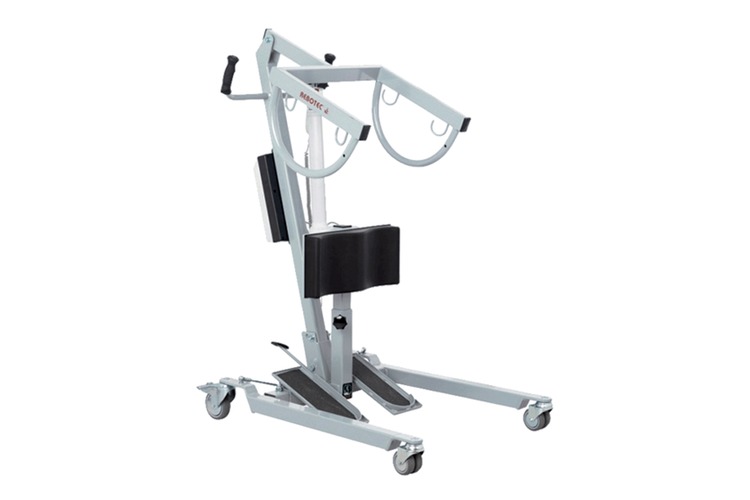

JAMES 150

1
4
5
1
0
Quantity:

Description

Electric patient hoist with rechargeable battery 24V. The equipment is supplied with a special sling for patient’s standing up.

Epoxy painted steel frame whit four castors of whose two with brakes. Electrical and mechanical emergency system.

Information in details:
- electric lifting arm
- 24 Volt motor / dry battery
- cable remote control
- emergency stop
- overload protection
- mechanical emergency fetch down
- very low construction of the rolling-stand = very good undercult possibility
- undercarriage spreadly with pedal
- swivelling castors individual brakeable
- assembled in a few minutes
- approved up to 150 kg

 Capacity 150 kg.

Accessories

Accessories

James Sling M / L
14516
Padded material, comfortable, water resistant, washable, with velcro fasteners. Size M / L adjustable through the harness eyelets. Capacity 250 kg.
Ask for quotation

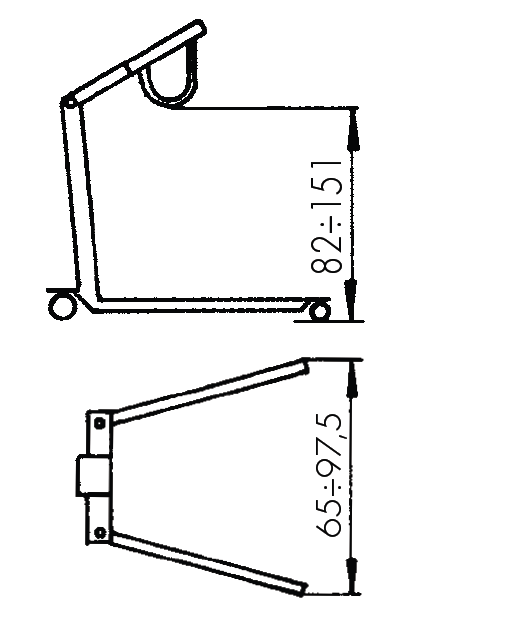

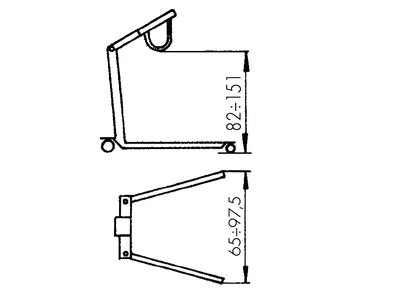

Technical Spec.

Technical Spec.

Max load:
150 kg (body weight)
Product weight:
50 kg (without accessories)
Space req. max. L x W x H (standing):
110 x 65 x 200 cm (lifter arm all the way up)
Front wheels:
Ø 7.5 cm
Rear wheels:
Ø 10 cm with lock
Turning:
ca. Ø 115 cm
Knee pro. height:
50 cm to 75 cm (knee midpoint)
Lift height:
84 cm to 150 cm
Lift cycles:
approx. 45 double lifts (depending on weight. and charge)
Lifting unit:
stepless and without jerking
Protection:
class II
Switch duration:
2 min operation / 18 min. pause
Charger voltage:
230-240V AC/50Hz (control unit)
Control unit:
IP54 24V DC / 5A
Drive, compl.:
IP54 24V DC / 5A
Hand switch:
IPX4 24V DC
Charging unit:
IPX4 230V/24V, 500mA
Power-pack:
IP54 24V DC / 5Ah
Safety:
mechanical emergency lowering; power-pack low charge; power surge switch off
Process tolerance:
+/- 1.5 cm
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 125 x 35 x 70 h kg 57 mc 0.30625
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Declaration of conformity

Compliance of statement - past edition
Document date: 21/02/2017
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 956.46 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 27/11/2012
Language: English
Version: V 1.0
DOWNLOAD
PDF 4.51 MB
Register to access the content
