SONIC EXCELLENT

E
L
0
0
8
5
Quantity:

Description

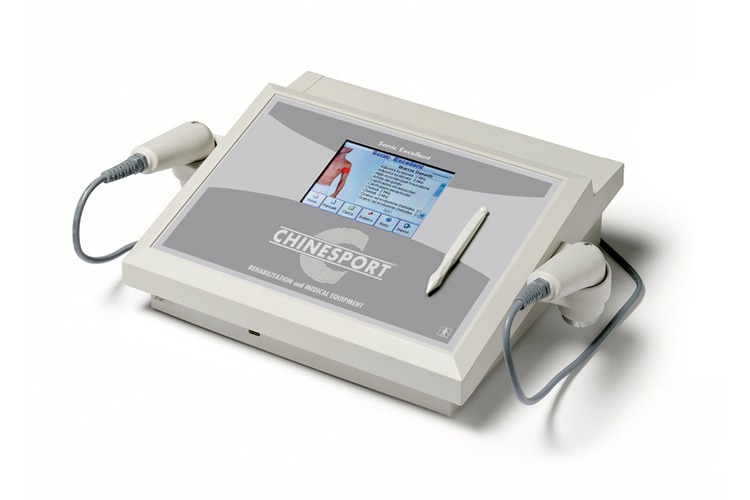

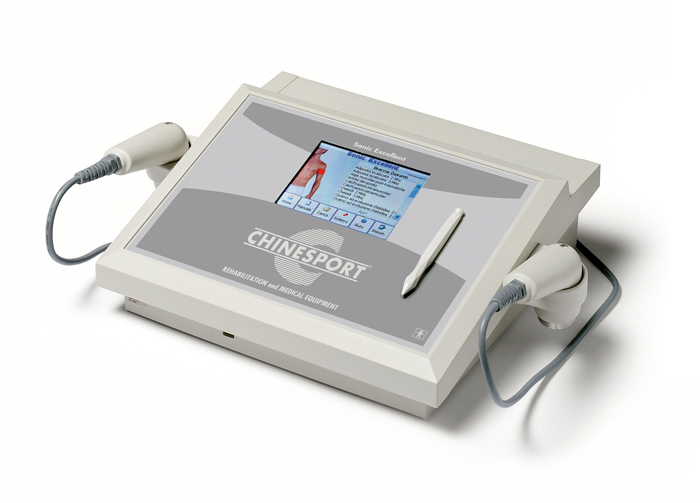

Ultrasound multi-frequency equipment with a 6'' color display with Touch Screen function.

Ultrasound therapy applied on human tissues causes a high-frequency cellular and intercellular massage action. The tissues radiated with ultrasound start to vibrate and consequently increase energy expenditure and heat production, thus inducing a diathermy effect. Ultrasound therapy is used for treatment of iflammations, tissue recovery, post-traumatic and circulatory affections, skin and peripheral nerves diseases.

Sonic Excellent provides you with a universal ultrasound unit with 3 frequencies: 1, 2, 3 MHz, both in continuous and pulsed mode. These frequencies have different absorption properties that allow the tissue structures to be treated, either deep or surface, in a selective manner.

250 stored protocols. 200 protocols can be stored in memory and 200 can be stored on the Smart Card.

Included as standard supply:

- Mains cable 1;
- Instruction manual 1;
- 500 mA Fuses 2;
- 5cm2 - 1Mhz Handpiece 1;
- 5cm2 - 1/3Mhz Handpiece;
- 32 kb Smart card 1.

Accessories

Accessories

Carry Case

EL0016
Carry case for the unit transport
Ask for quotation

Handpiece 1 Cm²

EL0017
1-3 MHz cm, dual frequency, IP67 protection.
Ask for quotation

Handpiece 3 Cm²

EL0018
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 5 Cm²

EL0019
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 8 Cm²

EL0020
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Sonic Arm P

EL0022
Swivel arm. Free mount.
Ask for quotation

Contact Gel

EL0023
Non-electroconductive gel, 250 g
Ask for quotation

Gel Canister

EL0024
Non-electroconductive gel, 5 l
Ask for quotation

Dispenser-Pump

EL0025
Pump for canister code EL0024.
Ask for quotation

Link Cable

EL0082
Cable to connect electrotherapy and ultrasound machines.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions (L x H x D):
cm 34 x 13 x 32
Weight:
kg 3,5
Power supply:
220V 50/60Hz
Absorbed power:
40
Fuses:
2 x 630 mA-T
Insulation group:
I type BF
Risk group 93/42:
EEC II B
Liquid protection level:
IPXO
Handpiece liquid protection level:
IPX4
Useful outputs:
2
Operating frequency:
1/2/3MHz
Timer:
1-30 minutes
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

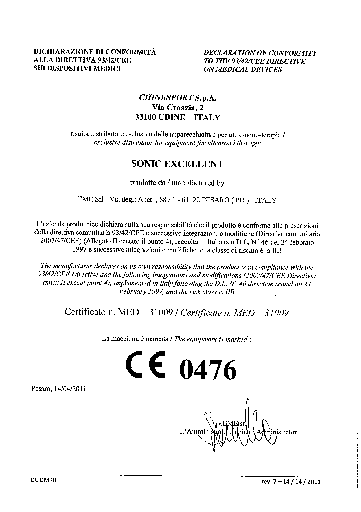

Declaration of conformity

Compliance of statement - past edition
Document date: 05/07/2011
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 47.49 KB
Register to access the content

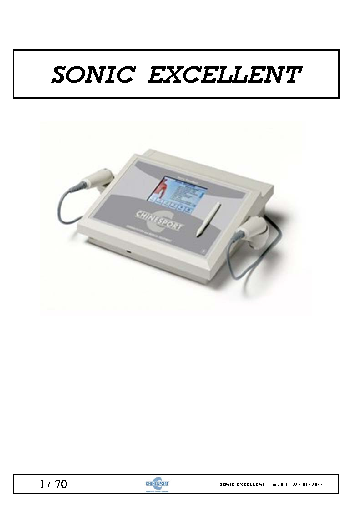

User and maintenance manual

Manual - past Edition
Document date: 05/07/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.32 MB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 14/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1.35 MB
Register to access the content

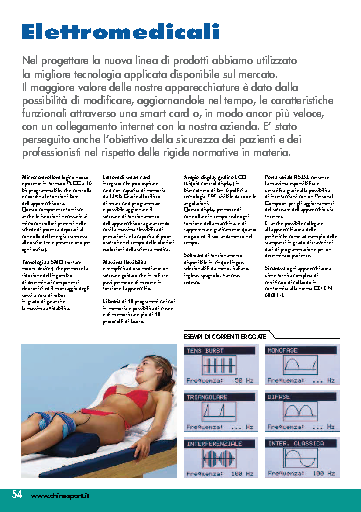

Brochure

Brochure
Document date: 10/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 934.41 KB
