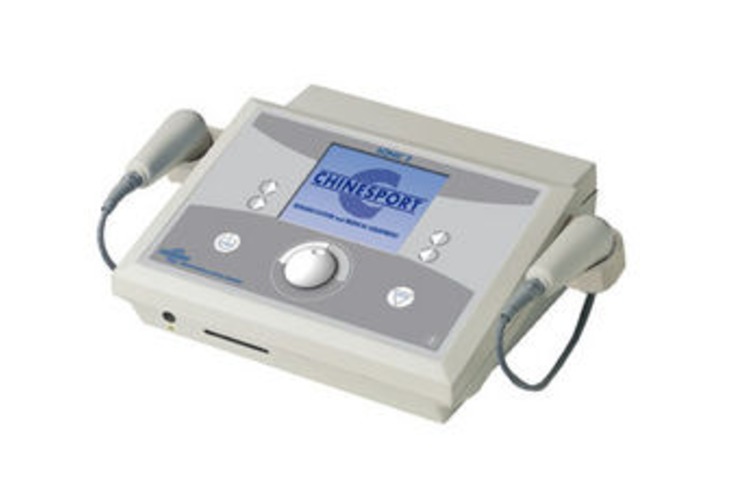

SONIC 2

E
L
0
0
5
7
Quantity:

Description

Ultrasound device with two independent outputs, 1 or 3 MHz operating frequency and continuous or pulsed duty cycle. It has two self-calibrating double-frequency handpieces, with a watertight 5 cm2 sound head for use in underwater therapy. A convenient encoder ensures a quick selection of the wave parameters or protocol to be delivered. A sensor allows the energy to be supplied only when there is contact with the patient, sending the operator a visual and auditory feedback. It is possible to access a 50-programme library or to create and store over 50 user protocols. Option to use different diameter heads to suit different therapeutic applications.

Included as standard supply:

- Mains cable 1;
- Instruction manual 1;
- 500 mA Fuses 2;
- 5cm2 - 1Mhz Handpiece 1;
- 5cm2 - 1/3Mhz Handpiece;
- 32 kb Smart card 1.

Accessories

Accessories

Carry Case

EL0016
Carry case for the unit transport
Ask for quotation

Handpiece 1 Cm²

EL0017
1-3 MHz cm, dual frequency, IP67 protection.
Ask for quotation

Handpiece 3 Cm²

EL0018
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 5 Cm²

EL0019
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 8 Cm²

EL0020
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Sonic Arm P

EL0022
Swivel arm. Free mount.
Ask for quotation

Contact Gel

EL0023
Non-electroconductive gel, 250 g
Ask for quotation

Gel Canister

EL0024
Non-electroconductive gel, 5 l
Ask for quotation

Dispenser-Pump

EL0025
Pump for canister code EL0024.
Ask for quotation

Link Cable

EL0082
Cable to connect electrotherapy and ultrasound machines.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions (L x H x D):
cm 34 x 13 x 32
Weight:
kg 4
Power supply:
220V 50/60Hz
Absorbed power:
70
Fuses:
630 mA
Insulation group:
I type BF
Risk group 93/42:
EEC II B
Liquid protection level:
IPXO
Handpiece liquid protection level:
IPX4
Useful outputs:
2
Operating frequency:
1/3MHz
Timer:
1-30 minutes
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Approfondimenti

Various
Document date: 22/12/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 26.6 KB
Register to access the content

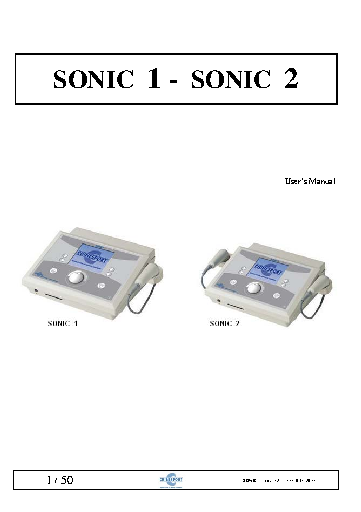

User and maintenance manual

Manual - past Edition
Document date: 05/07/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.07 MB
Register to access the content

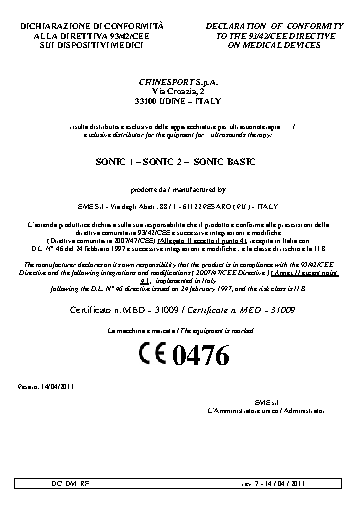

Declaration of conformity

Compliance of statement - past edition
Document date: 04/07/2011
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 10.11 KB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 13/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1.08 MB
Register to access the content

Brochure

Brochure
Document date: 10/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 934.41 KB
