SONIC BASIC

E
L
0
0
5
5
Quantity:

Description

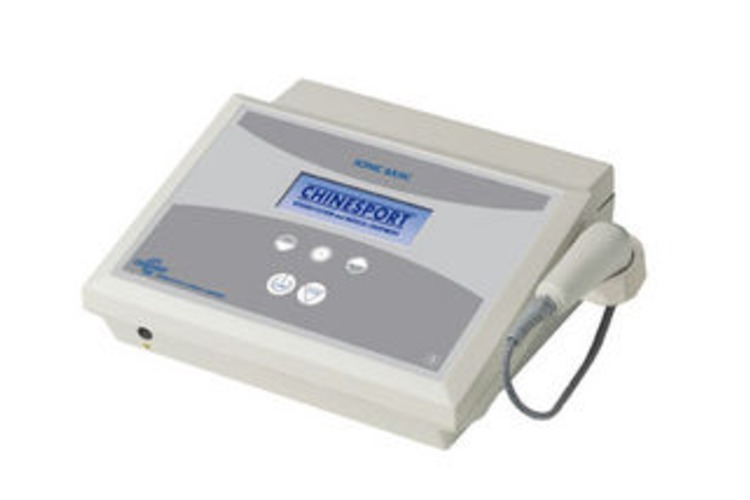

One-output ultrasound device at 1 or 3 MHz operating frequency and continuous or pulsed duty cycles. Provided with a self-calibrating, double-frequency handpiece with a 5 cm2 sound head, watertight for use in underwater therapy. A sensor allows the energy to be delivered only when there is contact with the patient, sending the operator a visual and auditory feedback. It is possible to access a 20-programme library or to create and store over 20 user protocols. Option to use different diameter heads to suit different therapeutic applications.

Included as standard supply:

- Mains cable 1;
- Instruction manual 1;
- 500 mA Fuses 2;
- 5cm2- 1Mhz Handpiece 1;
- 5cm2- 1/3Mhz Handpiece;
- 32 kb Smart card no.

Accessories

Accessories

Carry Case

EL0016
Carry case for the unit transport
Ask for quotation

Handpiece 1 Cm²

EL0017
1-3 MHz cm, dual frequency, IP67 protection.
Ask for quotation

Handpiece 3 Cm²

EL0018
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 5 Cm²

EL0019
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 8 Cm²

EL0020
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Sonic Arm P

EL0022
Swivel arm. Free mount.
Ask for quotation

Contact Gel

EL0023
Non-electroconductive gel, 250 g
Ask for quotation

Gel Canister

EL0024
Non-electroconductive gel, 5 l
Ask for quotation

Dispenser-Pump

EL0025
Pump for canister code EL0024.
Ask for quotation

Link Cable

EL0082
Cable to connect electrotherapy and ultrasound machines.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions (L x H x D):
cm 34 x 13 x 32
Weight:
kg 3
Power supply:
220V 50/60Hz
Absorbed power:
40
Fuses:
500 mA
Insulation group:
I type BF
Risk group 93/42:
EEC II B
Liquid protection level:
IPXO
Handpiece liquid protection level:
IPX4
Useful outputs:
1
Operating frequency:
1/3MHz
Timer:
1-30 minutes
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Approfondimenti

Various
Document date: 22/12/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 22.57 KB

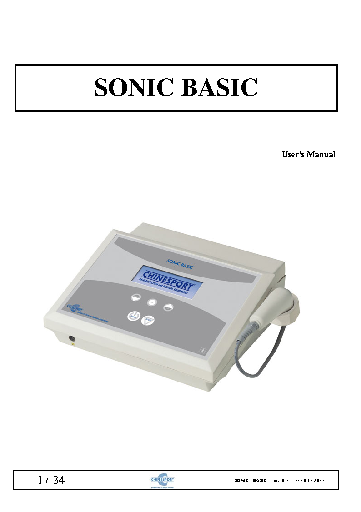

User and maintenance manual

Manual - past Edition
Document date: 12/07/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 794.39 KB
Register to access the content

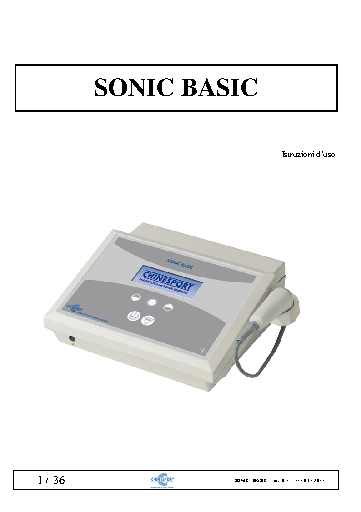

Manuale istruzioni

Manual - past Edition
Document date: 05/07/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 833.78 KB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 04/07/2011
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 10.11 KB
Register to access the content

Brochure

Brochure
Document date: 10/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 934.41 KB
