Description

This new device, unlike the Tecar and Endotherapy electro-medical devices, allows the physiotherapist to use simultaneously two treatment methods, combining the resistive/capacitive energy transfer and the diffusion of the active agent (where prescribed by the physician), with a hand piece called ROLL-ON (patented).



CAPACITIVE MODE

The warming sensation generated inside the body depends on various factors, and can be perceived by the patient at intensities that range from warmth to intense internal heat. When using capacitive electrodes, the diameter of the electrode and speed of movement must be considered in particular. For the same amount of power applied, larger diameter electrodes increase the temperature more gradually and, in addition, the faster the electrode is moved, the less the heat sensation felt by the patient.



Gastrocnemius treatment example -  CAPACITIVE MODE

The operator transfers energy and medicines into the patient’s gastrocnemius muscle .The effect will be hypervascularization of tissue, and consequently its filling with oxygen, nourishing factors, enzymes on the  arterial side, and drainage of catabolites on the venous side.


It is good practice to choose the electrode with the largest area possible in relation to the area to be treated. The electrode can be applied, both staying still in the area treated and using circular or linear movements, depending on the area treated and power you wish to apply. It is very important that most of, if not all of, the electrode’s area be in contact with the patient’s skin, following any curves and irregularities in the area treated, and continuously adapting to it. The electrode holder handgrip is specifically designed to minimise effort on the part of the operator and to make the treatment more pleasant for the patient (deep massage action, as if the electrode were an “extension of the operator’s hands”).



MANUAL MODE WITH DIRECT - RESISTIVE COUPLING

Direct coupling means using the TCARE Cellular Regenerator with uninsulated metal electrodes (no dielectric device interposed). The action mechanism, caused by polarity reversal of the current, produces a quicker and more intense increase in heat in tissue deprived of water and electrolytes (bone tissue and adipose tissue especially). This application method is therefore more indicated, perhaps along with the capacitive mode, for pathologies involving these parts of the body. Since the active electrode is not insulated, the current that moves the charges and the temperature generated in the body are less concentrated in the area immediately below the active electrode, producing a directional aspect guided by the passive electrode (return plate).



Knee treatment example - RESISTIVE MODE:
The operator gets the patient to move their knee into flexion/extension to concentrate Tcare action in the inflamed zone and gain a wider range of motion (.e.g. knee collateral ligament)



In other words, one substantial difference from the capacitive mode lies in taking great care when positioning the return electrode, which directs impulses generated by the active electrode. Another difference is that the active electrode remains in a set position or slight rotational movements are made with a diameter slightly larger than that of the electrode used, and continually adjusting the power applied so that the temperature perceived by the patient is pleasant.

THERAPEUTIC INDICATIONS:

  • Muscular injuries
  • Joint capsulitis
  • Distortions
  • Cervicalia
  • Bone and ligament trauma
  • Tendon injuries and bursitis
  • Lumbalgia and ischialgia
  • Myositis
  • Arthrosis processes
  • Rehabilitation programmes


BIOLOGICAL EFFECTS OF THE TREATMENT:

  • Improvement of arterial flows, with an increase in the quantity of nutritive substances and oxygen
  • Increase in metabolism due to these factors and due to an internal rise in temperature (van’t Hoff’s law)
  • Increase in endocellular energy transformation (ADP into ATP)
  • Improved membrane balance for all cells in the treated area (adipocytes, fibroblasts, etc.)
  • Repolarisation of the cell (from pathologies -40Mv to physiologies -70Mv)
  • Passage of the extra-cellular matrix from a (pathological) gel state gel state to a (physiological) sol state
  • Improvement of venous and lymphatic flow with more efficient expulsion of toxins and catabolites
  • Potentiation and synergy with active ingredients to be diffused in the dermis and hypodermis, with evident application advantages compared to taking intramuscularly


ACCESSORIES SUPPLIED:

EL0147 - Mini Capacitive ROLL-ON 40 mm
EL0163 - Mini Resistive ROLL-ON 40 mm
EL0113 - Capacitive ROLL-ON 80 mm
EL0129 - Resistive ROLL-ON 80 mm
EL0122 - Passive plate
EL0164 - Medium Capacitive ROLL-ON 56 mm
EL0165 - Medium Resistive ROLL-ON 56 mm
AC0665 - Elastic band, cm 60
AC0667 - Elastic band, cm 100

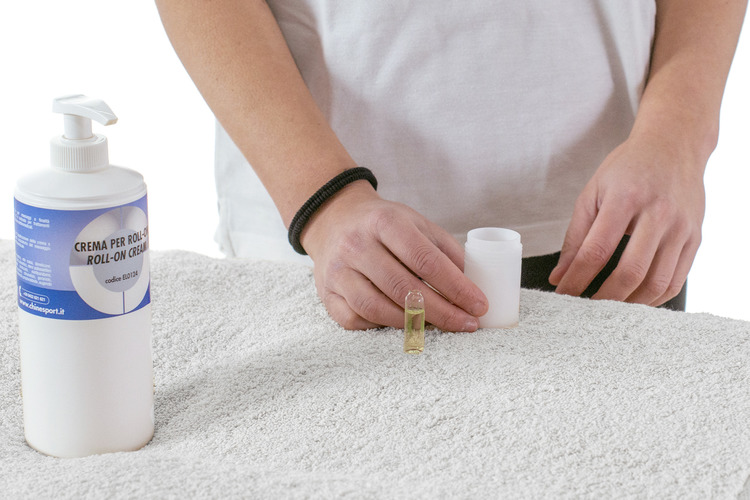

EL0148 - Dispenser with cap
EL0128 - Ball cap
EL0149 - Mini dispenser
EL0125 - Passive plate lubrication cream 1000 ml
EL0124 - ROLL-ON lubrication cream 500 ml

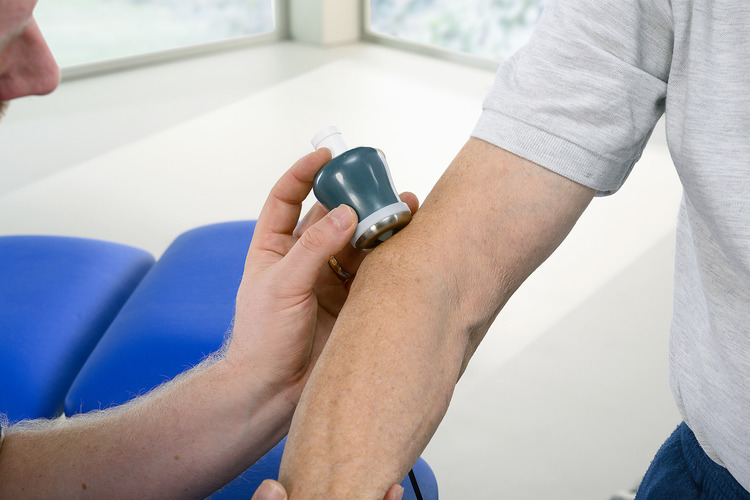

HOW DOES THE ROLL-ON HANDPIECE WORK

The special patented handpiece, known as the ROLL-ON, means that the TCARE Cellular Regenerator device guarantees the best geometric application for achieving capacitive-resistive energy transfers. The particular shape of the handpiece provides an extensive contact area between the electrode and the patient’s skin, while the ROLL-ON’s functionality ensures that, unlike traditional handpieces, the correct quantity of cream is released at the contact interface on a real-time basis. This is sufficient to guarantee the development of the electro-chemical gradient, without allowing any dielectric arc to be formed. It also makes it possible to avoid wasteful dispersion of conductive cream, which provides significant savings in the operating costs sustained by professionals that use the device.



Accessories

Accessories

Capacitive Handpiece Roll-On

EL0113
Capacitive handpiece ROLL-ON. must be combined with dispenser cod. EL0148 and its ball caps cod. EL0128. Accessory product for Tcare device.

Medio Capacitive Roll-On

EL0164
Medio capacitive Roll-On, 56 mm .To be combined with mini dispenser cod. EL0149. Accessory product for Tcare device.

Mini Hand Piece Roll-On Capacitive

EL0147
Capacitive Mini hand piece Roll-On to treat small anatomic surfaces, 40 mm. To be combined with mini dispenser cod. EL0149. Accessory product for Tcare device.

Resistive Roll-On

EL0129
Resistive handpiece ROLL-ON, 80 mm. must be combined with dispenser cod. EL0148 and its ball caps cod. EL0128. Accessory product for Tcare device.

Medio Resistive Roll-On 56mm

EL0165
Medio resistive Roll-On, 56 mm. To be combined with mini dispenser cod. EL0149. Accessory product for Tcare device.

Mini Resistive Roll-On

EL0163
Resistive Mini hand piece Roll-On to treat small anatomic surfaces, 40 mm. To be combined with mini dispenser cod. EL0149. Accessory product for Tcare device.

Capacitive Handpiece

EL0155

Capacitive Electrode 6,5 Cm

EL0116
Capacitive electrode 6,5 cm.

Capacitive Electrode 5,3 Cm

EL0117
Capacitive electrode 5,3 cm.

Capacitive Electrode 3,3 Cm

EL0118
Capacitive electrode 3,3 cm.

Resistive Handpiece

EL0156

Resistive Electrode 6.5 Cm

EL0119
Resistive electrode 6,5 cm.

Resistive Electrode 5.3 Cm

EL0120
Resistive electrode 5,3 cm.

Resistive Electrode 3.3 Cm

EL0121
Resistive electrode 3,3 cm.

Passive Plate

EL0122
Passive plate to be connected to the TCare device for Capacitive Resistive Energy Transfer therapy (C.R.E.T. therapy).

Roll-On Conductive Cream 500ml

EL0124
Roll-on cream. 500 ml - 2 jars

Handpiece Conductive Cream 1 Kg

EL0125
Handpiece cream. 1000 ml - jars.

Roll-On Ball

EL0128
Disposable ball caps for dispenser cod. EL0148. Package of 100 pieces.

Dispenser With Cap

EL0148
Dispenser with cap - 12 pieces, for 80mm handpieces. To be ordered with ball caps cod. EL0128.

Mini Dispenser

EL0149
Disposable dispenser for 40mm and 56mm Roll-on hand pieces. Pack of 100 pieces.

Roll-On Cream Set

EL0176
Roll-on cream. 500 ml - 6 jars

Elastic Bands 100x3 H Cm

AC0667
Elastic band, cm 100x3

Elastic Band 60x3 H Cm

AC0665
Elastic band, cm 60x3
Technical Spec.

Technical Spec.

Working frequency:
0,8MHz, 1 MHz, 1,2MHz
Output passive plate:
1
Manual output capacitive electrode:
1
Manual output direct coupling electrode:
1
Manual mode:
400Ω
V rms (aprox.):
320
Watt rms (aprox.):
150
Input voltage:
115÷230VAC ± 10% 50/60Hz
Maximum input power:
200 W
Ambient working temperature:
+10 ÷ +30 °C
Maximum temperature storage and transport:
+10 ÷ +70 °C
Maximum humidity storage and transport:
25 ÷ 85%
Passive plate area:
aprox. 220 cm²
Roll-On capacitive electrodes:
Ø 40 mm - Ø 56 mm - Ø 80 mm.
Direct coupling electrodes:
Ø 40 mm - Ø 56 mm – Ø 80 mm
Active medical devices:
CLASS II B
Weight:
40 kg
Dimensions:
60 x 80 x 115 h cm
Gallery

Gallery

Logistics

Logistics

CDN Code:
Z12069099
Code Repertoire:
R1213795

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 scatola su bancale cm 80 x 72 x 140 h kg 67 mc 0.8064

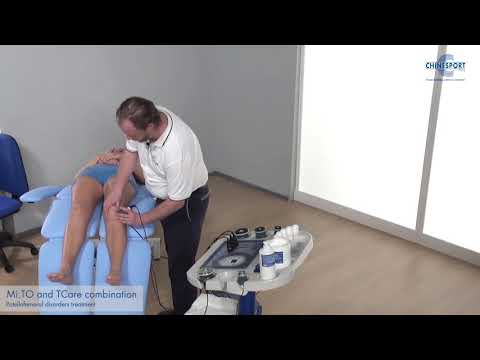

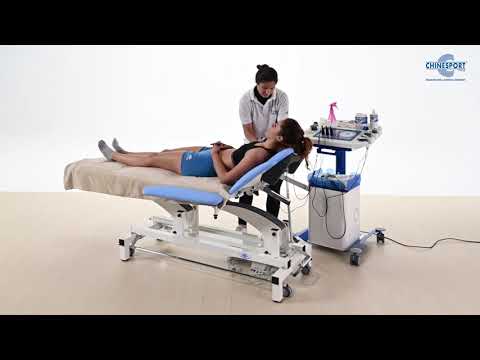

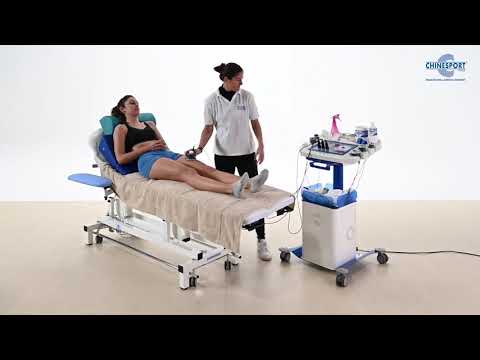

Video

Video

Documents

Documents


EL12002 - User and maintenance manual

User and Maintenance Manual
Document date: 01/04/2016
Language: English
DOWNLOAD
PDF 936.01 KB
Register to access the content

EL12002 - User and maintenance manual

User and Maintenance Manual
Document date: 01/04/2016
Language: Italian
DOWNLOAD
PDF 1.03 MB
Register to access the content

EL12002 - Certificate

Declaration of conformity
Document date: 03/11/2017
Language: English/Italian
DOWNLOAD
PDF 1.95 MB

EL12002 - Declaration of Conformity

Declaration of conformity
Document date: 16/10/2014
Language: English/Italian
DOWNLOAD
PDF 217.62 KB
Register to access the content
F.A.Q.

F.A.Q.

"About TCARE therapy. Is it possible to use hands free? It means therapist use it leave hands on patient body. (South Korea – March 2018)"

No, TCARE it is not hands free. And neither should any of the other CRET devices be hands free. One of the beautiful and important characteristics of CRET is that it enhances the therapeutic effects of tissue or structure (eg joint) movement. In that respect it is very important the therapist works closely with the patient. Generally treatments to no longer than 20 minutes to achieve the desired therapeutic effects. In many cases treatments are even shorter.

"Is the T care belong to TECAR therapy? And what is the TECAR therapy? Is that from Italia? (South Korea – March 2018)."

The correct scientific term is CRET therapy; Capacitive Resistive Energy Transfer . T.E.C.A.R. is a commercial name originating from Spanish or Italian language. Yes, TCare provides CRET therapy. TECAR originates indeed from Italy and also Spain.

"The protocol of treatment for each indications (ex: the freq, energy, …)? (Qatar – January 2019)"

It is not practicable to describe parameters for every pathology, since the setting for every treatment must be chosen taking into account not only the pathology itself but also many patient’s specificity, such as stage of disease, age, tissues impedence, ecc… and consequently decide treatment parameters, to give the patient the most effective therapy session. A brief explanation is contained in User’s manual guidelines, but to fully understand and take advantage of the potentiality of Tcare device a specific training course is recommended. We can make quotations for training  courses to be held on site or here in our premises in Italy

"Is it ok to put  the pad near the heart instead of the belly at cervical treatment? (Qatar – January 2019)"

Taking into account the applicative geometry between the pad and the handpiece, the answer is yes, since the electromagnetic current created by Tcare doesn’t interfere with cardiac activity, except patients with pacemaker who are already forbidden to have Tcare treatment as described in counterindications. Then, I never put the pad in the cardiac area because it is not so much comfortable for the patient: if she’s a female, because of breast; if he’s a male, because of hair which may be present in the area and may require a higher use of conductive cream to gain the proper interface between pad and skin.

"Is it allowed to use TCARE if there is internal fixations (ex; metal plate, screws, …)? (Qatar – January 2019)"

Yes, it is possible because of the conductivity of internal fixation material, which is called in Physics “I kind conductor” and which can let the current pass without creating any thermical effect. The difference between I kind conductor and II kind ones is as well described in the training course in order to understand Tcare effects on biological and non-biological tissues.
