You are here: Home > Electromedical Devices > Electrotherapy > Medicstim Basic
See similar products
Request information

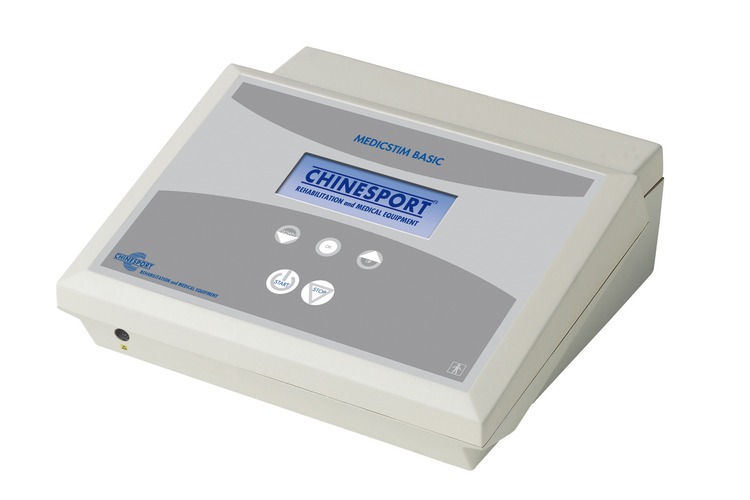

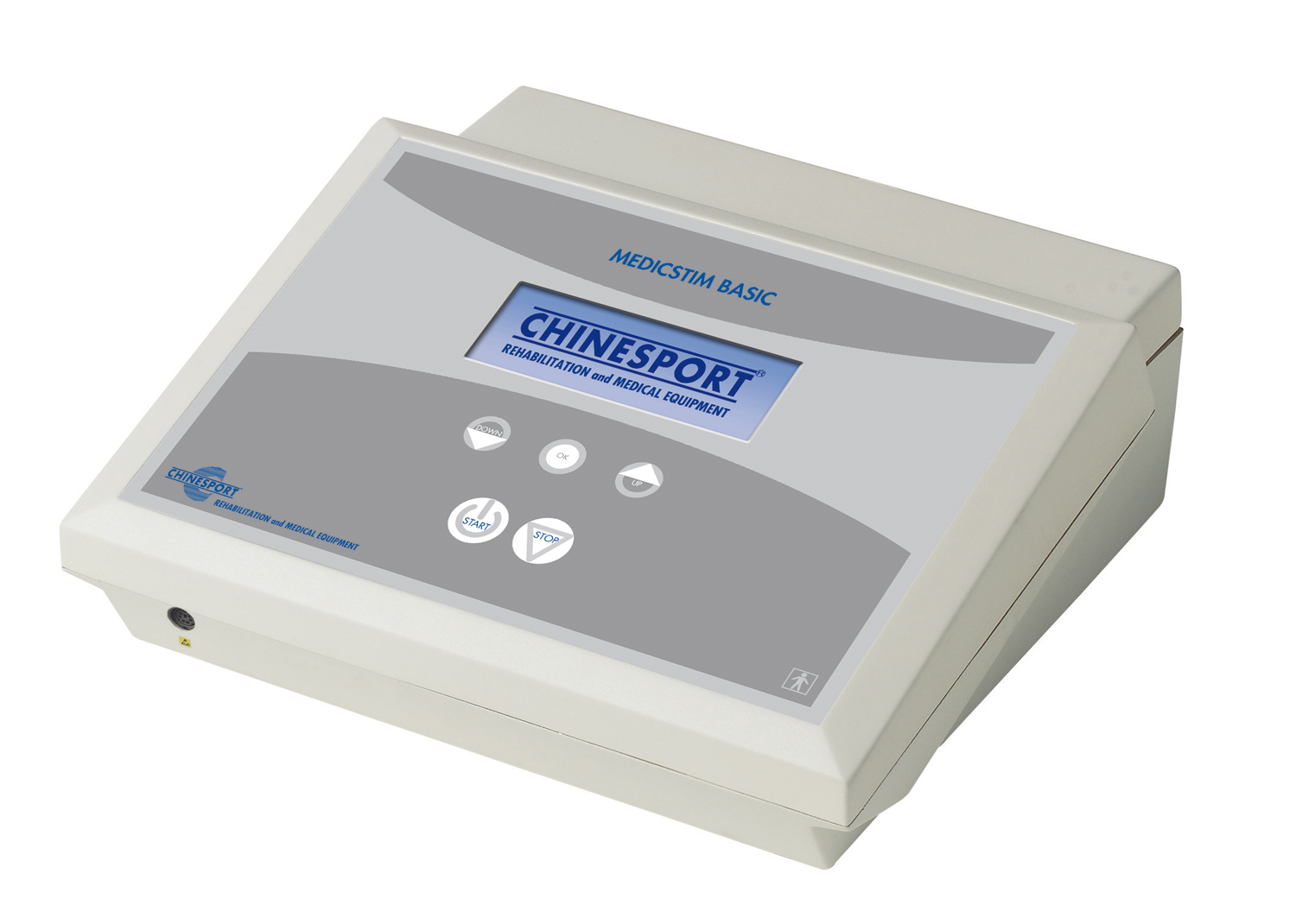

MEDICSTIM BASIC

E
L
0
0
5
0
Quantity:

Description

Electrotherapy device with two independent outputs, delivering all low-and medium-frequency currents. It is possible to access a 20-programme library or to create and storeover 20 user protocols. The microcontrollers to the power boards verify in real time that the selected current is correctly delivered and report any possible anomalies.

Included as standard supply:

-Mains cable 1;
-Instruction manual 1;
-500 mA Fuses 2;
-Electrodes, 6 x 8 cm 4;
-Sponges, 6 x 8 cm 4:
-Electrodes, 5 x 5 cm 4;
-Sponges, 5 x 5 cm 4;
-Elastic bandage, 100 cm 2;
-Elastic bandage, 60 cm 2.



Accessories

Accessories

Sponges 7 X 6, 2 Pcs
EL0009
Sponges 7 X 6 cm, 2 pieces.
Ask for quotation

Sponges 8 X 10 Cm, 4 Pcs
EL0010
Sponges 8 x 10 cm, 4 pieces
Ask for quotation

Electrodes, 5 X 5 Cm, 2 Pcs
EL0011
Electrodes 5 x 5 cm, set of 2 pieces
Ask for quotation

Electrodes, 6 X 8.5 Cm, 4 Pcs
EL0012
Electrodes, 6 x 8.5 cm, set of 4 pieces
Ask for quotation

Elastic Bands Cm 60
EL0013
Elastic bands, cm 60 long. Two pieces
Ask for quotation

Elastic Bands Cm 100
EL0014
Elastic bands, cm 100 long. Two pieces
Ask for quotation

Output Cable
EL0015
Additional 2-channel output cable
Ask for quotation

Carry Case
EL0016
Carry case for the unit transport
Ask for quotation

Link Cable
EL0082
Cable to connect electrotherapy and ultrasound machines.
Ask for quotation
Technical Spec.

Technical Spec.

Microprocessors:
3
Dimensions (L x H x D):
cm 34x13x32
Weight:
kg 4
Power supply:
220V 50/60Hz
Absorbed power:
40W
Fuses:
500mA
Insulation group:
I type BF
Risk group 93/42 EEC:
II B
Liquid protection level:
IPXO
Room temperature:
Between + 10°C a + 40 °C
Room moisture:
Between 10% a 80%
Useful outputs:
2
Max output power:
10mA
Max output voltage:
120V
Timer:
1-99 minutes
IONOPHORESIS Galvanic:
supplied
IONTOPHORESIS Continuous intermittent MF:
supplied
DIADYNAMIC Single-phase, Double-phase Sync. Single-phase Sinc. Double-phase Cp, Ip:
supplied
PULSED Rectangular, Triangular, Trabert:
supplied
FARADIC Rectangular,Triangular,Neodynamic:
Neodynamic N/A
TENS Burst Random Modulated:
Tens only
DOUBLE-PHASE Symmetric, Asymmetric:
NOT supplied
INTERFERENTIAL 4-pole Isoplanar Vectorial 2-pole Stimulating Kotz:
2-pole Stimulating Kotz only
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Approfondimenti

Various
Document date: 22/12/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 23.5 KB

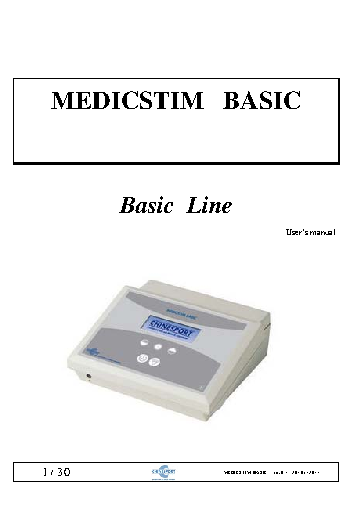

User and maintenance manual

Manual - past Edition
Document date: 12/07/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 976.43 KB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 29/06/2011
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 51.59 KB
Register to access the content

Brochure

Brochure
Document date: 09/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1 MB

Manuale istruzioni

Manual - past Edition
Document date: 09/06/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 983.53 KB
Register to access the content
