TILT TABLE MARCUS LINE

Configurable Product
L
T
4
2
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

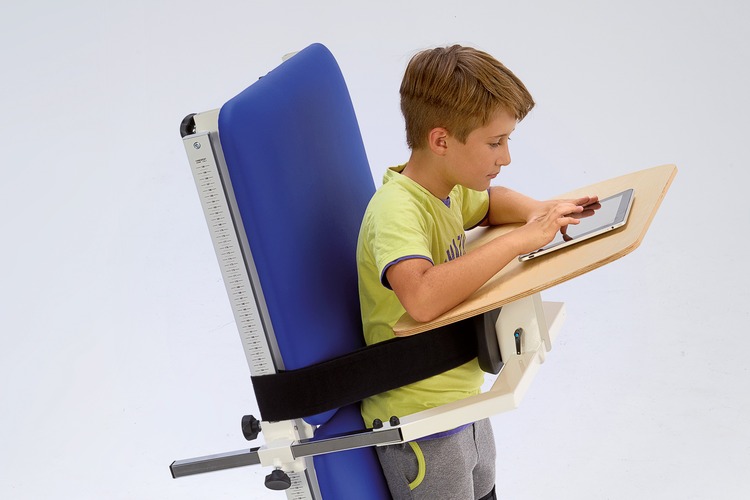

Tilt tables help to gradually reach an erect posture from a static prone or supine position when patients are unable to load their own body weight on their lower limbs.



In particular, the base model LT42 is intended for static prone use with patients who are at least 135 cm tall, and it is also suitable for a pediatric use with exercises in a supine static position. The chosen model can be later modified with the necessary accessories. Tilt regulation of the table can be done by means of an hydraulic piston or electrically, either from a wall-power source or a 24Vrechargeable battery. The adjustment controls can be hand or foot operated. Different choices for the patient’s support surface are available. This does not preclude, eventually, the possibility to interchange the different footplate modules available. It is possible to choose any of the two possibilities for the width of the padded sections and it is possible to choose among 24 different colors of synthetic leather upholstery.



A wide range of accessories can contribute to a further furnishing of the static therapy table.




AC0910

WARNING!

For the application of side supports and service tray it is necessary to purchase the specific AC0910 fixing devices.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Supine Head Section 60

AC0908.060
Head section that allows supine static exercises. It has two side hand grips and does not require fixing tools. Width 60 cm.

Supine Head Section 75

AC0908.075
Head section that allows supine static exercises. It has two side hand grips and does not require fixing tools. Width 75 cm.

Chest Support

AC0909.
Padded chest support that allows prone static exercises. Adjustable in height, does not require fixing tools. Width 36 cm.

Padded Support

AC0918.1
Padded support to rest comfortably the upper limbs, transforms the table for prone static activities. Possible insertion instead of the head section. Can be ...

Fastening Strap

AC0005
Provides better restraint for the patient; can be fitted at the desired height by means of special guides (single piece).

Strap Cushion

AC0006
Padded cushion offering greater and more comfortable support to the patient. To be used in combination with strap code AC0005 (single piece).

Padded Trunk Strap

AC0560
A strap with a padded support for comfortable, safe, retention of the person. It is recommended for fitting at the trunk or pelvis.

Separate Leg Straps

AC0561
A strap with a padded support for positioning and stabilising an individual lower limb.

Padded Leg Strap

AC0088
A broad strap with a padded support for containing both lower limbs. It has a double fixing on the side and a system that facilitates fitting by the operator.

Shaped Strap 60

AC0913
It can be used for restraint of the torso/pelvis or for the legs. It’s specific only for option 60 cm width of the tilt table. (single piece)

Shaped Strap 75

AC0947
It can be used for restraint of the torso/pelvis or for the legs. It’s specific only for option 75 cm width of the tilt table. (single piece)

Cervical Cushion lt4

AC0949
Padded shaped cushion for lateral restraining and stabilization of the patient’s head. Quick application with velcro strap. Adjustable in height. Please sp...

Guide For Legs Strap

AC0912
Hand grip fixed onto a central rail located between the legs section of the static table. Easily mountable without the use of any tools. It allows to keep an...

Abduction Block

AC0911
Padded wedge, can be mounted on a central rail to keep the patient's legs apart. Easily mountable without the use of any tools. Improves the restraining of t...

Fixing Devices

AC0910
Pair of fixing devices allow the use of various lateral supports on the sides of the static table. They allow adjustment in height and depth along a lateral ...

Shaped Supports

AC0919
Supports made of black soft material with chromed parts which allow width, depth and height adjustment (attached to the fixing devices AC0910). They are an a...

Coppia Spintori Tronco lt4

AC0922.
Padded supports with chromed parts which allow width, depth and height adjustment (attached to the fixing devices AC0910). They are an alternative or an addi...

Forearm Supports

AC0921
Forearm supports with hand grips for a comfortable hold. They can be adjusted in height and rotated, while the hand grips also have a depth adjustment. (couple)

Hand Grips

AC0920
Side handles to allow the patients to grip and support themselves while exercising in a static supine position. They can be adjusted in height and depth. (co...

Service Tray 60, Wood

AC0914.060
Large size shaped wooden service tray, for 60 cm wide tables. It allows the application of additional accessories.

Service Tray 75, Wood

AC0914.075
Large size shaped wooden service tray, for 75 cm wide tables. It allows the application of additional accessories.

Service Tray 60, Polyethylene

AC0915.060
Large size shaped service tray in polyethylene, for 60 cm wide tables. It allows the application of additional accessories.

Service Tray 75, Polyethylene

AC0915.075
Large size shaped service tray in polyethylene, for 75 cm wide tables. It allows the application of additional accessories.

Hand Anchor

01608
This ergonomic anchor can be applied to any smooth surface to achieve greater stability and safe positioning of the hand.

Hand-Wrist Grip

01609
This is provided with a resting pillow and Velcro wristband to ensure the hand is positioned in total safety.

Abs Large Tray

AC0764
Extra tray made of ABS with raised edges to be applied on top of the chosen standard large service tray. Easily removable for cleaning.

Large Service Tray Padding

AC0767
Padded upholstery of the large tray. Available in three colours.

Single Footplate

AC0942
Single footplate which cannot be adjusted in tilt. The support block can be adjusted in depth for 21 cm centimeters along the side of the table. It can be co...

Tilt Adjustable Footplates One Module

AC0943
Both footplates, right and left, can be adjusted independently in tilt +/- 20°; the supporting block can be adjusted in depth for 6 cm along the side of the...

Tilt Adjustable Footplates Two Modules

AC0944
Footplates, right and left, can be independently adjusted in tilt +/- 20° and in depth for 8 centimeters along the side of the table. They can be combined w...

Intra-Extra Sandals

AC0002
Allow the foot to be adjusted for intra/extra rotation, anteroposterior, adduction and abduction and along the anteroposterior axis.

Wedge For Club Feet

AC0096
The foot rests can be adapted to provide a greater incline of the footrest that can go to -30° for extension and +10° for flexion, where required for patie...

Portable Battery Charger

AC0319
Portable battery charger with compatible SHUKO socket. By request, it can be supplied with other type of plug.

Wall Battery Charger

AC0318
Professional wall-mounted battery charger. It comes with a standard SHUKO plug. By request a cable can be provided with another plug.

Spare Battery

01132
Additional extractable battery for a continuous use of the patient lifter.

Additional Foot Pedal 1

AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides

Foot Switch Holder

AC0575
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...

Additional Control 1

AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.

Additional Hand Control 1

AC0039
Additional hand control for models fitted with single motor. Provides the table height adjustment. It has a magnet so it can be easily attached to the table ...

Handset 2

AC0744
For models fitted with two motors. Ergonomic handset with magnets, attachable to metal parts of the frame of the table. It comes with power cord.

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Technical Spec.

Technical Spec.

Number of sections:
3
Maximum safe working load:
180 kg (electric version) / 135 kg (hydraulic version)
Tilt adjustment:
electric / hydraulic
Power supply:
mains / battery
Tilt indicator in degrees:
standard
Max tilt degrees:
90°
Table height from the floor:
56 cm
Minimum user height:
135 cm (for prone position)
Caster diameter:
12.5 cm
Individual brake system:
on each single wheel
Steering wheel:
standard
Padding upholstery safety class:
1 IM
Padding thickness:
3 cm
Density:
30 kg/m³
Weight:
55 kg
