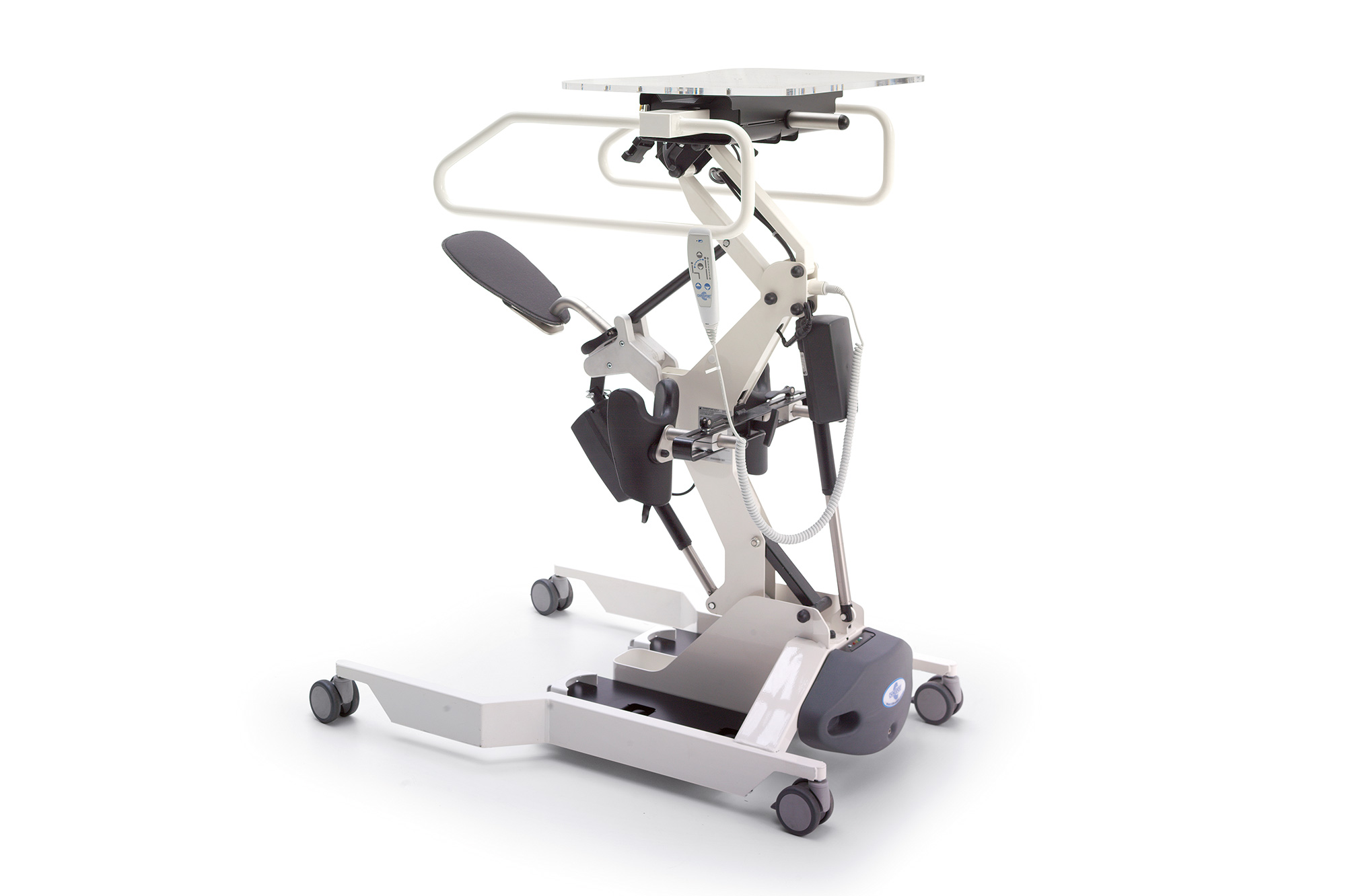

EASYUP WITH STANDARD SEAT

A
V
3
1
2
1
B
3
3
4
2
C
Quantity:

Description

This device allows the user to assume and maintain an upright position, and to move around indoors independently without assistance from a carer. The user is lifted into a standing position by means of an electric motor operated by hand control, while the movement of the service tray accompanies the user along the lifting lift. The service tray has an anti-crushing safety system sensor which can be activated at any time by the user. The aid is provided with four wheels who allows an aided mobility. The footplates are completed with adjustable heelrests (AC0686). The adjustment of the height of the main structure, directly involving the setting of the knee supports and the service tray is motorized and operated by hand control. The trunk is held at both sides by two handles which can be adjusted in width by sliding and tilted. Back support is provided by a standard seat adjustable in depth. The whole system of adjustments allows to better suit the whole aid accordingly to the anthropometric characteristics of the user. For further information, please refer to the section on options, accessories and adjustments.



END USER
It can be the ideal model when there are several users during one day and when among these there are very weak patients, bent forward and not so cooperative ones, as well as those who suffer if overloaded at hip and knee levels. Furthermore, it reduces the work effort on behalf of the carer. Lift is done by starting from the electrically motorized seat, but it is aided by the handle-service tray group, which is low and close to the patient when sitting and which can offer a front support for the patient starting from that position and then is a valid restrain during the lift, being it horizontal while coming to the upright position along with the seat. If the person is not capable of cooperating during the transfer from the wheelchair onto the standing frame a shaped pocket can be used (Accessory AC0048 not included) which allows the seat to go under the anti-decubitus cushion without having to lift the user from the wheelchair. The shaped pocket can be used only with the long seat.



(Ex code AV 14 2420 - EASY UP 2420)

Accessories

Accessories

Fixed Heel Rests

AC0685
Guidance for the user on the device. They offer a back support for the feet. Available in pairs. Usable only with metal footplates.
Ask for quotation

Adjustable Heel Rests 1

AC0686
Back support and guidance for the feet, adjustable in width independently. Usable only with metal footplates. Supplied with foot strap for stabilizing the fo...
Ask for quotation

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.
Ask for quotation

Adjustable Long Seat

AC0690
Reduce or eliminate the distance gap between the user on the wheelchair and the standing frame. 36 cm long seat. Adjustable in depth.
Ask for quotation

Short Seat Padding

AC0543
Standard short padding seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

Long Seat Padding

AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

Pocket For Long Seat

AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.
Ask for quotation

Back Restraint Sling

AC0783
Back restraint strap. Applied by an assistant. One size only.
Ask for quotation

Lateral Supports

AC0049
Soft supports for the lateral restraint.
Ask for quotation

Lateral/Posterior Supports

AC0050
Soft supports for better lateral and posterior restraint.
Ask for quotation

Long Handles

AC0782
Allow the application of additional accessories for a greater flexibility and more possibilities of stabilization as well as side and back restraint.
Ask for quotation

Adjustable Lateral Supports

AC0702
Soft supports for the lateral restraint. Adjustable in depth along the long handles.
Ask for quotation

Anti-Crushing Safety System

AC0692
Function of preventing the crushing. It stops the lifting whenever gets in contact with the user. Adjustable in depth in 7 positions: from 12 to 84 mm max.
Ask for quotation

Front Support

AC0693
This broad support is useful whenever there is not a proper control of the trunk by the user. Adjustable in depth in 7 positions: from 12 to 84 mm max.
Ask for quotation

Anti-Crushing Front Support

AC0694
This broad support is useful whenever there is not a proper control of the trunk by the user. Also include function of preventing the crushing. It stops the ...
Ask for quotation

Medium Service Tray Padding

AC0766
Padded softer element of the medium size service tray. Easy removal for cleaning or disinfection.
Ask for quotation

Medium Abs Tray

AC0765
Extra tray made of ABS with raised edges to be applied on top of the chosen standard medium service tray. Easily removable for cleaning.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
53 kg
Safe working load:
140 kg
User stature:
140 ÷ 200 cm
Handle-thoracic support group:
movable-can be lifted
Electric servo-assisted lift:
electric
Structure height adjustment:
electric
Overload protection:
acustic and on display
Parking brake:
individual, on four castors
Speed of movement (joystick):
not available
Frame height from ground:
31 mm
Maximum climbable step:
not available
Maximum climbable slope:
not available
Operation time (lift):
with a 140 kg user and fully charged batteries, 30 cycles of lifting aprox
Average recharging battery time:
6-8 hours
Battery charging level:
multi-color display
Auto off:
as standard
Fault diagnostics and maintenance:
on display
Anti-crushing safety system:
not as standard (accessory)
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 123 x 87 x 131 h kg 79 mc 1.401831
Documents

Documents


User and maintenance manual

Manual
Document date: 01/06/2018
Language: Italian, English
Version: V 2.0

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 2.57 MB
Register to access the content

Bedienungsanleitung

Manual
Document date: 01/06/2018
Language: German
Version: V 1.1
DOWNLOAD
PDF 2.88 MB
Register to access the content

Nomenclatore tariffario

Various
Document date: 31/08/2017
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 38 KB
