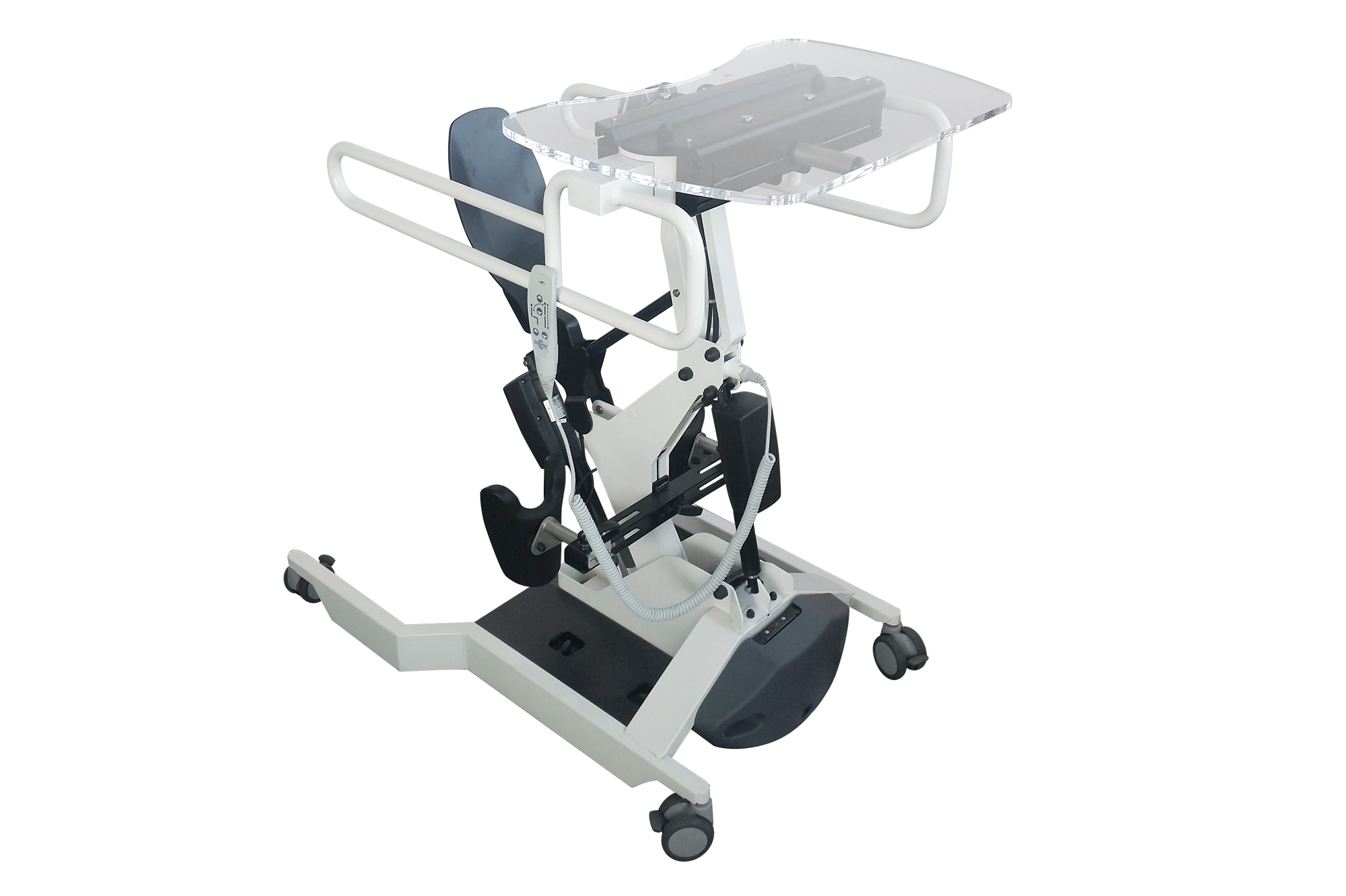

EASYUP WITH LONG SEAT

A
V
3
1
2
1
B
3
2
5
2
G
Quantity:

Description

This device allows the user to assume and maintain an upright position, and to move around indoors independently without assistance from a carer. The user is lifted into a standing position by means of an electric motor operated by hand control, while the movement of the service tray accompanies the user along the lifting lift. The service tray has an anti-crushing safety system sensor which can be activated at any time by the user. The aid is provided with four wheels who allows an aided mobility. The footplates are completed with adjustable heelrests (AC0686). The adjustment of the height of the main structure, directly involving the setting of the knee supports and the service tray is motorized and operated by hand control. The trunk is held at both sides by two handles which can be adjusted in width by sliding and tilted. Back support is provided by a standard seat adjustable in depth. The whole system of adjustments allows to better suit the whole aid accordingly to the anthropometric characteristics of the user. For further information, please refer to the section on options, accessories and adjustments.



END USER
It can be the ideal model when there are several users during one day and when among these there are very weak patients, bent forward and not so cooperative ones, as well as those who suffer if overloaded at hip and knee levels. Furthermore, it reduces the work effort on behalf of the carer. Lift is done by starting from the electrically motorized seat, but it is aided by the handle-service tray group, which is low and close to the patient when sitting and which can offer a front support for the patient starting from that position and then is a valid restrain during the lift, being it horizontal while coming to the upright position along with the seat. If the person is not capable of cooperating during the transfer from the wheelchair onto the standing frame a shaped pocket can be used (Accessory AC0048 not included) which allows the seat to go under the anti-decubitus cushion without having to lift the user from the wheelchair. The shaped pocket can be used only with the long seat.



(Ex code AV 14 2420 - EASY UP 2420)

Accessories

Accessories

Fixed Heel Rests

AC0685
Guidance for the user on the device. They offer a back support for the feet. Usable only with metal footplates. Available in pairs.

Adjustable Heel Rests

AC0686
Guidance for the user on the device. They offer a back support for the feet. Adjustable in their width independently and usable only with metal footplates. U...

Foot Strap

AC0047
Foot strap to stabilize the feet on the plates.

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.

Long Seat Padding

AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.

Pocket For Long Seat

AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.

Back Strap

AC0783
Back restraint strap. Applied by an assistant. One size only.

Adjustable Lateral Supports

AC0702
Soft supports for the lateral restraint. Adjustable in depth along the long handles.

Adjustable Lateral/Back Supports

AC0703
Soft supports for the lateral and back restraint. Adjustable in depth along the long handles.

Locking Devices

AC0075
Locking devices

Rear Body Support

AC0074
Rear body support

Head Support

AC0076
Head support

Anti-Crushing Safety System

AC0692
Function of preventing the crushing. It stops the lifting whenever gets in contact with the user. Adjustable in depth in 7 positions: from 12 to 84 mm max.

Front Support

AC0693
This broad support is useful whenever there is not a proper control of the trunk by the user. Adjustable in depth in 7 positions: from 12 to 84 mm max.

Anti-Crushing Front Support

AC0694
This broad support is useful whenever there is not a proper control of the trunk by the user. Also include function of preventing the crushing. It stops the ...

Abs Large Tray

AC0764
Extra tray made of ABS with raised edges to be applied on top of the chosen standard large service tray. Easily removable for cleaning.

Large Service Tray Padding

AC0767
Padded upholstery of the large tray. Available in three colours.

Hand Anchor

01608
This ergonomic anchor can be applied to any smooth surface to achieve greater stability and safe positioning of the hand.

Hand-Wrist Grip

01609
This is provided with a resting pillow and Velcro wristband to ensure the hand is positioned in total safety.
Technical Spec.

Technical Spec.

Weight:
53 kg
Safe working load:
140 kg
User stature:
140 ÷ 200 cm
Handle-thoracic support group:
movable-can be lifted
Electric servo-assisted lift:
electric
Structure height adjustment:
electric
Overload protection:
acustic and on display
Parking brake:
individual, on four castors
Speed of movement (joystick):
not available
Frame height from ground:
31 mm
Maximum climbable step:
not available
Maximum climbable slope:
not available
Operation time (lift):
with a 140 kg user and fully charged batteries, 30 cycles of lifting aprox
Average recharging battery time:
6-8 hours
Battery charging level:
multi-color display
Auto off:
as standard
Fault diagnostics and maintenance:
on display
Anti-crushing safety system:
not as standard (accessory)
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 scatola su bancale cm 123 x 87 x 131 h kg 78 mc 1.401831
Documents

Documents


06 STANDING FRAMES

International Edition, printed in October 2016; Pages 247 - 290; English.
Chapter
Language: English
DOWNLOAD
PDF 3.59 MB

06 - STABILIZZATORI IN POSTURA ERETTA - 2016

STRUZZO, Modelli e regolazioni - EASY UP, Modelli e regolazioni, STAND UP, Modelli e regolazioni - Guida alla scelta dello stabilizzatore - Riepilogo degli accessori
Chapter
Language: Italian
DOWNLOAD
PDF 2.9 MB

AV3121B3252G - User and maintenance manual

User and Maintenance Manual
Language: English/Italian
DOWNLOAD
PDF 2.88 MB
Register to access the content

AV3121B3252G - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 103.7 KB
Register to access the content

AV3121B3252G - User and maintenance manual

User and Maintenance Manual
Language: German
DOWNLOAD
PDF 12.92 MB
Register to access the content
