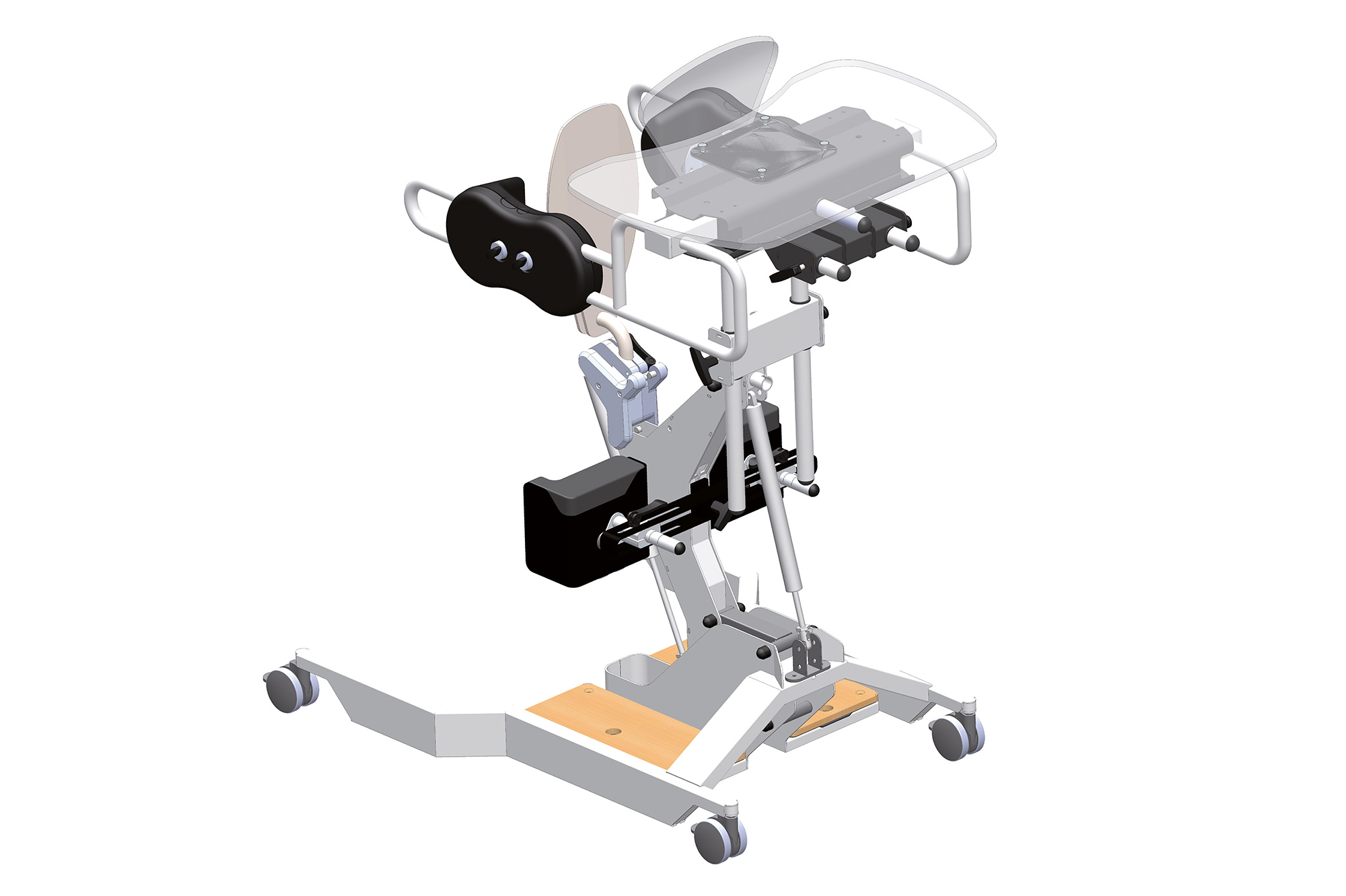

STANDUP WITH LONG SEAT

A
V
3
1
1
2
A
2
4
5
4
C
Quantity:

Description

This device allows the user to assume and maintain an upright position, and to move around indoors aided by a carer. The user is lifted into a standing position by means of a gas-spring operated by a lever. While being lifted the user is safely accompanied by the lateral fix supports mounted on two long and width adjustable (by sliding) handles which the user can hold. The service tray is provided with a system of multiple adjustments by sliding, both in height and depth. The aid is provided with four casters which allow it to be pushed by hand. The adjustment of the height of the main structure, directly involving the setting of the knee supports and the work service tray is served by a second gas-spring operated by a lever. Back support is provided by a long seat, adjustable in depth, which allows an easy access from the seating position. The whole system of adjustments allows to better suit the whole aid accordingly to the anthropometric characteristics of the user. For further information, please refer to the section on options, accessories and adjustments.



END USER

Any person who although weak is careful and coordinated enough. Whenever the user is capable of transferring unaided from the wheelchair onto the standing frame seat, but he is not capable of lifting by his own means. The gas spring offers a partial push which completes the one provided by the user. This mechanism holds the user when he stops at an intermediate position halfway from sitting and upright position for eventually rest before finishing the lift. The anthropometric adjustment is obtained furthermore by a second gas spring which helps to lift or lower the whole main structure along with the leg, hand and trunk rests.

Accessories

Accessories

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.

Coloured Paddings

AC0689
Made of soft foamed material with synthetic leather upholstery. The padding is applied to the specific metal structure. Available in three colours. Available...

Adjustable Short Seat

AC0691
Hold the user safely while lifting. 24 cm long seat. Adjustable in depth.

Short Seat Padding

AC0543
Standard short padding seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.

Long Seat Padding

AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.

Pocket For Long Seat

AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.

Back Strap

AC0783
Back restraint strap. Applied by an assistant. One size only.

Adjustable Lateral Supports

AC0702
Soft supports for the lateral restraint. Adjustable in depth along the long handles.

Locking Devices

AC0075
Locking devices

Rear Body Support

AC0074
Rear body support

Head Support

AC0076
Head support

Large Service Tray Padding

AC0767
Padded upholstery of the large tray. Available in three colours.

Abs Large Tray

AC0764
Extra tray made of ABS with raised edges to be applied on top of the chosen standard large service tray. Easily removable for cleaning.

Hand Anchor

01608
This ergonomic anchor can be applied to any smooth surface to achieve greater stability and safe positioning of the hand.

Hand-Wrist Grip

01609
This is provided with a resting pillow and Velcro wristband to ensure the hand is positioned in total safety.

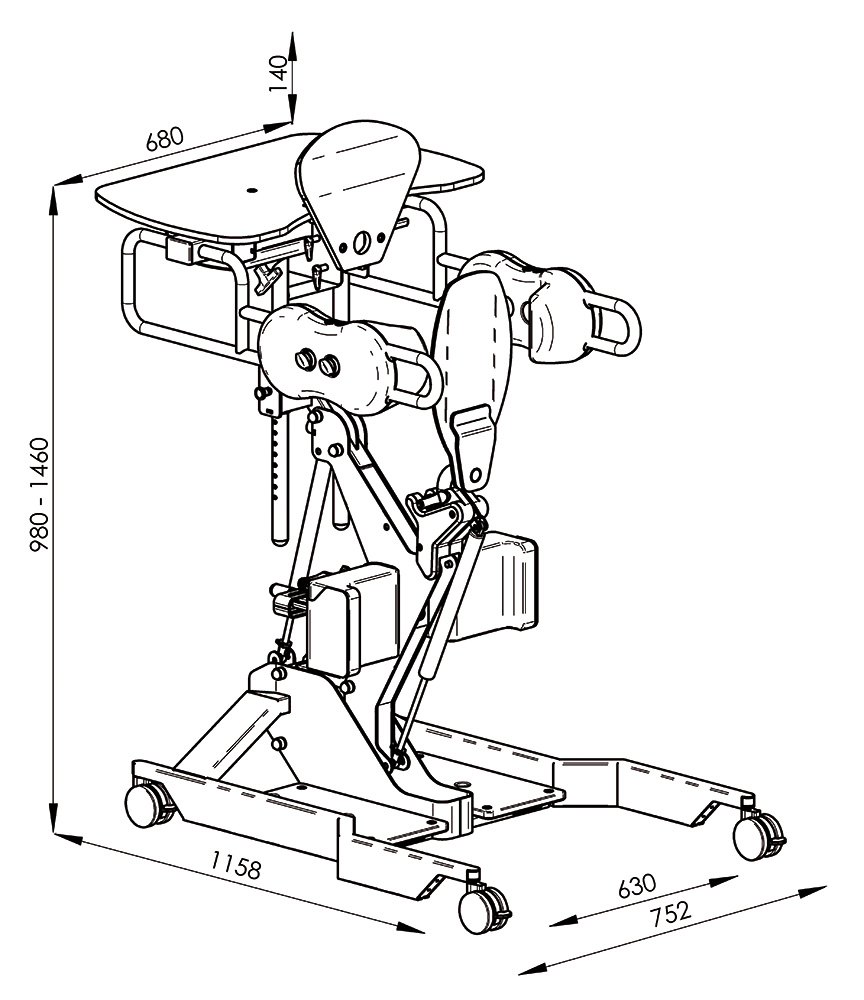

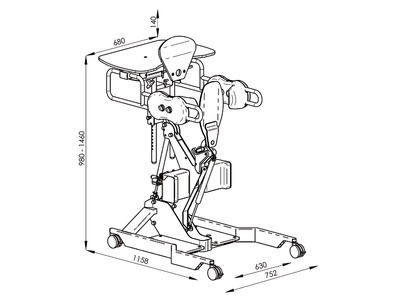

Technical Spec.

Technical Spec.

Weight:
60 kg
Safe working load:
140 kg
User stature:
140 ÷ 200 cm
Handle-thoracic support group:
not movable while lifting
Electric servo-assisted lift:
gas spring
Structure height adjustment:
gas spring
Overload protection:
not available
Parking brake:
individual on four castors
Speed of movement (joystick):
not available
Frame height from ground:
31 mm
Maximum climbable step:
not available
Maximum climbable slope:
not available
Operation time (lift):
not available
Average recharging battery time:
not available
Battery charging level:
not available
Auto off:
not available
Fault diagnostics and maintenance:
not available
Anti-crushing safety system:
not available
