STRUZZO 3420

A
V
2
3
3
4
2
0
Quantity:

Description



WARNING!

  The AV233420 model was replaced by the new product configuration AV3221B3442C, for a new equivalence you must add the adjustable heelrests (AC0686) and the anti-crushing safety system (AC0692), no longer standard. For accessories, we invite you to take vision of applicable accessories and options available in chapter 6 of the international edition catalogue.

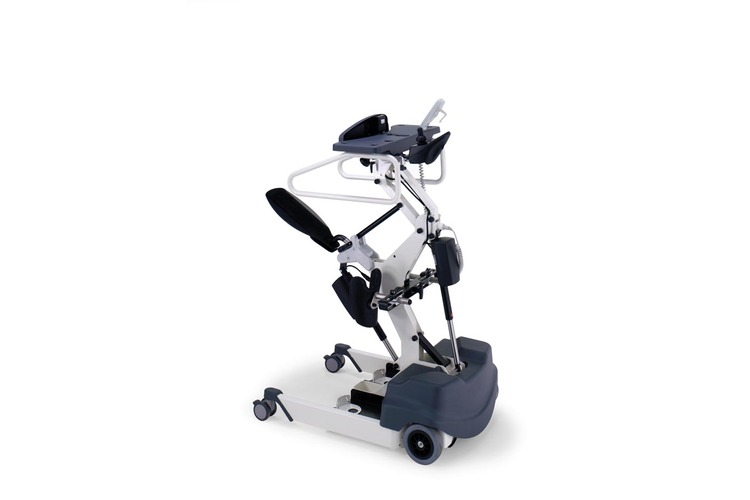

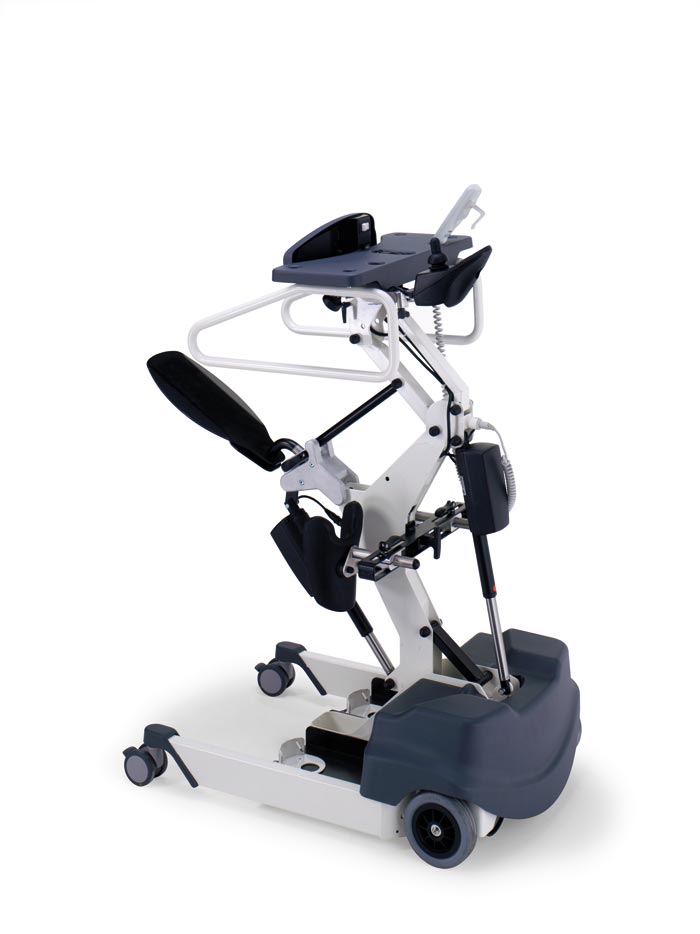

This device enables the user to assume and maintain an upright position, and to move around indoor independently and unaided.
The user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor operated by hand control, while the movement of the thoracic support has a safety sensor for the user to stop the standing sequence at any time.

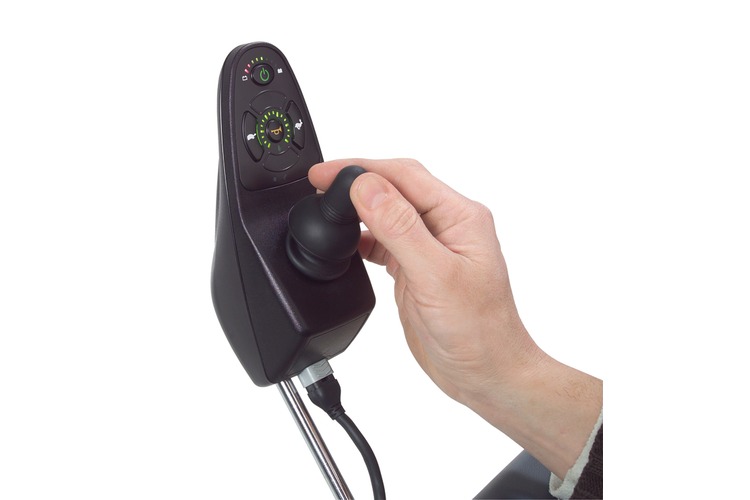

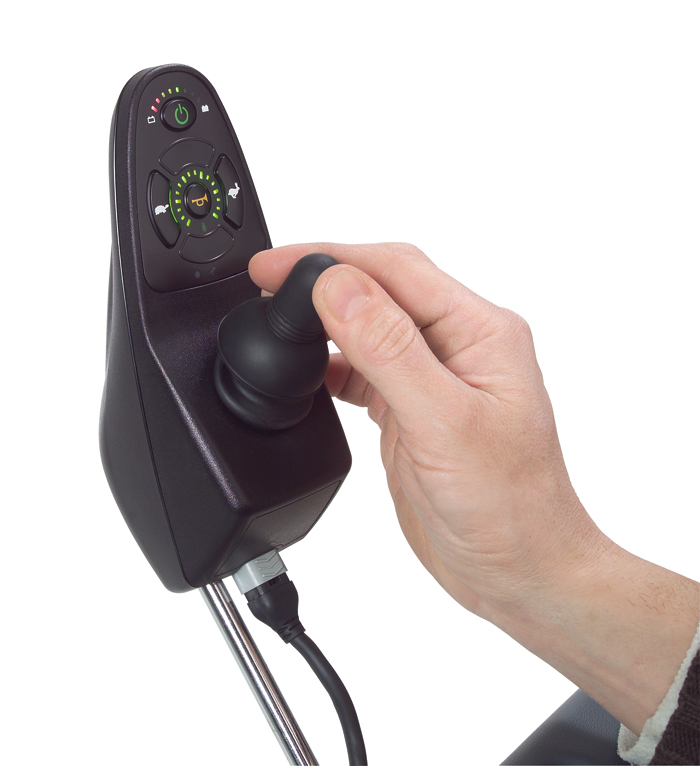

The aid is also provided with a Joystick unit and two motors that allow for the transfers to be carried out unaided.
A series of adjustments ensure the aid suits the user's morphological characteristics. In particular, the main body can adjust to the user's height electrically by means of a motor unit.

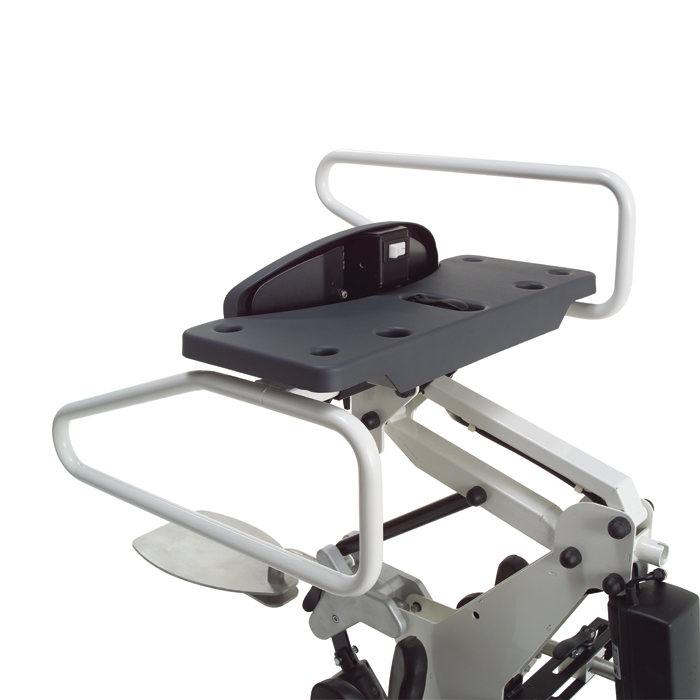

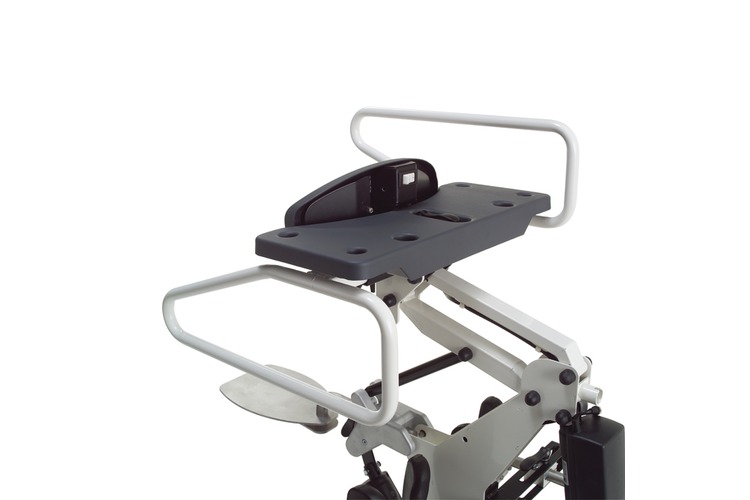

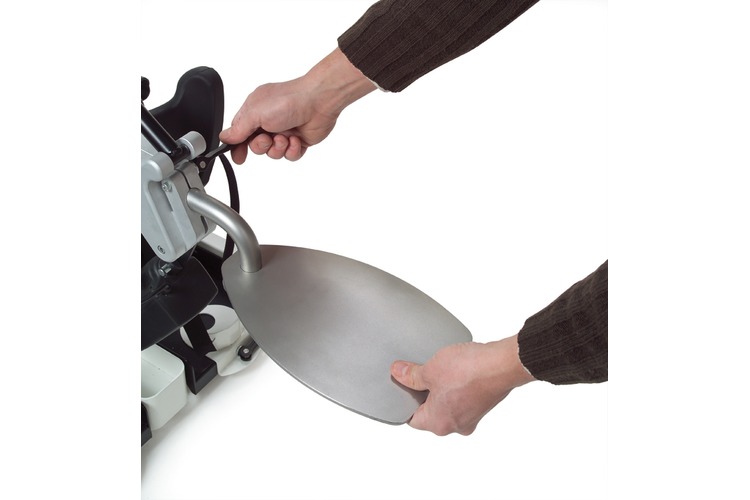

To better hold the trunk at the sides, the handles can be tilted and adjusted in width. The flat seat is adjustable in depth.

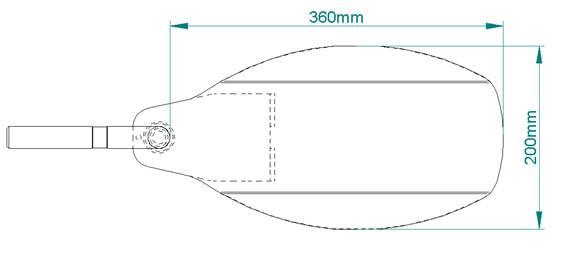

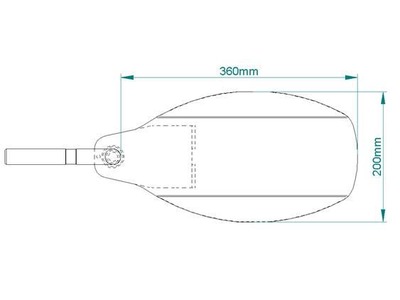

Model with elongated seat: this type of seat is designed to help the user transfer from their wheelchair to the aid. In addition, it is possible to use the shaped pocket accessory code  AC0048 to further ease accessibility.



Accessories

Accessories

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.
Ask for quotation

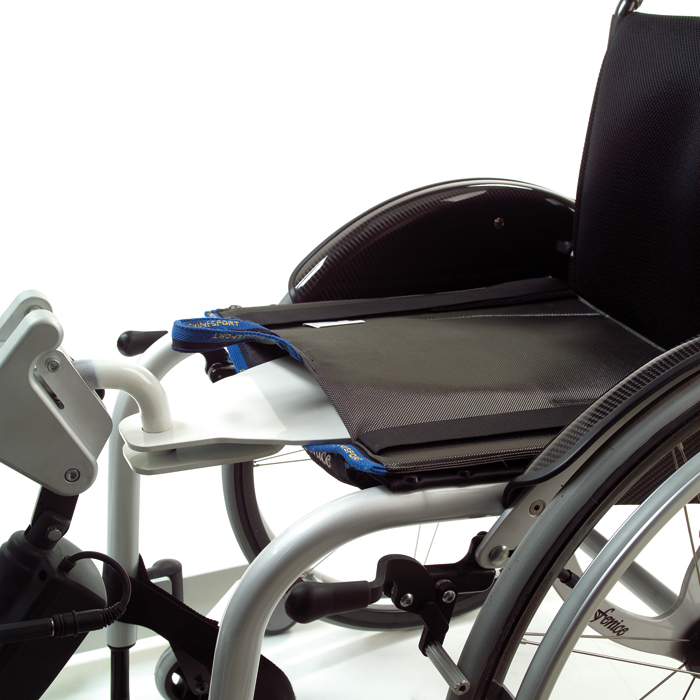

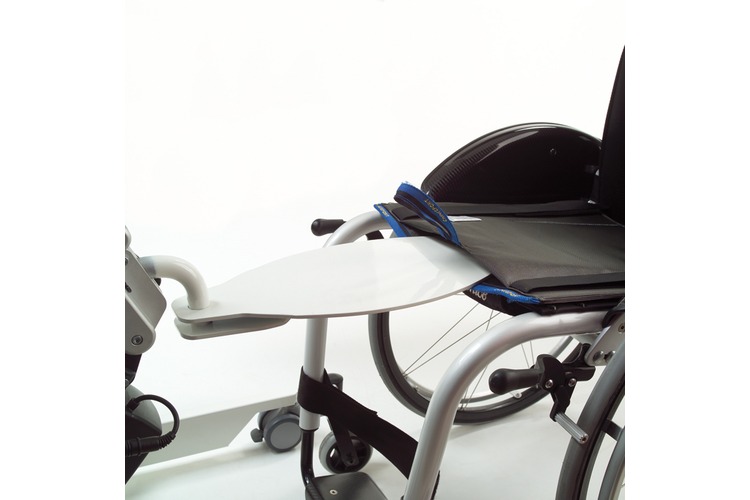

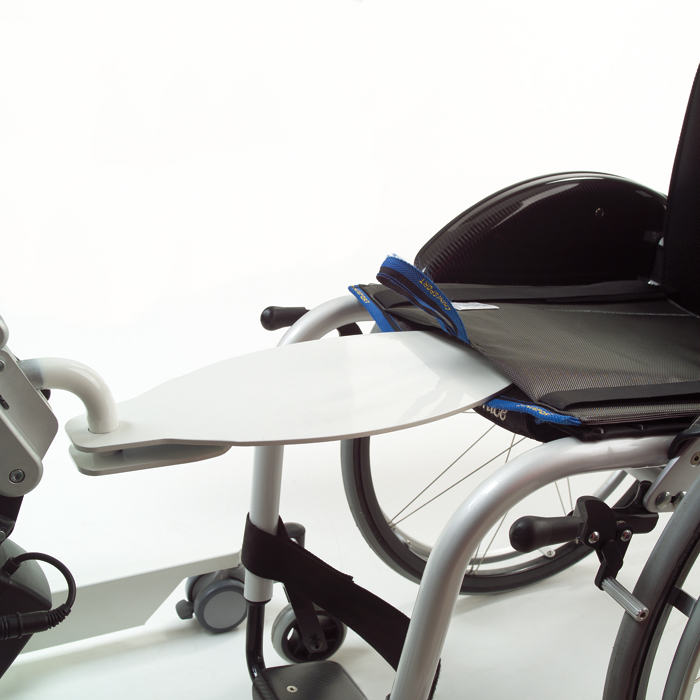

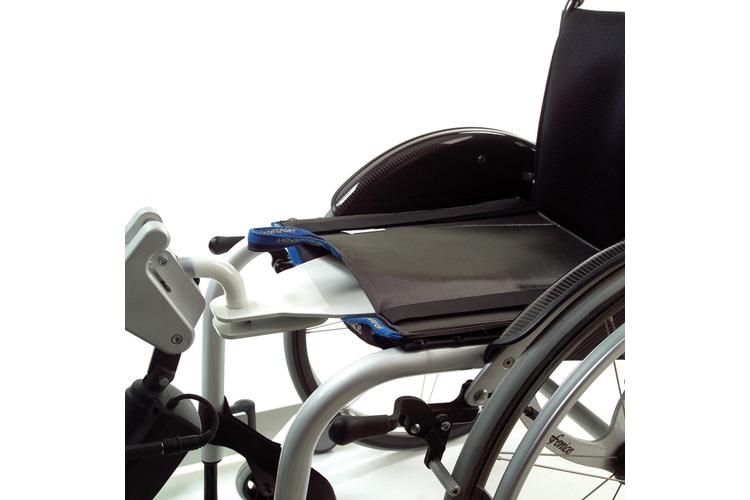

Pocket For Long Seat

AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.
Ask for quotation

Lateral Supports

AC0049
Soft supports for the lateral restraint.
Ask for quotation

Lateral/Posterior Supports

AC0050
Soft supports for better lateral and posterior restraint.
Ask for quotation

Front Body Support

AC0073
Front body support
Ask for quotation

Stability Grip

AC0440
Stability grip for more stability in case of specific needs.
Ask for quotation

Long Seat Padding

AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

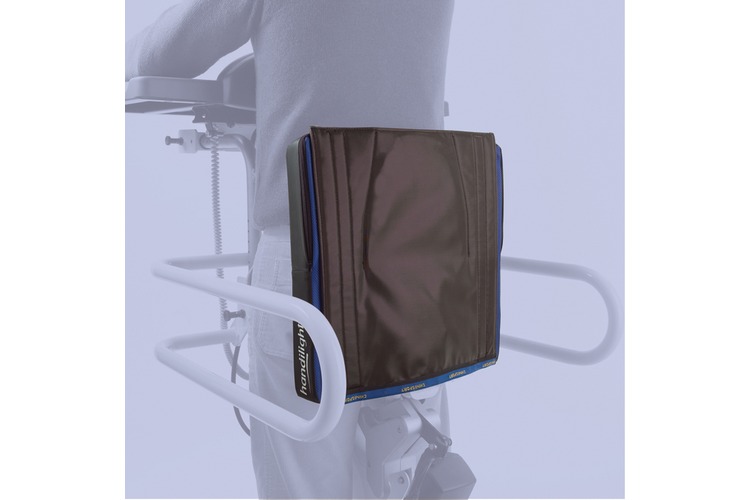

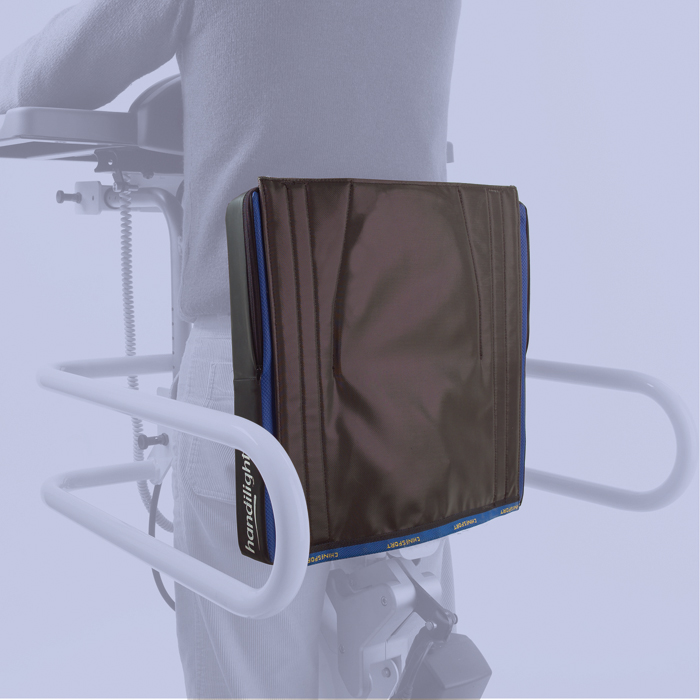

Back Restraint Sling

AC0783
Back restraint strap. Applied by an assistant. One size only.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
70 kg
Max load:
140 kg
User height:
min 140 cm - max 200 cm
Handles-thoracic support assembly:
movable - can be lifted up
Servo-assisted lift:
electric
Structure height adjustment:
electric
Overload protection:
electronic
Overload indicator:
acoustic
Parking brake:
on back caster
Max speed of movement:
2.5 km/h (adjustable)
Frame height from ground:
31 mm
Max climbable step:
20 mm
Max climbable slope:
2 degrees
Operation time (lift/transfer):
3-4 days normal usage (2 h 30 min uninterrupted use for movement)
Average battery charging time:
8 hours
Battery charging level:
multi-color display on joystick
Speed adjustment:
digital on joystick
Auto off:
as standard
Fault diagnostic and maintenance:
on display

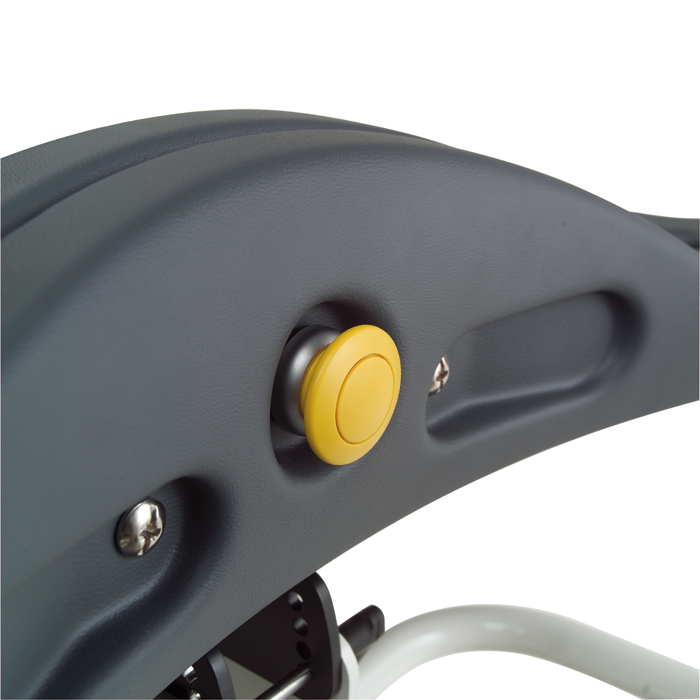

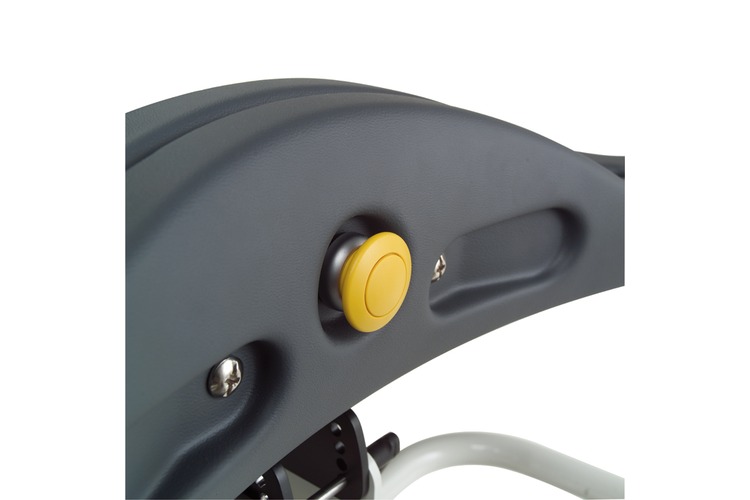

Lift stop button:
as standard
Lift stop button inhibit:
as standard
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0376054
Video

Video

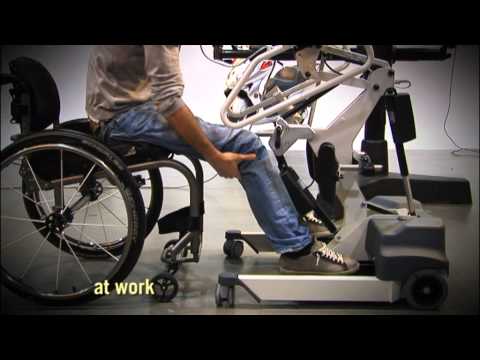

Chinesport presents the new model of Struzzo

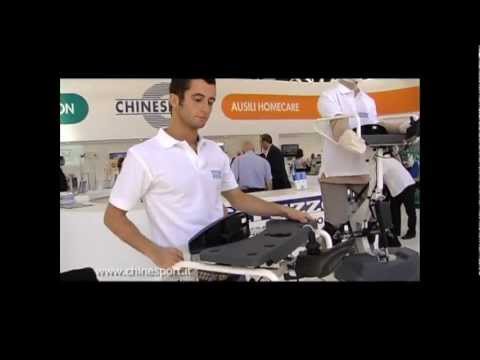

Struzzo demonstration at the 2010 Exposanità fair in Bologna (Italy)

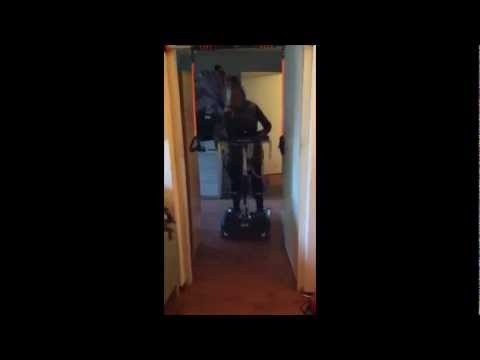

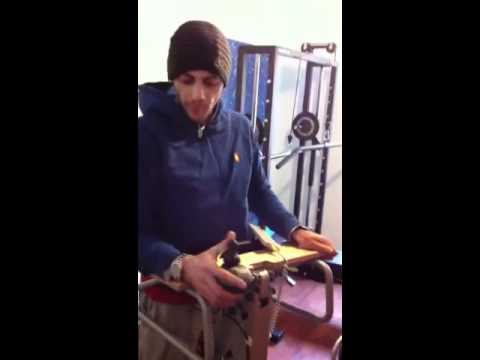

Struzzo and me - Struzzo demonstration by end user at home (Italy).

Other videos

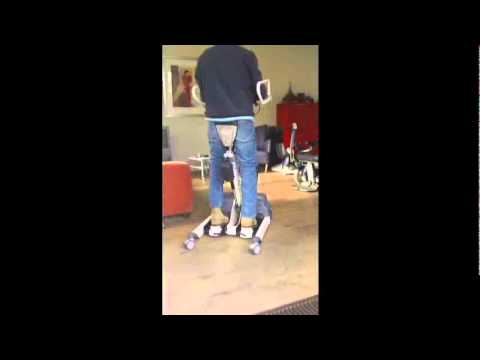

Struzzo demonstration by end user (Holland).

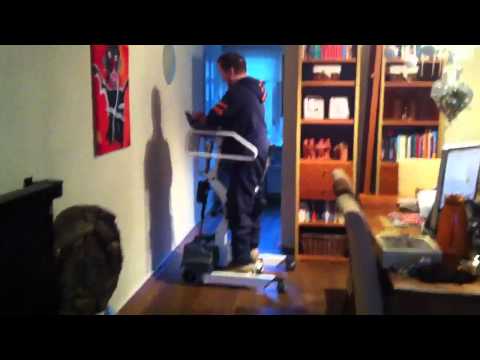

Chris met de Struzzo - Struzzo demonstration by end user at home (Holland).

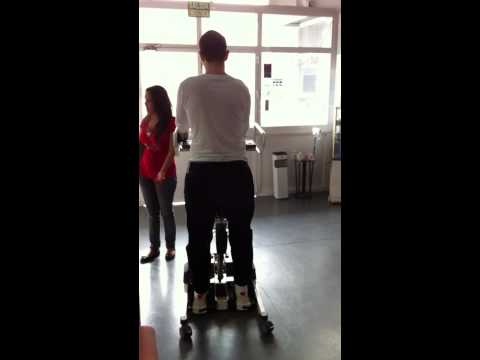

Struzzo demonstration by end user (Spain).
