STAND UP 5310

A
V
1
1
5
3
1
0
Quantity:

Description



WARNING!

  The AV115310 model was replaced by the new product configuration AV3121A3513G, for a new equivalence you must add this accessory adjustable heelrests (AC0686), no longer standard. For accessories, we invite you to take vision of applicable accessories and options available in chapter 6 of the international edition catalogue.






Gas spring height adjustment, electric lift with harness.

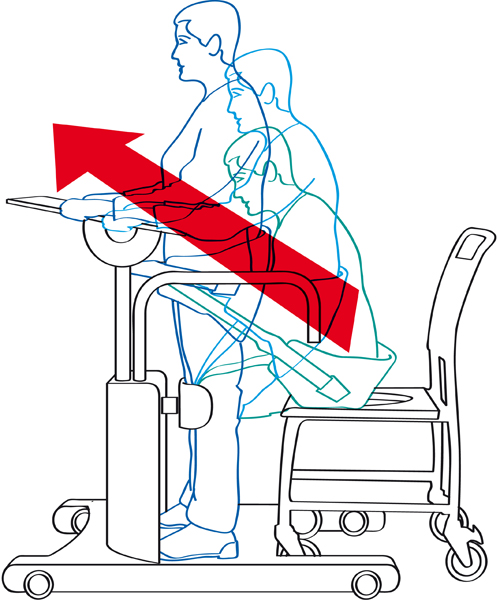

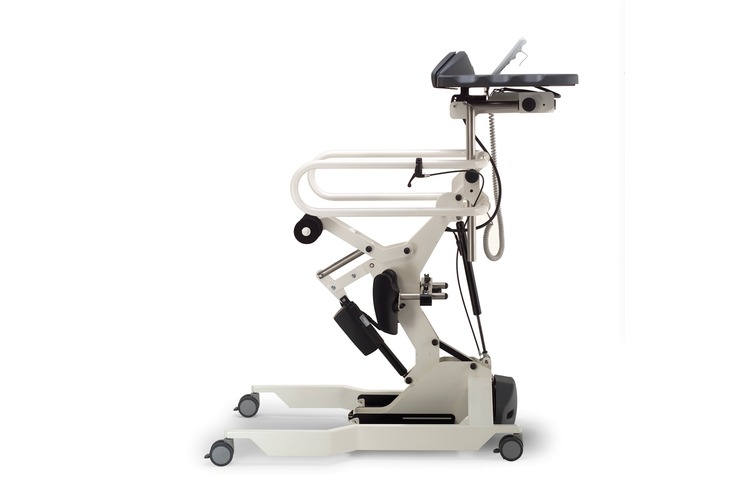

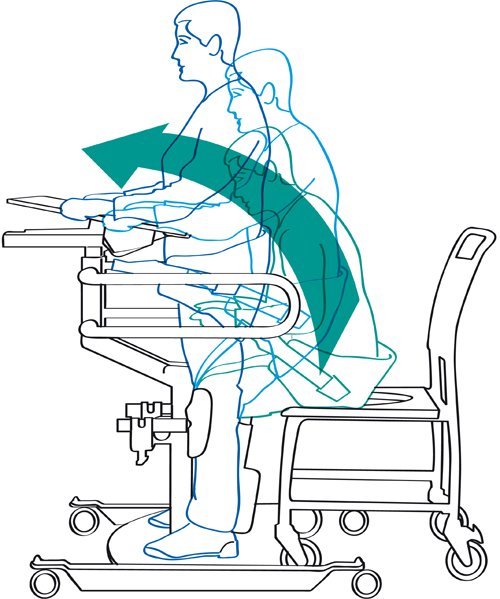

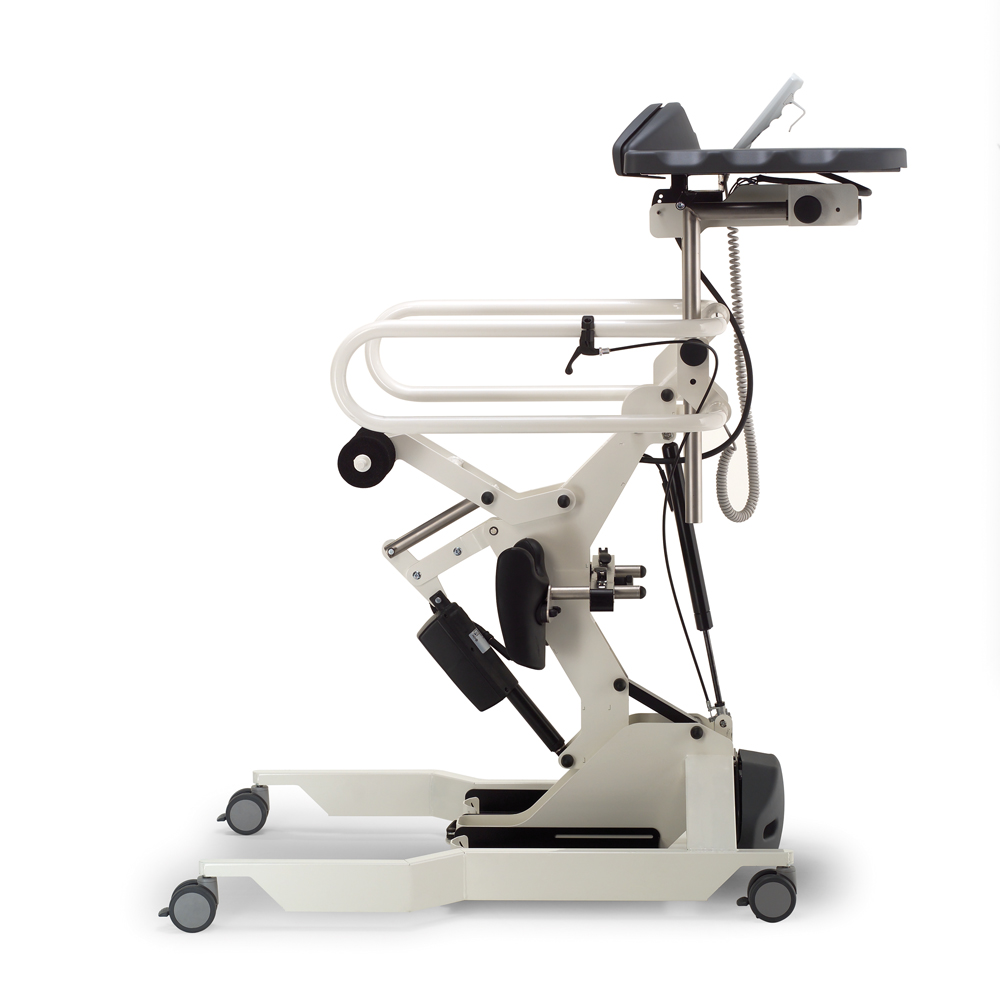

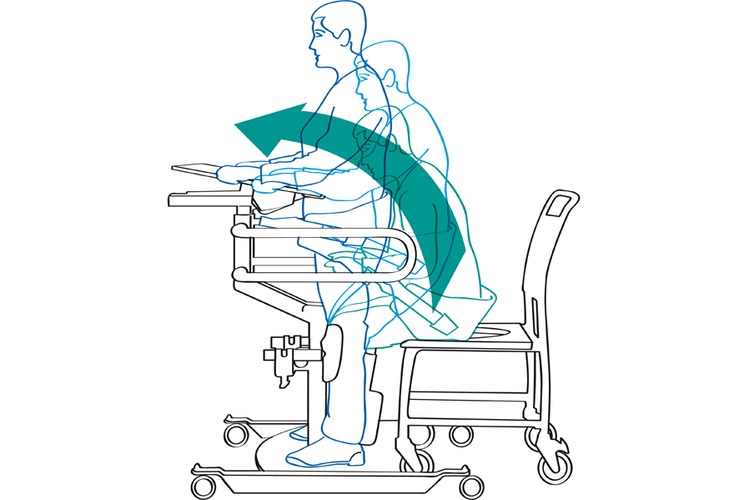

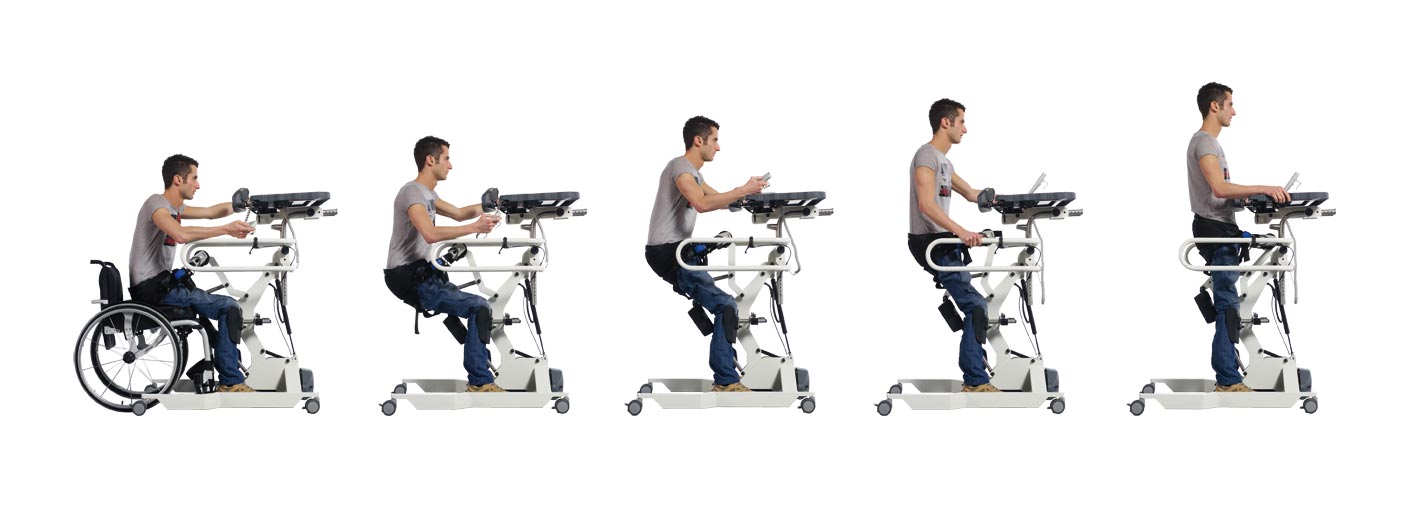

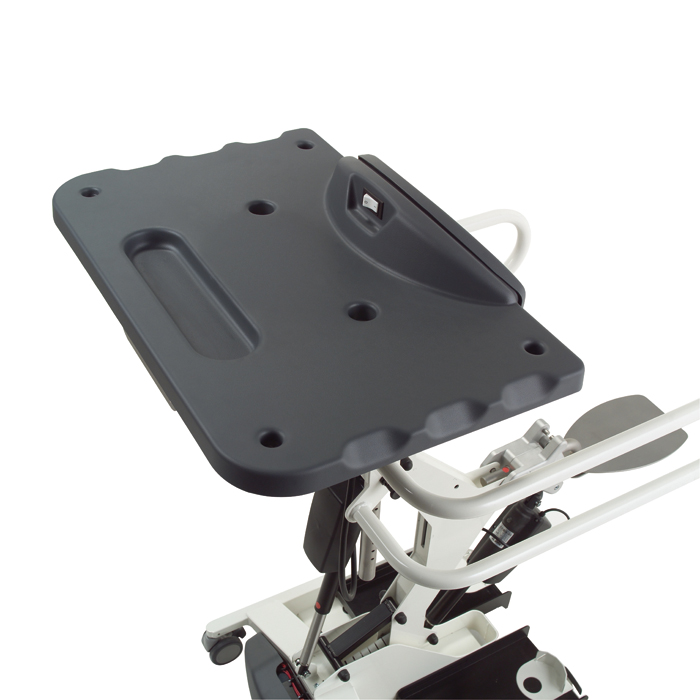

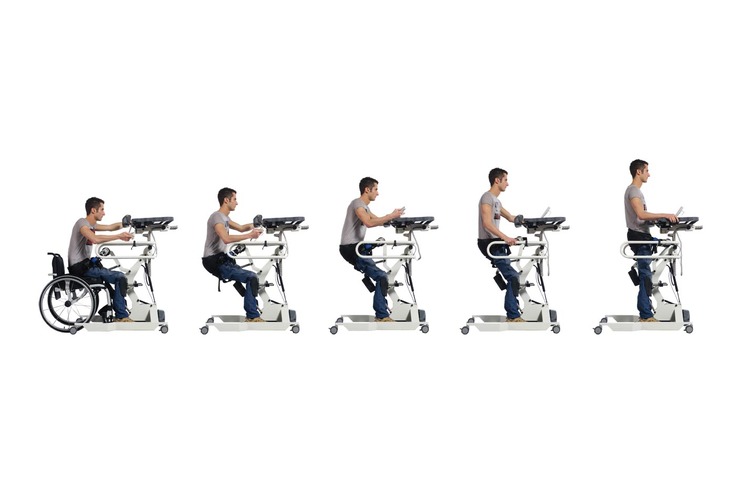

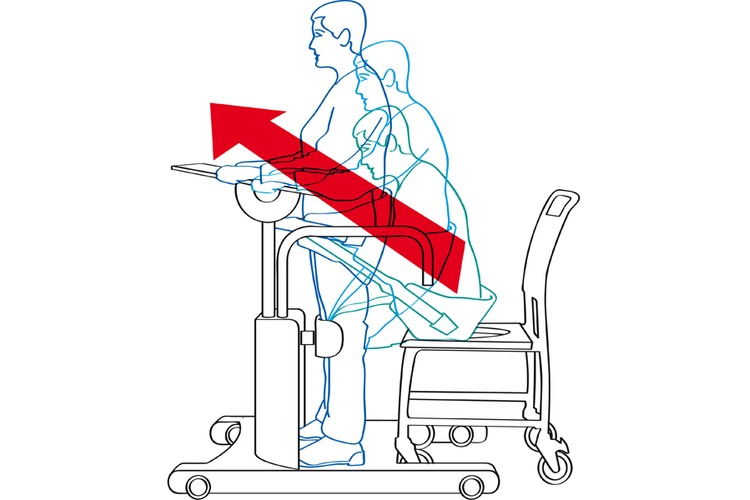

This device enables the user to assume and maintain an upright position, and to move indoors assisted by a carer. The user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor and hand control. It features large handles to give support when standing up, as well as a wide tray to hold objects. A series of adjustments facilitate accessibility and allow the aid to be adapted to the user's morphological characteristics.

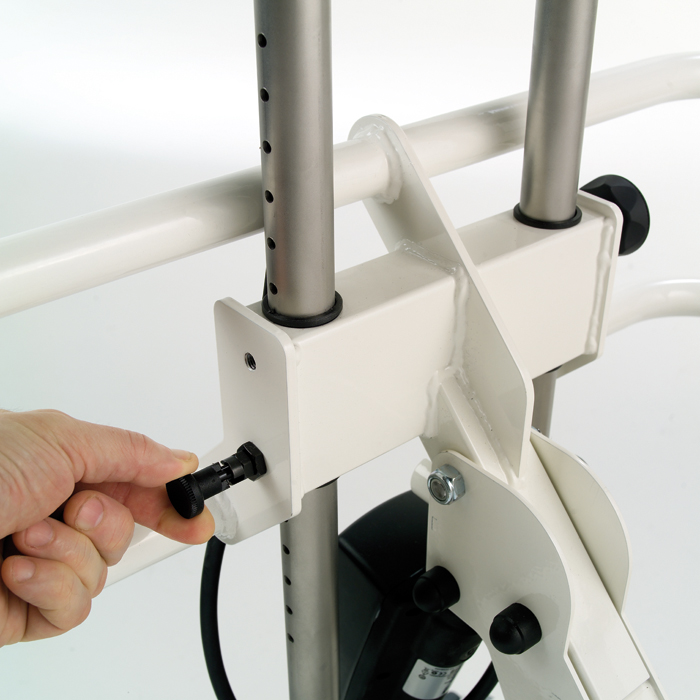

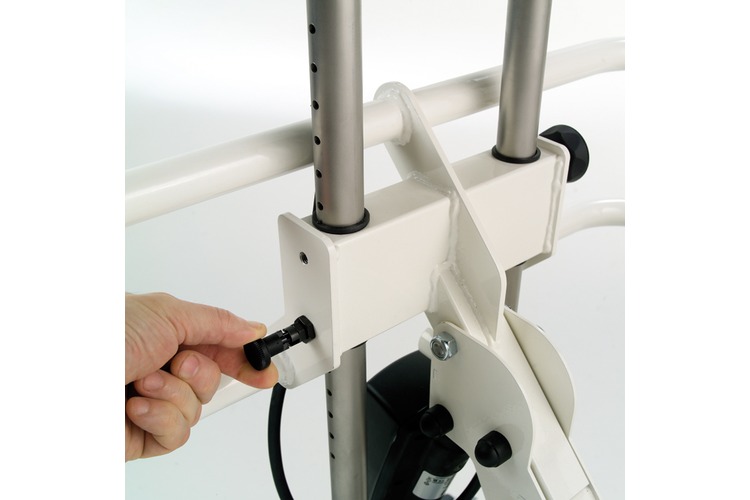

In particular, the main body can adjust to the user's height thanks to a gas-spring assisted system.

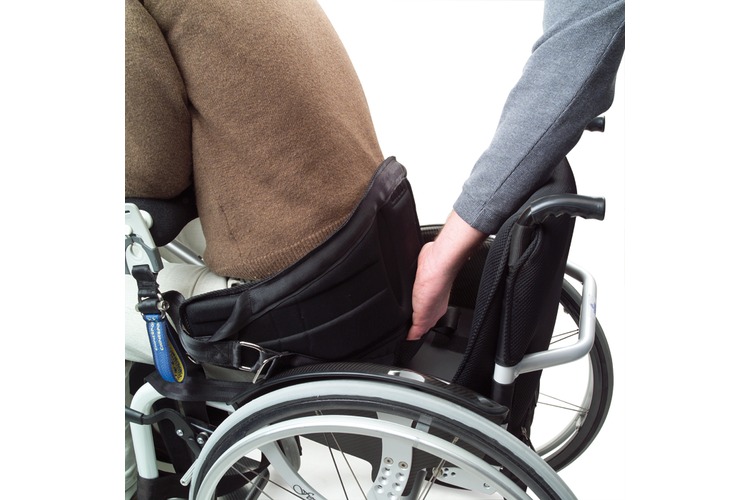

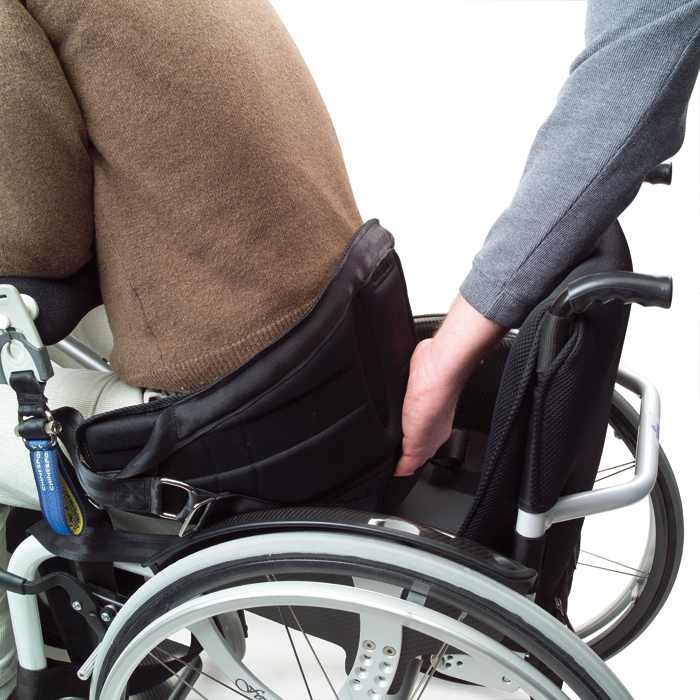

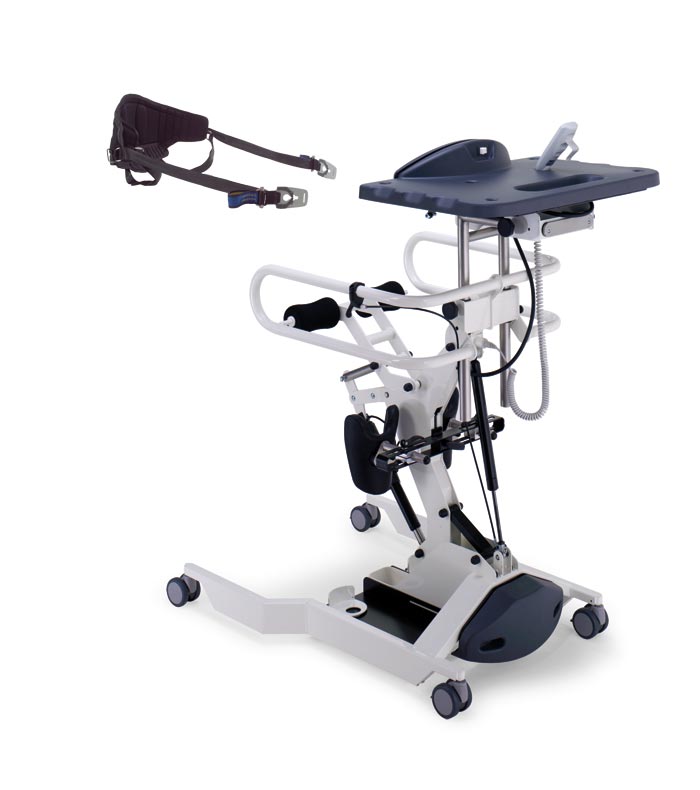

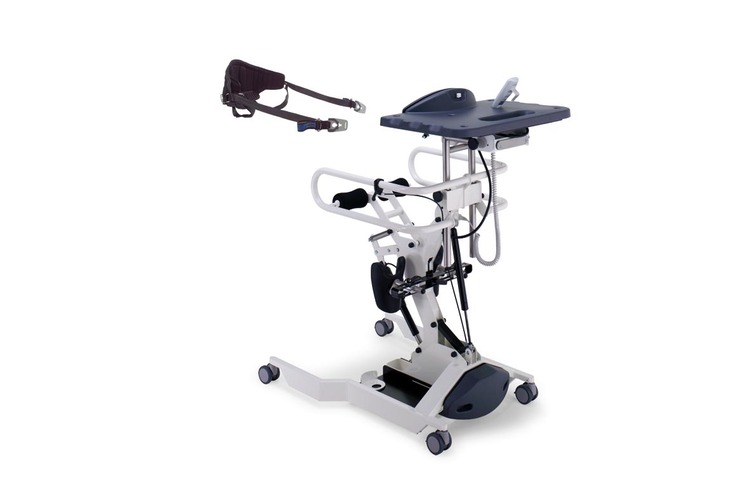

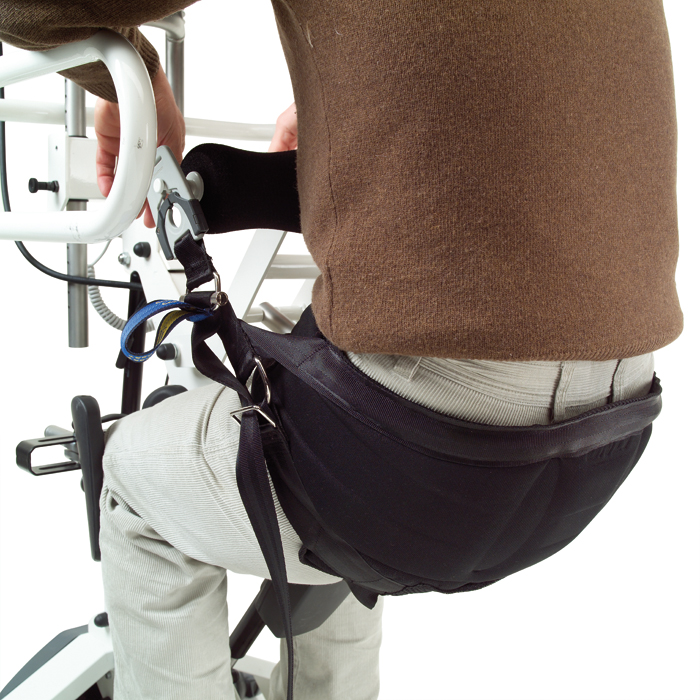

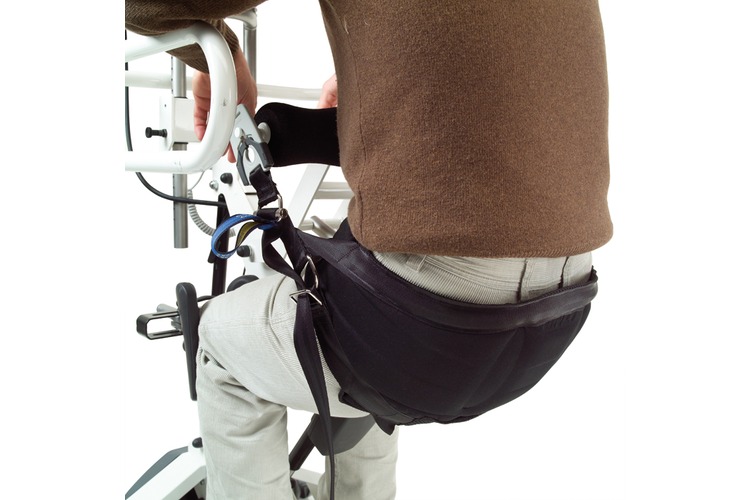

The clip harness comes with the standing aid. It is made from anti-slip material and can be easily put on the patient.
Accessories

Accessories

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.

Foot Strap

AC0047
Foot strap to stabilize the feet on the plates.

Stability Grip

AC0440
Stability grip for more stability in case of specific needs.

Back Strap

AC0783
Back restraint strap. Applied by an assistant. One size only.

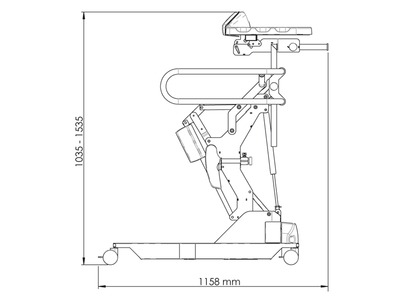

Technical Spec.

Technical Spec.

Weight:
kg 64
Maximum load:
kg 140
User height:
min 140 cm - max 200 cm
Power-assisted lift:
electric
Structure height adjustment:
electric
Overload protection:
electronic
Overload indicator:
acoustic and visual
Parking brake:
on all 4 casters
Frame height from ground:
31 mm
Operation time (lift):
about 30 lift cycles with user weighing 140 kg and charged batteries
Average battery charging time:
6 - 8 hours
Battery charging level:
multi-color display on equipment
Auto off:
as standard
Fault diagnostic and maintenance:
on display
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0399915
Video

Video

Documents

Documents


Le regolazioni della serie STAND UP

Brochure
Language: Italian
DOWNLOAD
PDF 525.04 KB

STAND UP 5 3 1 0

Brochure
Language: Italian
DOWNLOAD
PDF 535.21 KB

Leaflet STAND UP

Brochure
Language: Italian
DOWNLOAD
PDF 486.17 KB

Adjustments of the STAND UP Series

Brochure
Language: English
DOWNLOAD
PDF 530.3 KB

STAND UP 5 3 1 0

Brochure
Language: English
DOWNLOAD
PDF 526.11 KB

STAND UP Leaflet

Brochure
Language: English
DOWNLOAD
PDF 460.67 KB

STAND UP Leaflet

Brochure
Language: French
DOWNLOAD
PDF 499.11 KB

AV115310 - User and maintenance manual

User and Maintenance Manual
Language: French
DOWNLOAD
PDF 684.37 KB
Register to access the content

STAND UP Leaflet

Brochure
Language: Spanish
DOWNLOAD
PDF 465.14 KB

AV115310 - User and maintenance manual

User and Maintenance Manual
Language: Spanish
DOWNLOAD
PDF 672.3 KB
Register to access the content

STAND UP Leaflet

Brochure
Language: German
DOWNLOAD
PDF 466.66 KB

AV115310 - User and maintenance manual

User and Maintenance Manual
Language: German
DOWNLOAD
PDF 666.48 KB
Register to access the content

STAND UP Leaflet

Brochure
Language: Dutch
DOWNLOAD
PDF 624.47 KB

AV115310 - User and maintenance manual

User and Maintenance Manual
Language: Dutch
DOWNLOAD
PDF 672.89 KB
Register to access the content

STAND UP Leaflet

Brochure
Language: Polish
DOWNLOAD
PDF 659.98 KB

AV115310 - User and maintenance manual

User and Maintenance Manual
Language: English/Italian
DOWNLOAD
PDF 2.16 MB
Register to access the content

AV115310 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 176.79 KB
Register to access the content
