STAND UP 4 2 1 0

A
V
1
1
4
2
1
0
Quantity:

Description



WARNING!

  The AV114210 model was replaced by the new product configuration AV3121A2213G, for a new equivalence you must add this accessory adjustable heelrests (AC0686), no longer standard. For accessories, we invite you to take vision of applicable accessories and options available in chapter 6 of the international edition catalogue.






Gas spring height adjustment, gas spring lift and elongated seat.

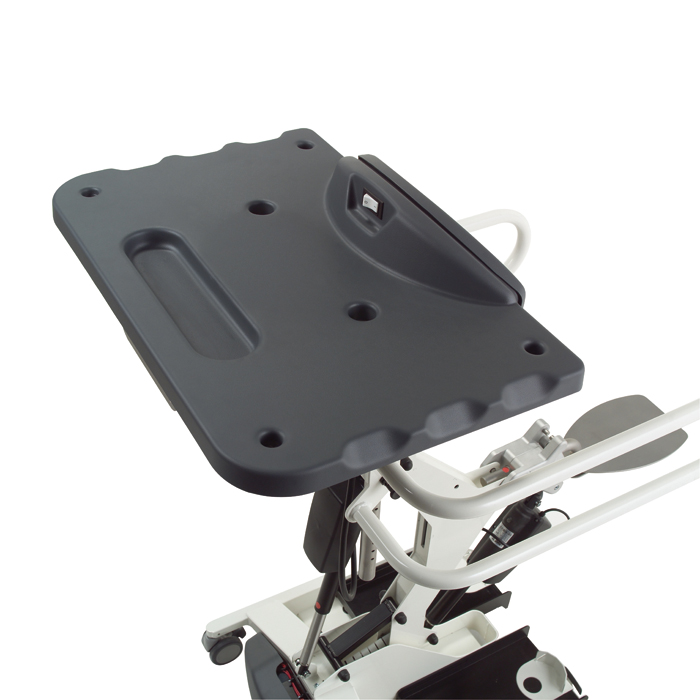

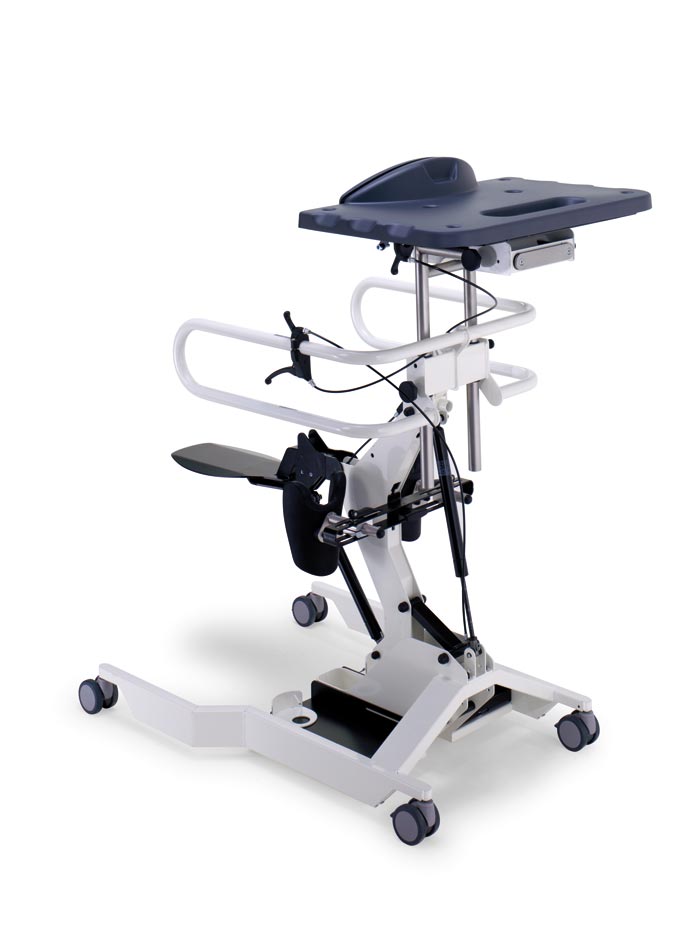

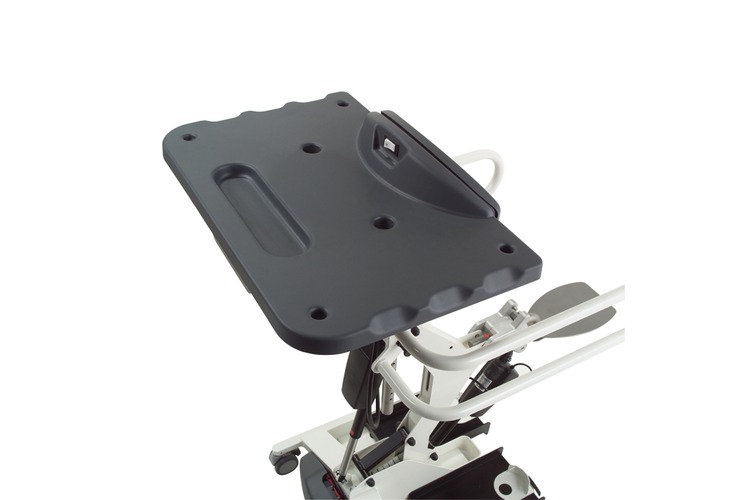

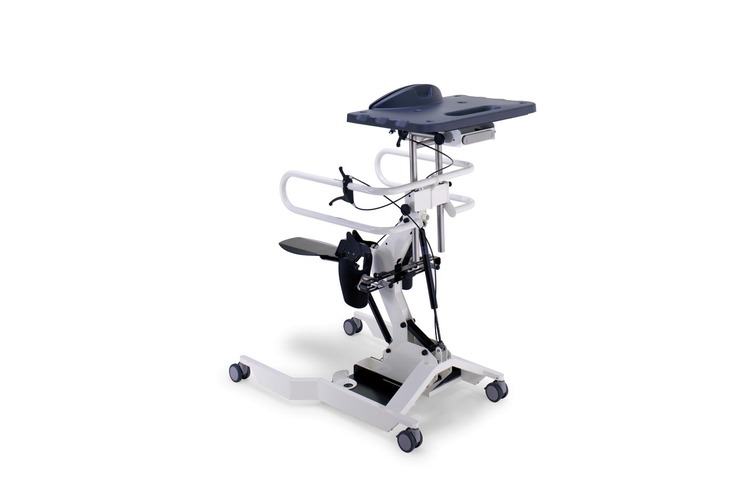

This device enables the user to assume and maintain an upright position, and to move indoors assisted by a carer.  Standing up is partially assisted by a gas strut system which ensure a sufficient push from under the seat to partially reduce the weight to be lifted by the user. It features large handles to give support when standing up, as well as a wide tray to hold objects. A series of adjustments facilitate accessibility and allow the aid to be adapted to the user's morphological characteristics.

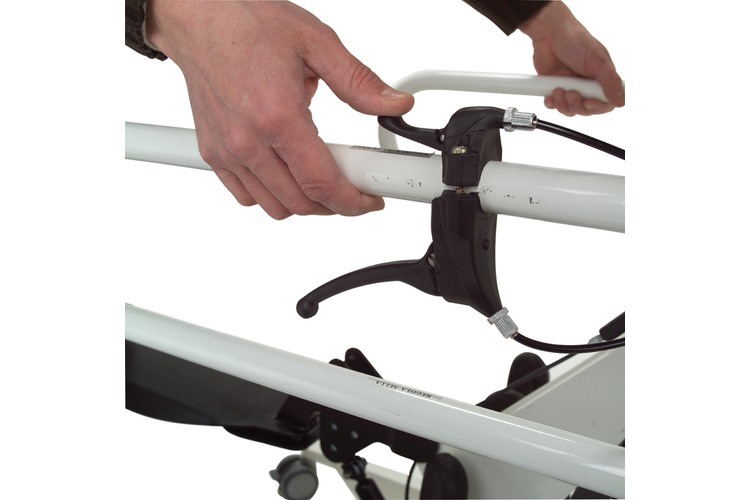

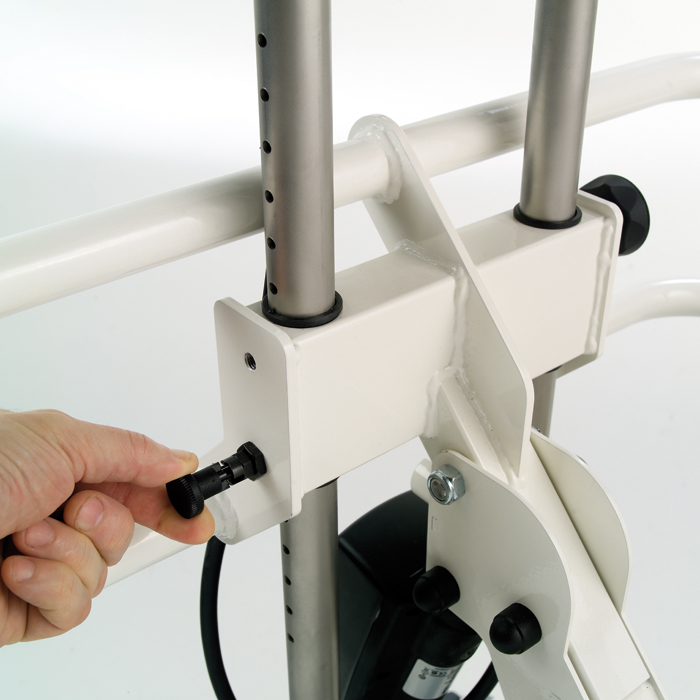

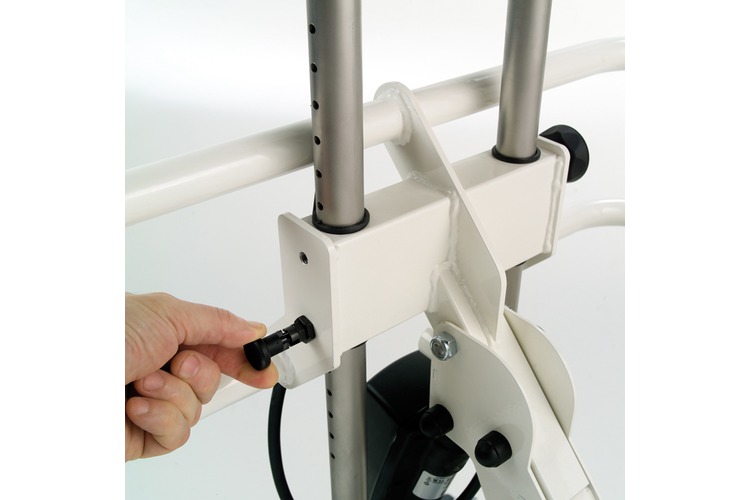

In particular, the main body can adjust to the user's height by means of a gas spring assisted system.

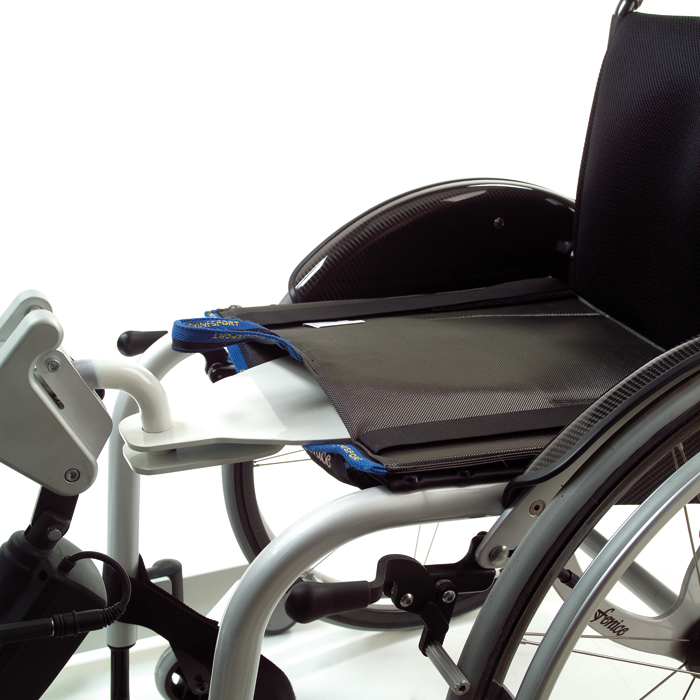

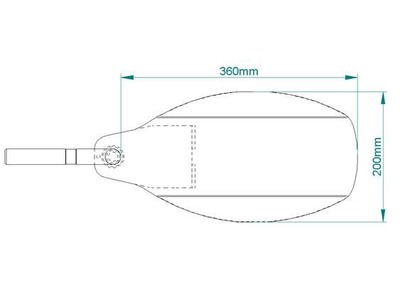

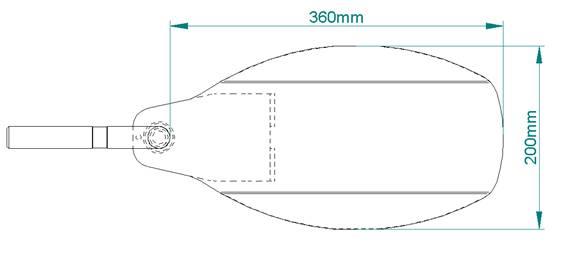

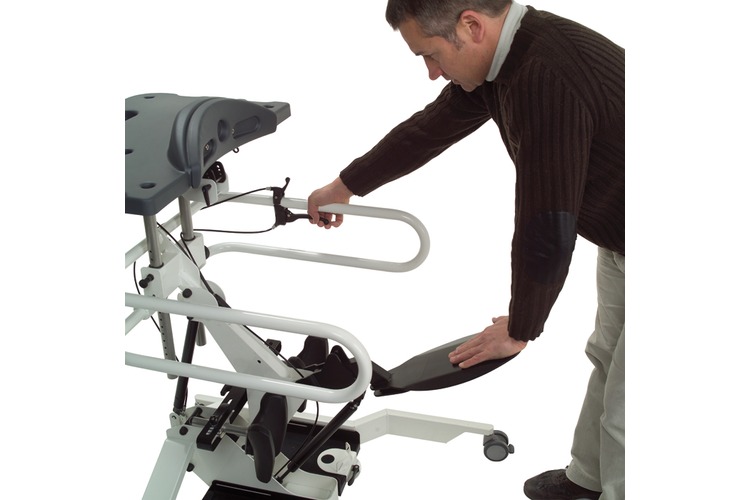

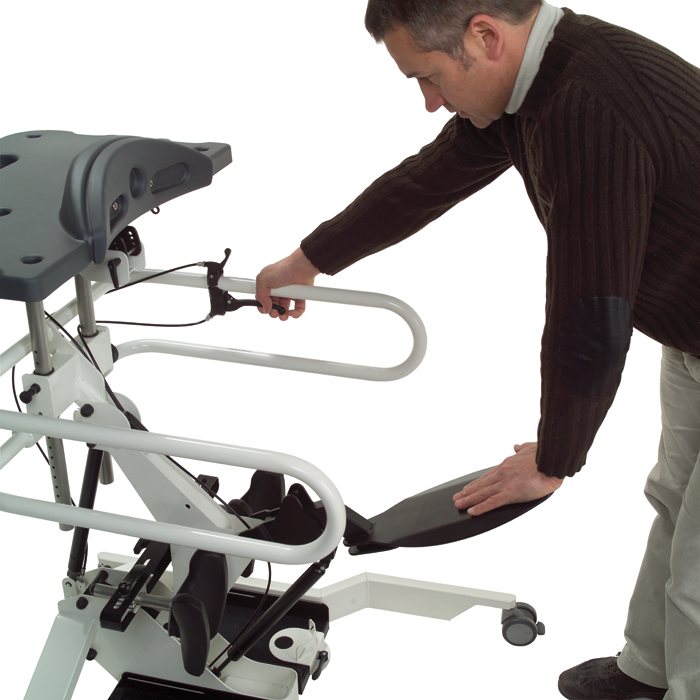

The seat is elongated and fixed. This type of seat is designed to help the user transfer from the wheelchair to the standing aid.

Accessories

Accessories

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.

Foot Strap

AC0047
Foot strap to stabilize the feet on the plates.

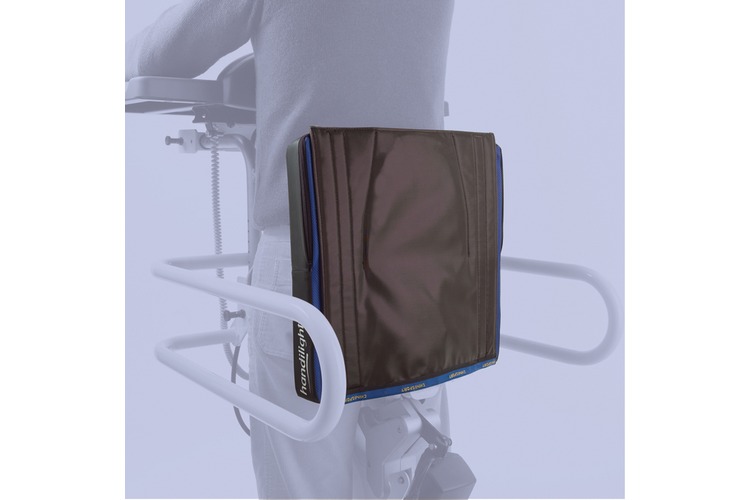

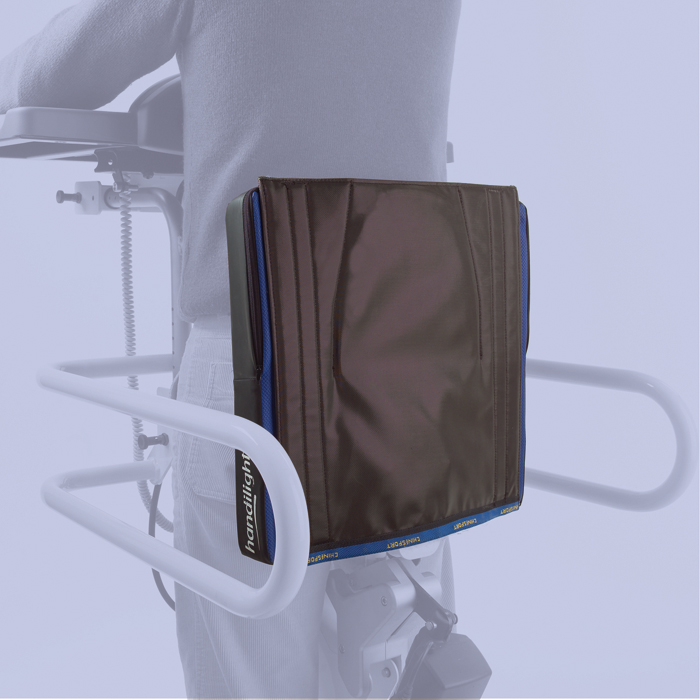

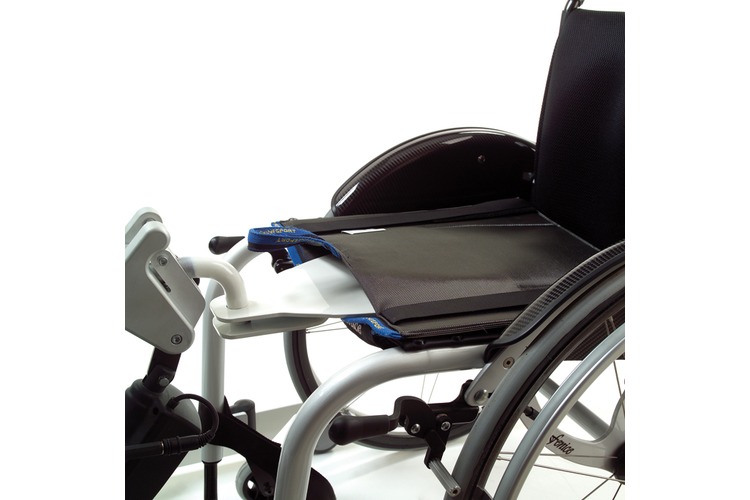

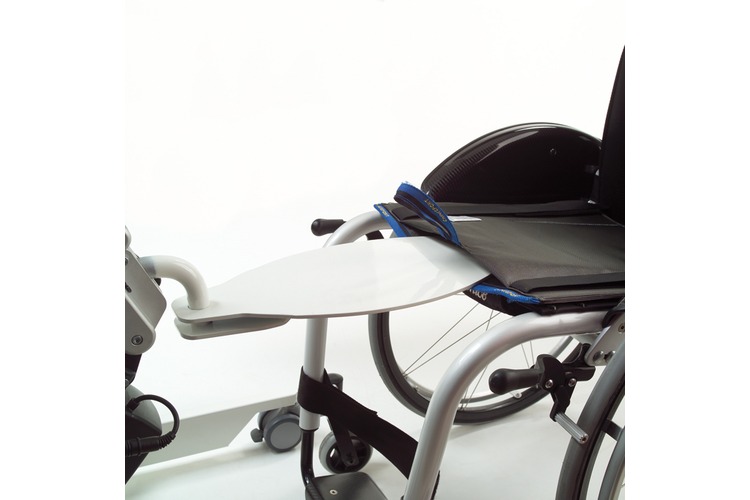

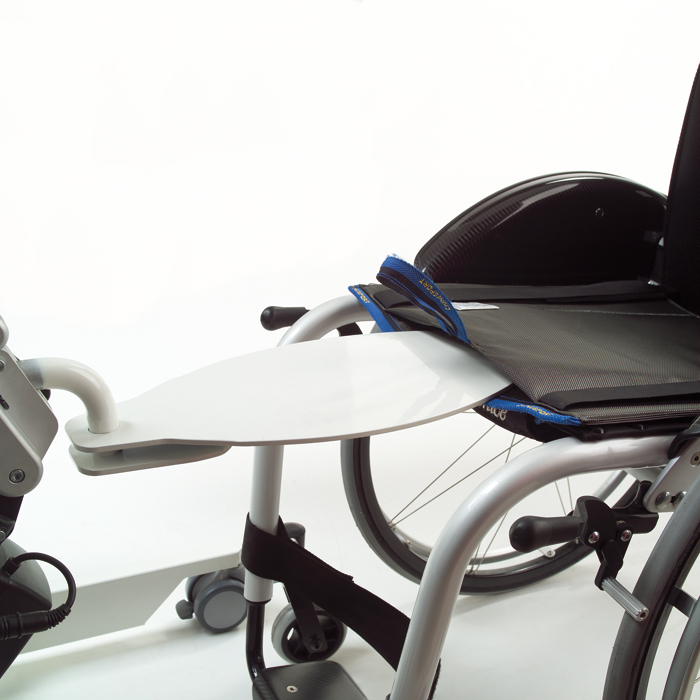

Pocket For Long Seat

AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.

Stability Grip

AC0440
Stability grip for more stability in case of specific needs.

Long Seat Padding

AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.

Back Strap

AC0783
Back restraint strap. Applied by an assistant. One size only.
Technical Spec.

Technical Spec.

Weight:
58 kg
Maximum load:
140 kg
User height:
min 140 cm - max 200 cm
Servo-assisted lift:
gas
Structure height adjustment:
gas
Parking brake:
on all 4 casters
Frame height from ground:
31 mm
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0399724
